PostgreSQL Extensions: A deeper look

Postgres Conference 2019
PostgreSQL Extensions
- A Deeper Dive
Amazon RDS for PostgreSQL
Jignesh Shah

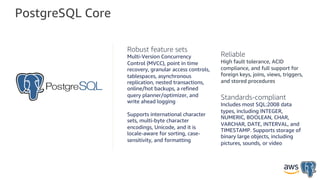

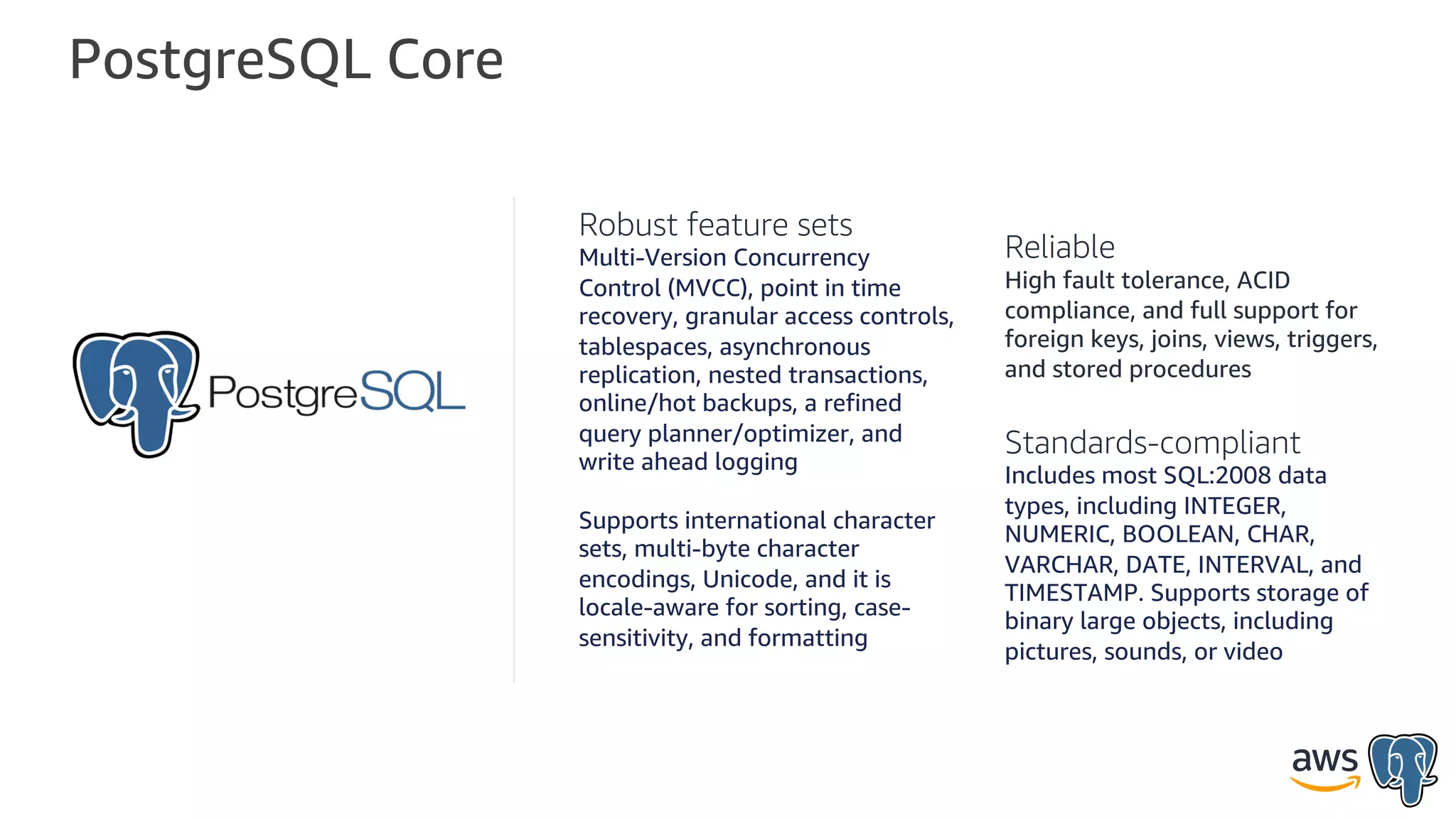

PostgreSQL Core
Robust feature sets
Multi-Version Concurrency
Control (MVCC), point in time
recovery, granular access controls,
tablespaces, asynchronous
replication, nested transactions,
online/hot backups, a refined
query planner/optimizer, and
write ahead logging
Supports international character
sets, multi-byte character
encodings, Unicode, and it is
locale-aware for sorting, case-
sensitivity, and formatting
Reliable
High fault tolerance, ACID
compliance, and full support for
foreign keys, joins, views, triggers,
and stored procedures
Standards-compliant
Includes most SQL:2008 data
types, including INTEGER,
NUMERIC, BOOLEAN, CHAR,
VARCHAR, DATE, INTERVAL, and
TIMESTAMP. Supports storage of
binary large objects, including
pictures, sounds, or video

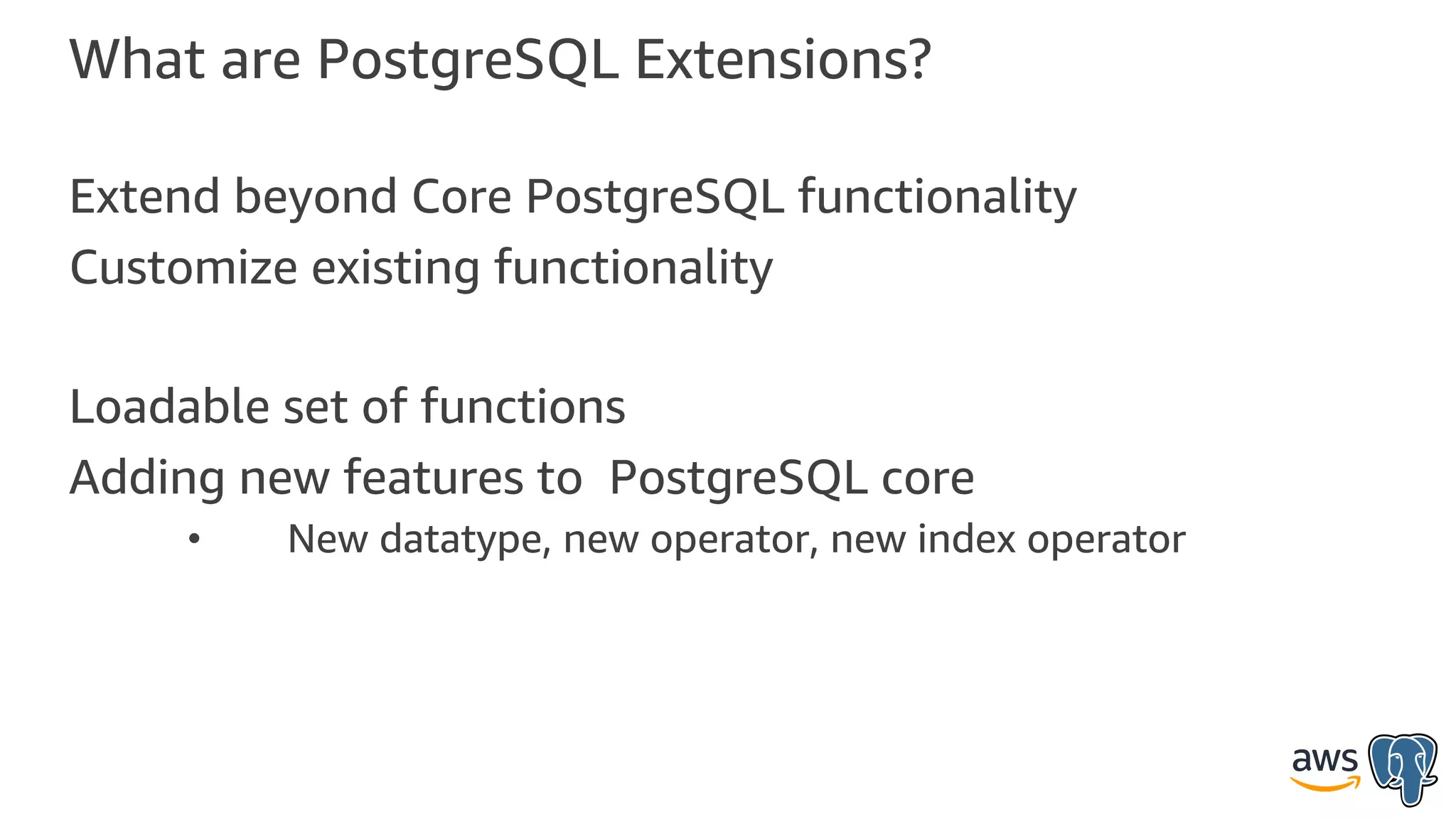

What are PostgreSQL Extensions?
Extend beyond Core PostgreSQL functionality
Customize existing functionality
Loadable set of functions
Adding new features to PostgreSQL core
• New datatype, new operator, new index operator

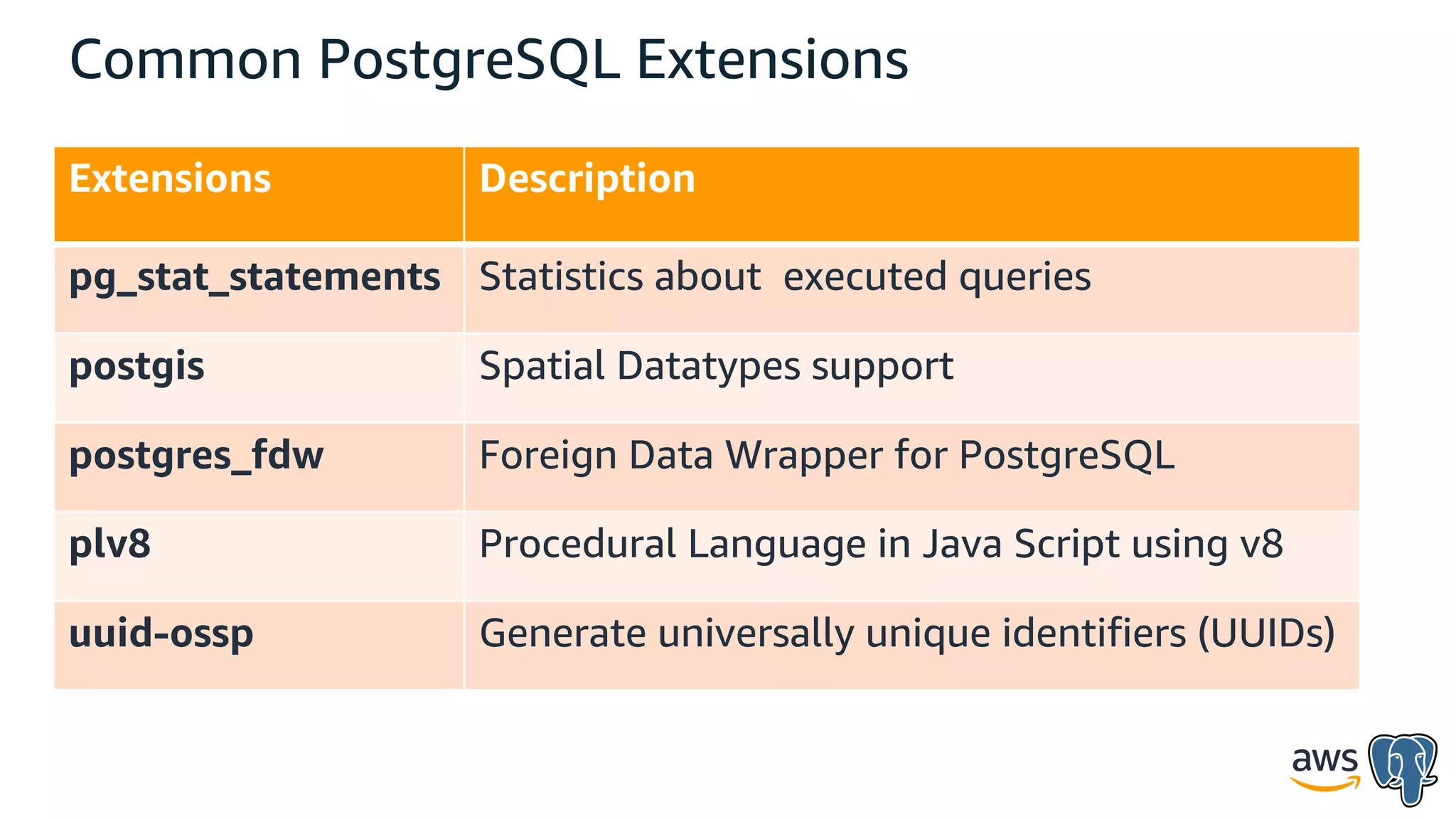

Common PostgreSQL Extensions
Extensions Description
pg_stat_statements Statistics about executed queries
postgis Spatial Datatypes support
postgres_fdw Foreign Data Wrapper for PostgreSQL
plv8 Procedural Language in Java Script using v8
uuid-ossp Generate universally unique identifiers (UUIDs)

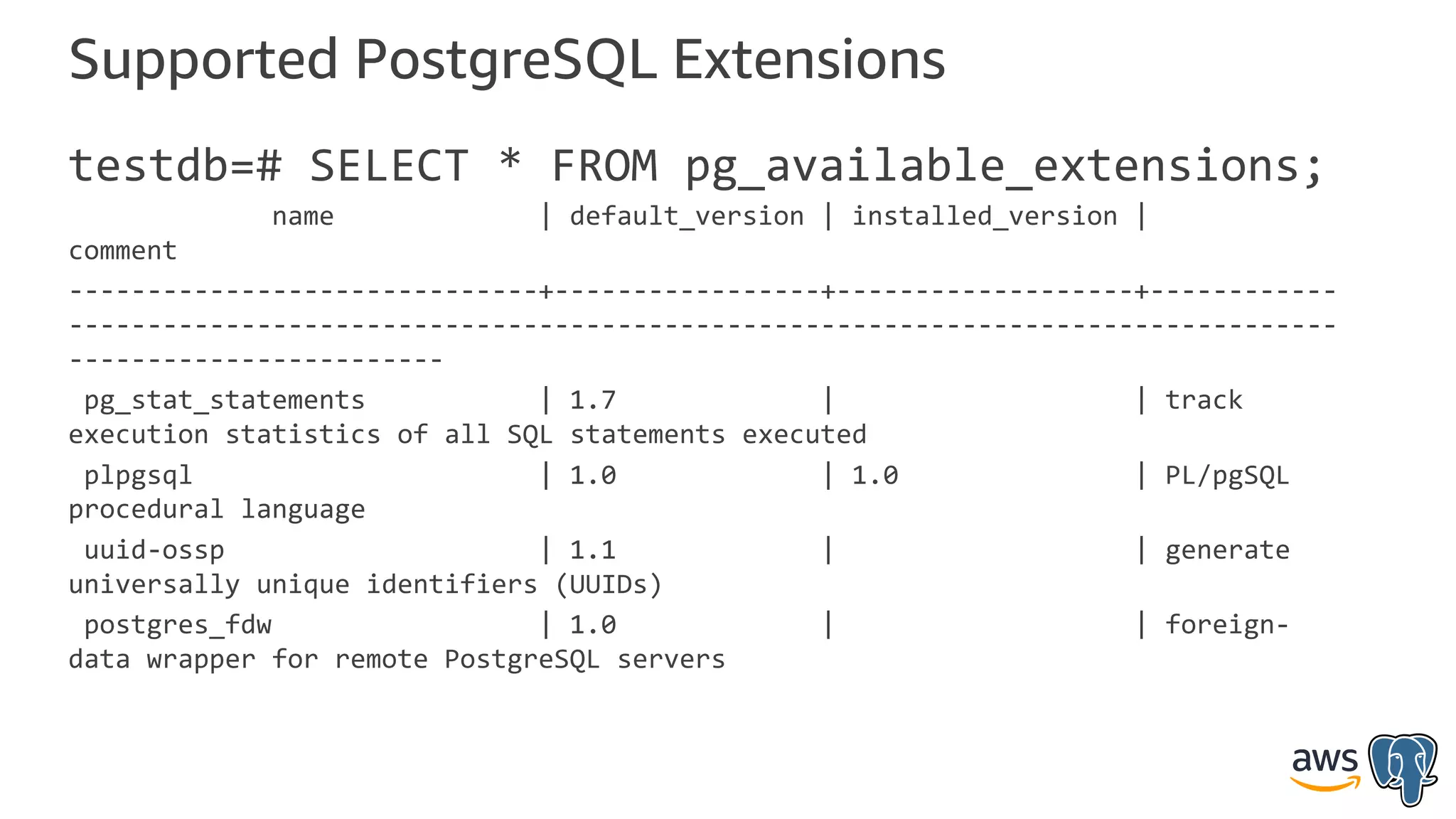

Supported PostgreSQL Extensions
testdb=# SELECT * FROM pg_available_extensions;
name | default_version | installed_version |
comment
------------------------------+-----------------+-------------------+------------
---------------------------------------------------------------------------------
------------------------
pg_stat_statements | 1.7 | | track
execution statistics of all SQL statements executed
plpgsql | 1.0 | 1.0 | PL/pgSQL
procedural language
uuid-ossp | 1.1 | | generate
universally unique identifiers (UUIDs)
postgres_fdw | 1.0 | | foreign-
data wrapper for remote PostgreSQL servers

Using PostgreSQL Extension
testdb=# CREATE EXTENSION pg_stat_statements;
…
testdb=> select total_time, query from pg_stat_statements ORDER BY total_time
DESC LIMIT 3;
total_time | query
--------------------+------------------------------------------------------------
---------------------------------
12021.36151499999 | UPDATE pgbench_branches SET bbalance = bbalance + $1 WHERE
bid = $2
4912.441237999993 | SELECT count(*) FROM information_schema.tables WHERE
table_catalog = $1 and table_name = $2
2569.5024149999663 | UPDATE pgbench_tellers SET tbalance = tbalance + $1 WHERE
tid = $2
(3 rows)

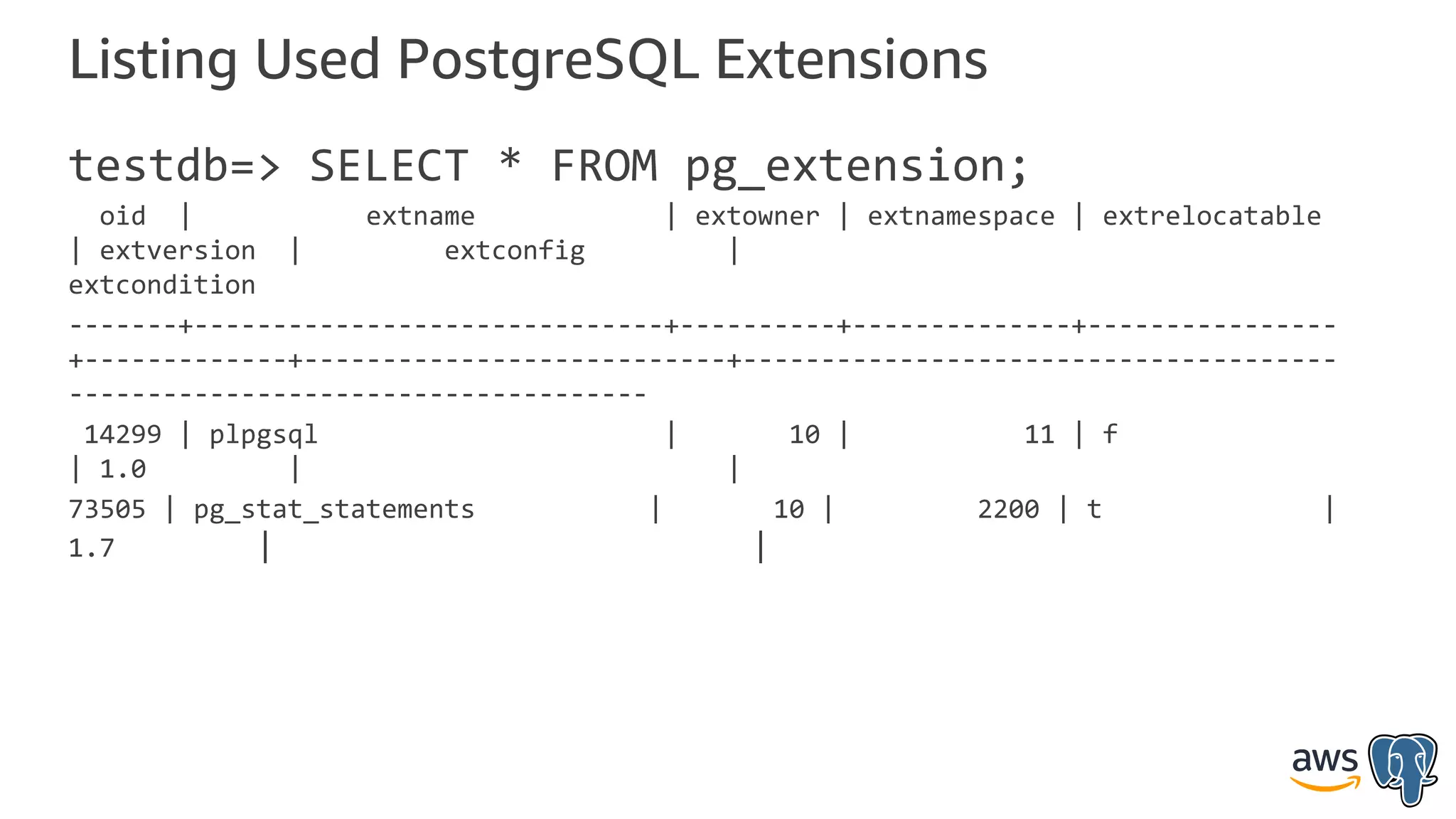

Listing Used PostgreSQL Extensions
testdb=> SELECT * FROM pg_extension;
oid | extname | extowner | extnamespace | extrelocatable
| extversion | extconfig |
extcondition
-------+------------------------------+----------+--------------+----------------
+-------------+---------------------------+--------------------------------------
-------------------------------------
14299 | plpgsql | 10 | 11 | f
| 1.0 | |
73505 | pg_stat_statements | 10 | 2200 | t |
1.7 | |

Upgrade and Removing PostgreSQL Extensions
Upgrade extension
• ALTER EXTENSION name UPDATE;
• ALTER EXTENSION name UPDATE TO ‘2.5.2’;
Remove extension
Unsafe
• DROP EXTENSION name CASCADE;
Safe
• DROP EXTENSION name;

PostgreSQL Loadable Modules
Similar to extensions but only need to be loaded
C Functions are automatically loaded
LOAD is needed that modifies server behavior with hooks
• Non-superusers can only apply LOAD to library files
located in $libdir/plugins/
Example: auto_explain

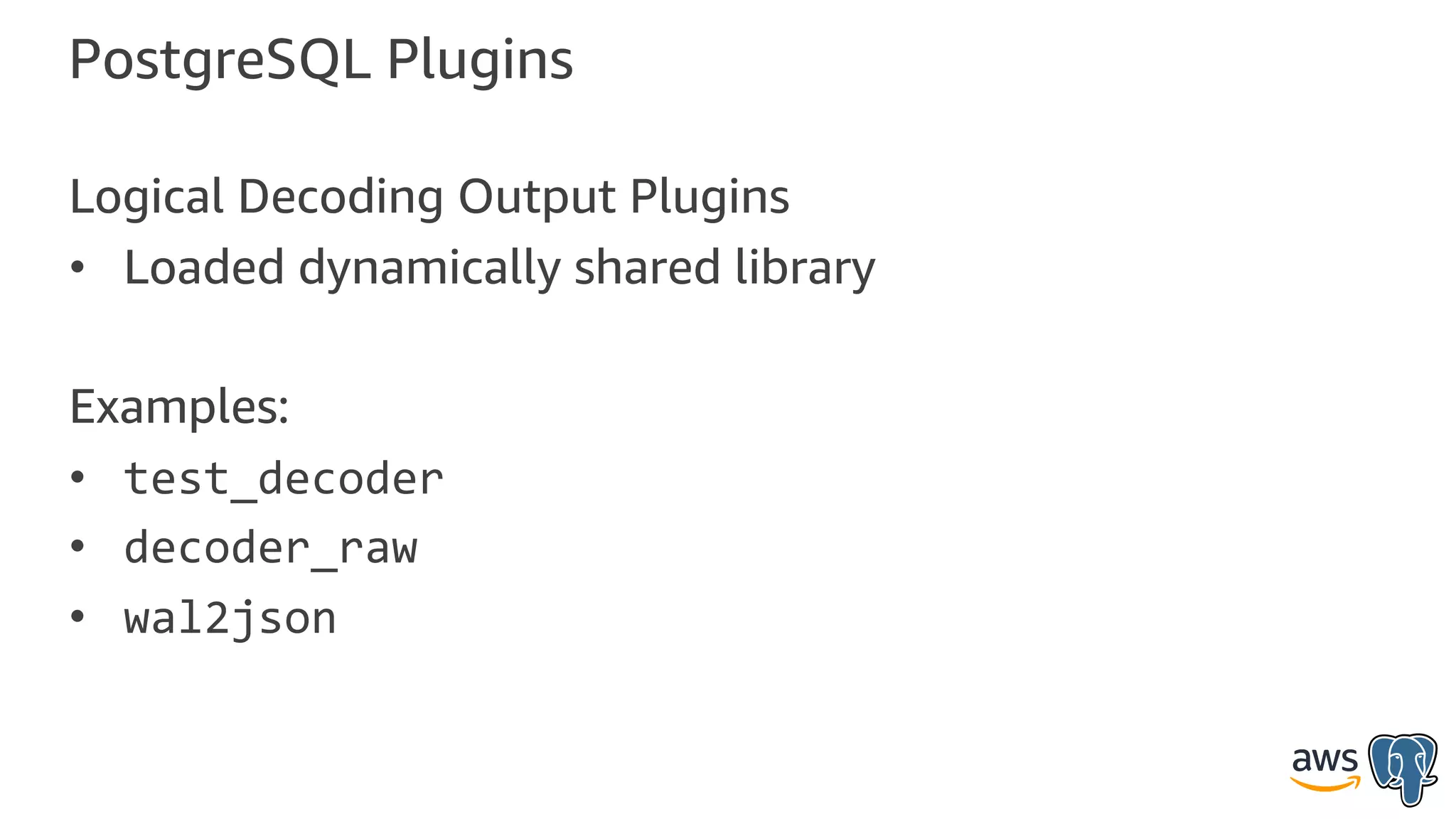

PostgreSQL Plugins
Logical Decoding Output Plugins
• Loaded dynamically shared library
Examples:
• test_decoder
• decoder_raw
• wal2json

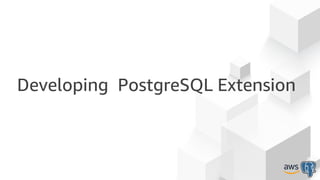

Developing PostgreSQL Extension

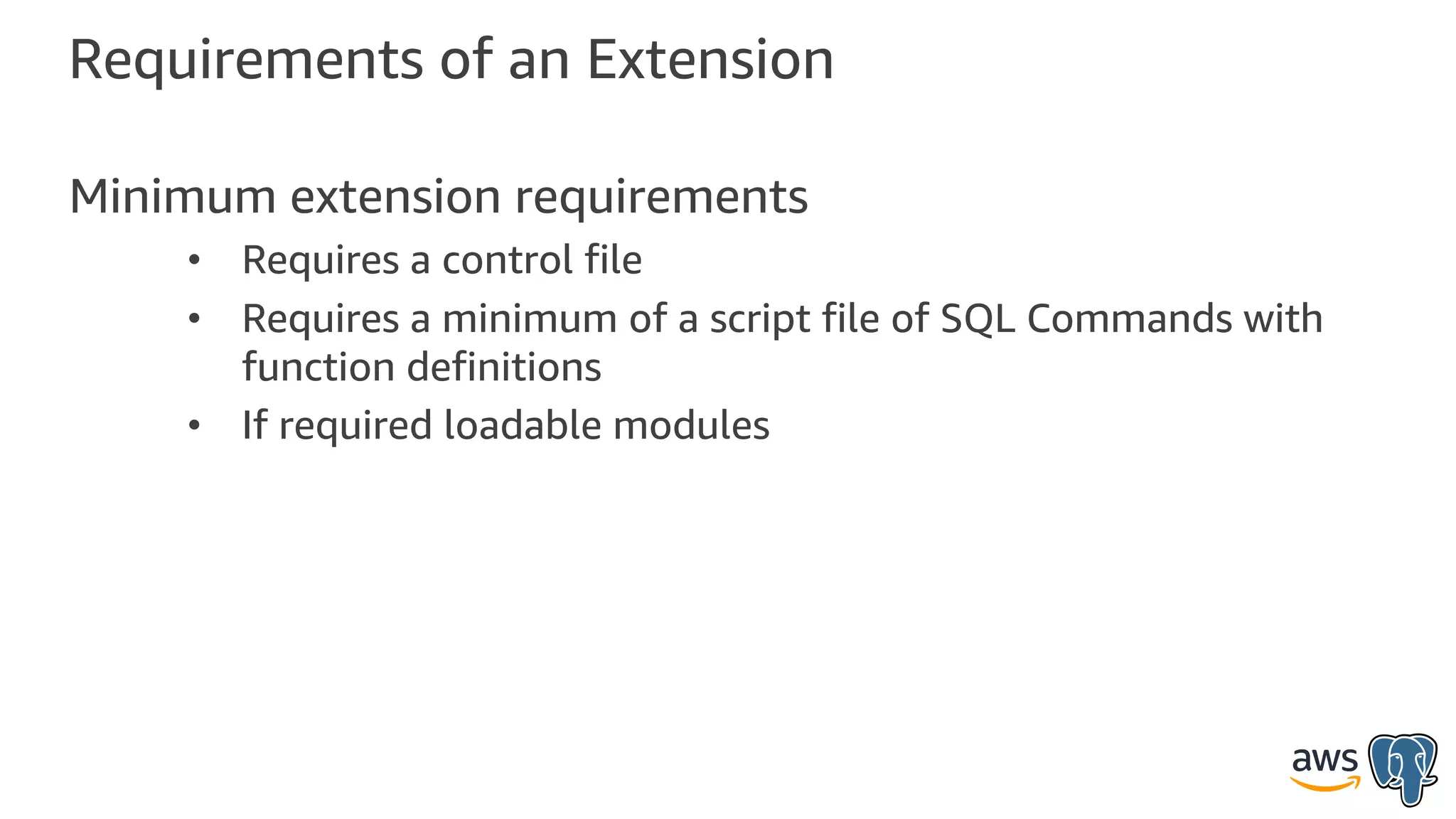

Requirements of an Extension
Minimum extension requirements
• Requires a control file
• Requires a minimum of a script file of SQL Commands with
function definitions
• If required loadable modules

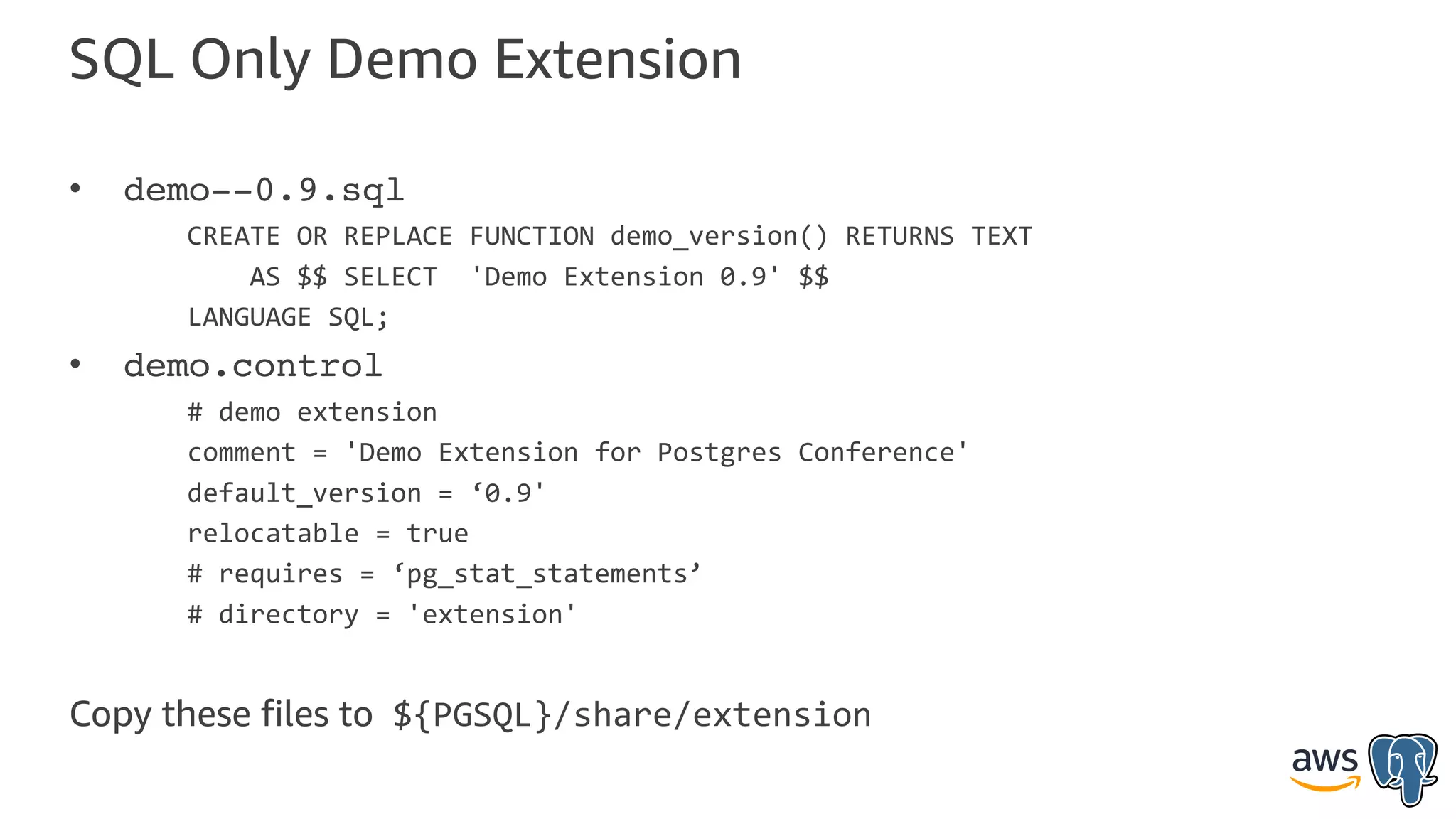

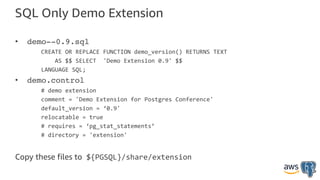

SQL Only Demo Extension
• demo--0.9.sql
CREATE OR REPLACE FUNCTION demo_version() RETURNS TEXT
AS $$ SELECT 'Demo Extension 0.9' $$
LANGUAGE SQL;
• demo.control
# demo extension
comment = 'Demo Extension for Postgres Conference'
default_version = ‘0.9'
relocatable = true
# requires = ‘pg_stat_statements’
# directory = 'extension'
Copy these files to ${PGSQL}/share/extension

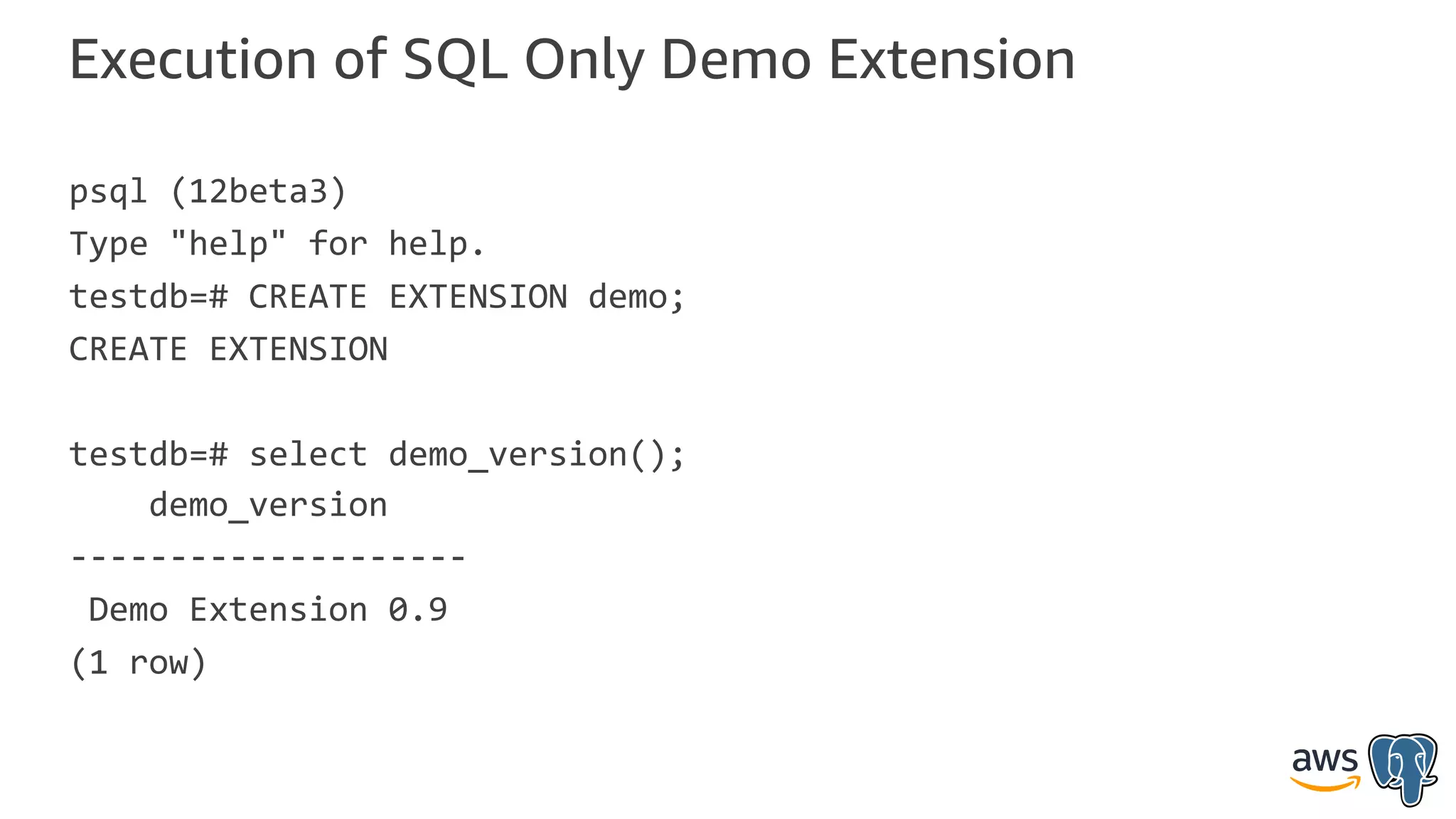

Execution of SQL Only Demo Extension
psql (12beta3)
Type "help" for help.
testdb=# CREATE EXTENSION demo;
CREATE EXTENSION
testdb=# select demo_version();
demo_version
--------------------
Demo Extension 0.9
(1 row)

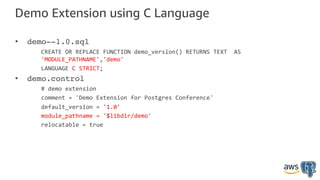

Demo Extension using C Language
• demo--1.0.sql
CREATE OR REPLACE FUNCTION demo_version() RETURNS TEXT AS
'MODULE_PATHNAME','demo'
LANGUAGE C STRICT;
• demo.control
# demo extension
comment = 'Demo Extension for Postgres Conference'
default_version = '1.0'
module_pathname = '$libdir/demo'
relocatable = true

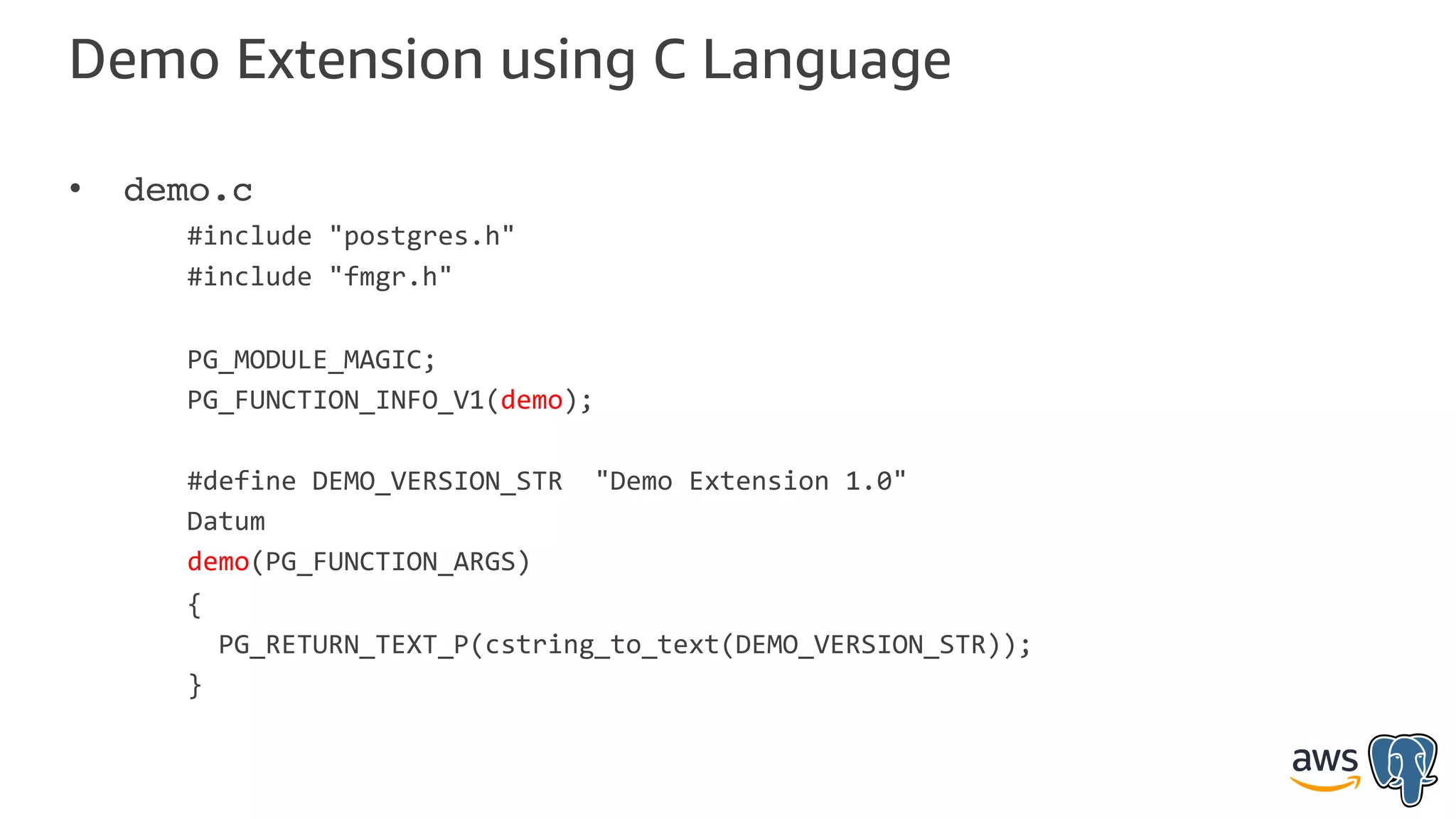

Demo Extension using C Language
• demo.c
#include "postgres.h"
#include "fmgr.h"
PG_MODULE_MAGIC;
PG_FUNCTION_INFO_V1(demo);
#define DEMO_VERSION_STR "Demo Extension 1.0"
Datum
demo(PG_FUNCTION_ARGS)
{
PG_RETURN_TEXT_P(cstring_to_text(DEMO_VERSION_STR));
}

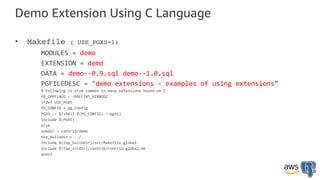

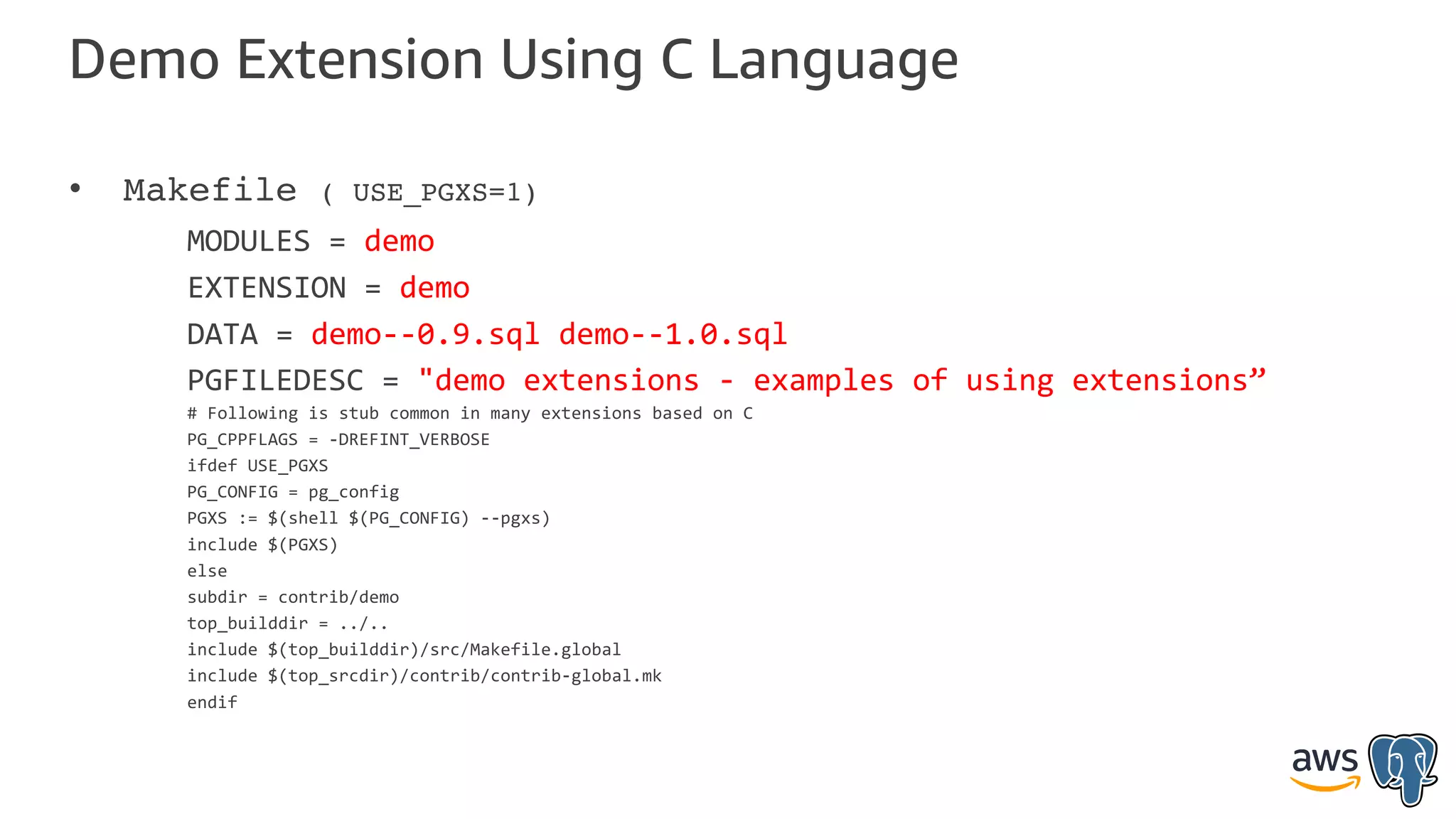

Demo Extension Using C Language
• Makefile ( USE_PGXS=1)
MODULES = demo
EXTENSION = demo
DATA = demo--0.9.sql demo--1.0.sql
PGFILEDESC = "demo extensions - examples of using extensions”
# Following is stub common in many extensions based on C
PG_CPPFLAGS = -DREFINT_VERBOSE
ifdef USE_PGXS
PG_CONFIG = pg_config
PGXS := $(shell $(PG_CONFIG) --pgxs)
include $(PGXS)
else
subdir = contrib/demo
top_builddir = ../..
include $(top_builddir)/src/Makefile.global
include $(top_srcdir)/contrib/contrib-global.mk
endif

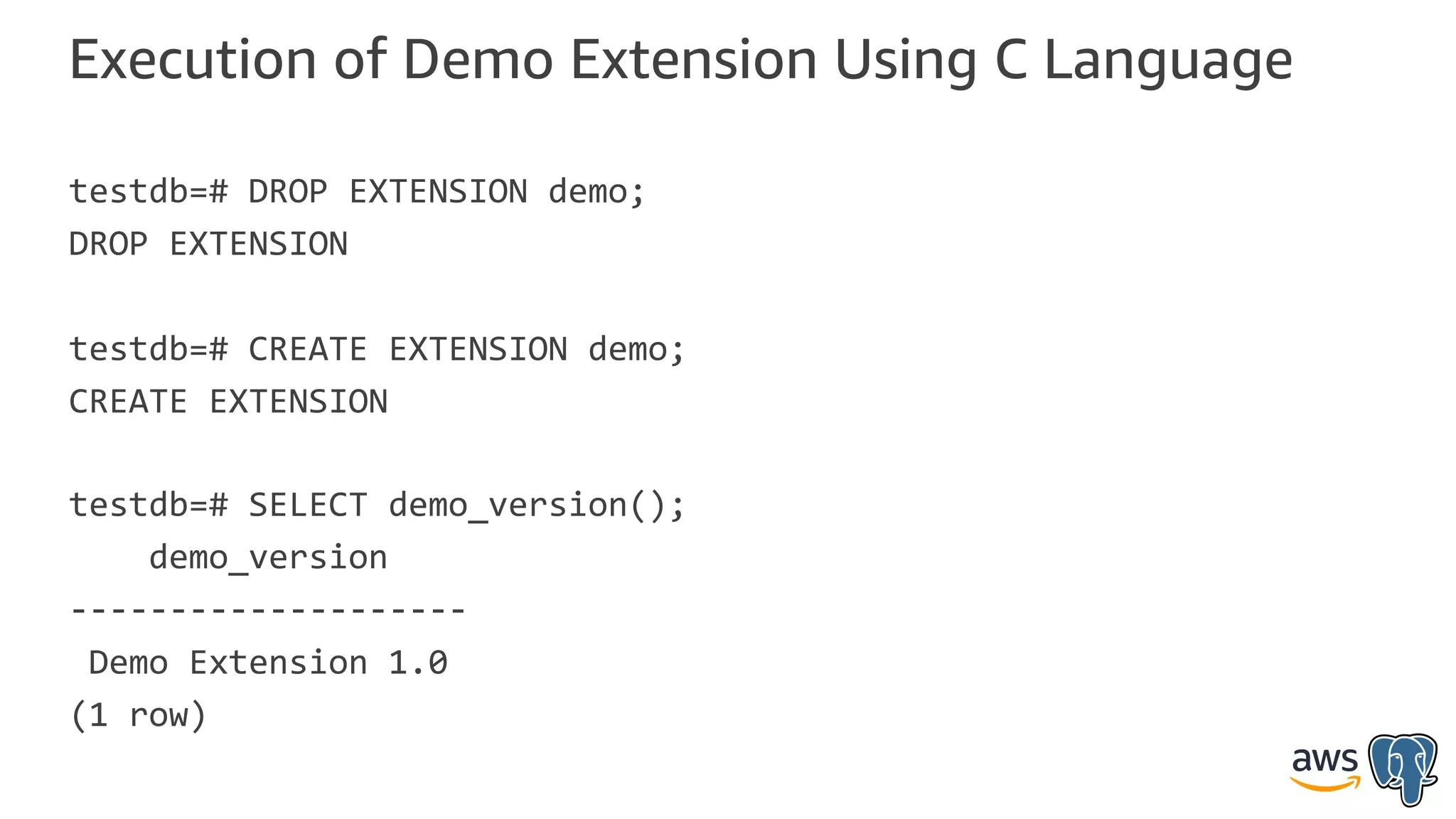

Execution of Demo Extension Using C Language
testdb=# DROP EXTENSION demo;
DROP EXTENSION
testdb=# CREATE EXTENSION demo;
CREATE EXTENSION
testdb=# SELECT demo_version();
demo_version
--------------------
Demo Extension 1.0
(1 row)

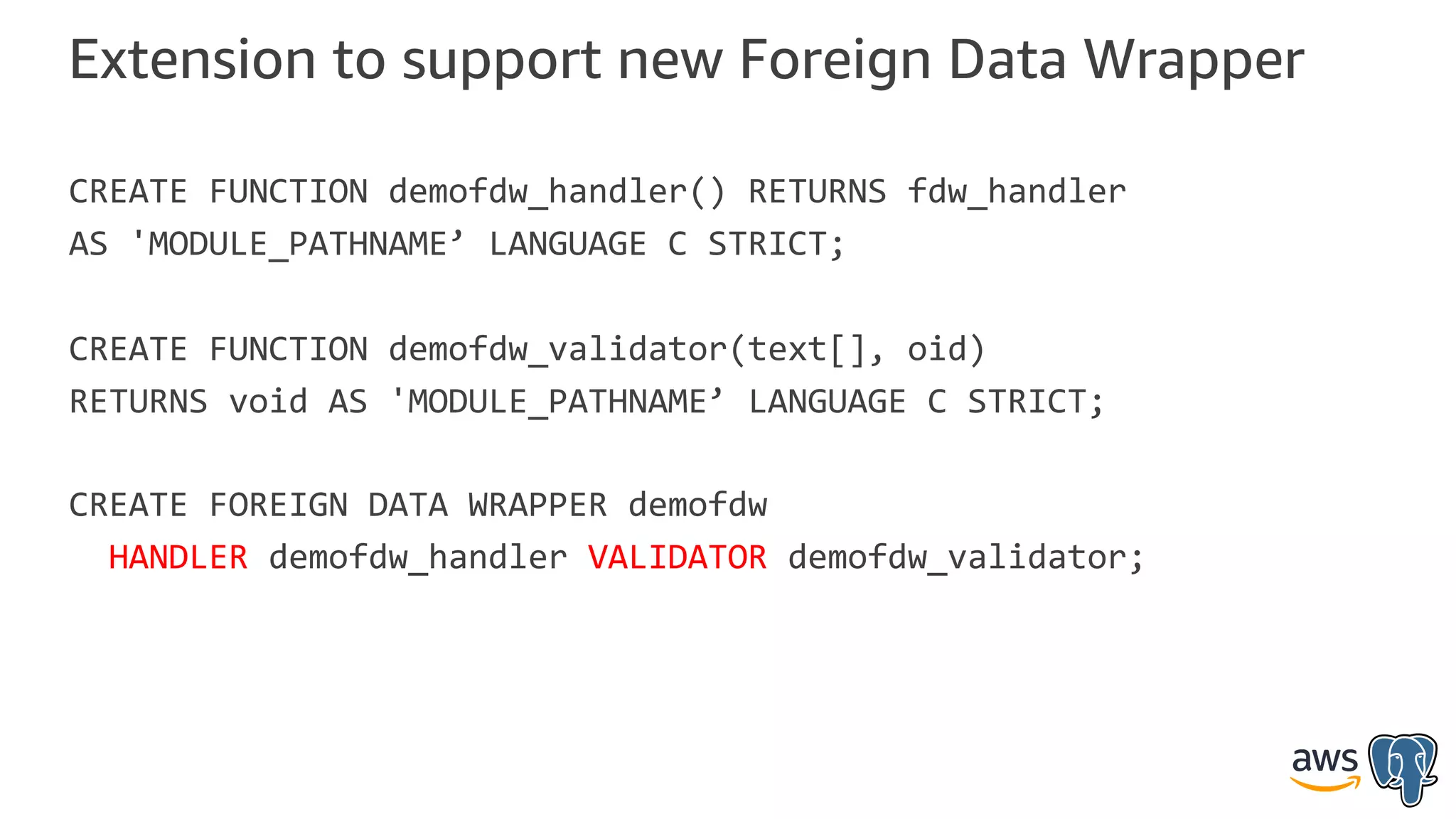

Extension to support new Foreign Data Wrapper
CREATE FUNCTION demofdw_handler() RETURNS fdw_handler
AS 'MODULE_PATHNAME’ LANGUAGE C STRICT;
CREATE FUNCTION demofdw_validator(text[], oid)
RETURNS void AS 'MODULE_PATHNAME’ LANGUAGE C STRICT;
CREATE FOREIGN DATA WRAPPER demofdw
HANDLER demofdw_handler VALIDATOR demofdw_validator;

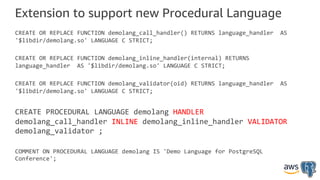

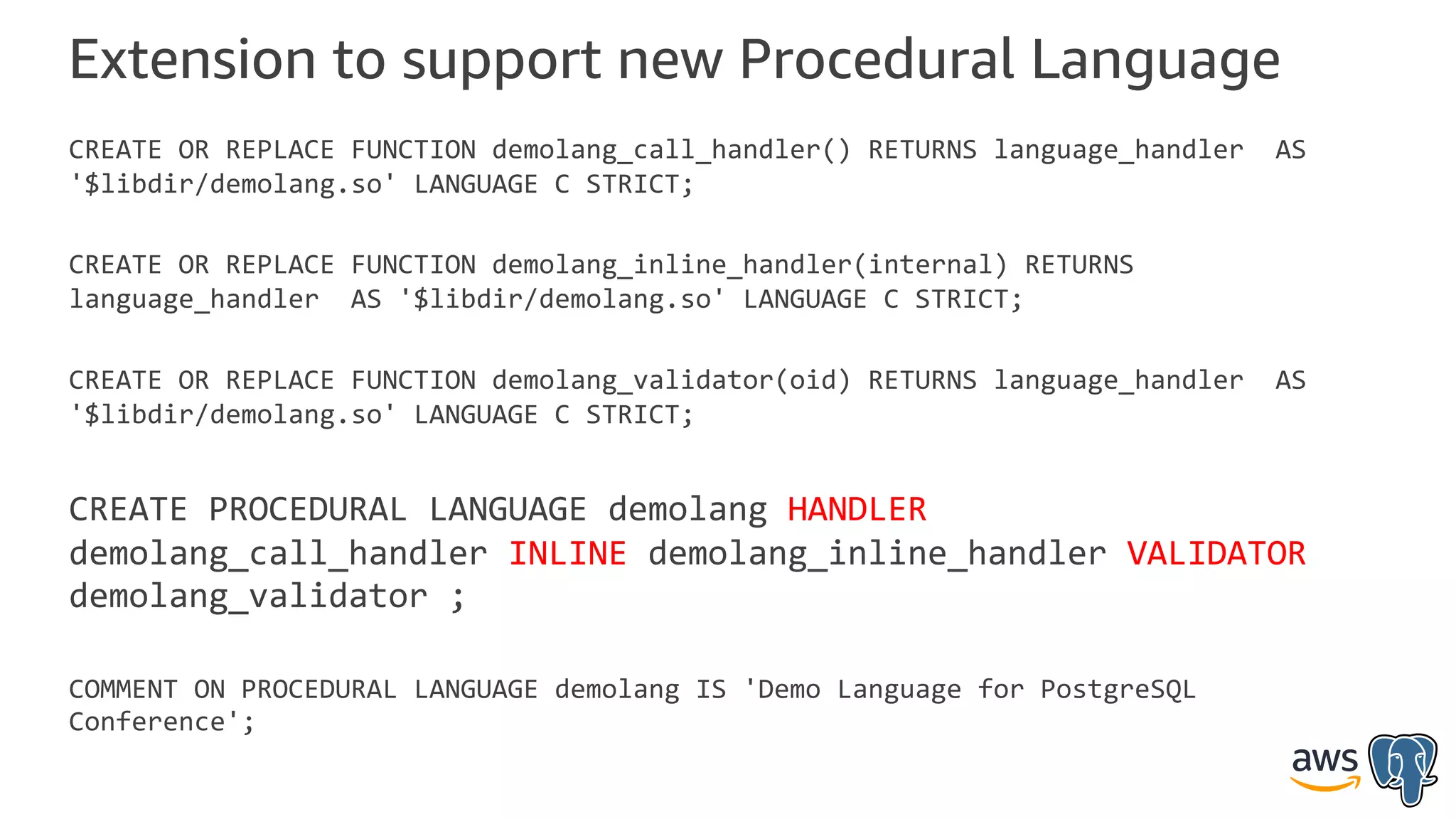

Extension to support new Procedural Language
CREATE OR REPLACE FUNCTION demolang_call_handler() RETURNS language_handler AS
'$libdir/demolang.so' LANGUAGE C STRICT;
CREATE OR REPLACE FUNCTION demolang_inline_handler(internal) RETURNS
language_handler AS '$libdir/demolang.so' LANGUAGE C STRICT;
CREATE OR REPLACE FUNCTION demolang_validator(oid) RETURNS language_handler AS
'$libdir/demolang.so' LANGUAGE C STRICT;
CREATE PROCEDURAL LANGUAGE demolang HANDLER
demolang_call_handler INLINE demolang_inline_handler VALIDATOR
demolang_validator ;
COMMENT ON PROCEDURAL LANGUAGE demolang IS 'Demo Language for PostgreSQL
Conference';

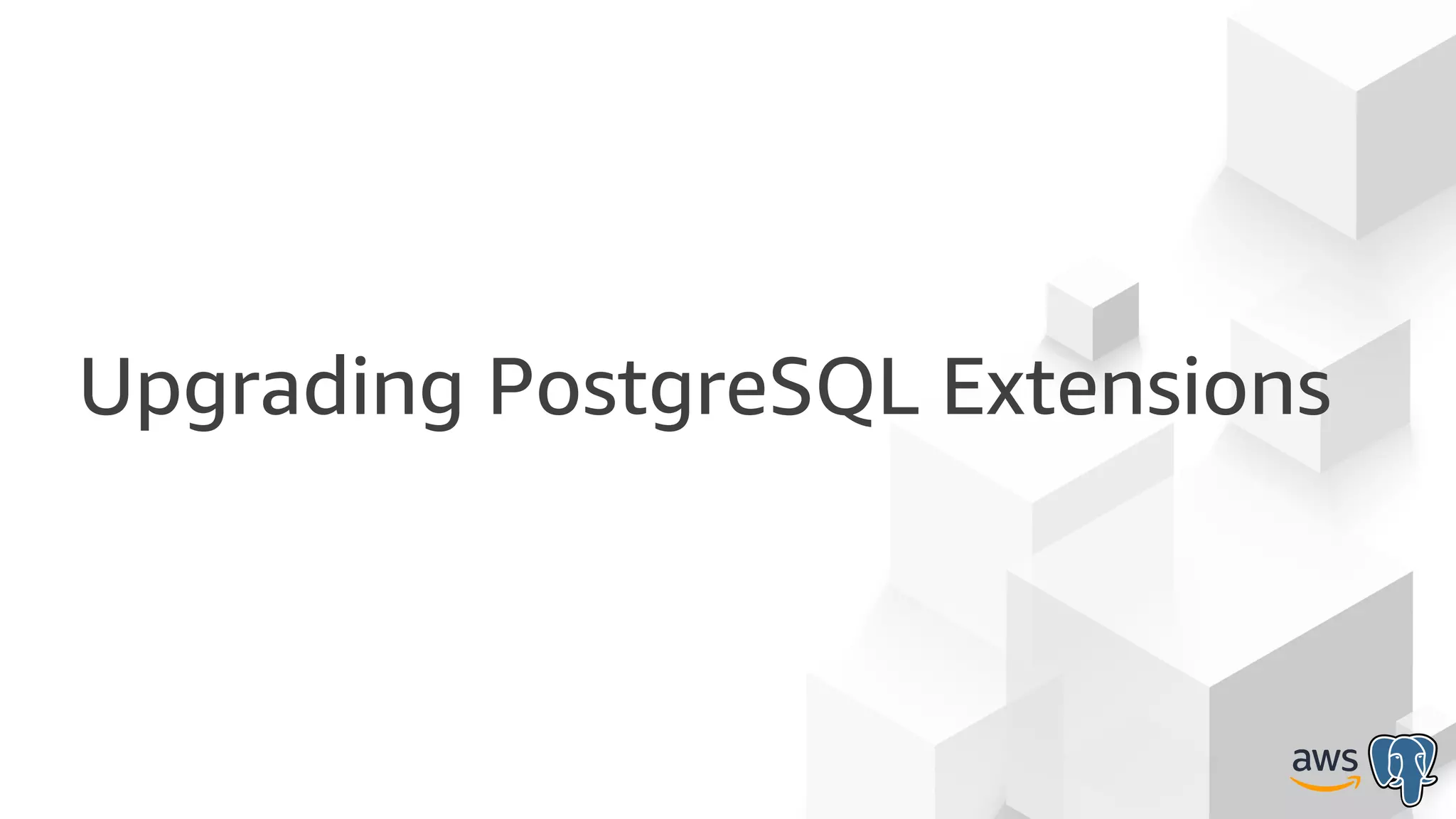

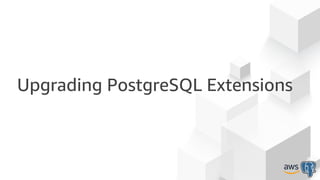

Upgrading PostgreSQL Extensions

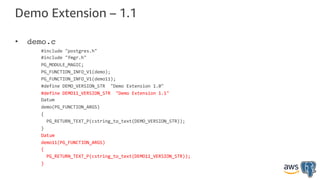

Demo Extension – 1.1
• demo.c
#include "postgres.h"
#include "fmgr.h"
PG_MODULE_MAGIC;
PG_FUNCTION_INFO_V1(demo);
PG_FUNCTION_INFO_V1(demo11);
#define DEMO_VERSION_STR "Demo Extension 1.0"
#define DEMO11_VERSION_STR "Demo Extension 1.1"
Datum
demo(PG_FUNCTION_ARGS)
{
PG_RETURN_TEXT_P(cstring_to_text(DEMO_VERSION_STR));
}
Datum
demo11(PG_FUNCTION_ARGS)
{
PG_RETURN_TEXT_P(cstring_to_text(DEMO11_VERSION_STR));
}

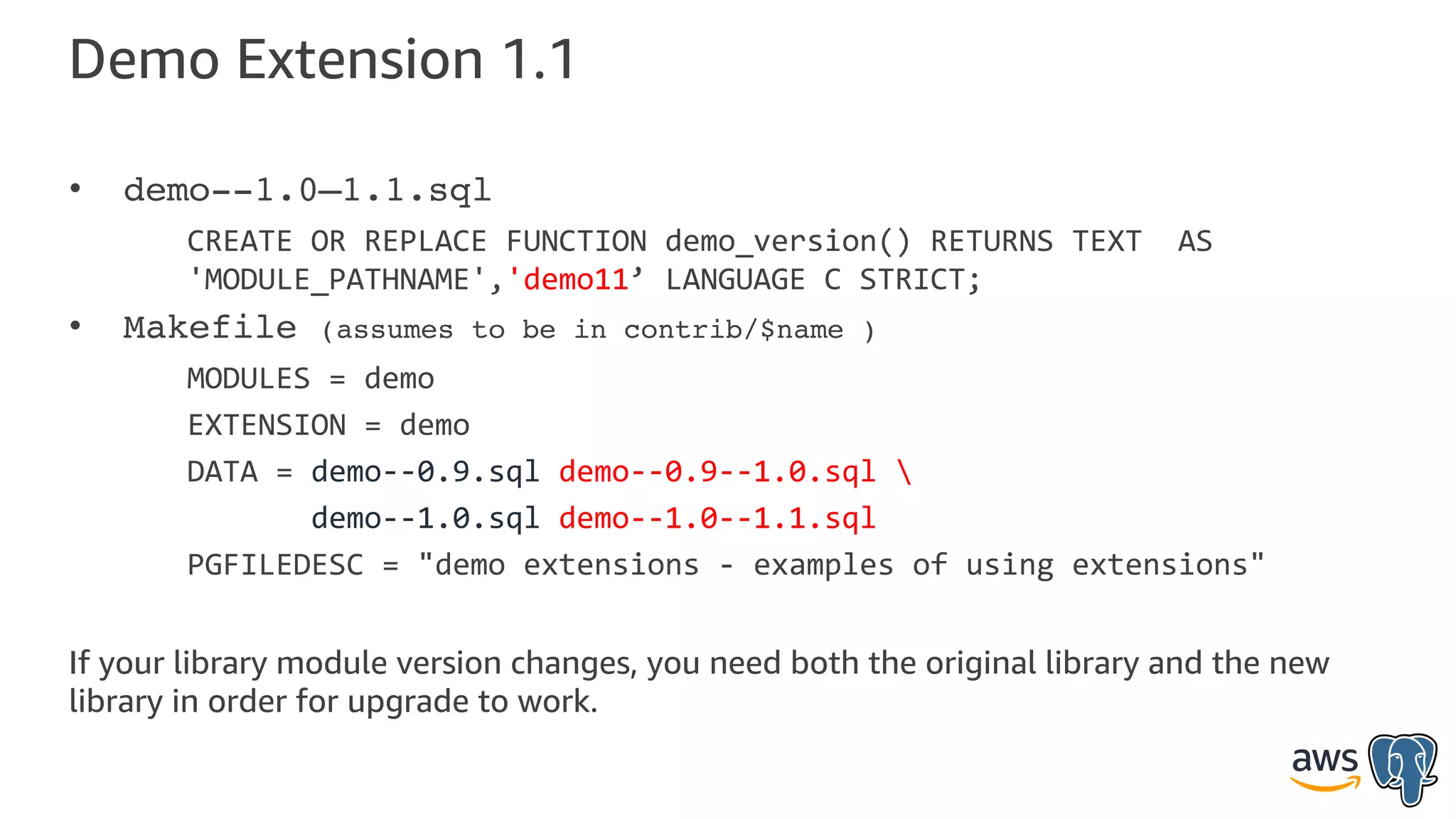

Demo Extension 1.1
• demo--1.0—1.1.sql
CREATE OR REPLACE FUNCTION demo_version() RETURNS TEXT AS
'MODULE_PATHNAME','demo11’ LANGUAGE C STRICT;
• Makefile (assumes to be in contrib/$name )
MODULES = demo
EXTENSION = demo
DATA = demo--0.9.sql demo--0.9--1.0.sql
demo--1.0.sql demo--1.0--1.1.sql
PGFILEDESC = "demo extensions - examples of using extensions"
If your library module version changes, you need both the original library and the new
library in order for upgrade to work.

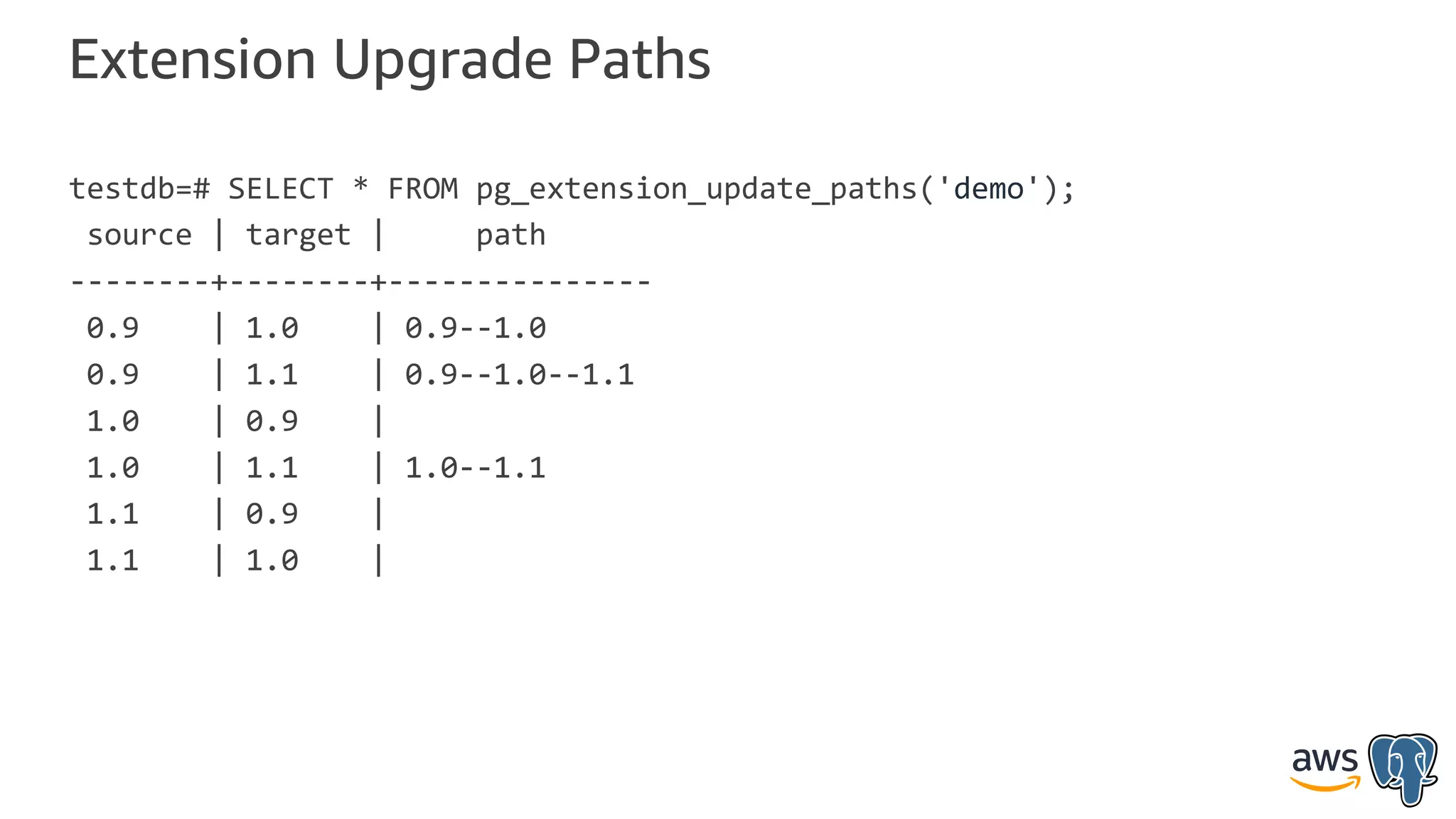

Extension Upgrade Paths
testdb=# SELECT * FROM pg_extension_update_paths('demo');
source | target | path
--------+--------+---------------
0.9 | 1.0 | 0.9--1.0
0.9 | 1.1 | 0.9--1.0--1.1
1.0 | 0.9 |
1.0 | 1.1 | 1.0--1.1
1.1 | 0.9 |
1.1 | 1.0 |

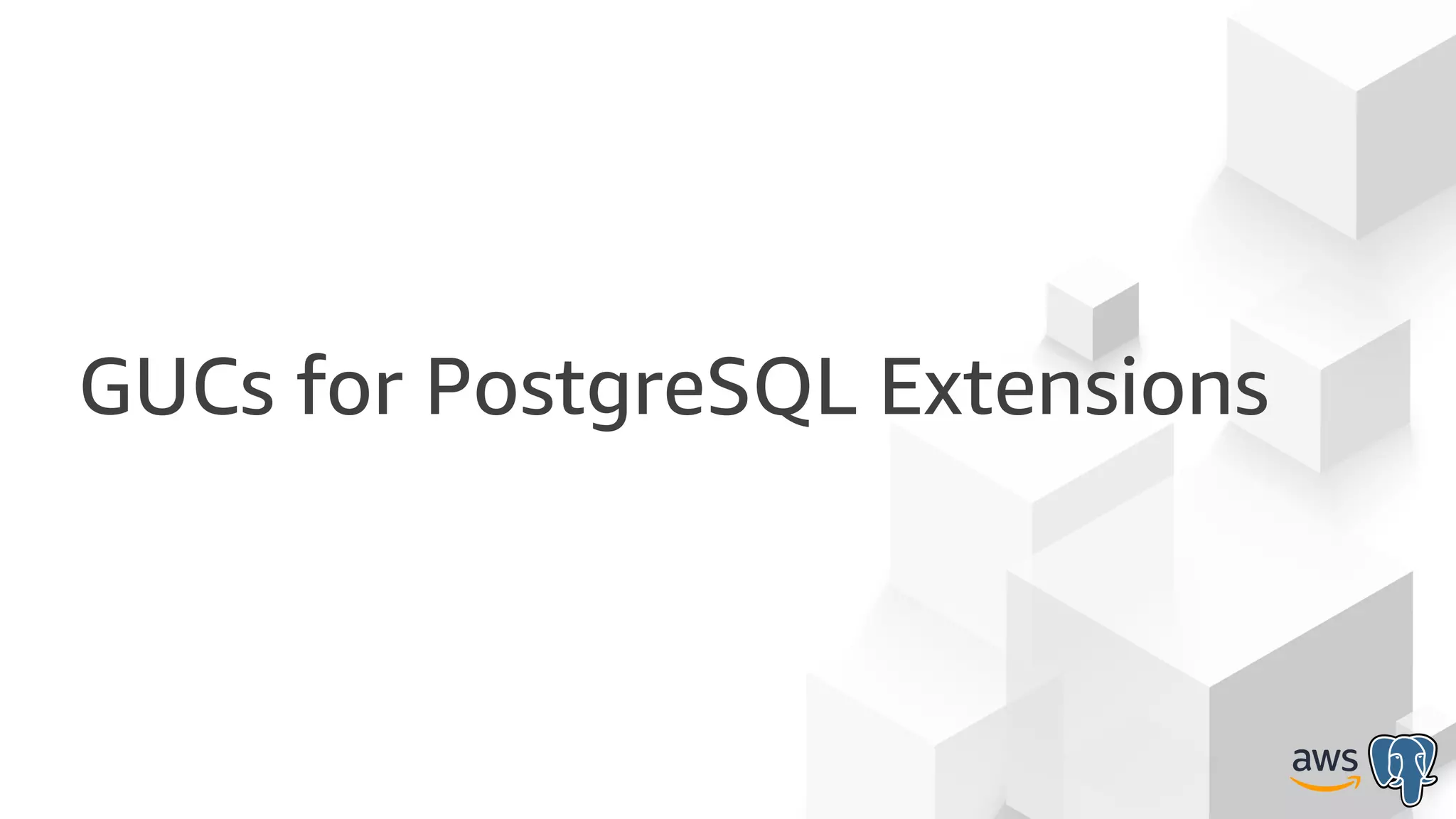

GUCs for PostgreSQL Extensions

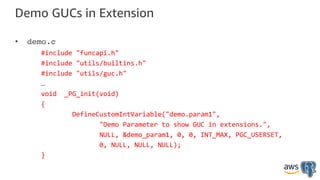

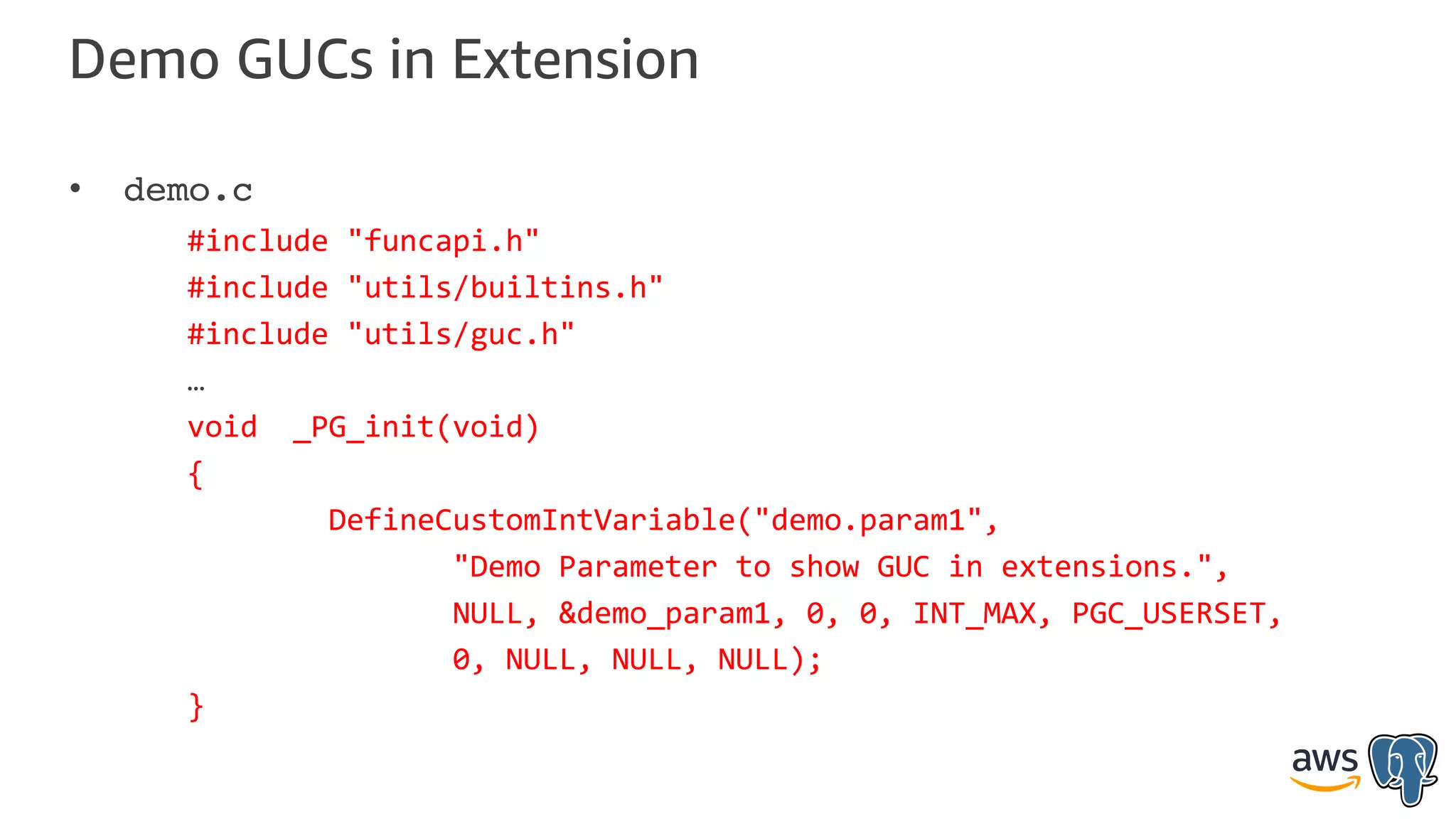

Demo GUCs in Extension
• demo.c
#include "funcapi.h"
#include "utils/builtins.h"
#include "utils/guc.h"
…
void _PG_init(void)
{
DefineCustomIntVariable("demo.param1",
"Demo Parameter to show GUC in extensions.",
NULL, &demo_param1, 0, 0, INT_MAX, PGC_USERSET,
0, NULL, NULL, NULL);
}

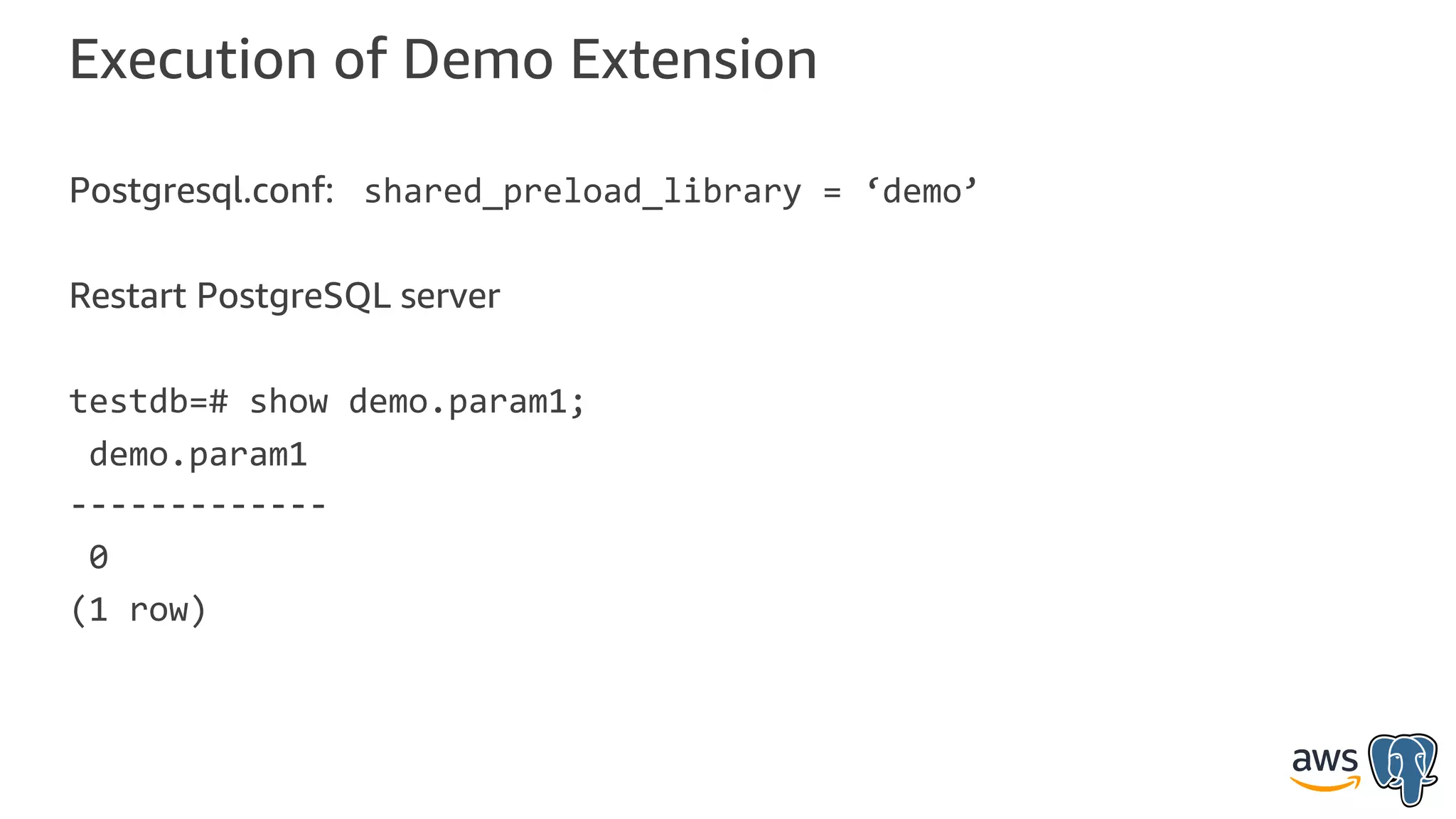

Execution of Demo Extension
Postgresql.conf: shared_preload_library = ‘demo’
Restart PostgreSQL server
testdb=# show demo.param1;
demo.param1
-------------
0
(1 row)

Server Programming Interface
• Interface Functions
• SPI_connect, SPI_exec, …
• Interface Support Functions
• SPI_fname, SPI_getvalue, …
• Memory Management
• SPI_palloc, SPI_copytuple, …
• Transaction Management
• SPI_commit, SPI_rollback, SPI_start_transaction
Documentation: https://www.postgresql.org/docs/12/spi.html

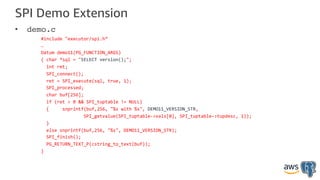

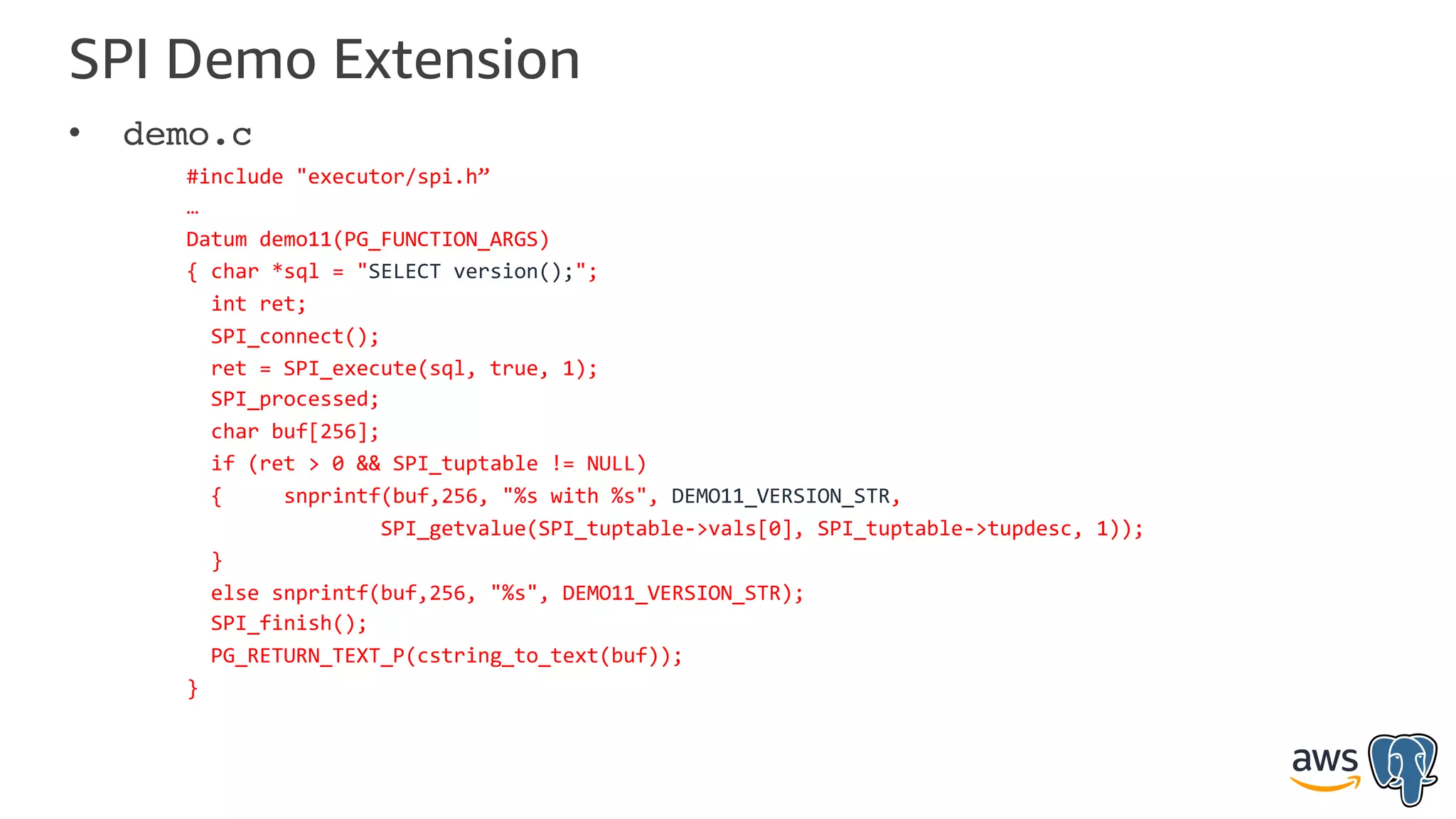

SPI Demo Extension
• demo.c
#include "executor/spi.h”
…
Datum demo11(PG_FUNCTION_ARGS)
{ char *sql = "SELECT version();";
int ret;
SPI_connect();
ret = SPI_execute(sql, true, 1);
SPI_processed;
char buf[256];
if (ret > 0 && SPI_tuptable != NULL)
{ snprintf(buf,256, "%s with %s", DEMO11_VERSION_STR,
SPI_getvalue(SPI_tuptable->vals[0], SPI_tuptable->tupdesc, 1));
}
else snprintf(buf,256, "%s", DEMO11_VERSION_STR);
SPI_finish();
PG_RETURN_TEXT_P(cstring_to_text(buf));
}

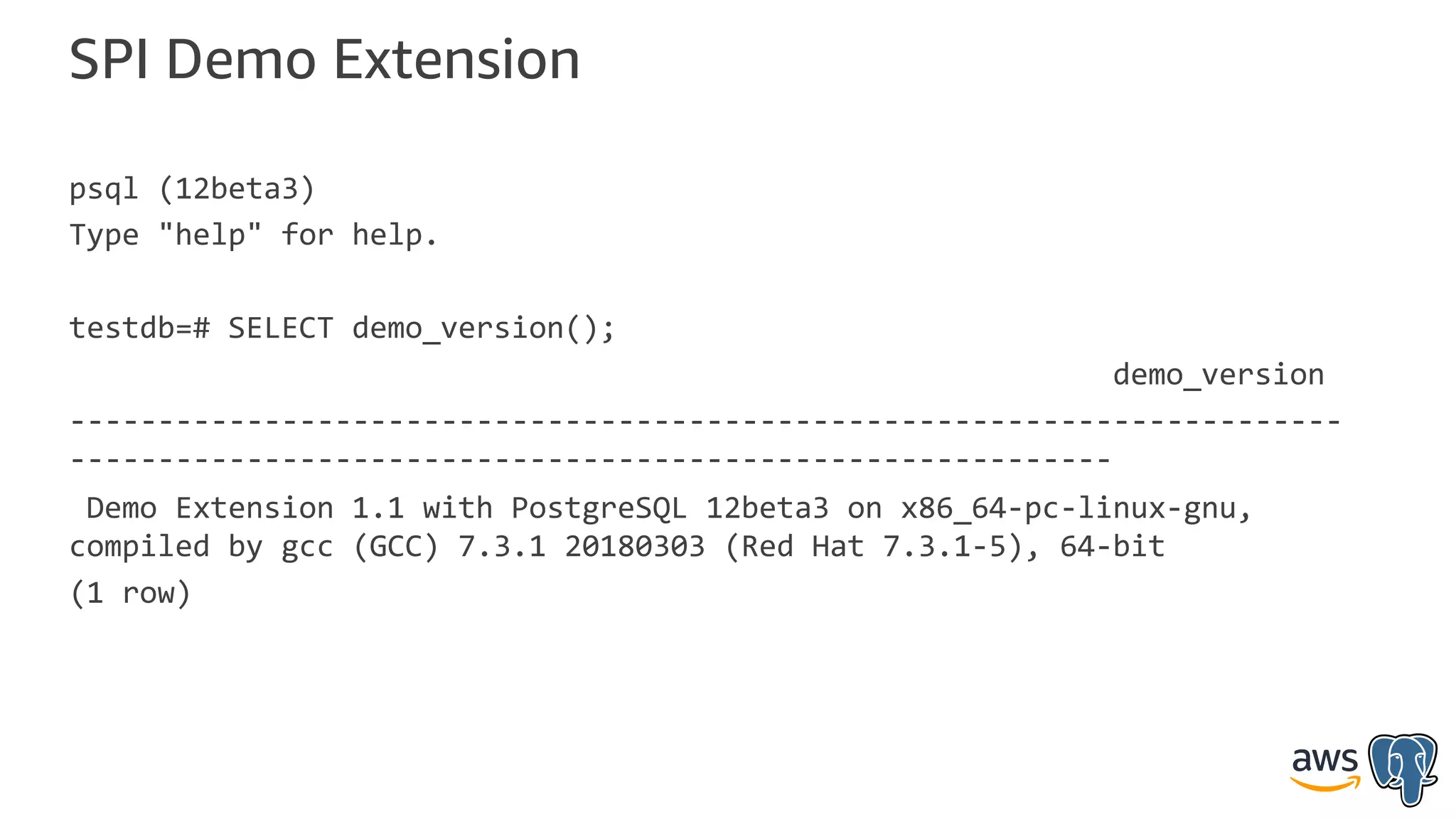

SPI Demo Extension
psql (12beta3)
Type "help" for help.
testdb=# SELECT demo_version();
demo_version
------------------------------------------------------------------------
-----------------------------------------------------------
Demo Extension 1.1 with PostgreSQL 12beta3 on x86_64-pc-linux-gnu,
compiled by gcc (GCC) 7.3.1 20180303 (Red Hat 7.3.1-5), 64-bit
(1 row)

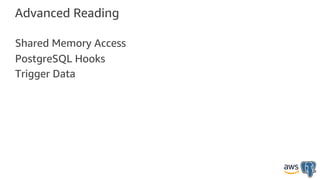

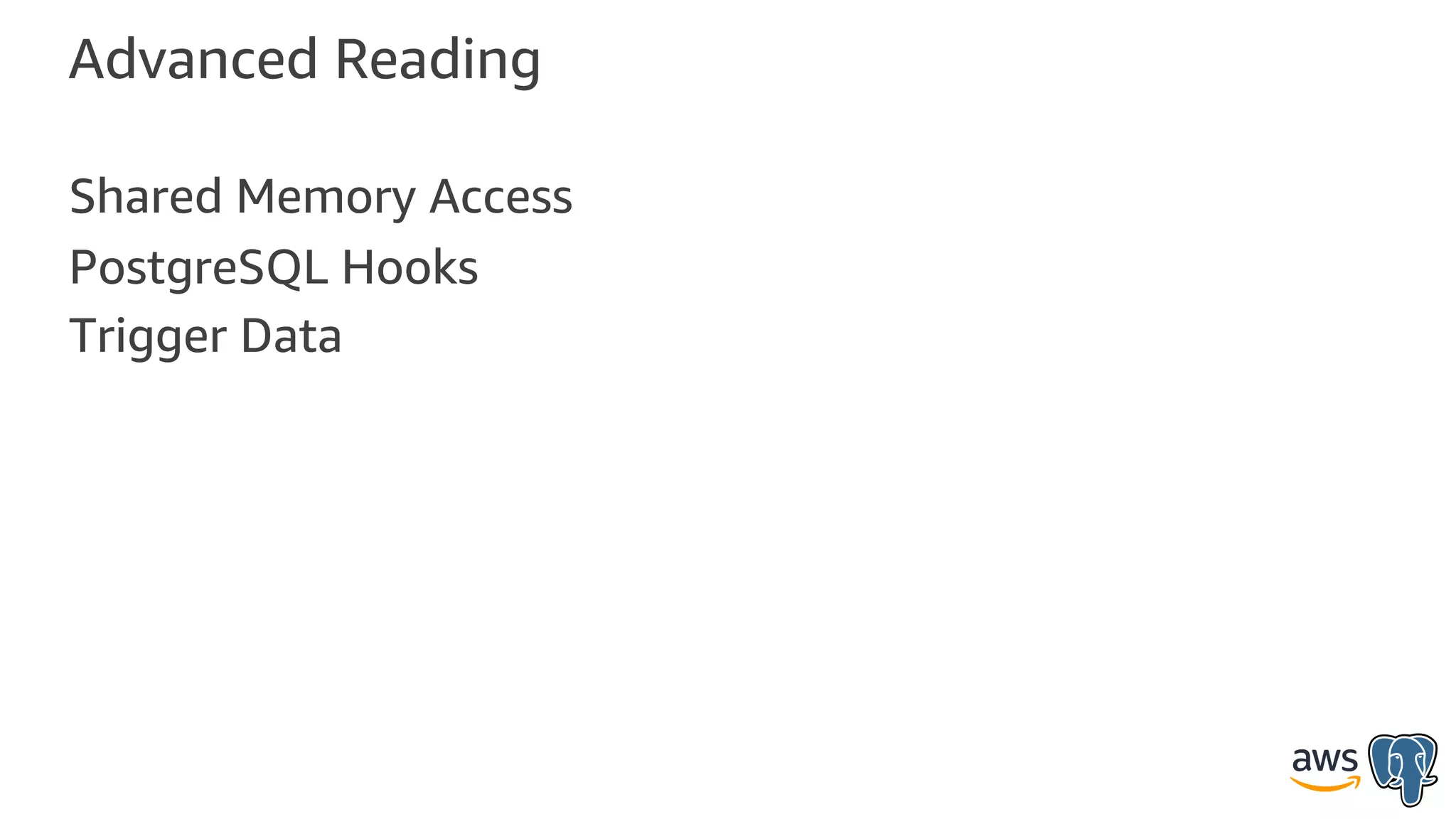

Advanced Reading
Shared Memory Access
PostgreSQL Hooks
Trigger Data

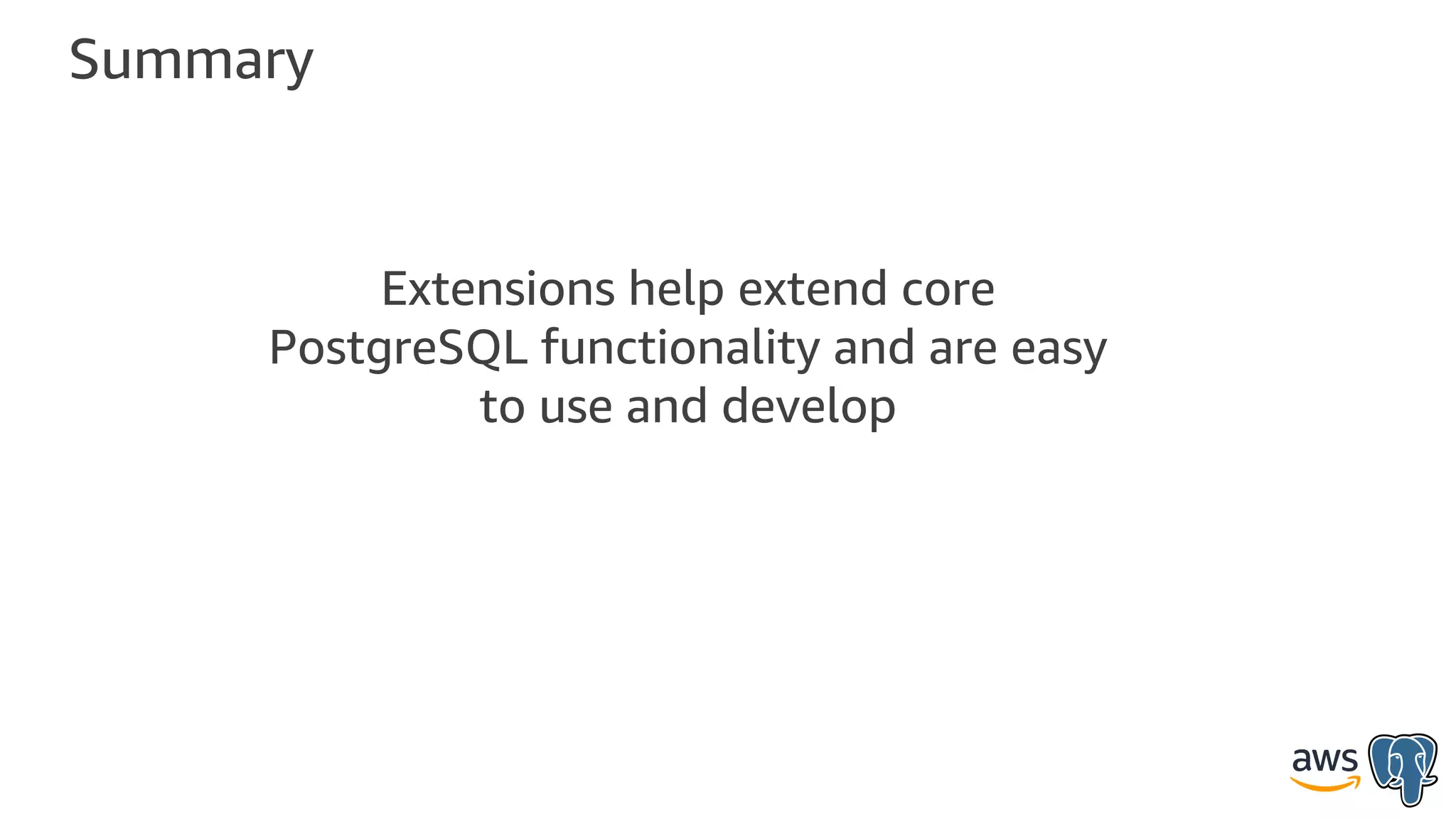

Summary
Extensions help extend core
PostgreSQL functionality and are easy
to use and develop
