DIY! Introduction to Arduino (Development Board)
The document discusses Arduino, an open-source prototyping platform introduced in 2005 to provide students with an inexpensive yet programmable microcontroller for connecting sensors and actuators in electromechanical devices. Arduino boards like the Uno, Mega, and LilyPad allow users to control outputs like LEDs or motors through inputs like sensors for GPS, WiFi, accelerometers through an intuitive programming environment. Examples of Arduino projects include smart home controllers, spy drones, robots, and automated systems like fish feeders or fan speed controls.
More Related Content
Similar to DIY! Introduction to Arduino (Development Board)
DIY! Introduction to Arduino (Development Board)

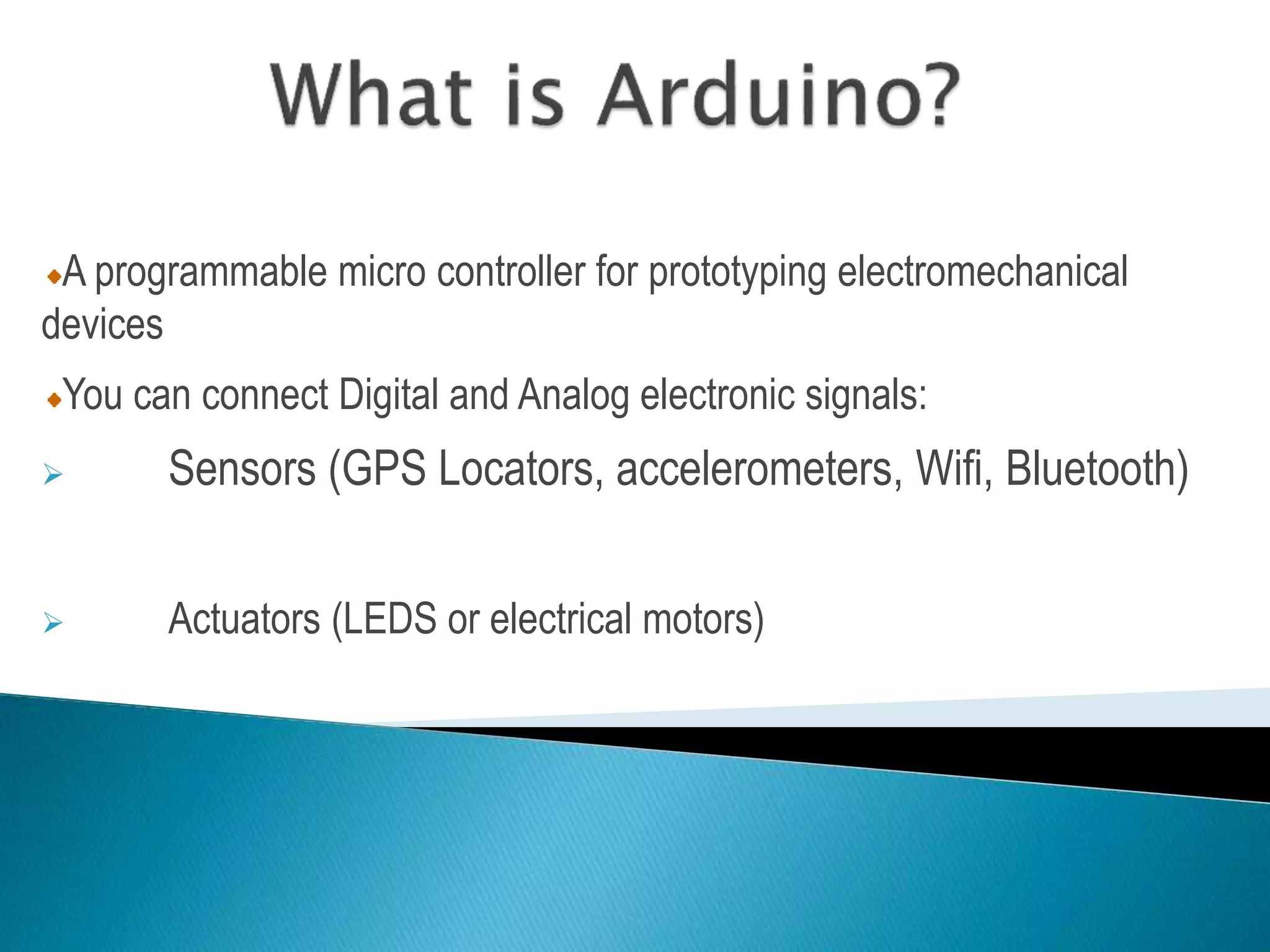

- 2. A programmable microcontroller for prototyping electromechanical devices You can connect Digital and Analog electronic signals: Sensors (GPS Locators, accelerometers, Wifi, Bluetooth) Actuators (LEDS or electrical motors)

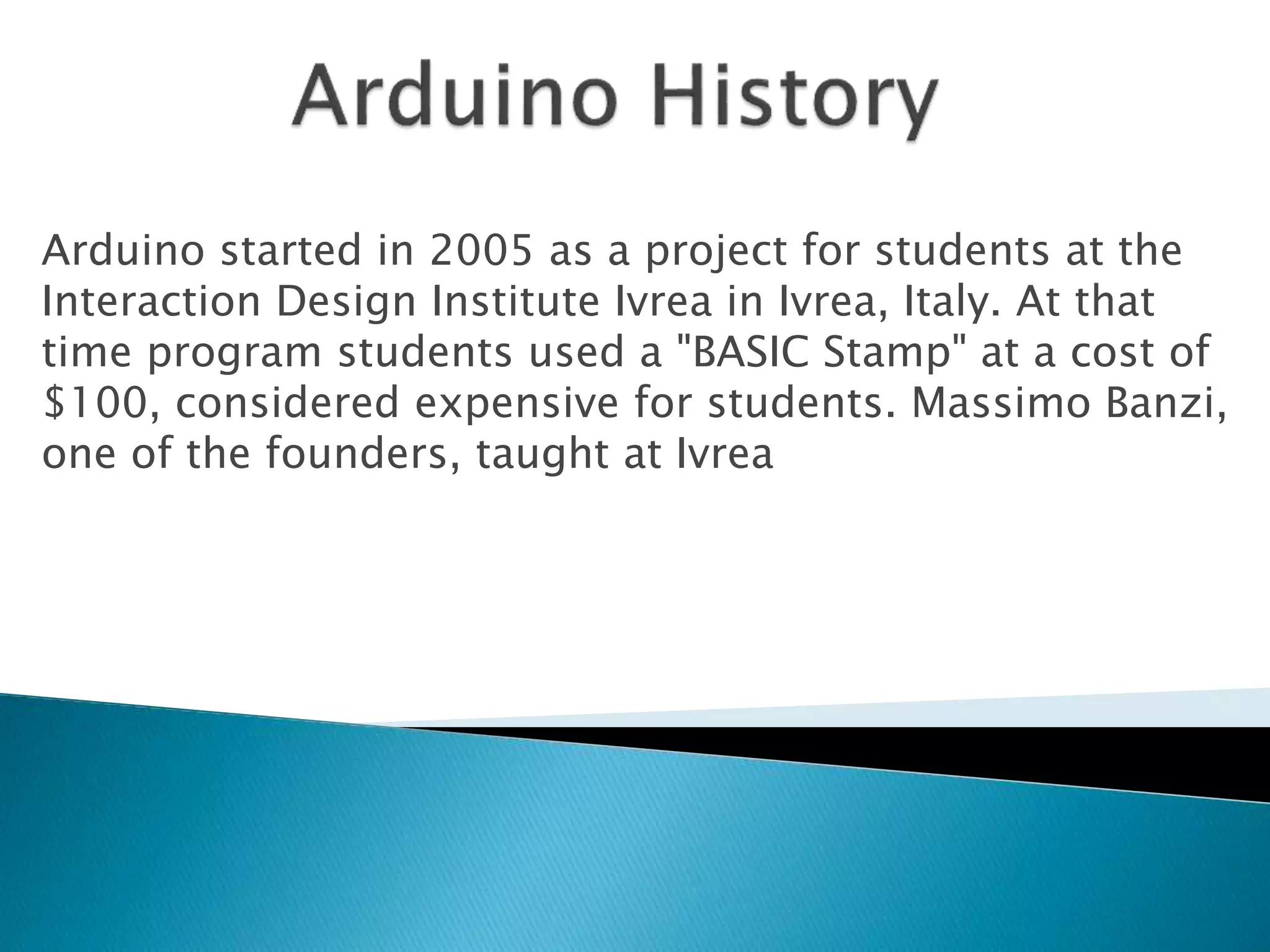

- 3. Arduino started in2005 as a project for students at the Interaction Design Institute Ivrea in Ivrea, Italy. At that time program students used a "BASIC Stamp" at a cost of $100, considered expensive for students. Massimo Banzi, one of the founders, taught at Ivrea

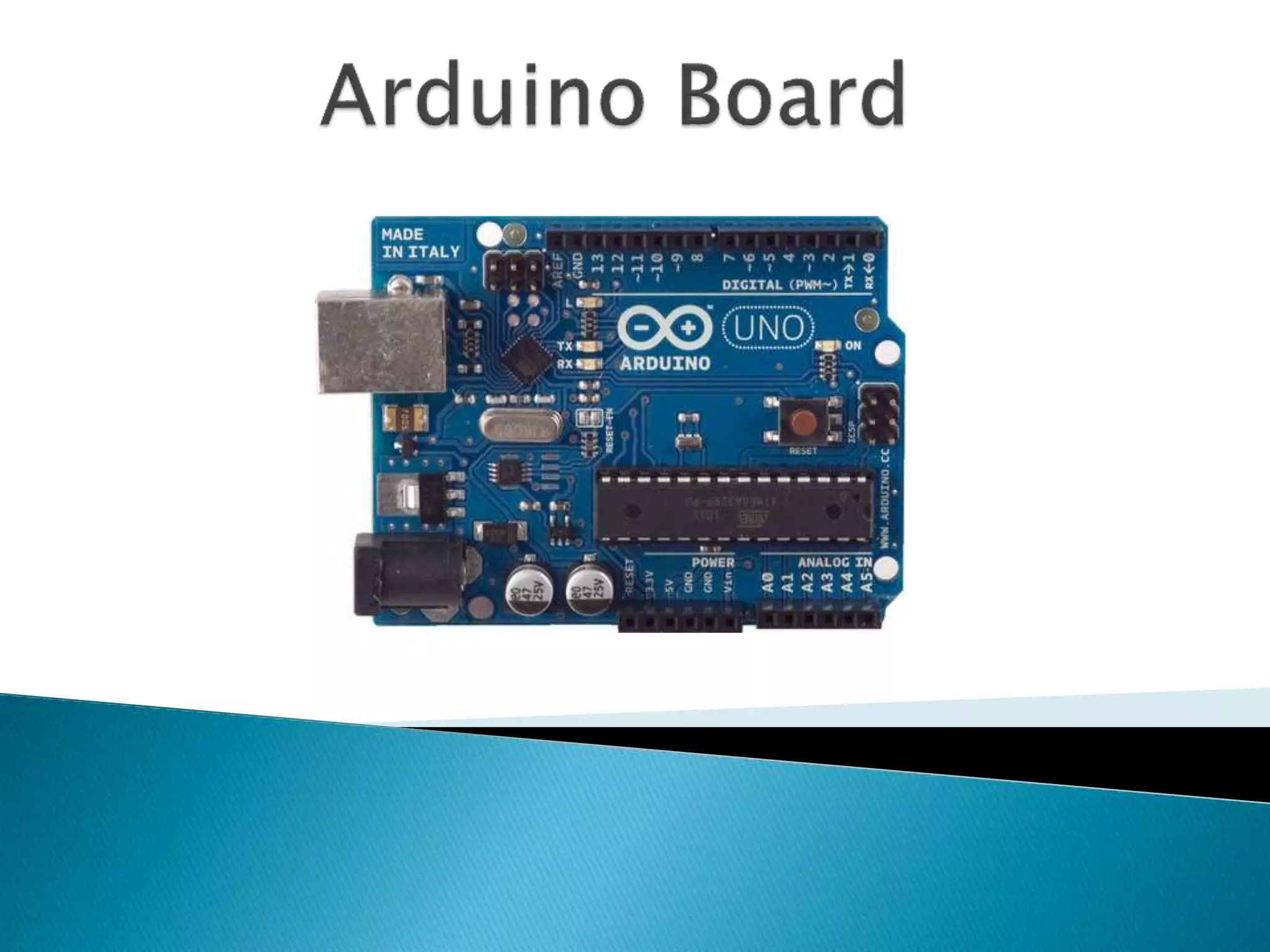

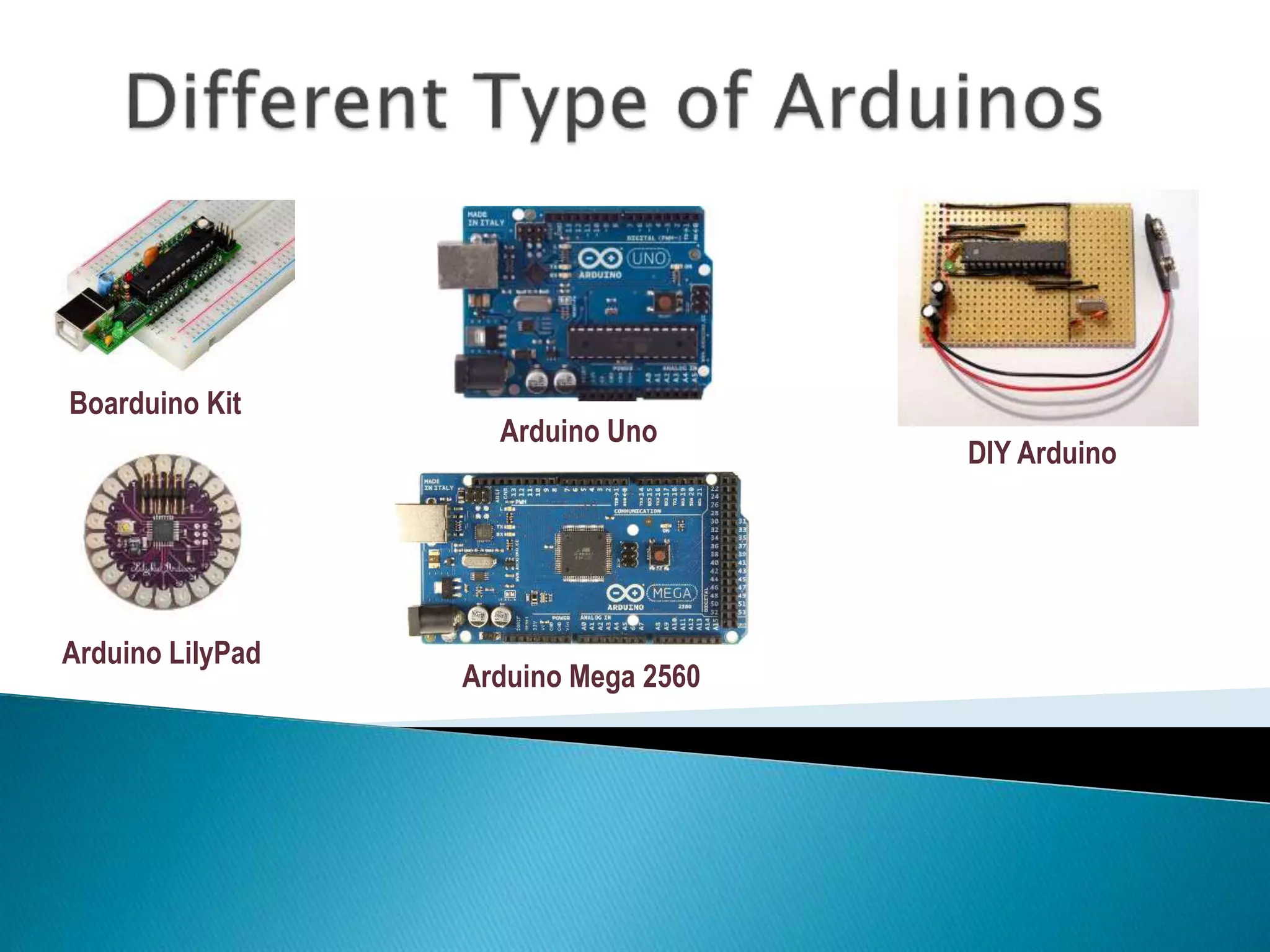

- 5. Arduino Mega 2560 ArduinoLilyPad Arduino Uno DIY Arduino Boarduino Kit
- 8.

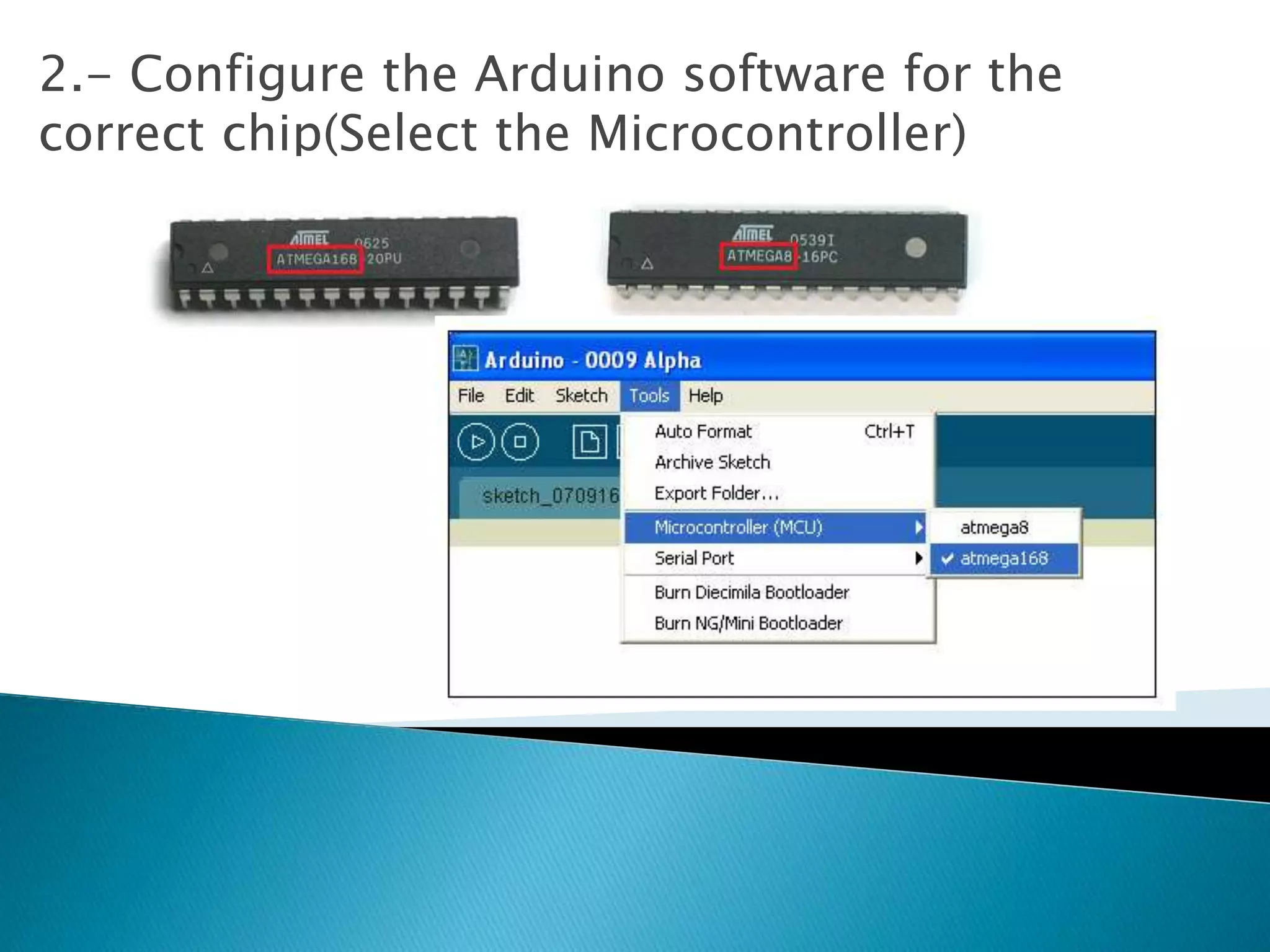

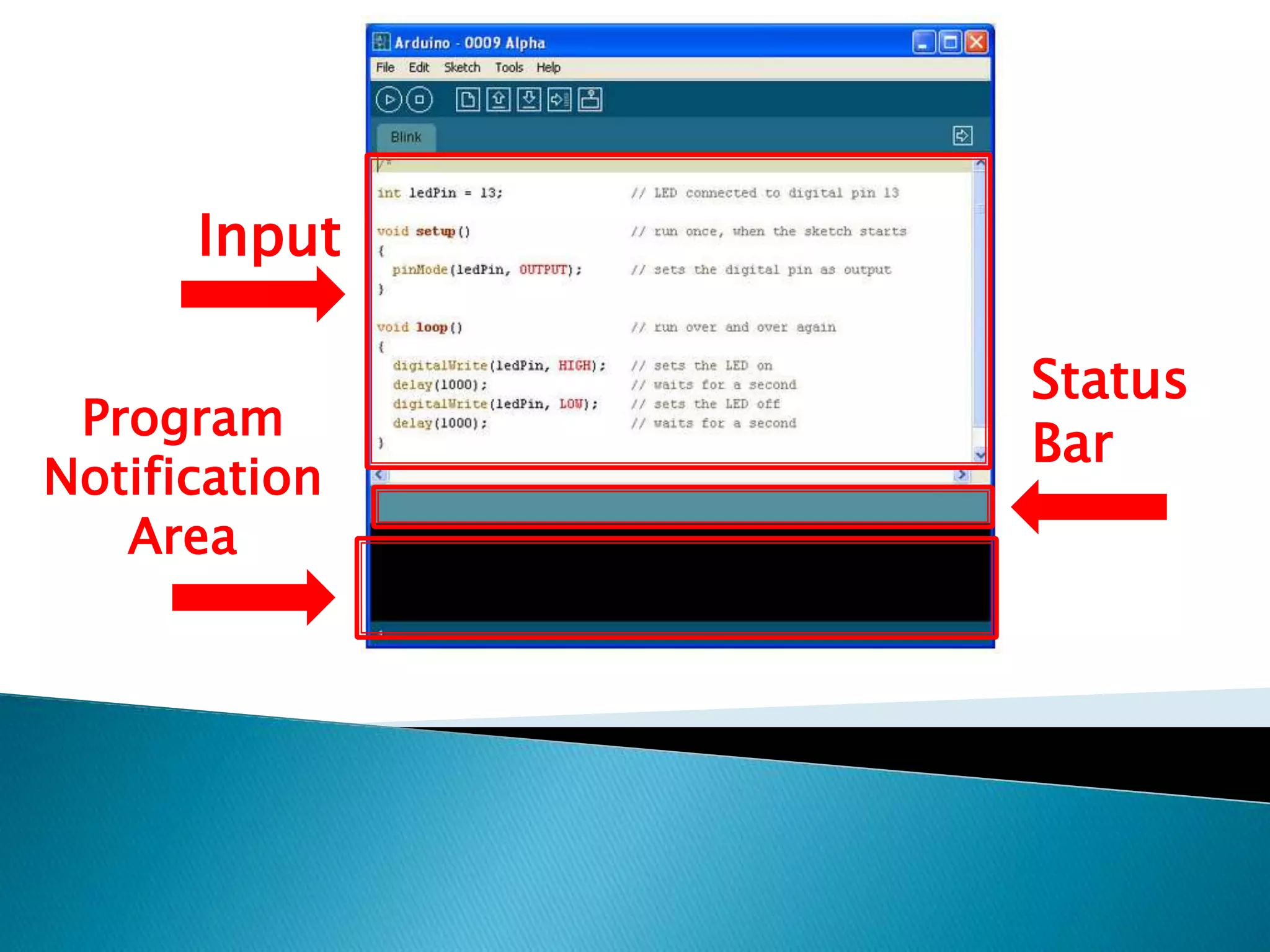

- 10. 2.- Configure theArduino software for the correct chip(Select the Microcontroller)
- 11.

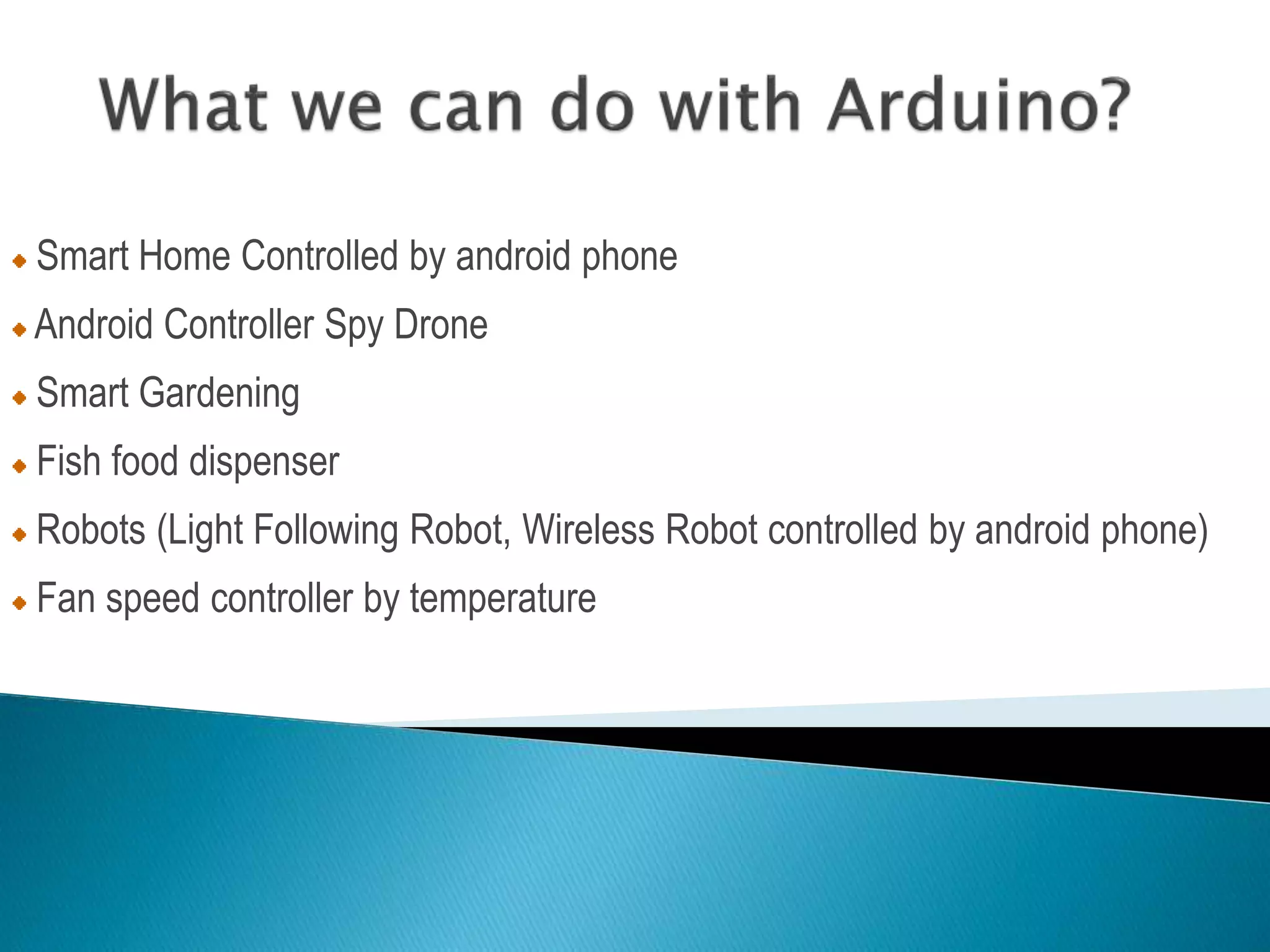

- 14. Smart Home Controlledby android phone Android Controller Spy Drone Smart Gardening Fish food dispenser Robots (Light Following Robot, Wireless Robot controlled by android phone) Fan speed controller by temperature
