![WORKING
This sorting algorithm is frequently
used when n is small.
The insertion sort algorithm scans A
from A[1] to A[N], inserting each
element A[K] into its proper position in
the previously sorted sub array A[1],
A[2], …., A[K-1]. That is…
6](https://image.slidesharecdn.com/javapresentationoninsertionsort-131108041433-phpapp01/85/Java-presentation-on-insertion-sort-6-320.jpg)
![METHOD
Pass 1. A[1] by itself is trivially sorted.
Pass 2. A[2] is inserted either before or after A[1] so
that: A[1], A[2] is sorted.
Pass 3. A[3] is inserted into its proper place in A[1],
A[2], that is, before A[1], between A[1] & A[2], or
after A[2], so that: A[1], A[2], A[3] is sorted.
Pass 4. A[4] is inserted into its proper place in A[1],
A[2], A[3] so that:
A[1], A[2], A[3], A[4] is sorted.
7](https://image.slidesharecdn.com/javapresentationoninsertionsort-131108041433-phpapp01/85/Java-presentation-on-insertion-sort-7-320.jpg)
![ALGORITHM & EXPLANATION
Step1. Start
Step2. i=1
Step3. Check that I < a.length, if yes go to
next
step else go to Step11.
Step4. Assign ai = a[i]
Step5. j = i
Step6. Check that j > 0 & a[j-1] > ai, if yes go
to
next else go to Step9.
Step7. a[j] = a[j-1]
Step8. j = j-1 & go to Step 6
Step9. a[j] = ai
Step10. increment i by 1 and go to step 3.
Step11. Stop
8](https://image.slidesharecdn.com/javapresentationoninsertionsort-131108041433-phpapp01/85/Java-presentation-on-insertion-sort-8-320.jpg)
![IMPLEMENTATION OF CODE
public class InsertionSort{
public static void main(String a[]){
int array[] = {12,9,4,99,120,1,3,10};
System.out.println("nValues Before the sort:n");
for(i = 0; i < array.length; i++)
System.out.print( array[i]+" ");
insertion_srt(array, array.length);
System.out.println("nnValues after the sort:n");
for(int i = 0; i <array.length; i++)
System.out.print(array[i]+" ");
System.out.println();
}
16](https://image.slidesharecdn.com/javapresentationoninsertionsort-131108041433-phpapp01/85/Java-presentation-on-insertion-sort-16-320.jpg)
![public static void insertion_srt(int array[], int n){
for (int i = 1; i < n; i++){
int j = i;
int B = array[i];
while ((j > 0) && (array[j-1] > B)){
array[j] = array[j-1];
j--;
}
array[j] = B;
}
}
}
17](https://image.slidesharecdn.com/javapresentationoninsertionsort-131108041433-phpapp01/85/Java-presentation-on-insertion-sort-17-320.jpg)
![WORKING
This sorting algorithm is frequently
used when n is small.
The insertion sort algorithm scans A
from A[1] to A[N], inserting each
element A[K] into its proper position in
the previously sorted sub array A[1],
A[2], …., A[K-1]. That is…
6](https://image.slidesharecdn.com/javapresentationoninsertionsort-131108041433-phpapp01/75/Java-presentation-on-insertion-sort-6-2048.jpg)
![METHOD
Pass 1. A[1] by itself is trivially sorted.
Pass 2. A[2] is inserted either before or after A[1] so
that: A[1], A[2] is sorted.
Pass 3. A[3] is inserted into its proper place in A[1],
A[2], that is, before A[1], between A[1] & A[2], or
after A[2], so that: A[1], A[2], A[3] is sorted.
Pass 4. A[4] is inserted into its proper place in A[1],
A[2], A[3] so that:
A[1], A[2], A[3], A[4] is sorted.
7](https://image.slidesharecdn.com/javapresentationoninsertionsort-131108041433-phpapp01/75/Java-presentation-on-insertion-sort-7-2048.jpg)
![ALGORITHM & EXPLANATION
Step1. Start
Step2. i=1
Step3. Check that I < a.length, if yes go to
next
step else go to Step11.
Step4. Assign ai = a[i]
Step5. j = i
Step6. Check that j > 0 & a[j-1] > ai, if yes go
to
next else go to Step9.
Step7. a[j] = a[j-1]
Step8. j = j-1 & go to Step 6
Step9. a[j] = ai
Step10. increment i by 1 and go to step 3.
Step11. Stop
8](https://image.slidesharecdn.com/javapresentationoninsertionsort-131108041433-phpapp01/75/Java-presentation-on-insertion-sort-8-2048.jpg)
![IMPLEMENTATION OF CODE
public class InsertionSort{
public static void main(String a[]){
int array[] = {12,9,4,99,120,1,3,10};
System.out.println("nValues Before the sort:n");
for(i = 0; i < array.length; i++)
System.out.print( array[i]+" ");
insertion_srt(array, array.length);
System.out.println("nnValues after the sort:n");
for(int i = 0; i <array.length; i++)
System.out.print(array[i]+" ");
System.out.println();
}
16](https://image.slidesharecdn.com/javapresentationoninsertionsort-131108041433-phpapp01/75/Java-presentation-on-insertion-sort-16-2048.jpg)
![public static void insertion_srt(int array[], int n){
for (int i = 1; i < n; i++){
int j = i;
int B = array[i];
while ((j > 0) && (array[j-1] > B)){
array[j] = array[j-1];
j--;
}
array[j] = B;
}
}
}
17](https://image.slidesharecdn.com/javapresentationoninsertionsort-131108041433-phpapp01/75/Java-presentation-on-insertion-sort-17-2048.jpg)
More Related Content
![Data Structures - Lecture 8 [Sorting Algorithms]](https://cdn.slidesharecdn.com/ss_thumbnails/lecture-8sortingalgorithms-150205105023-conversion-gate02-thumbnail.jpg?width=600ounds&width=560&fit=bounds)
![Data Structures - Lecture 9 [Stack & Queue using Linked List]](https://cdn.slidesharecdn.com/ss_thumbnails/lecture-9stackqueueusinglinkedlist-150219032411-conversion-gate02-thumbnail.jpg?width=600ounds&width=560&fit=bounds)
Similar to Java presentation on insertion sort
![UiPath Automation Suite Installation (Hands-On) [2/3]](https://cdn.slidesharecdn.com/ss_thumbnails/automationsuitecommunitysession2-251015095633-a6d862f1-thumbnail.jpg?width=600ounds&width=560&fit=bounds)
Java presentation on insertion sort
- 1.
- 2.

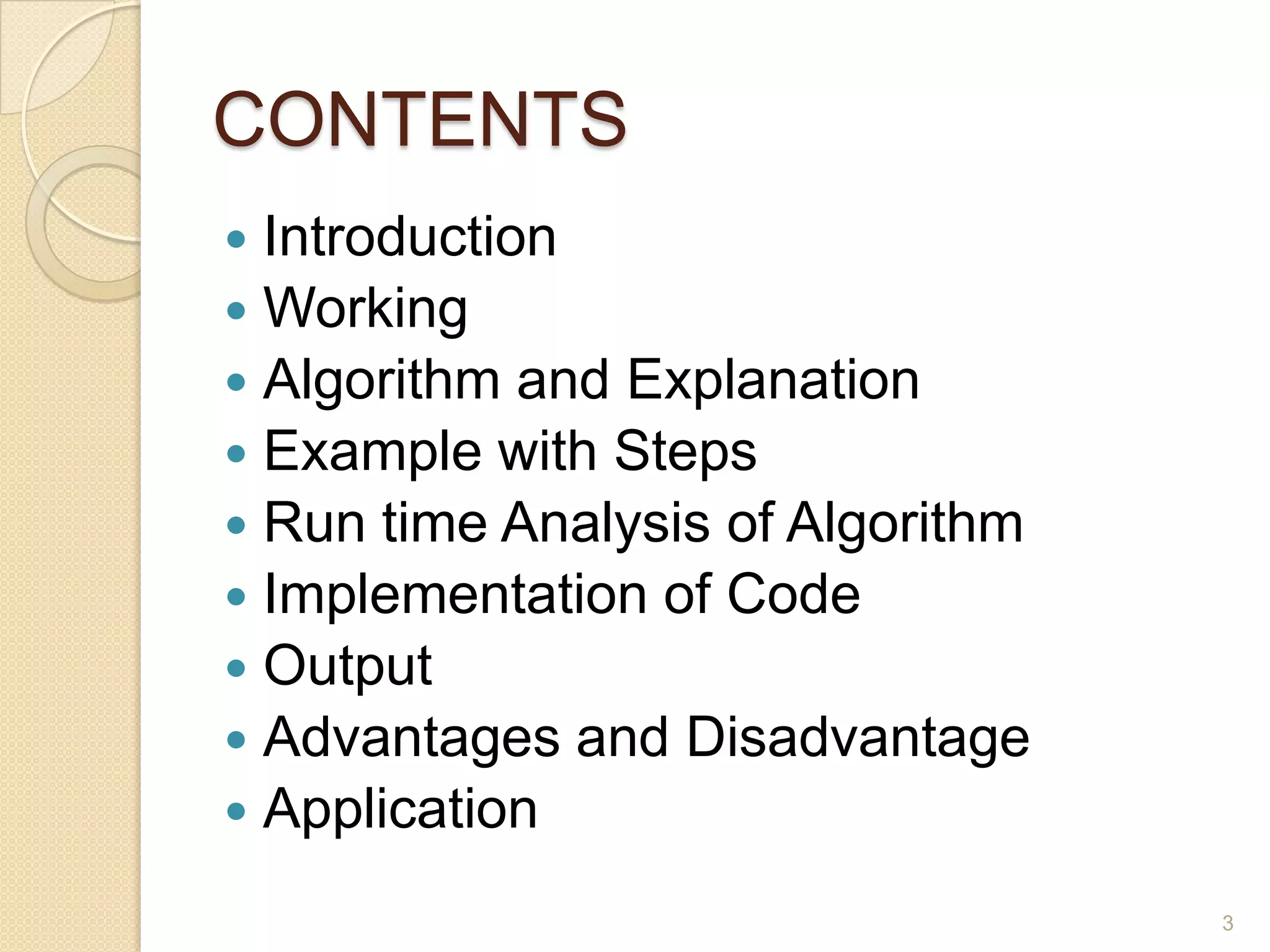

- 3. CONTENTS Introduction Working Algorithmand Explanation Example with Steps Run time Analysis of Algorithm Implementation of Code Output Advantages and Disadvantage Application 3

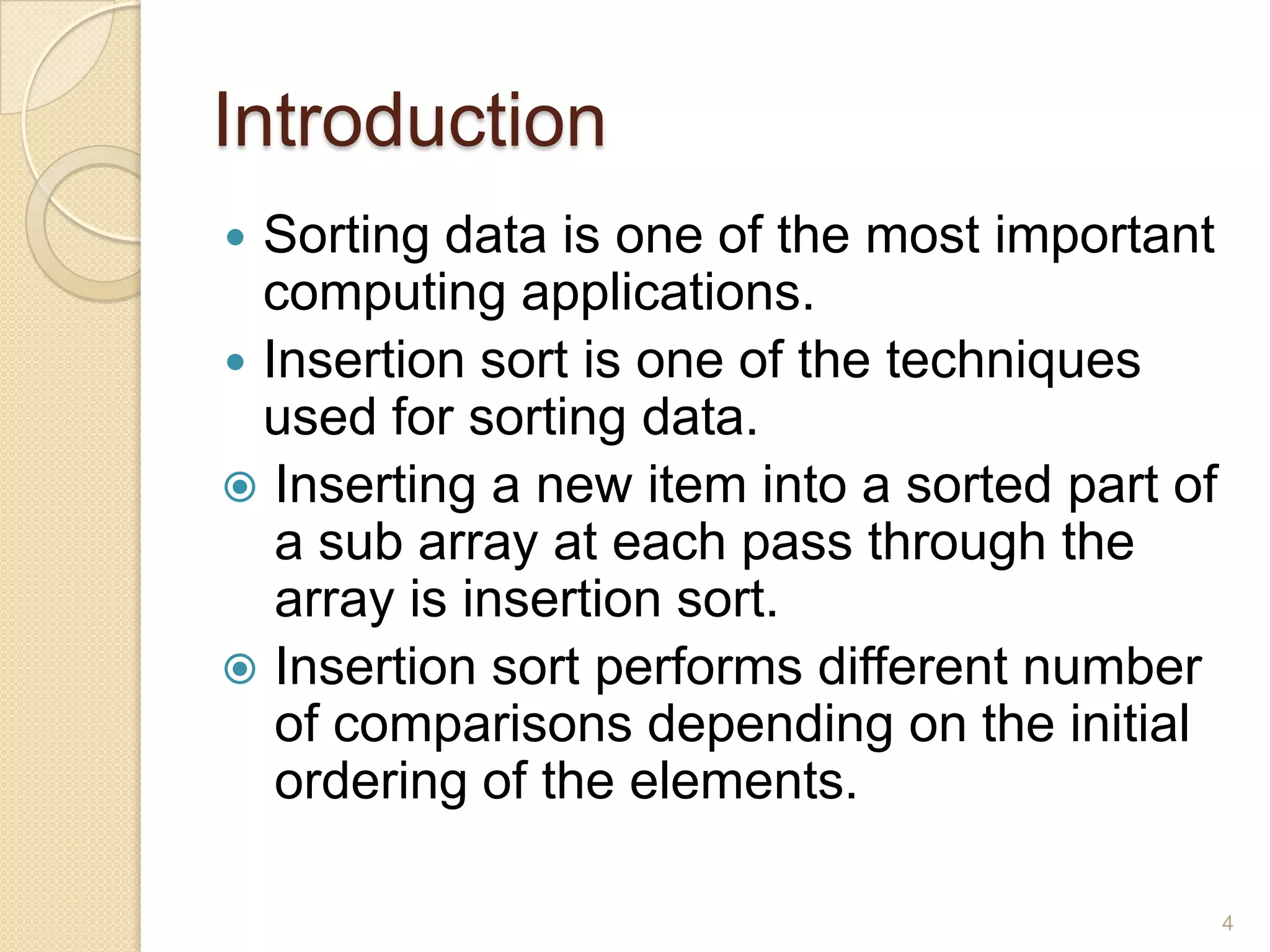

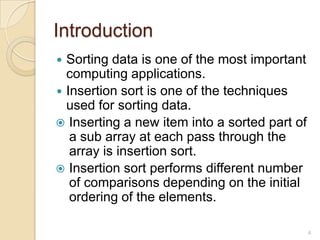

- 4. Introduction Sorting data isone of the most important computing applications. Insertion sort is one of the techniques used for sorting data. Inserting a new item into a sorted part of a sub array at each pass through the array is insertion sort. Insertion sort performs different number of comparisons depending on the initial ordering of the elements. 4

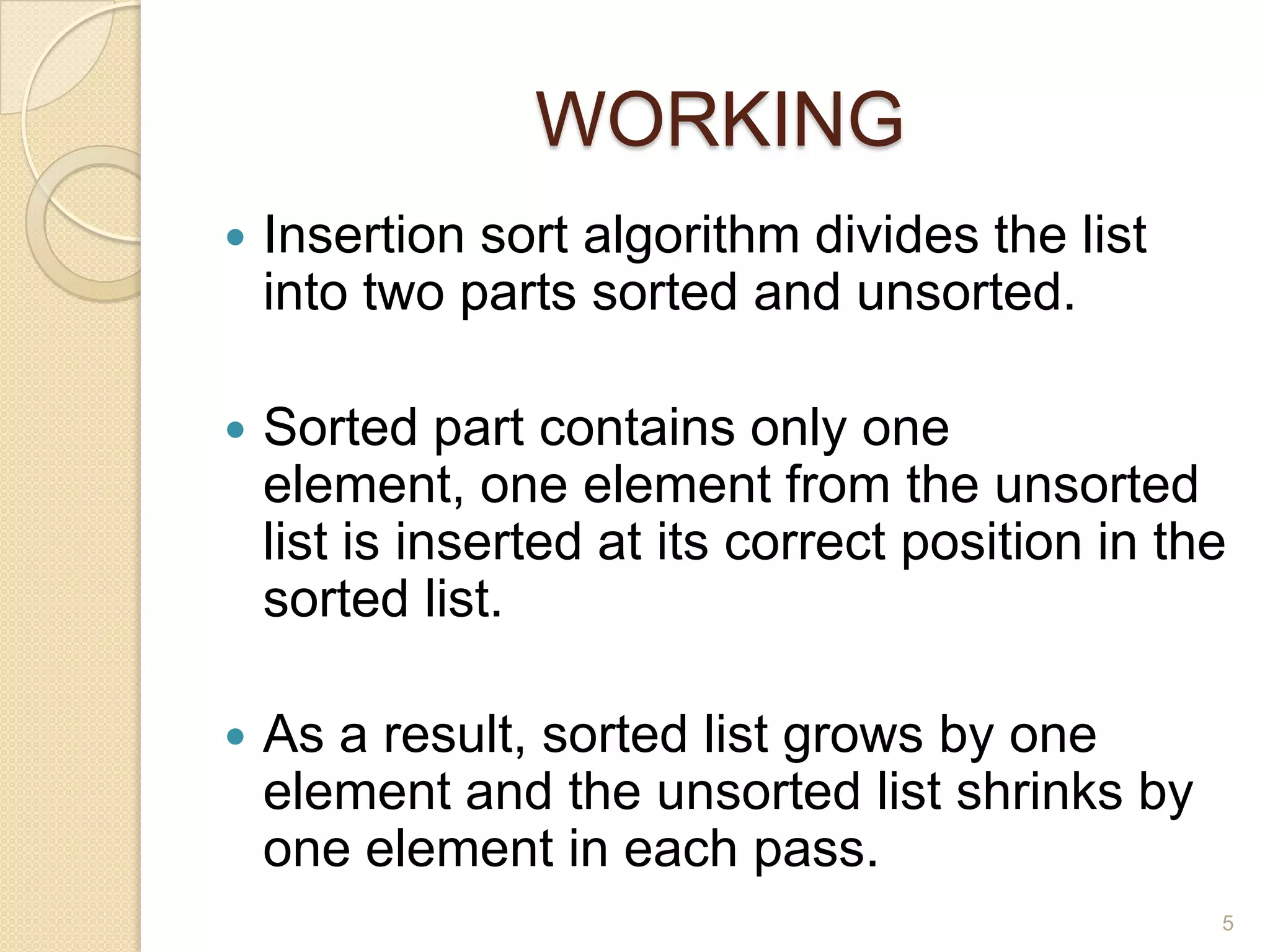

- 5. WORKING Insertion sort algorithmdivides the list into two parts sorted and unsorted. Sorted part contains only one element, one element from the unsorted list is inserted at its correct position in the sorted list. As a result, sorted list grows by one element and the unsorted list shrinks by one element in each pass. 5

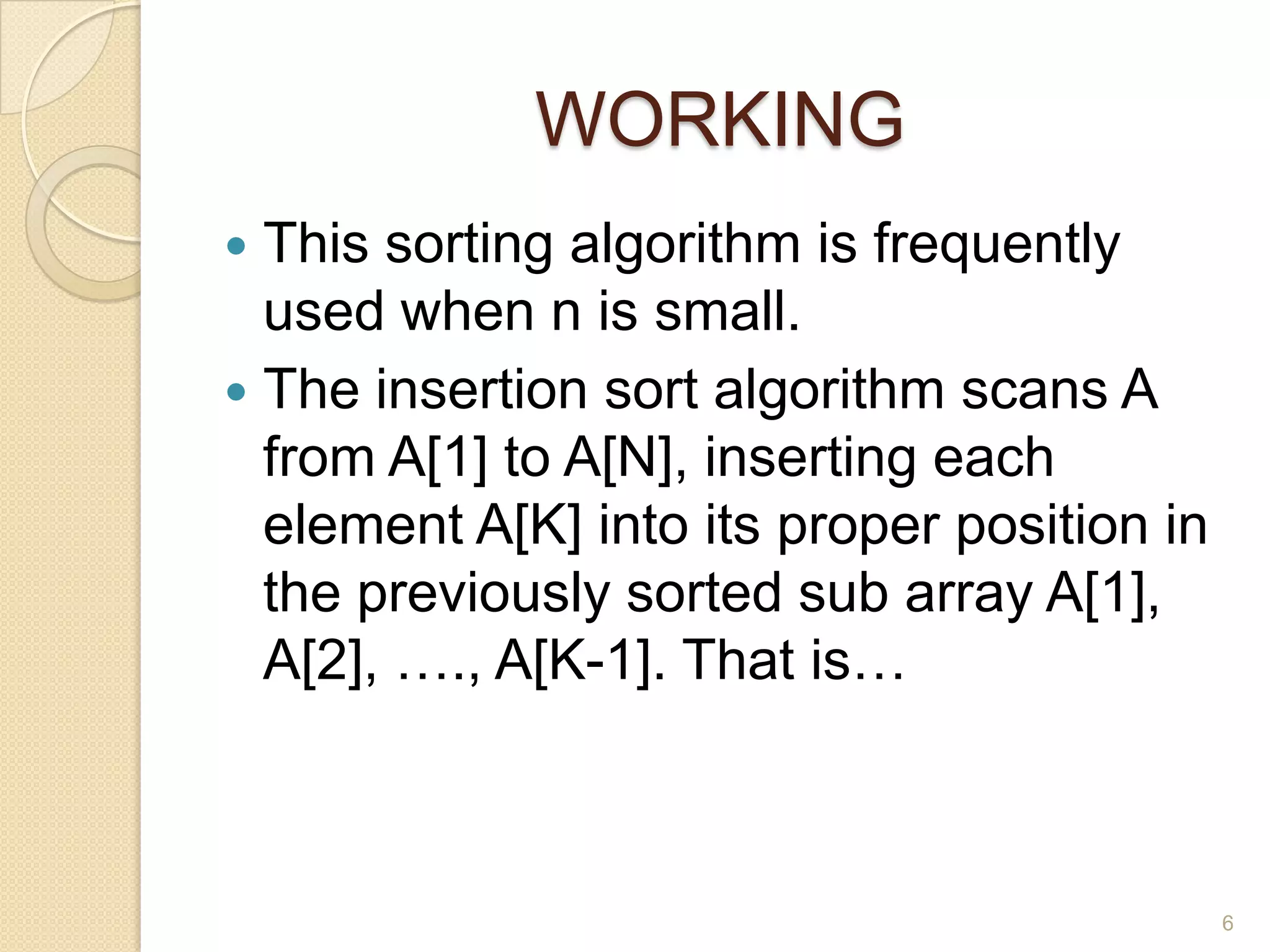

- 6. WORKING This sorting algorithmis frequently used when n is small. The insertion sort algorithm scans A from A[1] to A[N], inserting each element A[K] into its proper position in the previously sorted sub array A[1], A[2], …., A[K-1]. That is… 6

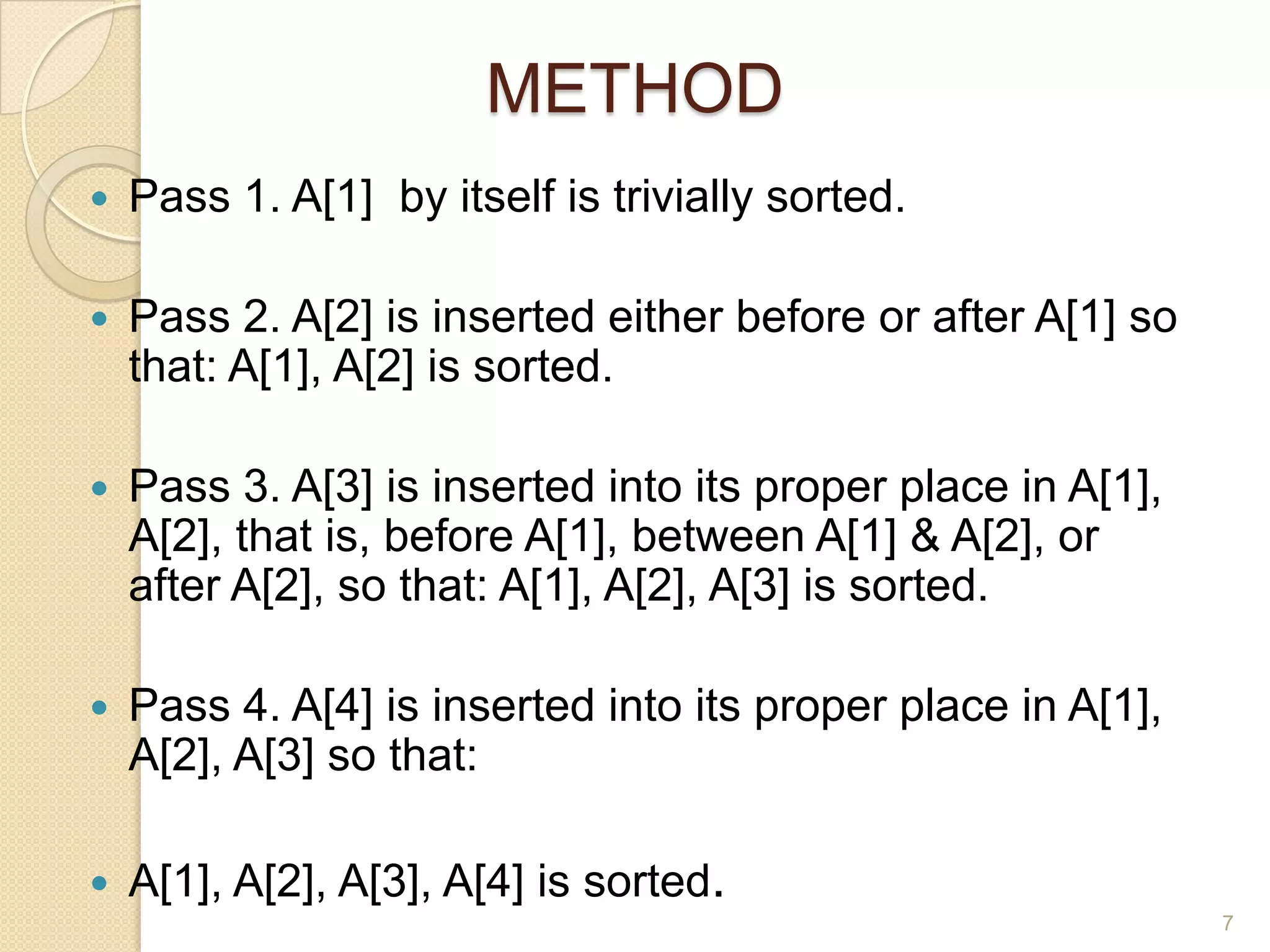

- 7. METHOD Pass 1. A[1]by itself is trivially sorted. Pass 2. A[2] is inserted either before or after A[1] so that: A[1], A[2] is sorted. Pass 3. A[3] is inserted into its proper place in A[1], A[2], that is, before A[1], between A[1] & A[2], or after A[2], so that: A[1], A[2], A[3] is sorted. Pass 4. A[4] is inserted into its proper place in A[1], A[2], A[3] so that: A[1], A[2], A[3], A[4] is sorted. 7

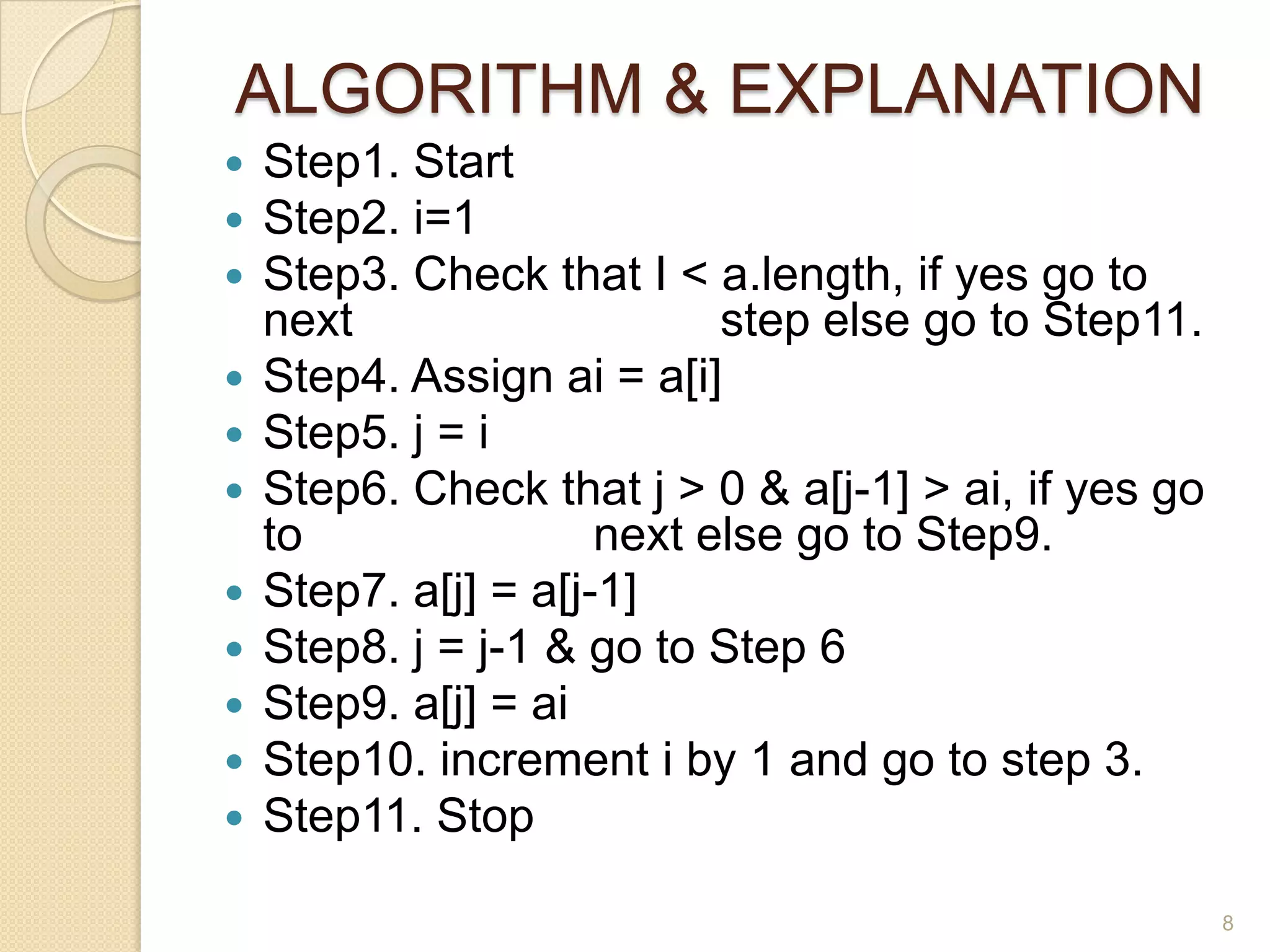

- 8. ALGORITHM & EXPLANATION Step1.Start Step2. i=1 Step3. Check that I < a.length, if yes go to next step else go to Step11. Step4. Assign ai = a[i] Step5. j = i Step6. Check that j > 0 & a[j-1] > ai, if yes go to next else go to Step9. Step7. a[j] = a[j-1] Step8. j = j-1 & go to Step 6 Step9. a[j] = ai Step10. increment i by 1 and go to step 3. Step11. Stop 8

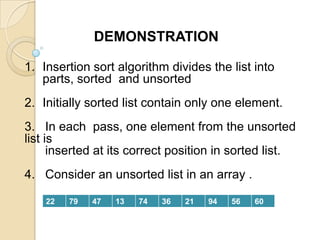

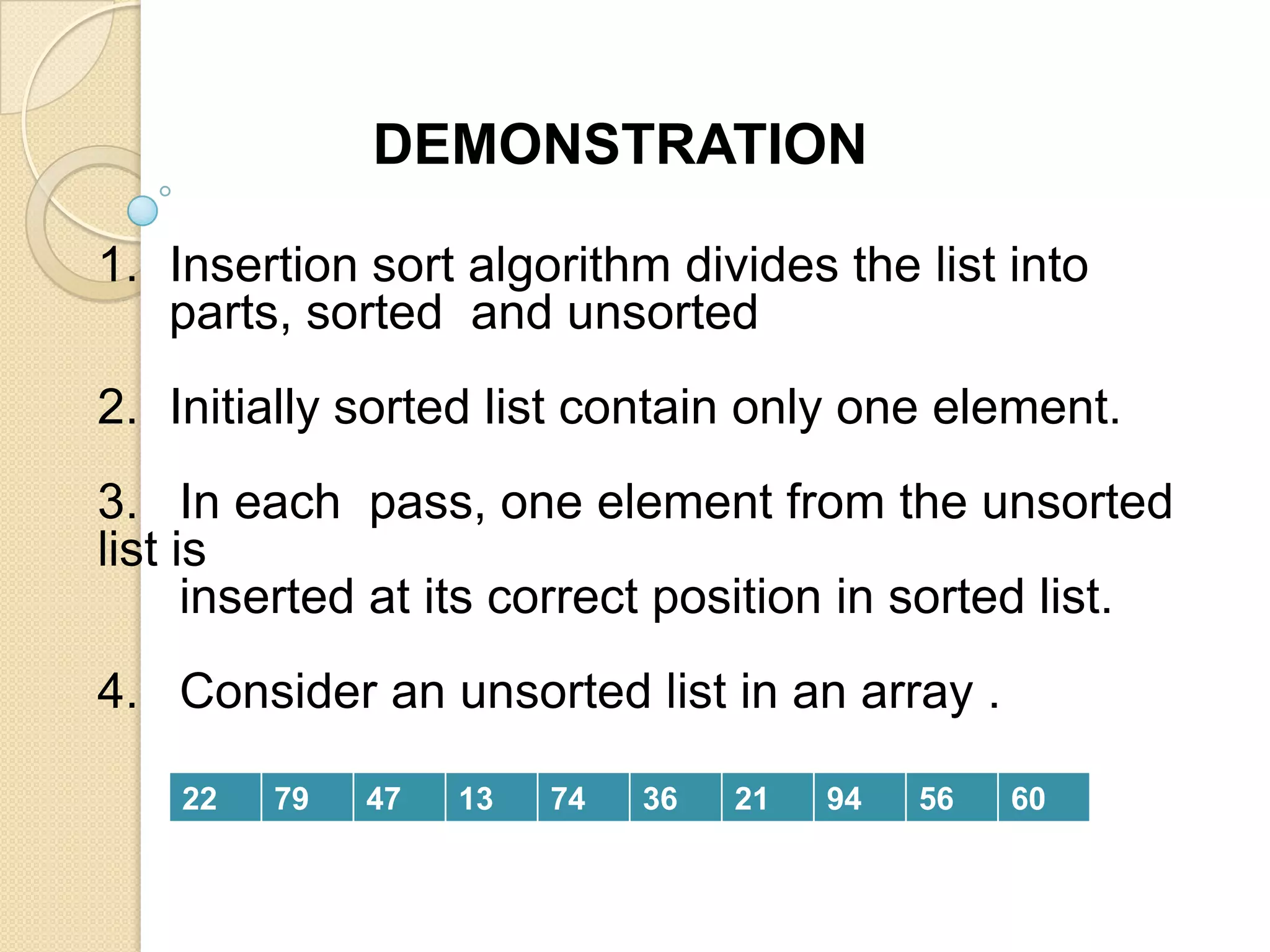

- 9. DEMONSTRATION 1. Insertion sortalgorithm divides the list into parts, sorted and unsorted 2. Initially sorted list contain only one element. 3. In each pass, one element from the unsorted list is inserted at its correct position in sorted list. 4. Consider an unsorted list in an array . 22 79 47 13 74 36 21 94 56 60

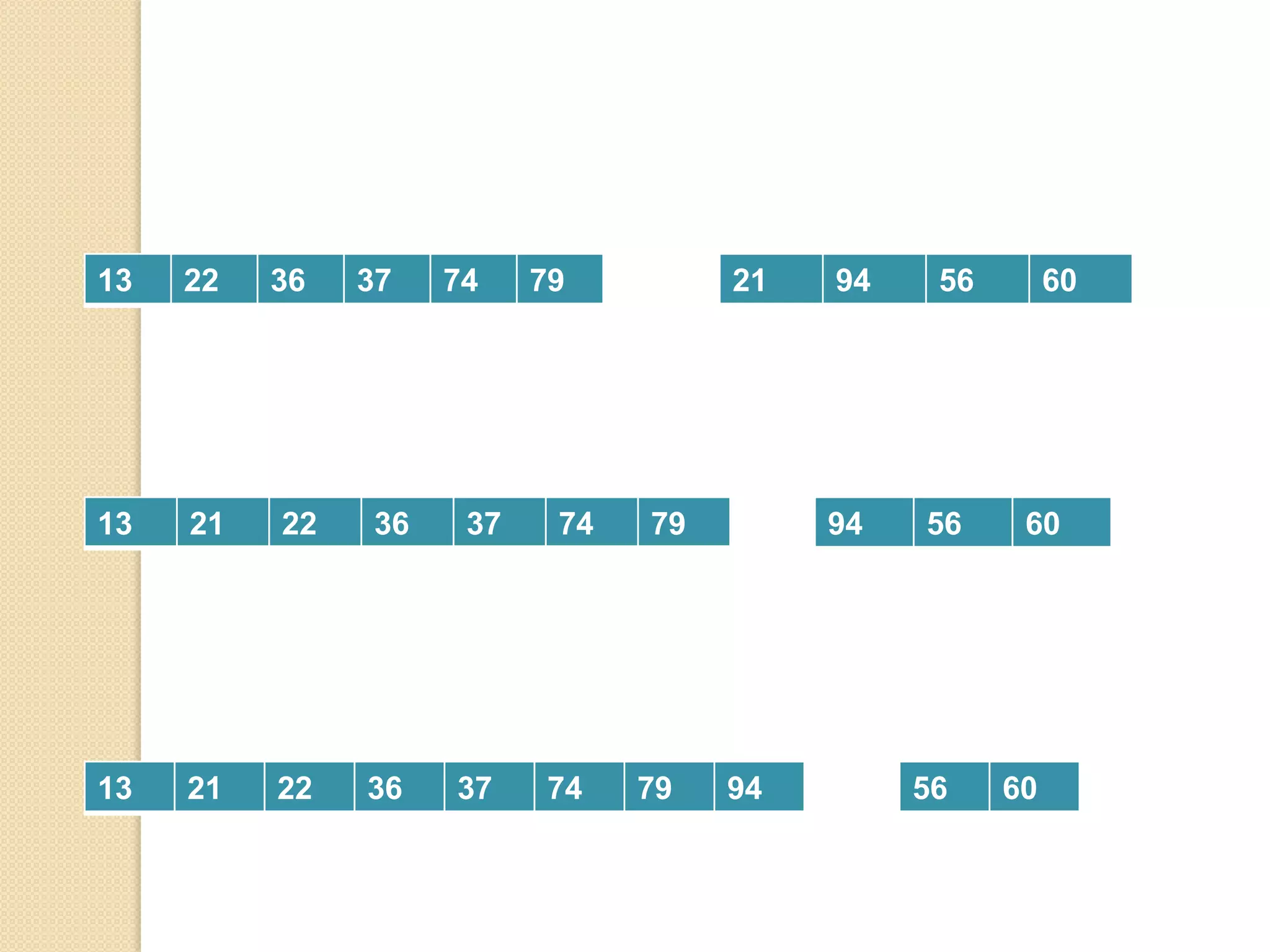

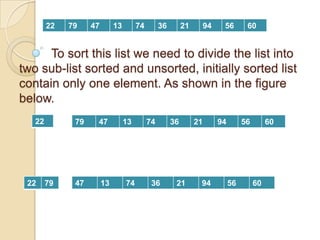

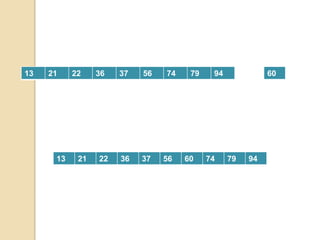

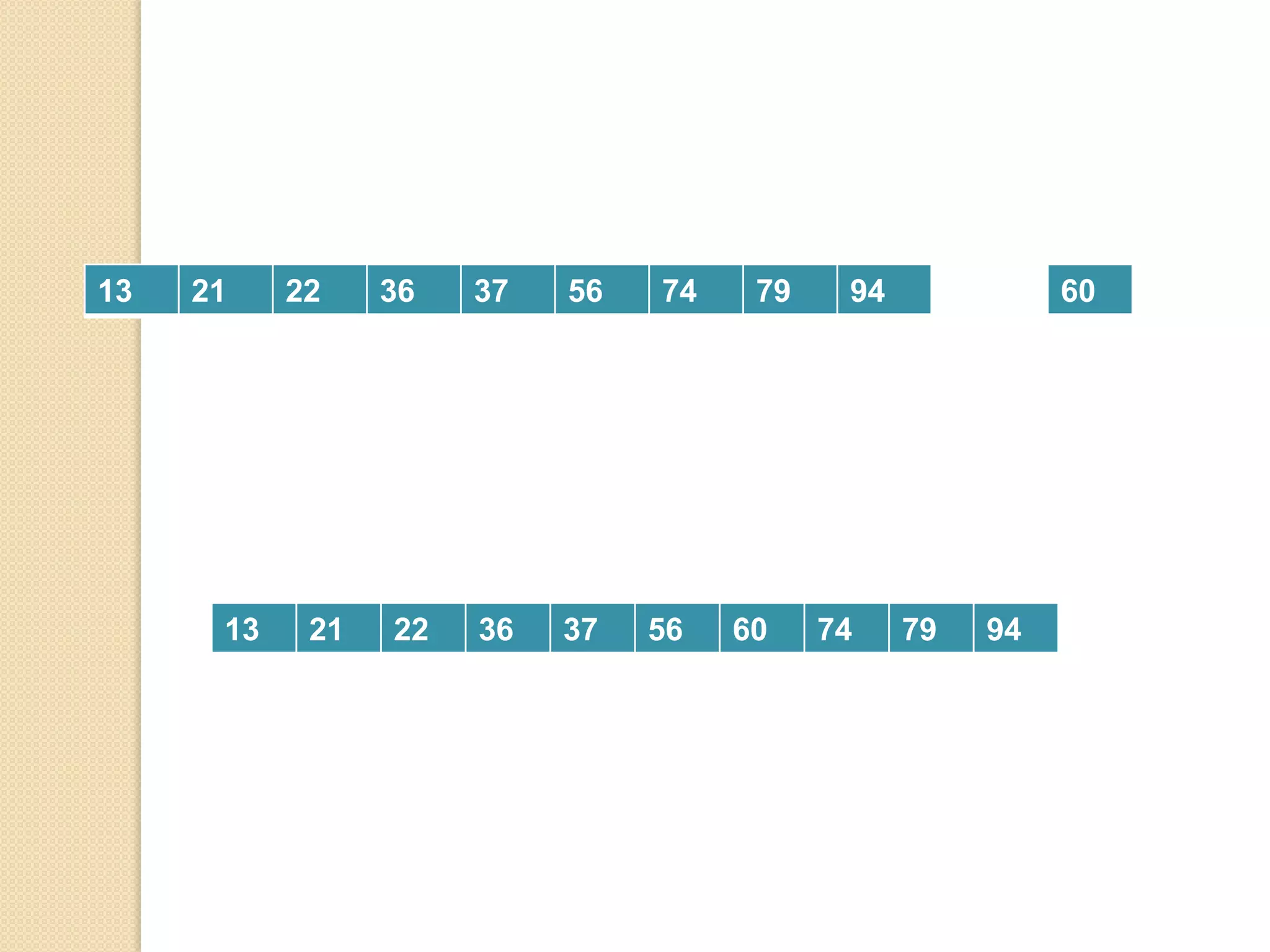

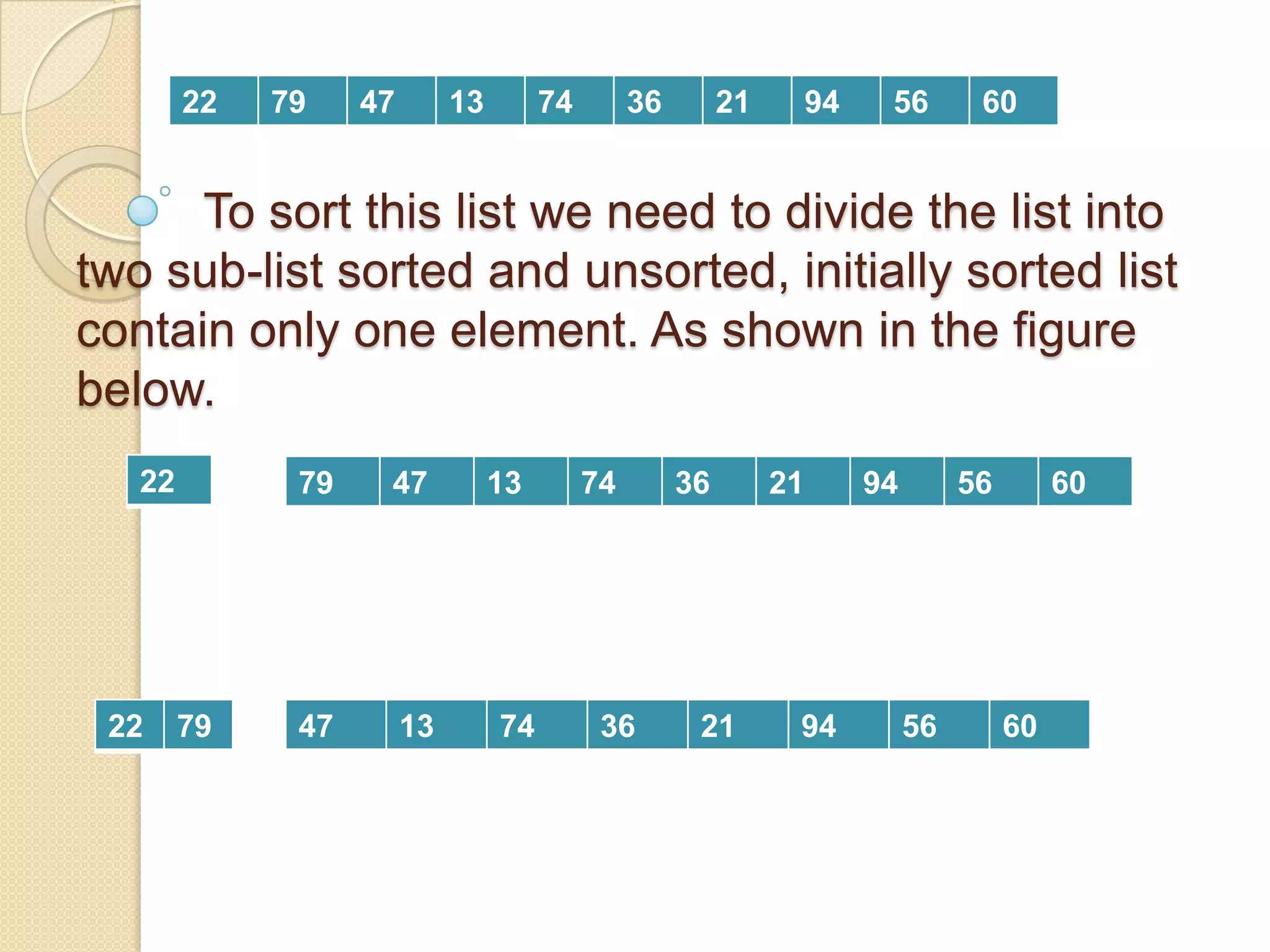

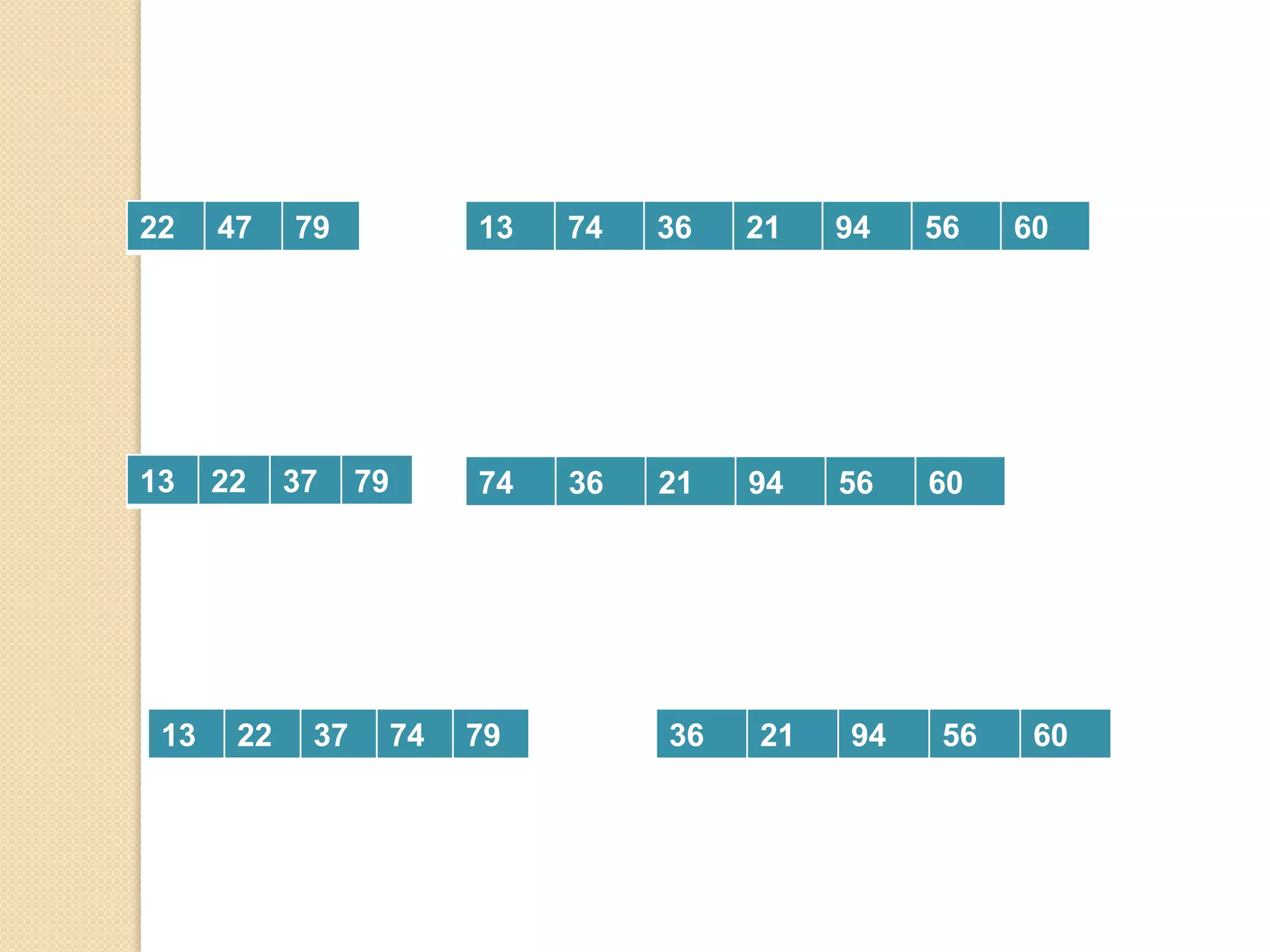

- 10. 22 79 47 13 74 36 21 94 56 60 To sort thislist we need to divide the list into two sub-list sorted and unsorted, initially sorted list contain only one element. As shown in the figure below. 22 22 79 79 47 47 13 13 74 74 36 36 21 21 94 94 56 56 60 60
- 11.
- 12.
- 13.

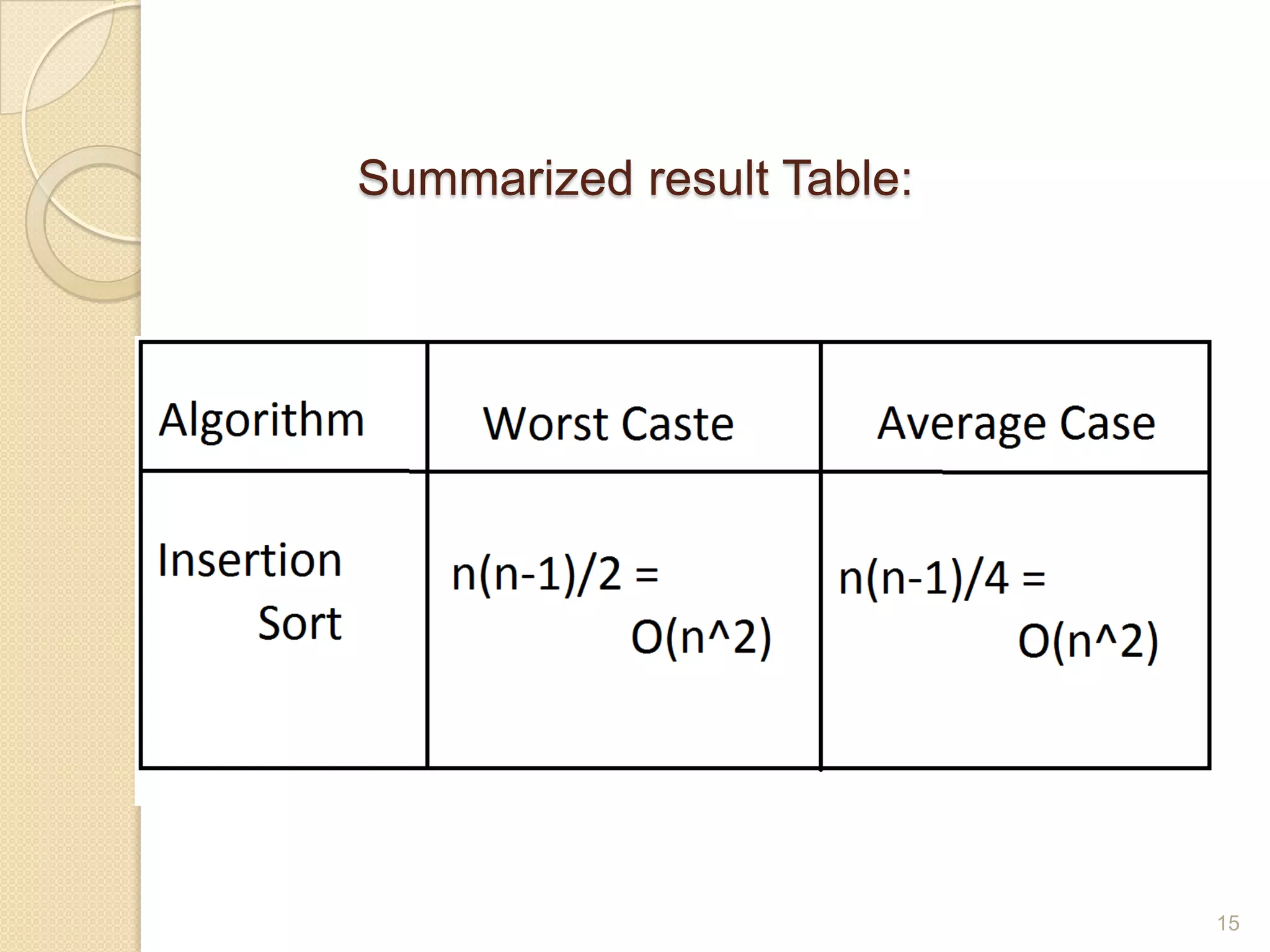

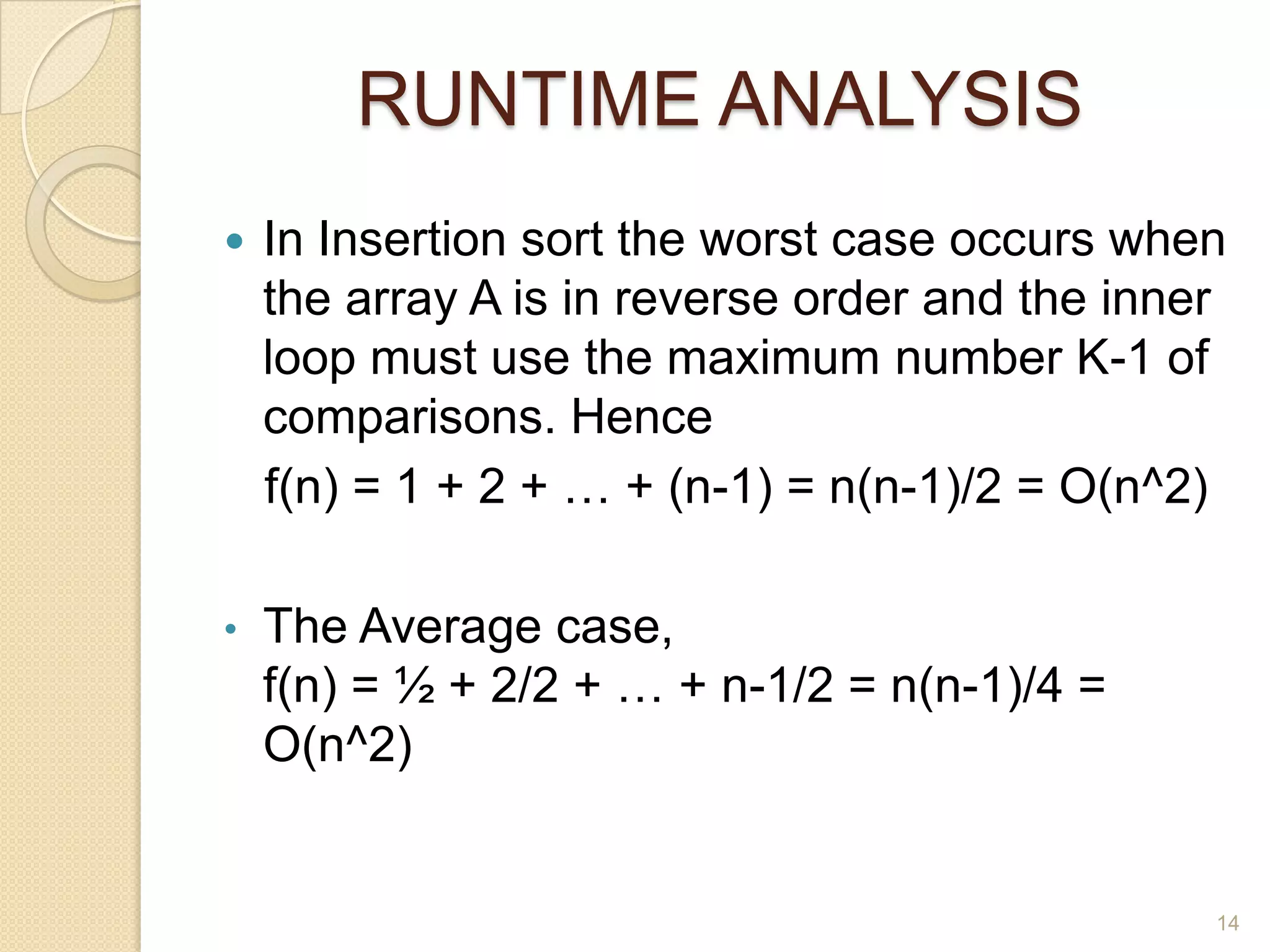

- 14. RUNTIME ANALYSIS In Insertionsort the worst case occurs when the array A is in reverse order and the inner loop must use the maximum number K-1 of comparisons. Hence f(n) = 1 + 2 + … + (n-1) = n(n-1)/2 = O(n^2) • The Average case, f(n) = ½ + 2/2 + … + n-1/2 = n(n-1)/4 = O(n^2) 14
- 15.

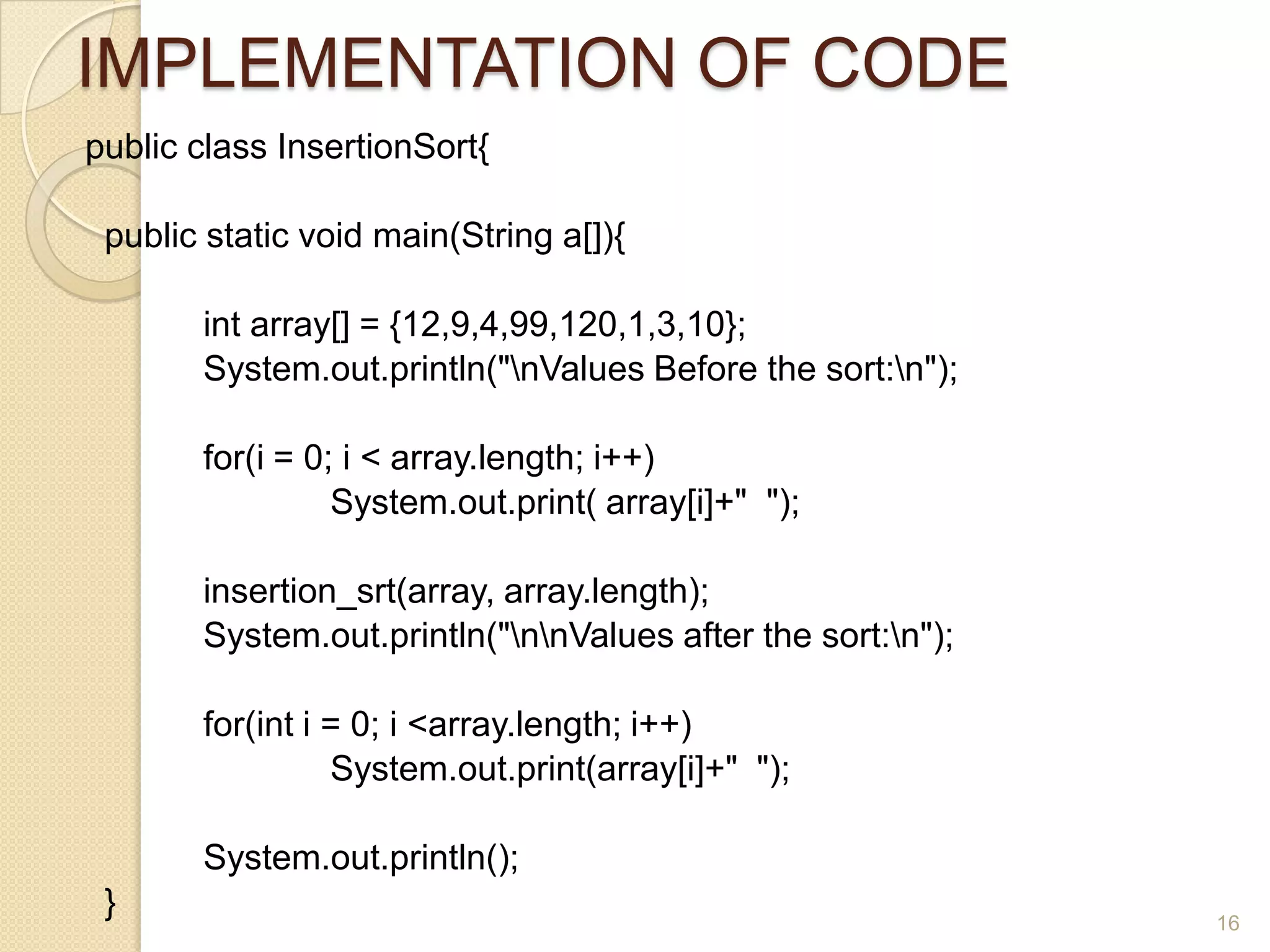

- 16. IMPLEMENTATION OF CODE publicclass InsertionSort{ public static void main(String a[]){ int array[] = {12,9,4,99,120,1,3,10}; System.out.println("nValues Before the sort:n"); for(i = 0; i < array.length; i++) System.out.print( array[i]+" "); insertion_srt(array, array.length); System.out.println("nnValues after the sort:n"); for(int i = 0; i <array.length; i++) System.out.print(array[i]+" "); System.out.println(); } 16

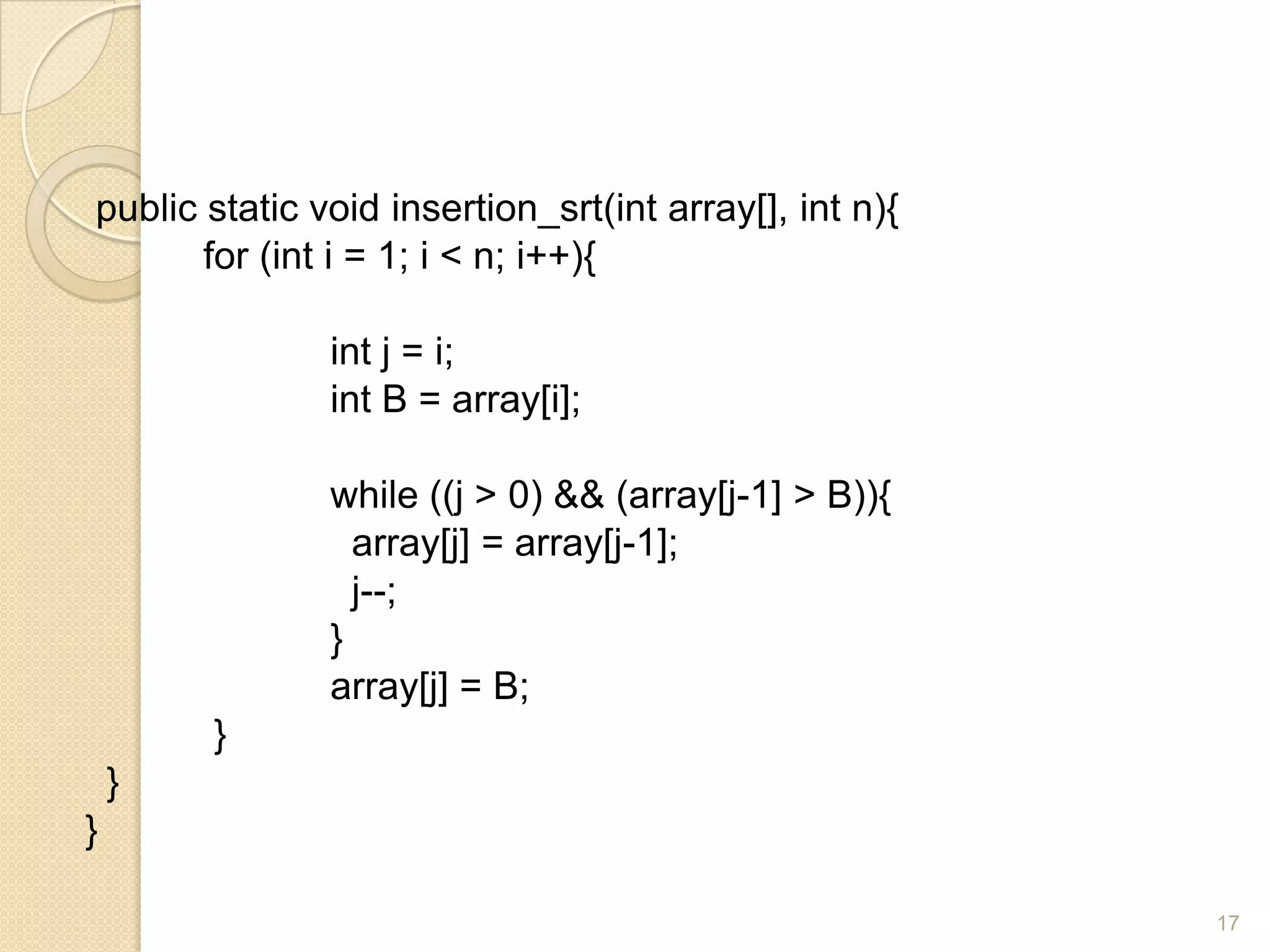

- 17. public static voidinsertion_srt(int array[], int n){ for (int i = 1; i < n; i++){ int j = i; int B = array[i]; while ((j > 0) && (array[j-1] > B)){ array[j] = array[j-1]; j--; } array[j] = B; } } } 17

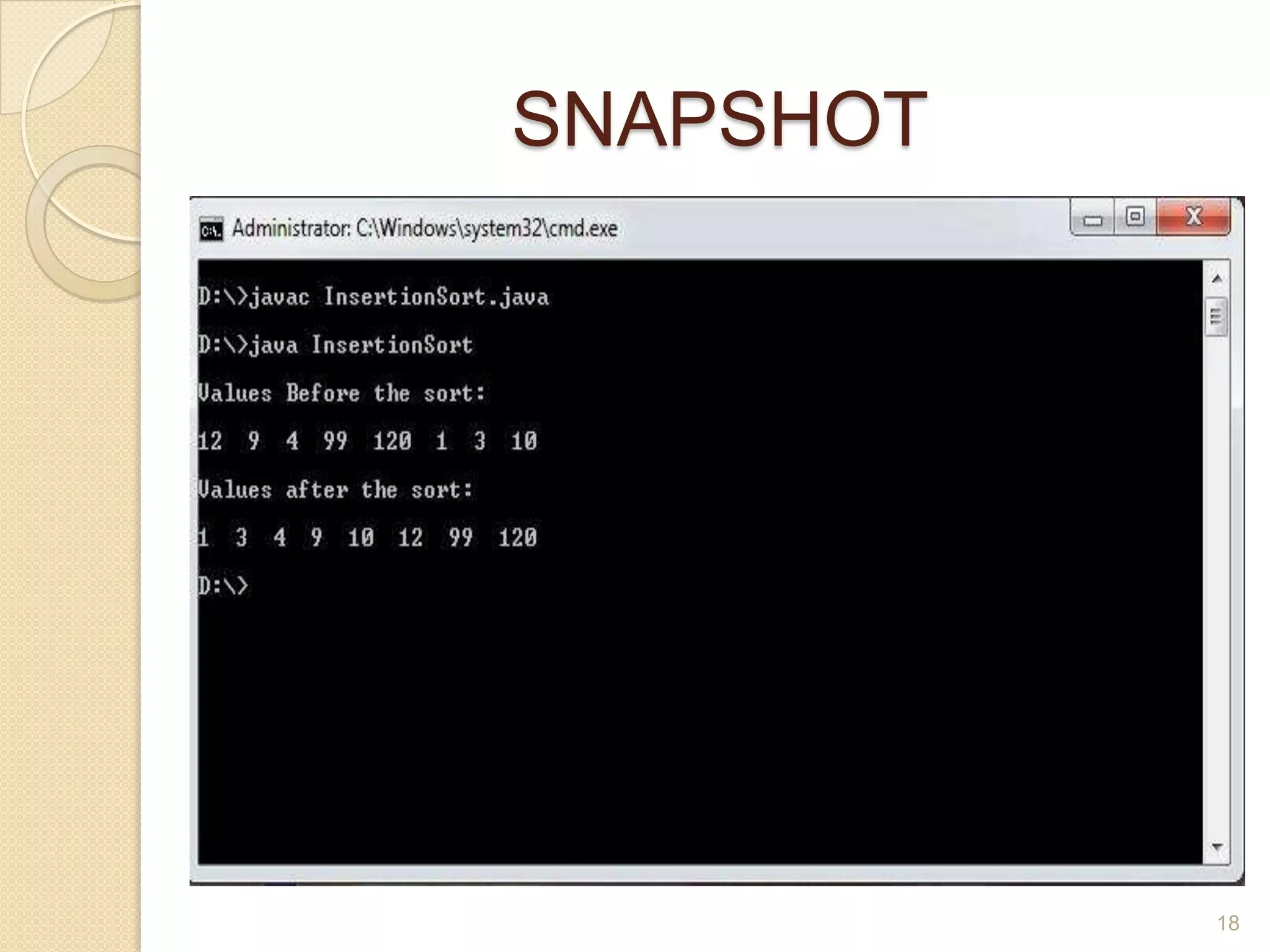

- 18.

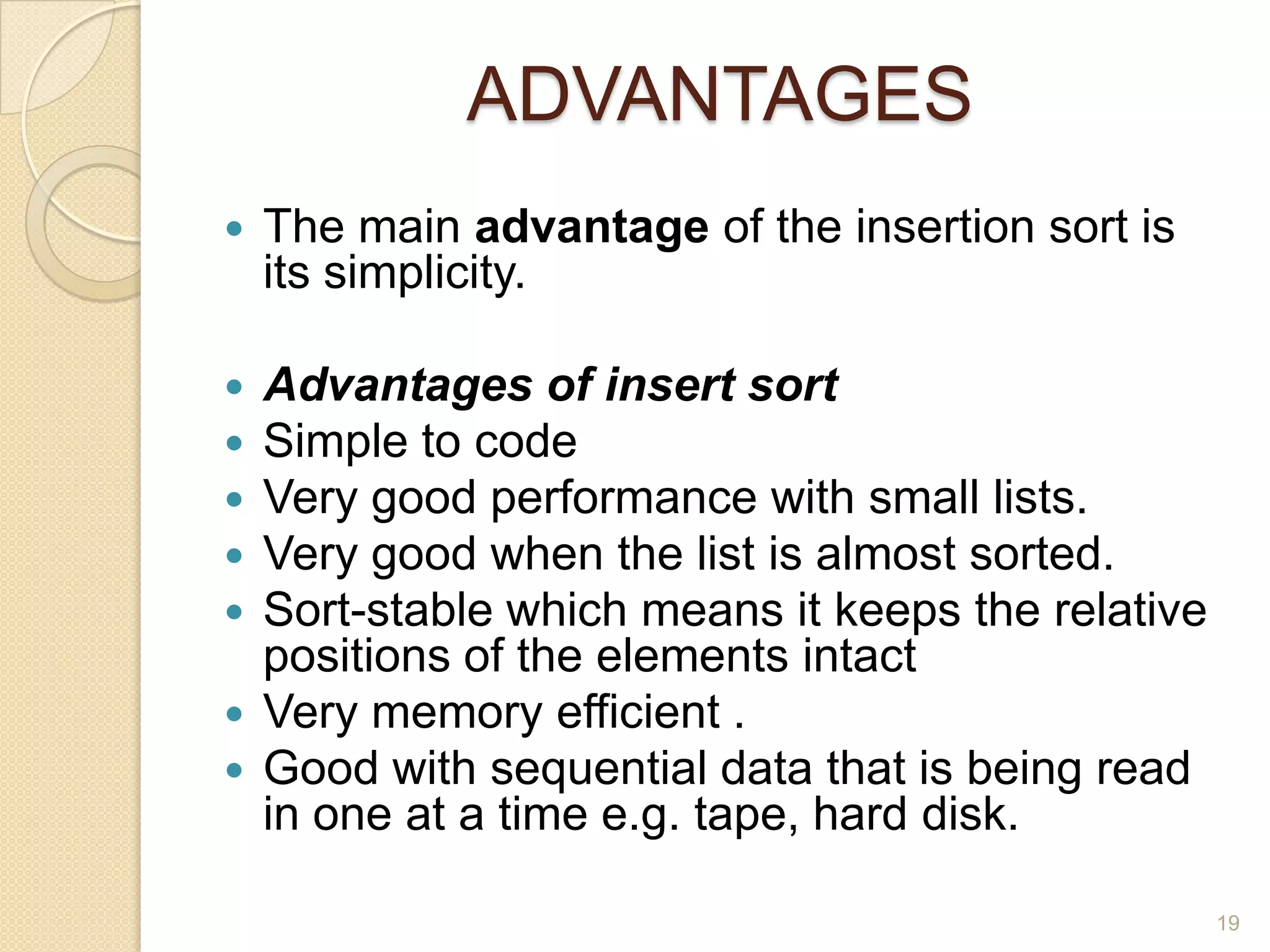

- 19. ADVANTAGES The main advantageof the insertion sort is its simplicity. Advantages of insert sort Simple to code Very good performance with small lists. Very good when the list is almost sorted. Sort-stable which means it keeps the relative positions of the elements intact Very memory efficient . Good with sequential data that is being read in one at a time e.g. tape, hard disk. 19

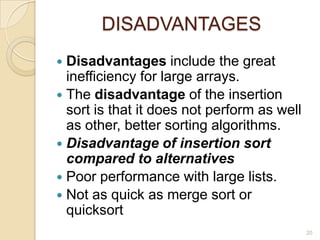

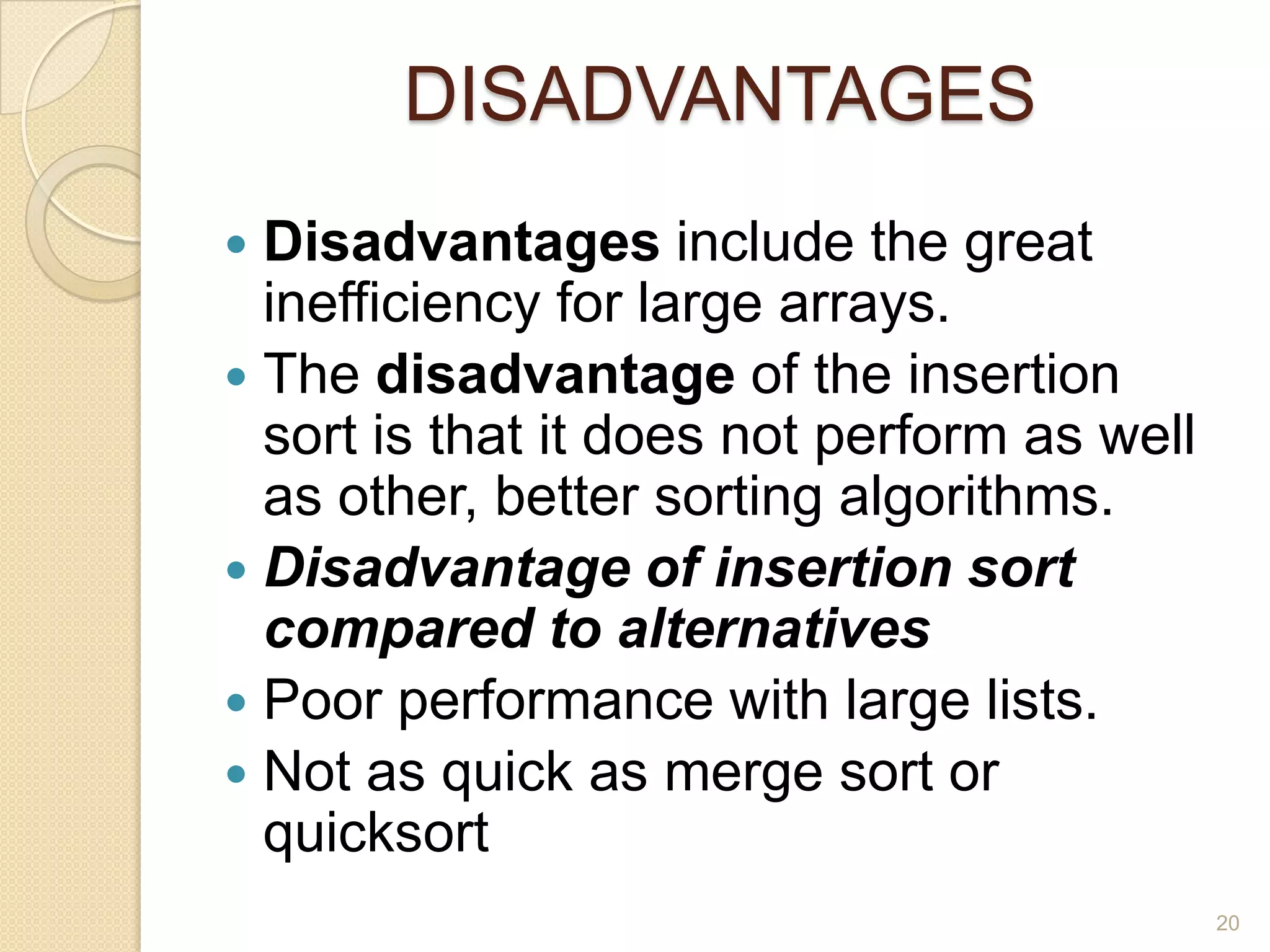

- 20. DISADVANTAGES Disadvantages include thegreat inefficiency for large arrays. The disadvantage of the insertion sort is that it does not perform as well as other, better sorting algorithms. Disadvantage of insertion sort compared to alternatives Poor performance with large lists. Not as quick as merge sort or quicksort 20

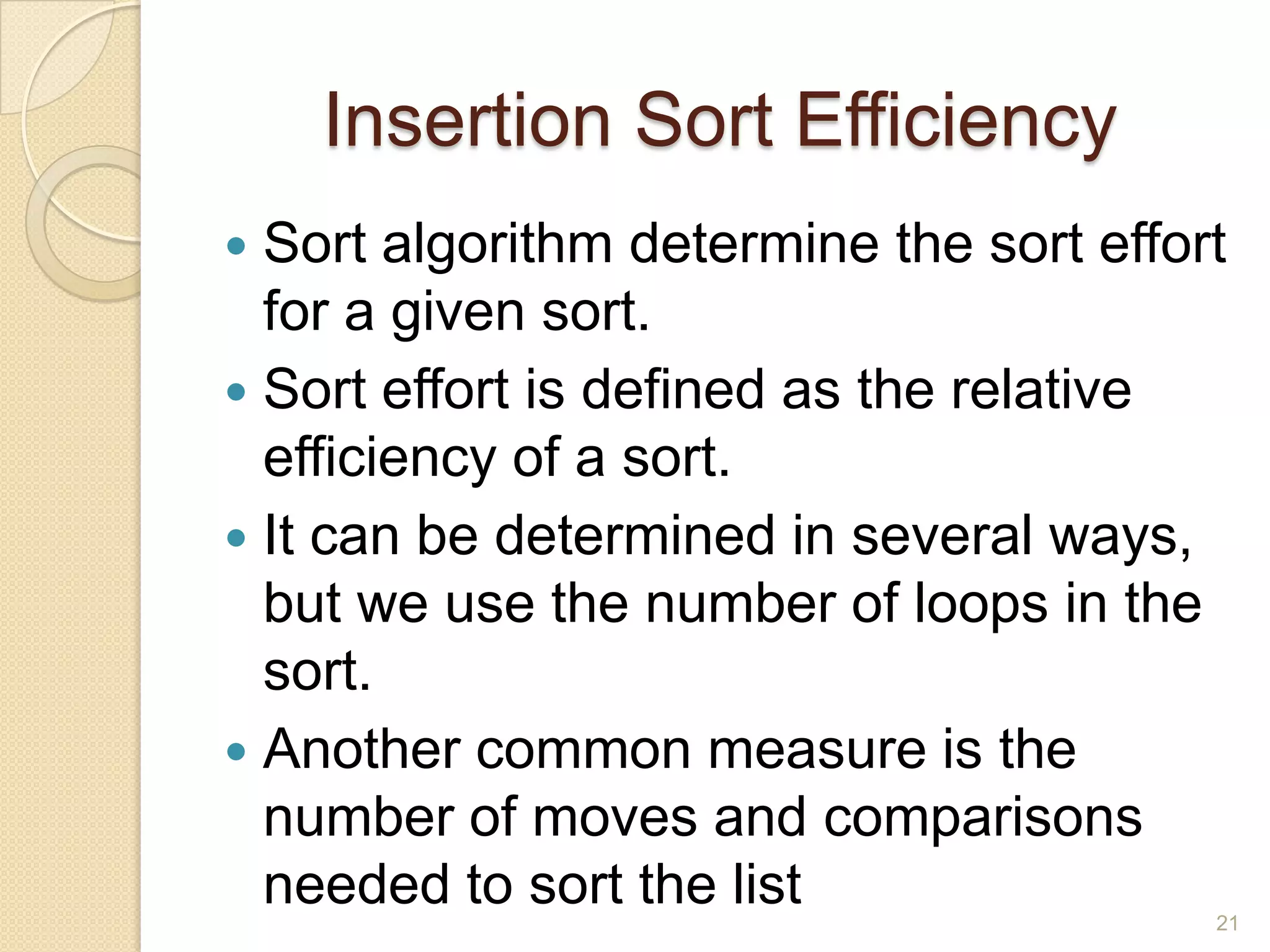

- 21. Insertion Sort Efficiency Sortalgorithm determine the sort effort for a given sort. Sort effort is defined as the relative efficiency of a sort. It can be determined in several ways, but we use the number of loops in the sort. Another common measure is the number of moves and comparisons needed to sort the list 21

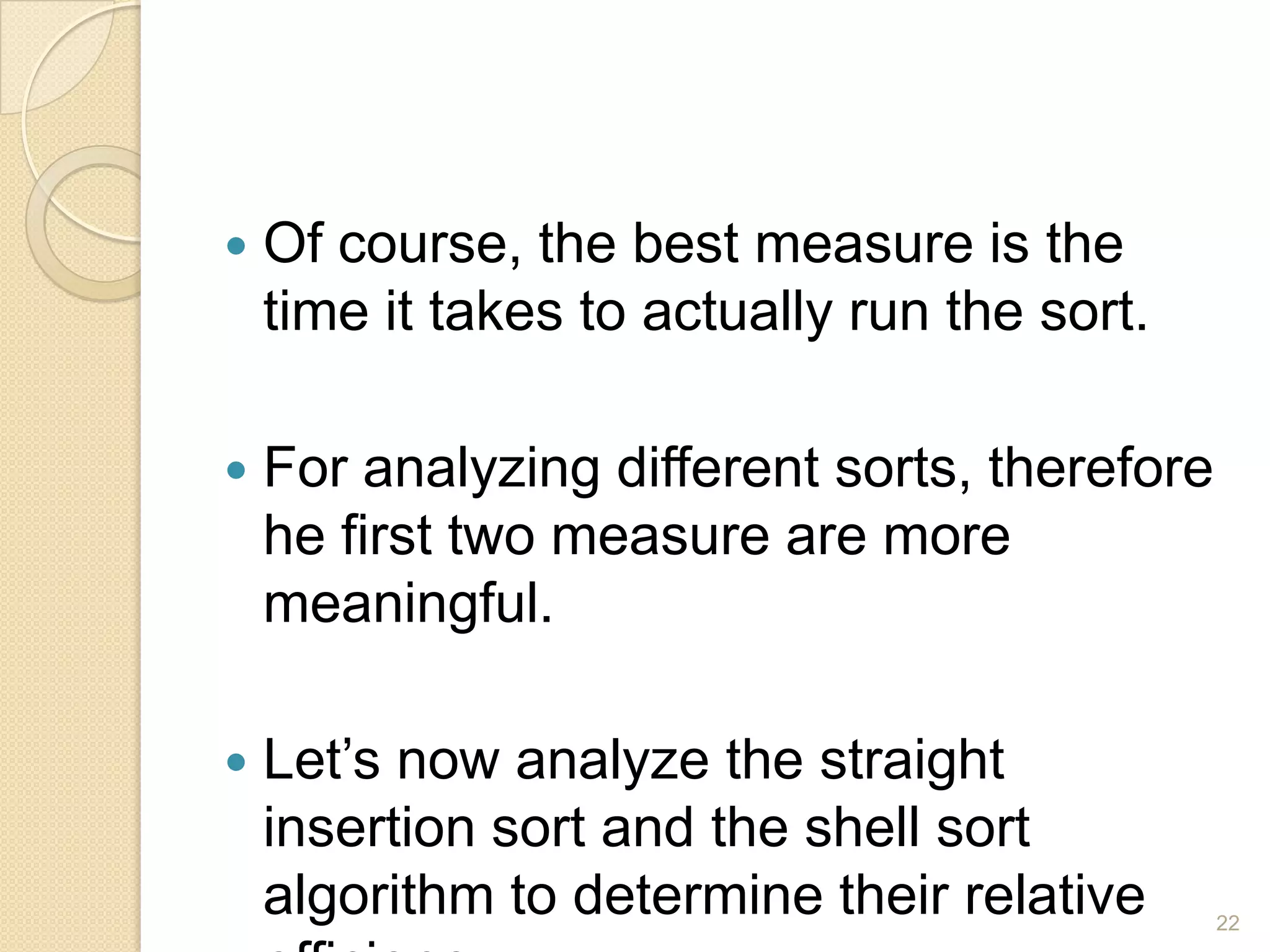

- 22. Of course, thebest measure is the time it takes to actually run the sort. For analyzing different sorts, therefore he first two measure are more meaningful. Let’s now analyze the straight insertion sort and the shell sort algorithm to determine their relative 22
- 23.
