2015.10.05 Updated > Network Device Development - Part 1: Switch
This document provides instructions for setting up a network development environment using a Debian virtual machine. It includes choosing a board and operating system, installing Debian in a VMware virtual machine, configuring virtual networks, developing and installing simple kernel modules to test network functionality, and modifying kernel modules to implement basic firewall rules.
More Related Content
Similar to 2015.10.05 Updated > Network Device Development - Part 1: Switch
2015.10.05 Updated > Network Device Development - Part 1: Switch

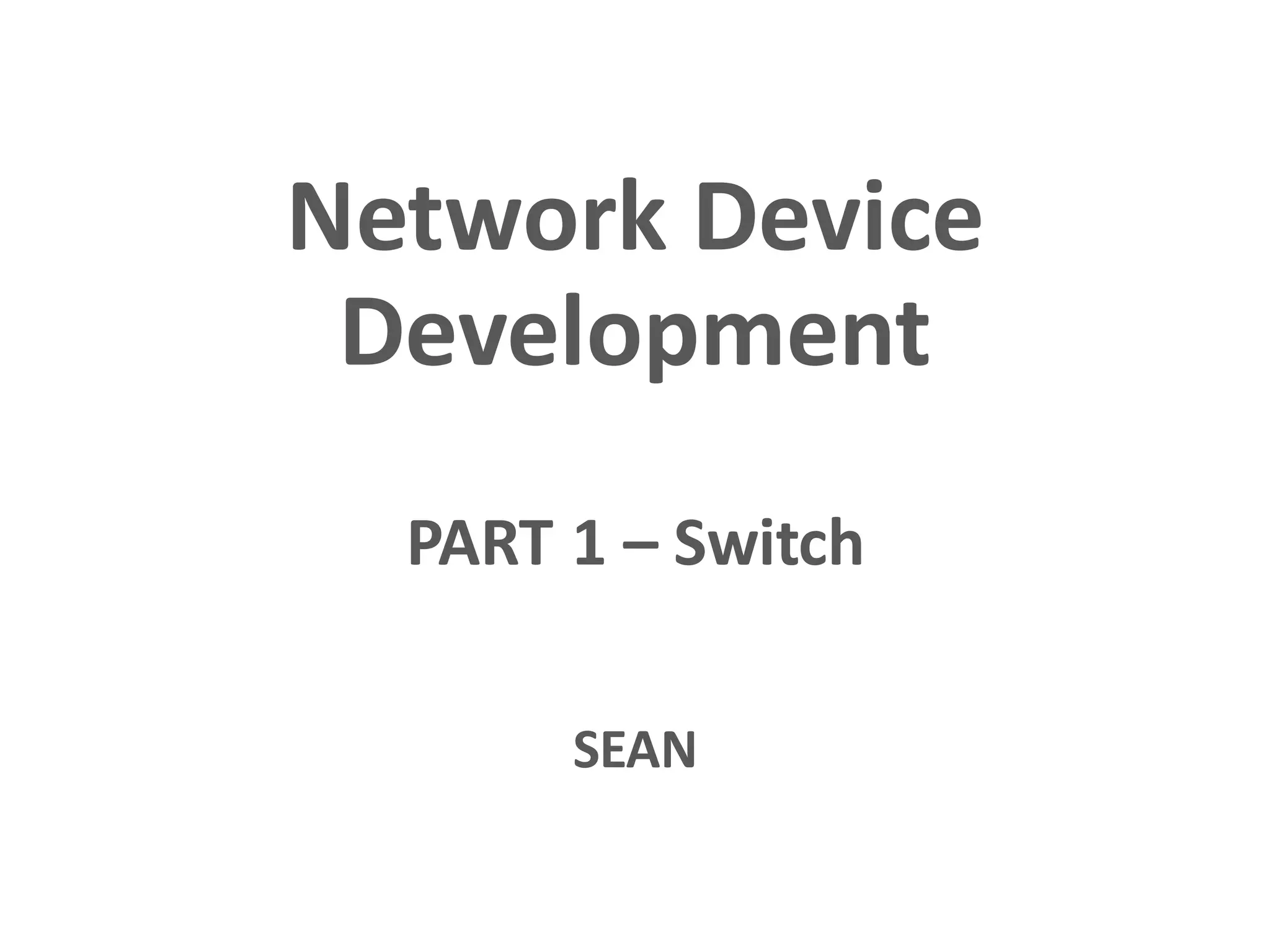

- 1. Network Device Development PART 1– Switch SEAN
- 2. Sean • Developer • erinus.startup@gmail.com •https://www.facebook.com/erinus
- 3.
- 4.
- 5. Simple, Support, Easy,… X86 Board

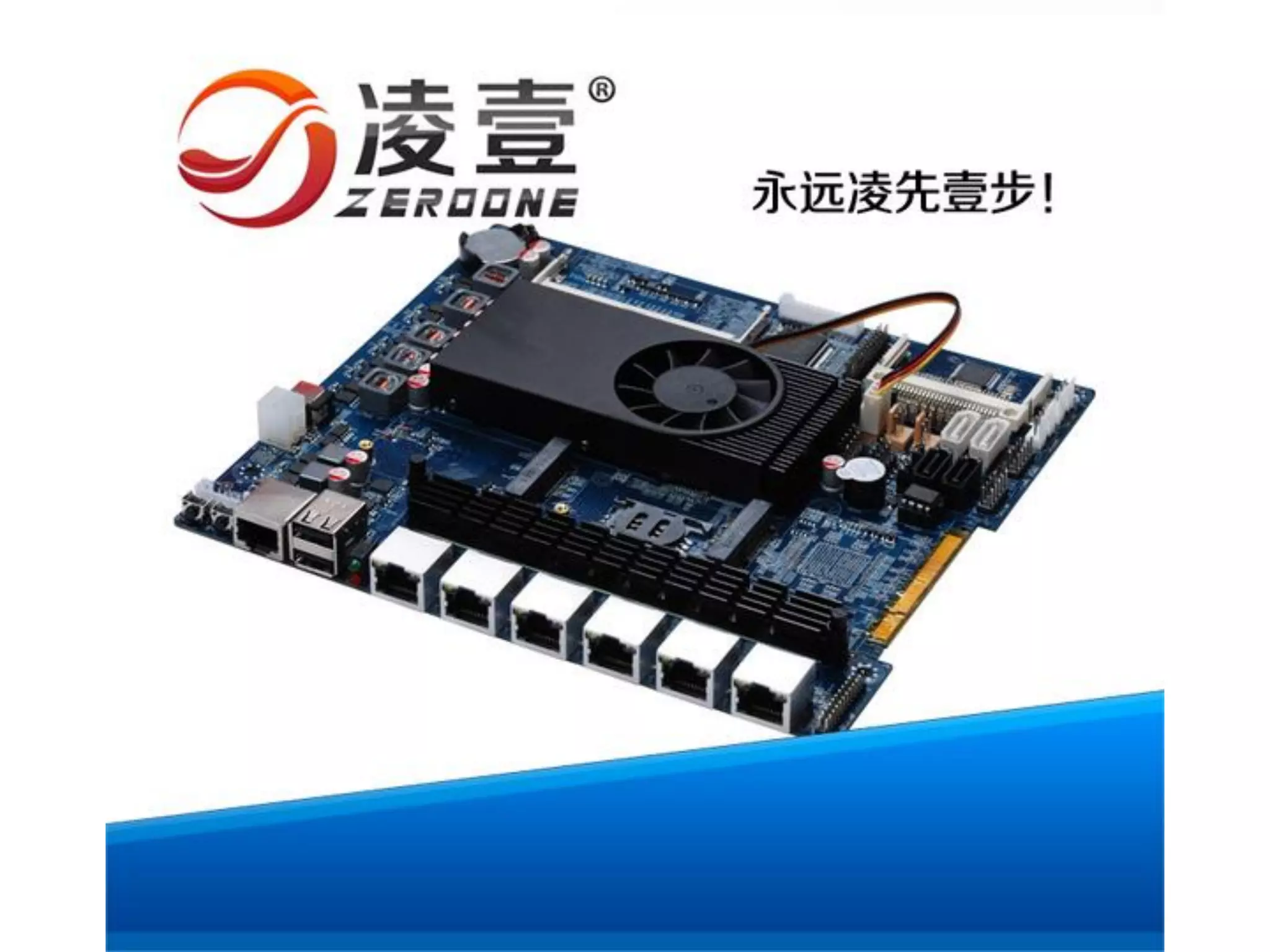

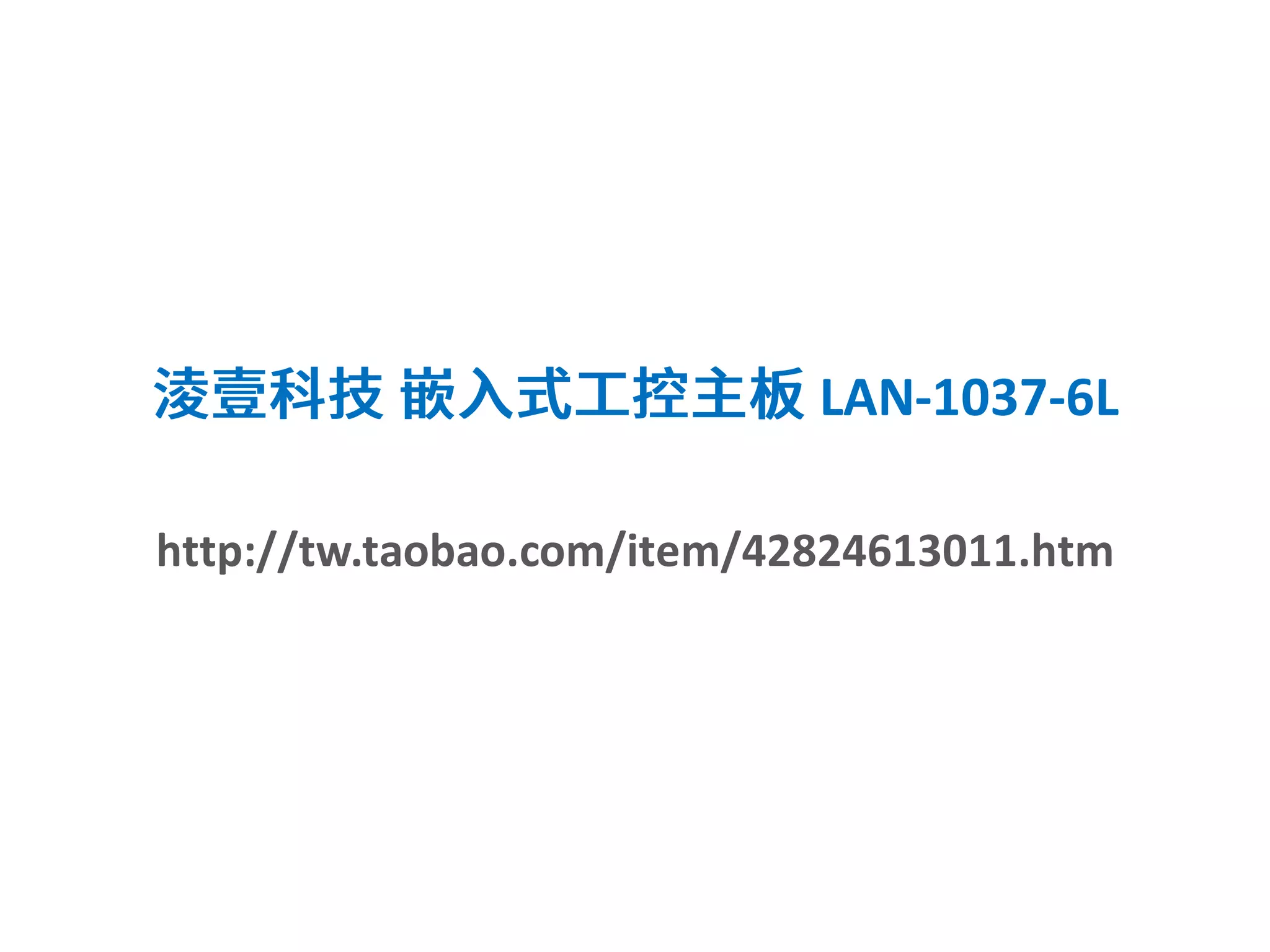

- 6. X86 Board with6 Ethernet
- 7.

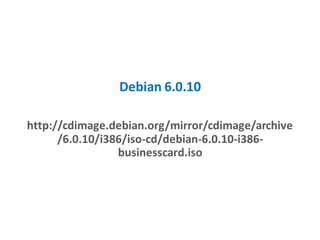

- 8.
- 9.

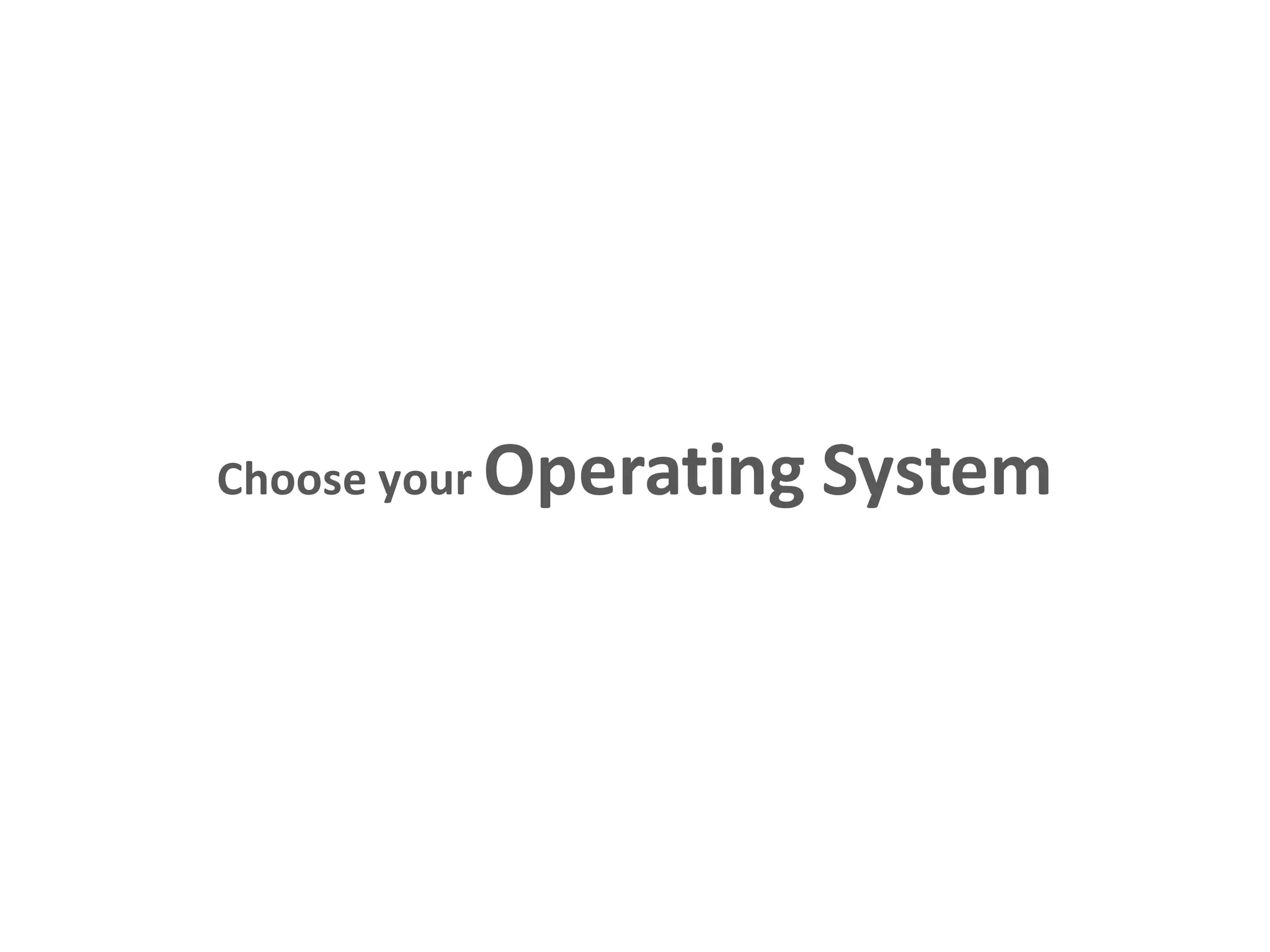

- 10. Choose your OperatingSystem

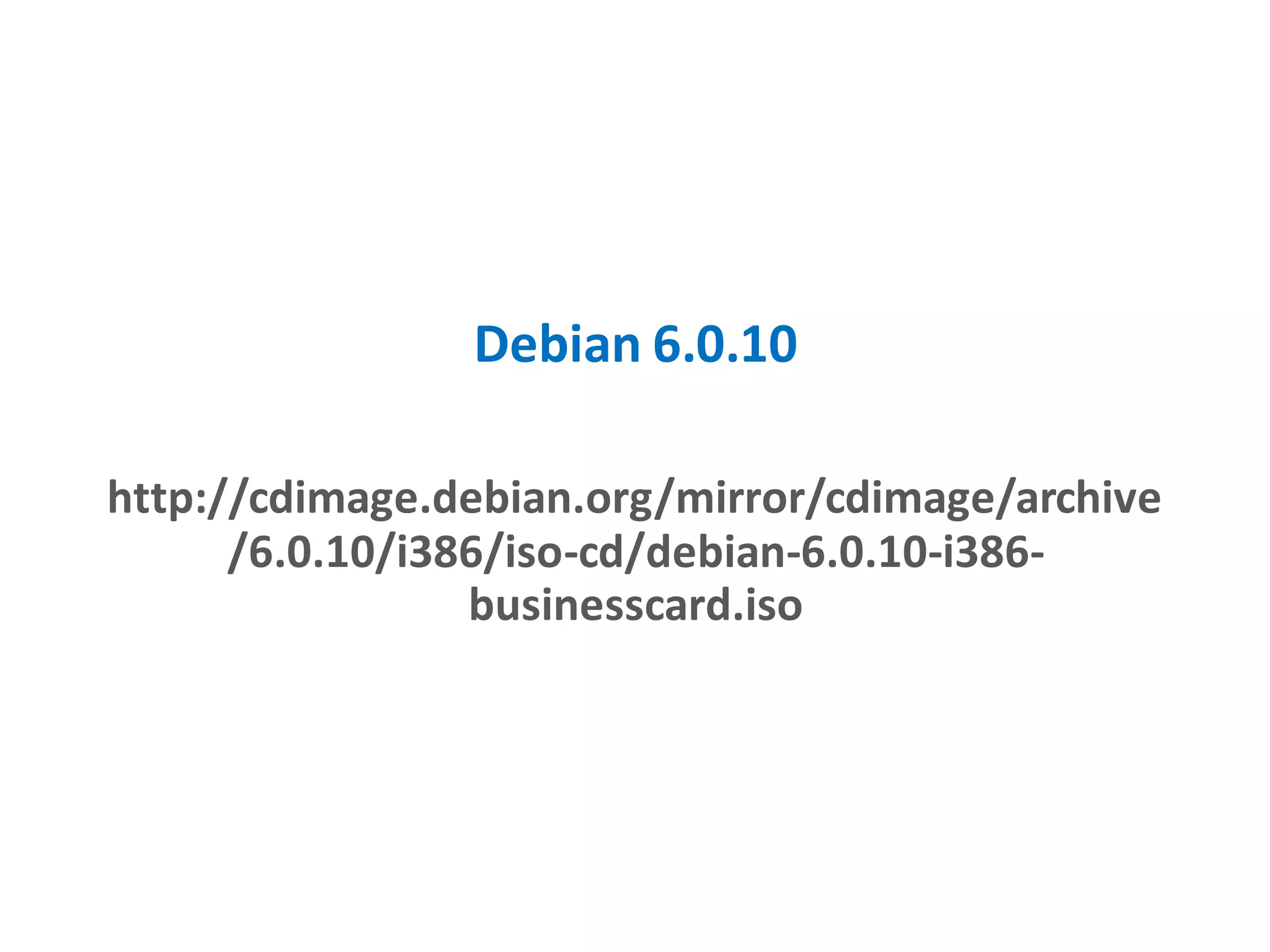

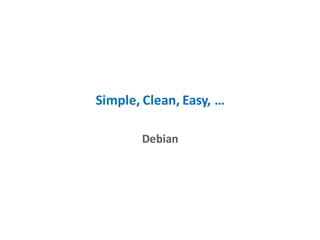

- 11. Simple, Clean, Easy,… Debian
- 12.

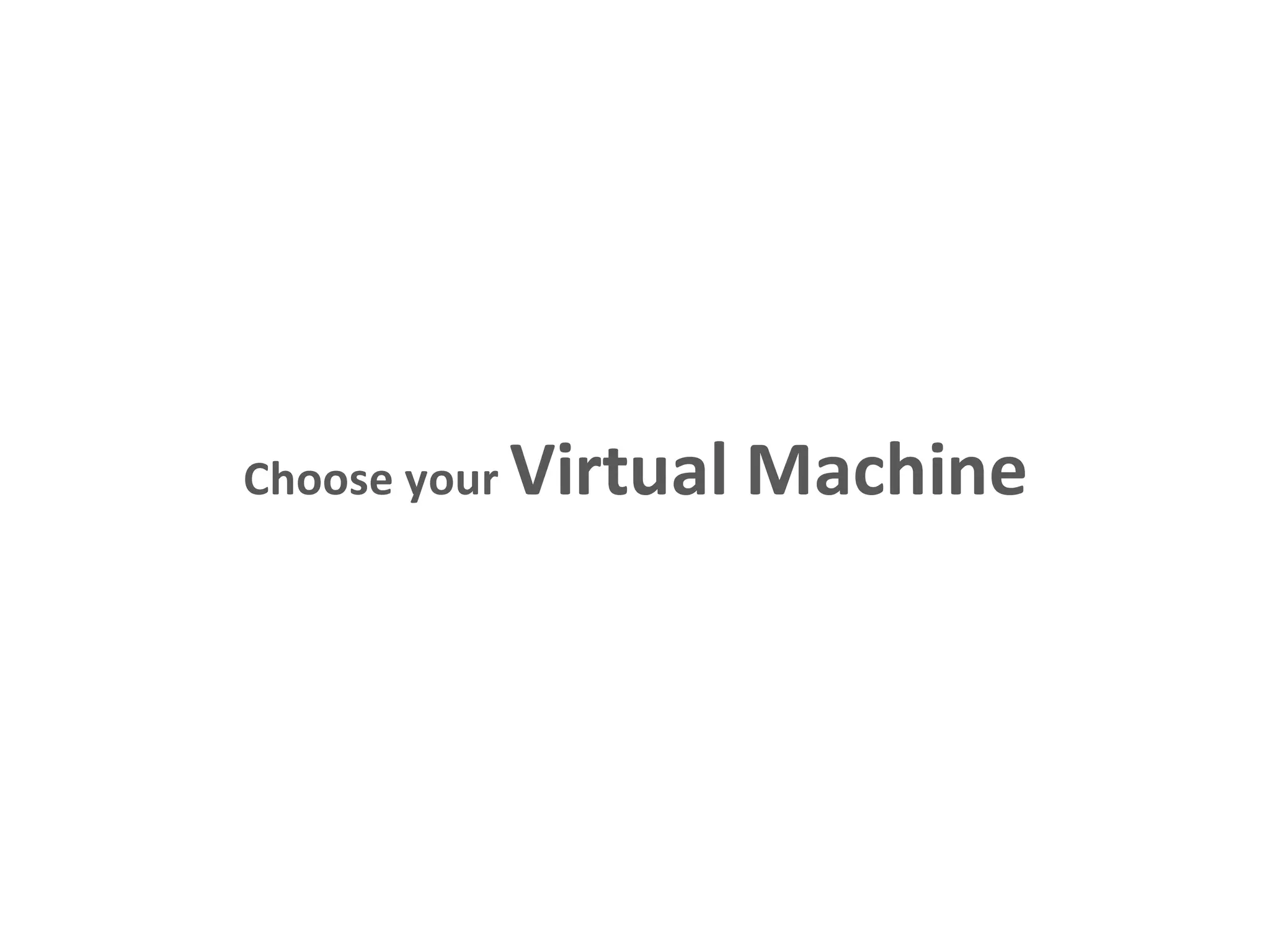

- 13. Choose your VirtualMachine
- 14. Simple, Stable, Fast,… VMware Workstation

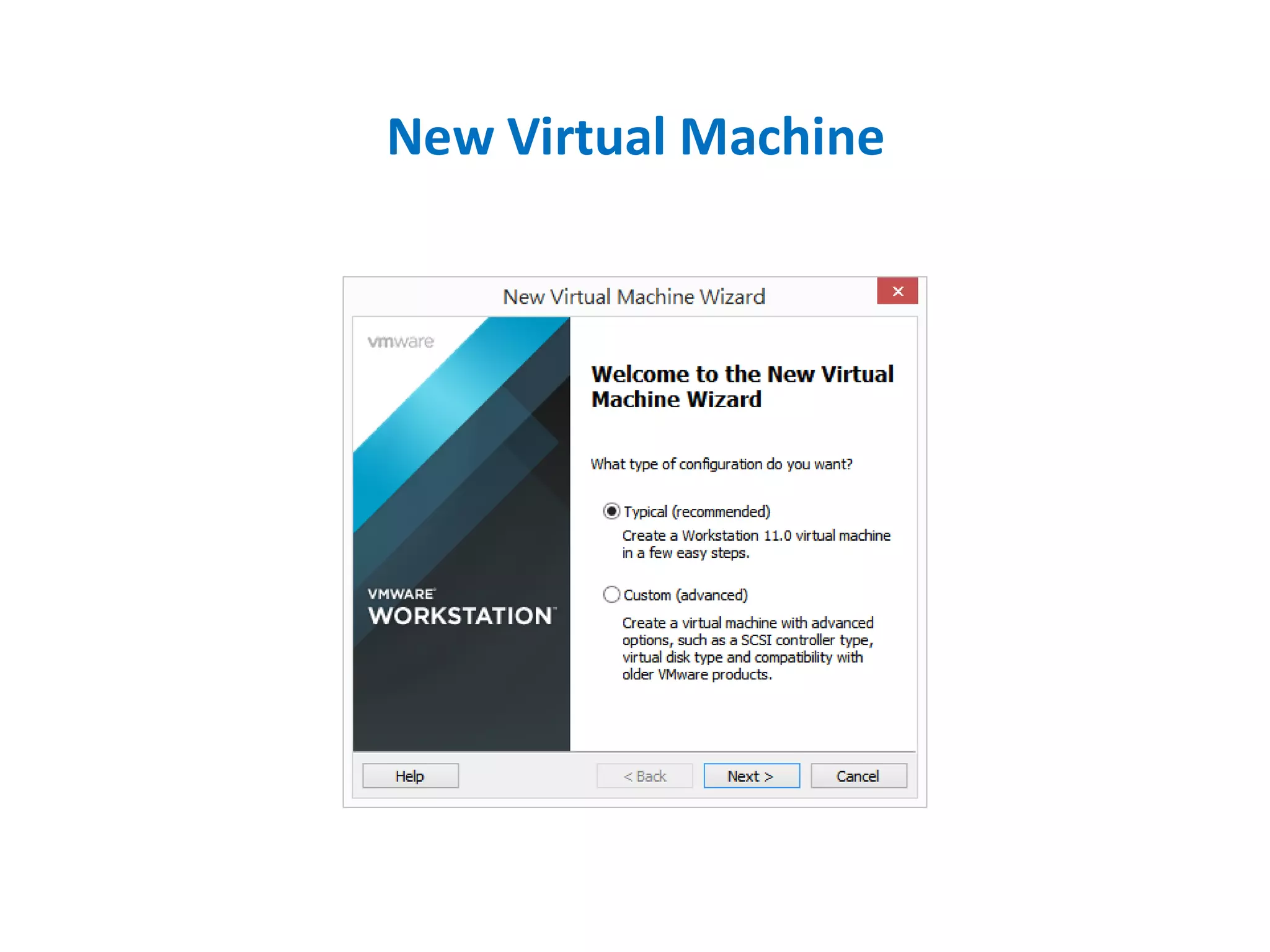

- 15.
- 16. X86 Board with6 Ethernet eth5 eth4 eth3 eth2 eth1 eth0
- 17. X86 Board with6 Ethernet Internet mSATA mSATA RAM USB DVD-ROM

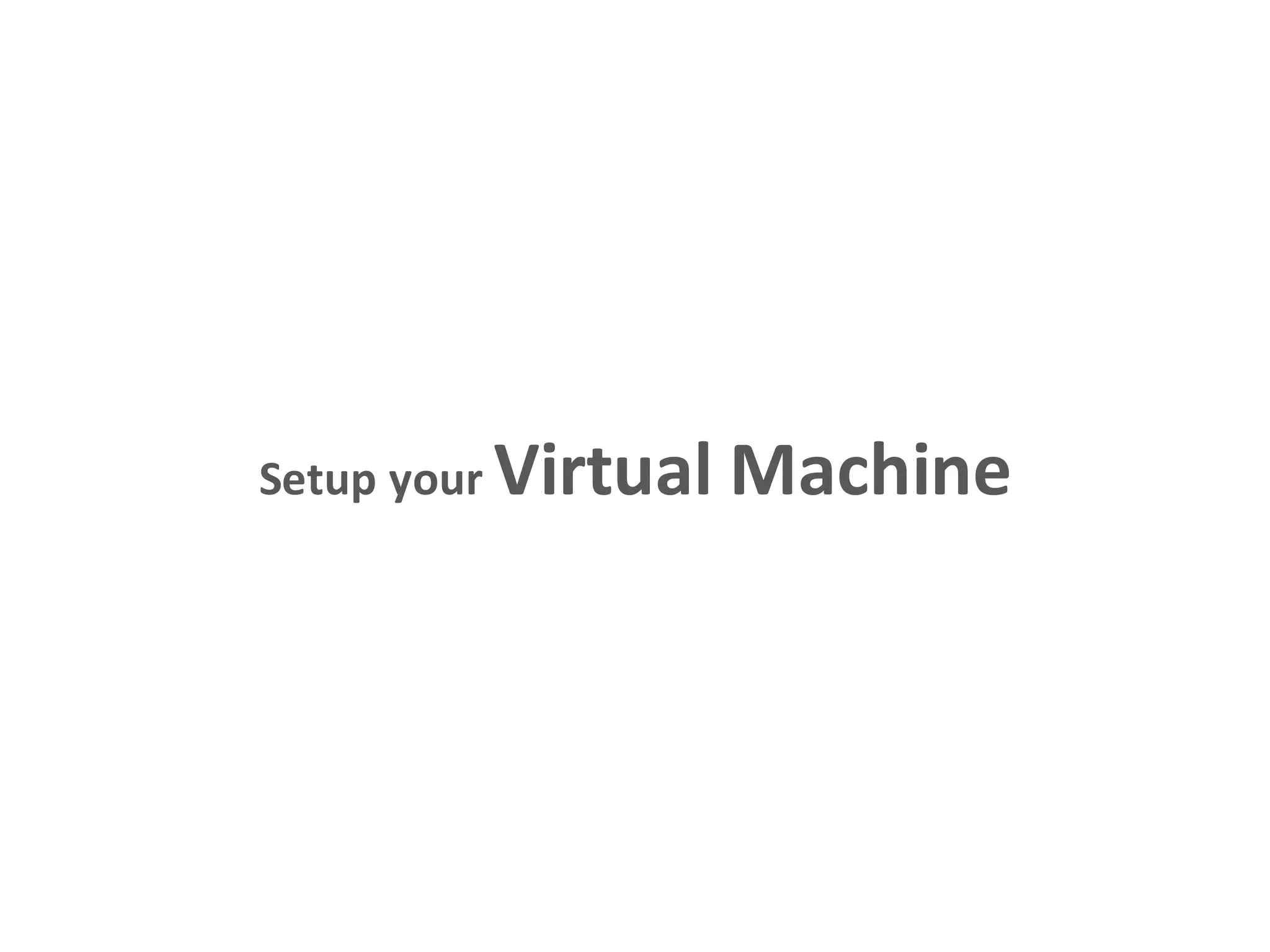

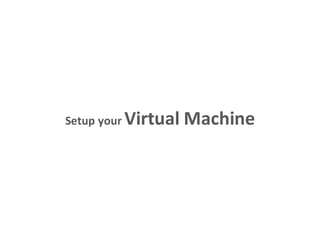

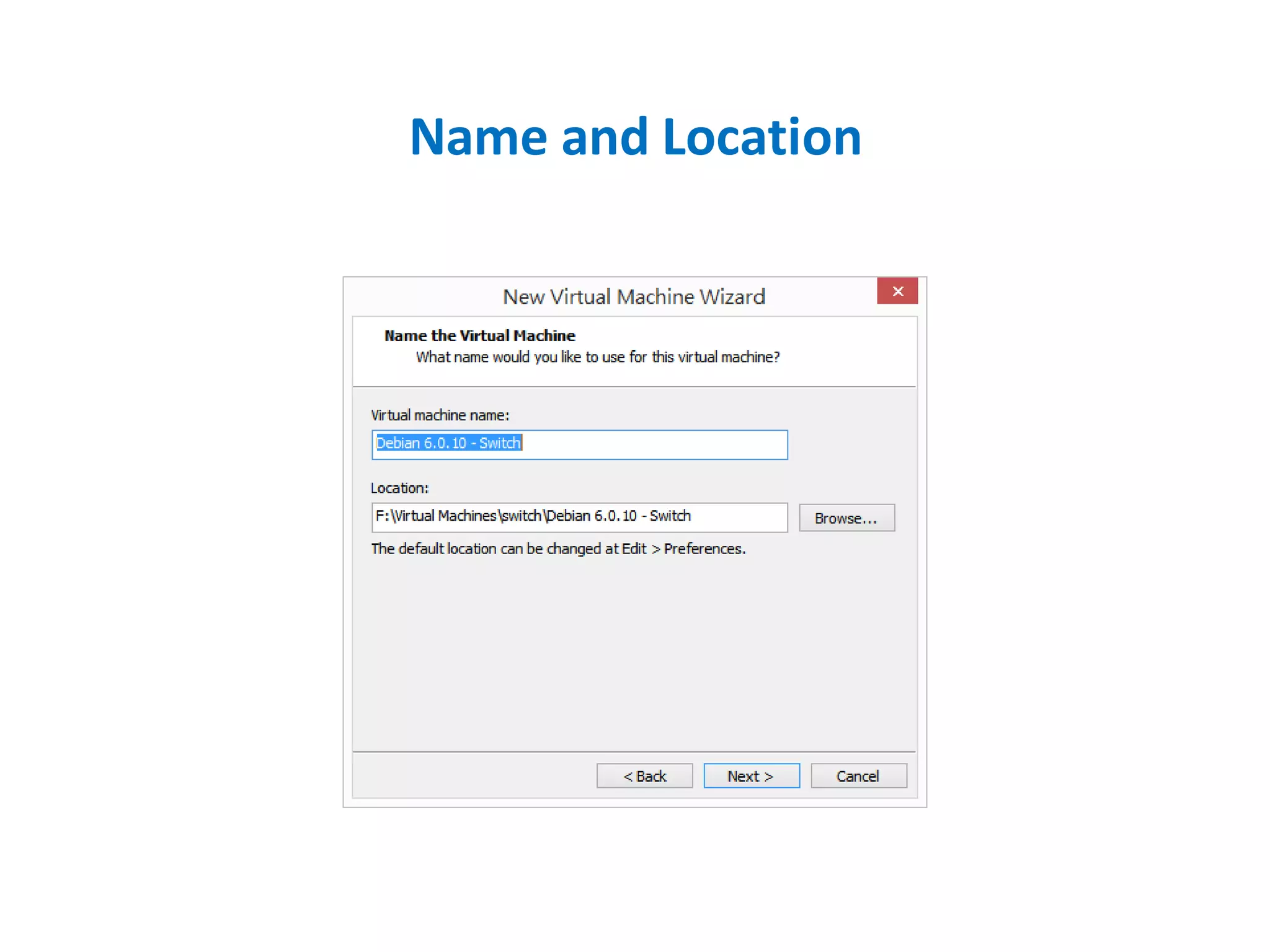

- 18. Setup your VirtualMachine
- 19. Simple, Stable, Fast,… VMware Workstation

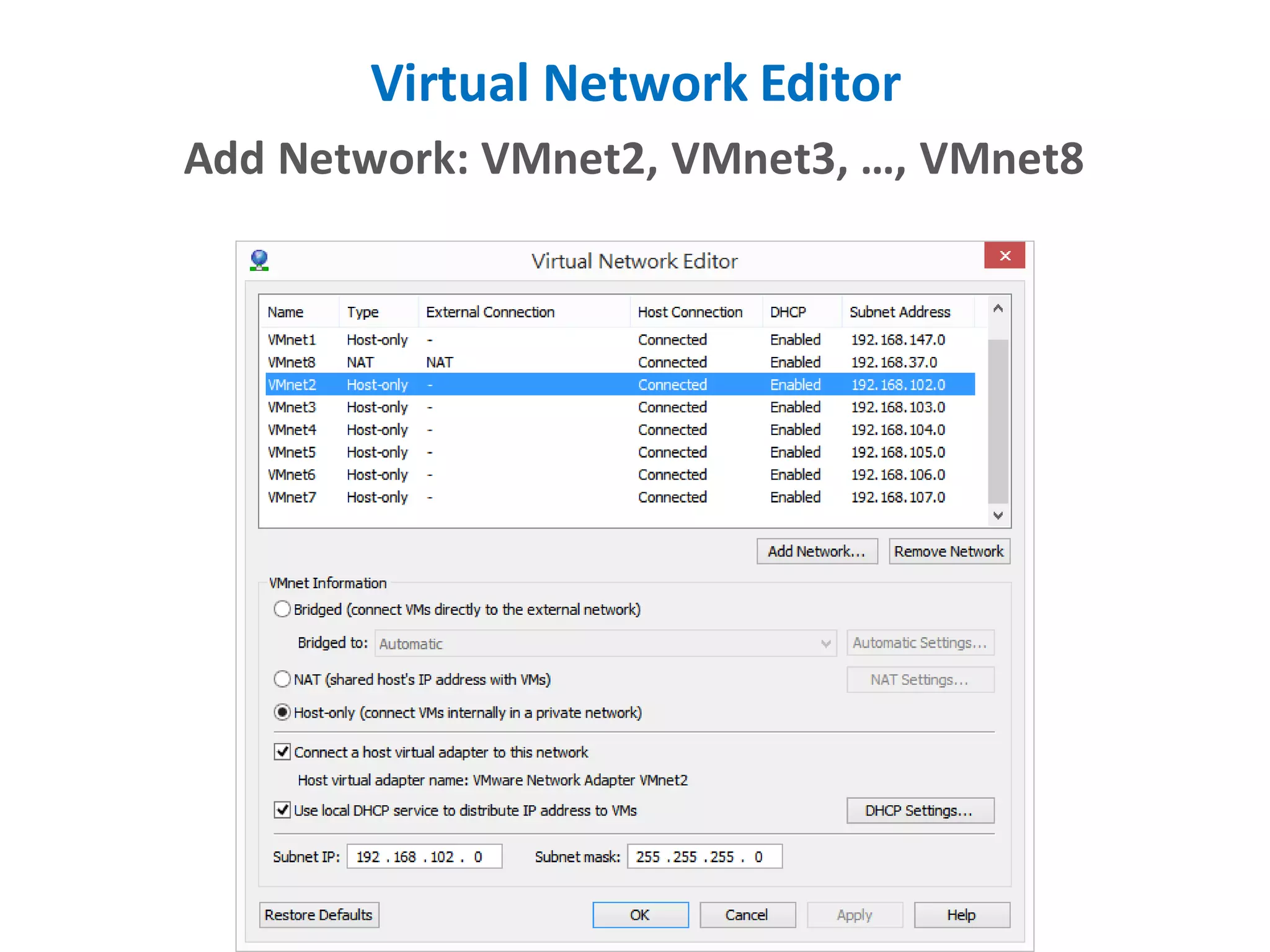

- 20. Virtual Network Editor AddNetwork: VMnet2, VMnet3, …, VMnet8
- 21. Virtual Network Editor ModifyIP number (192.168.10X.0) to match VMnetX for debugging Modify this
- 22. Virtual Network Editor Uncheck"Connect a host virtual adapter to this network" to make isolated subnet Uncheck this

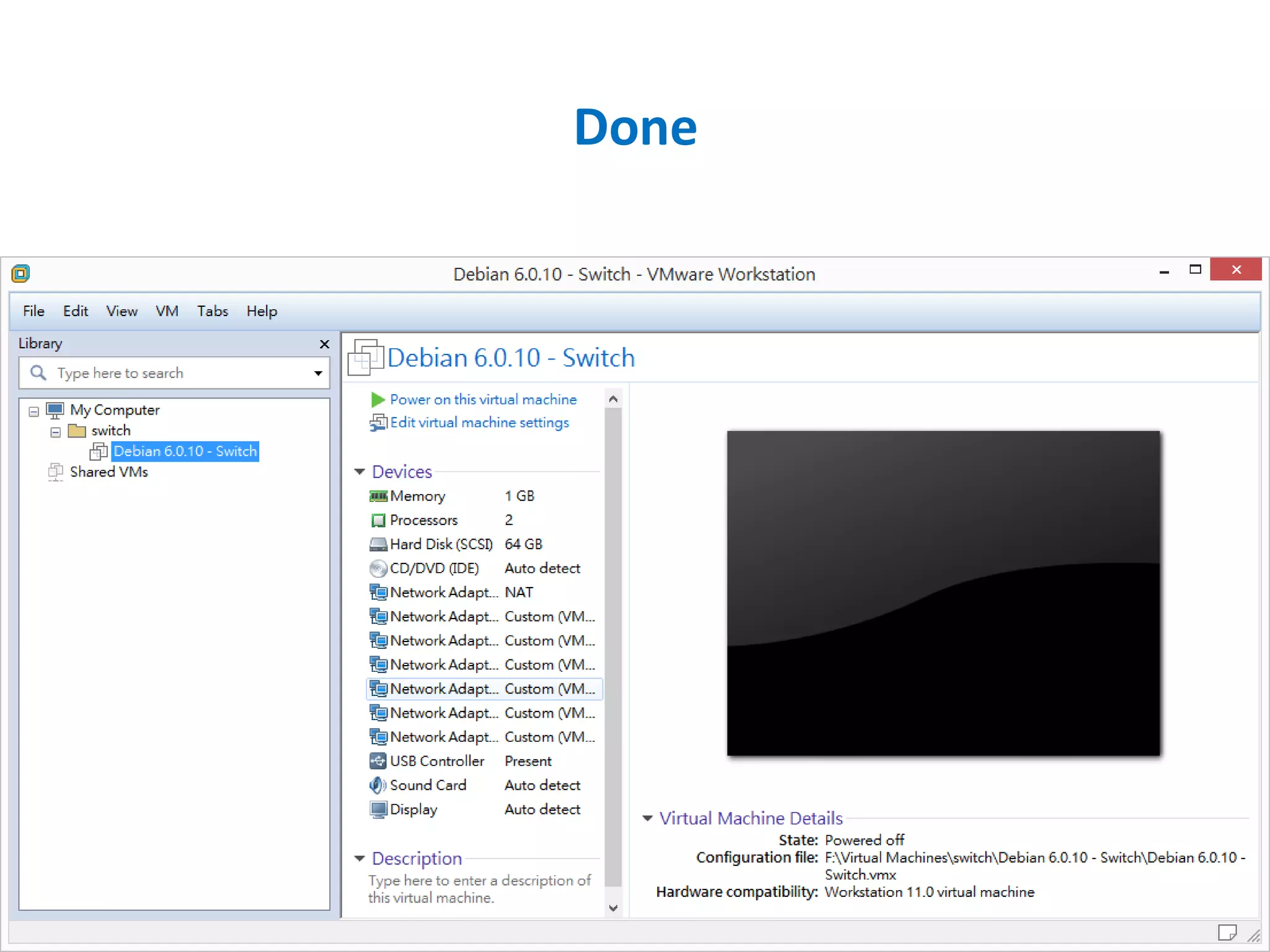

- 23.
- 24.

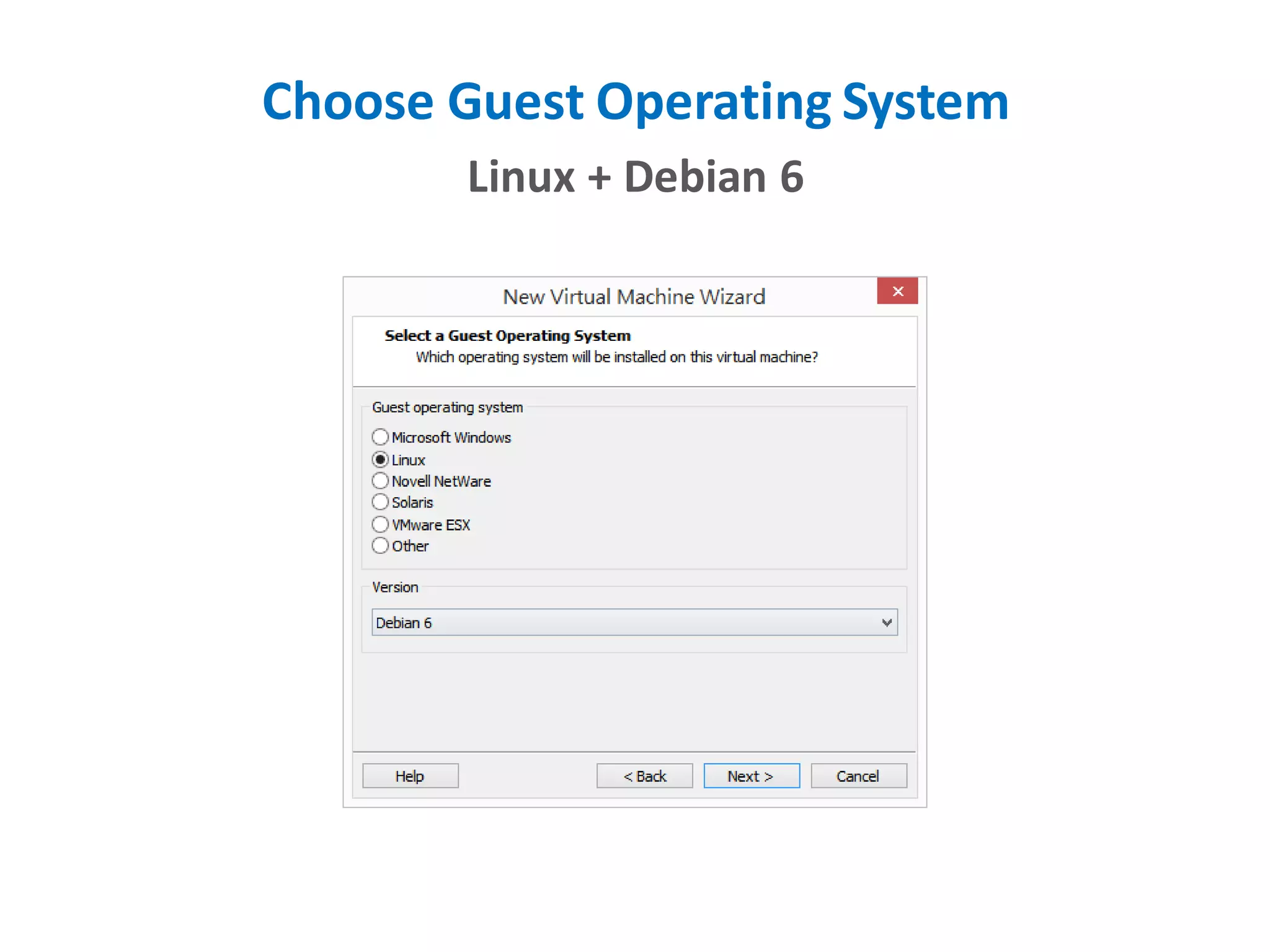

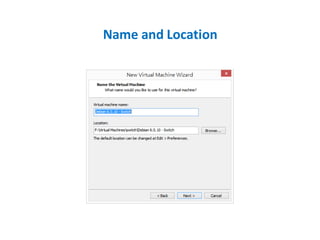

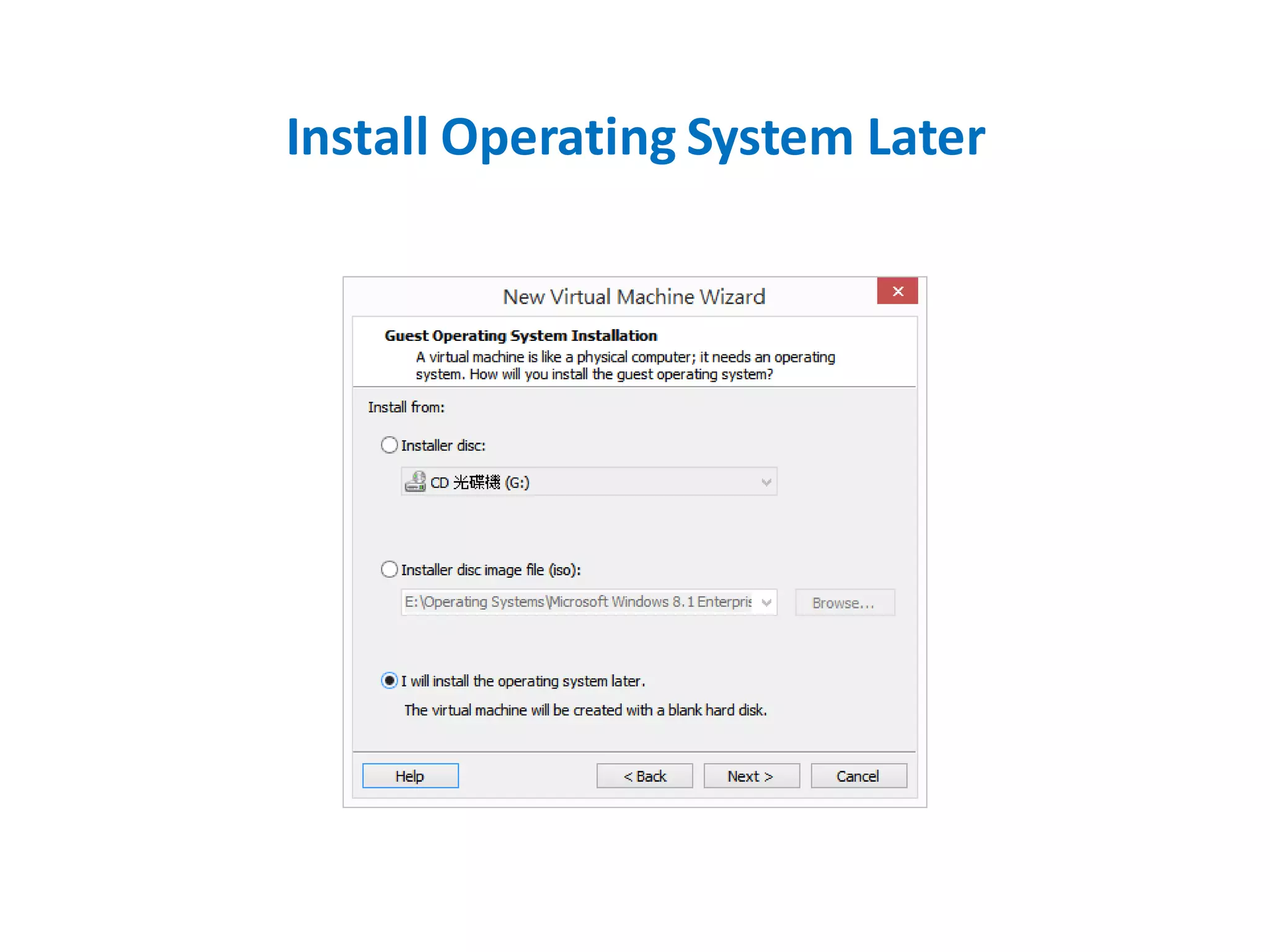

- 25. Choose Guest OperatingSystem Linux + Debian 6 Linux + Debian 7
- 26.

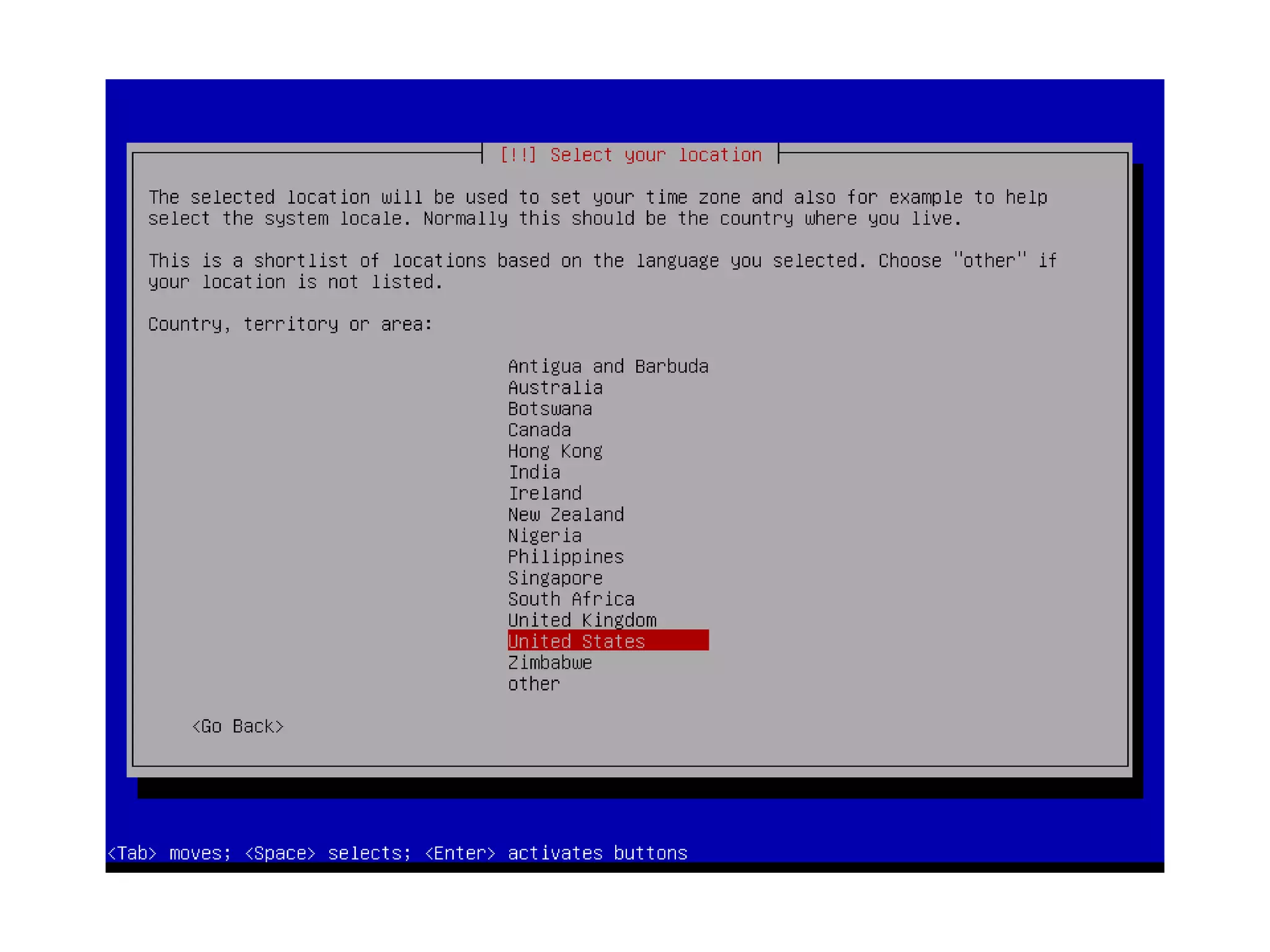

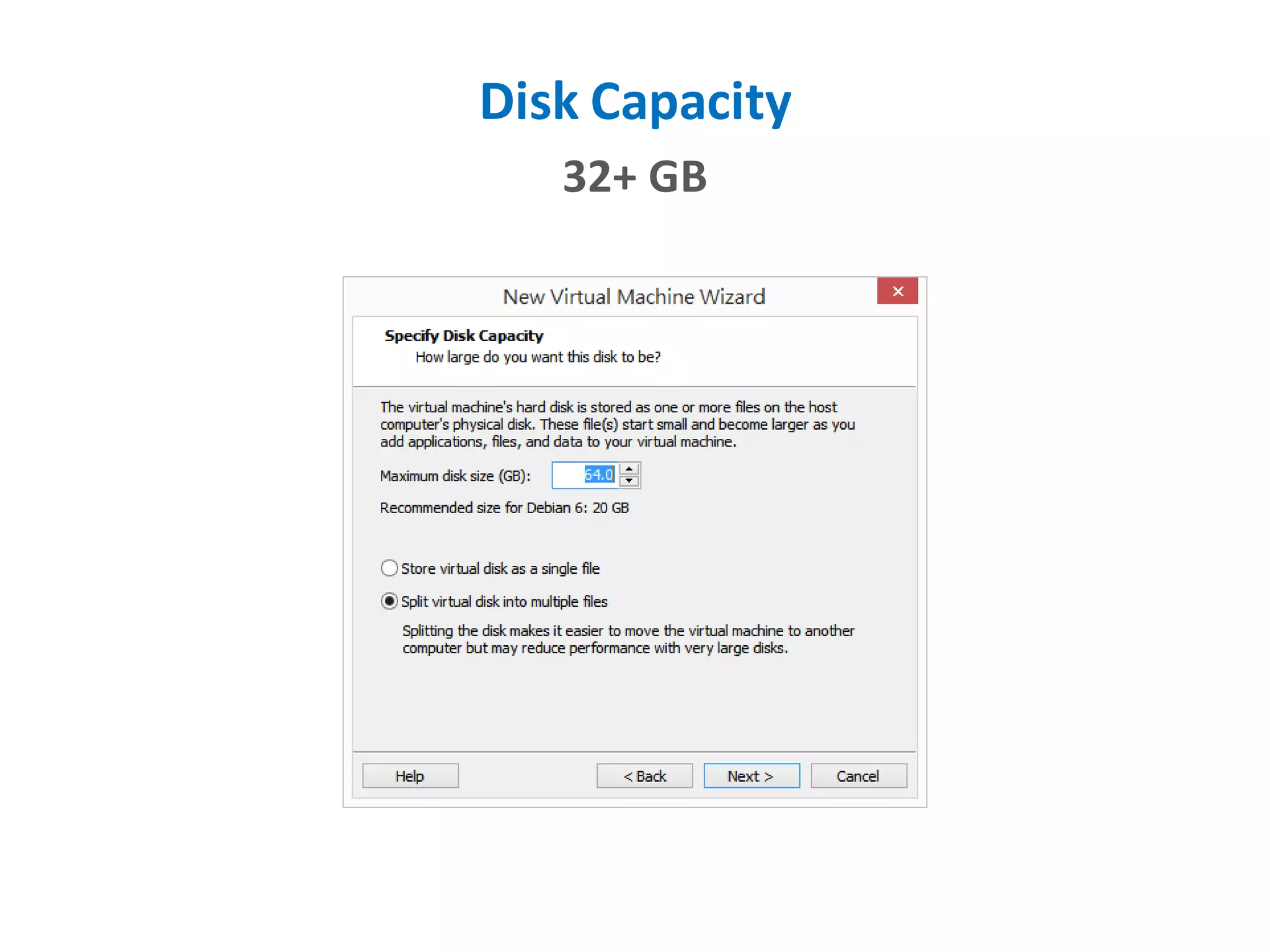

- 27.

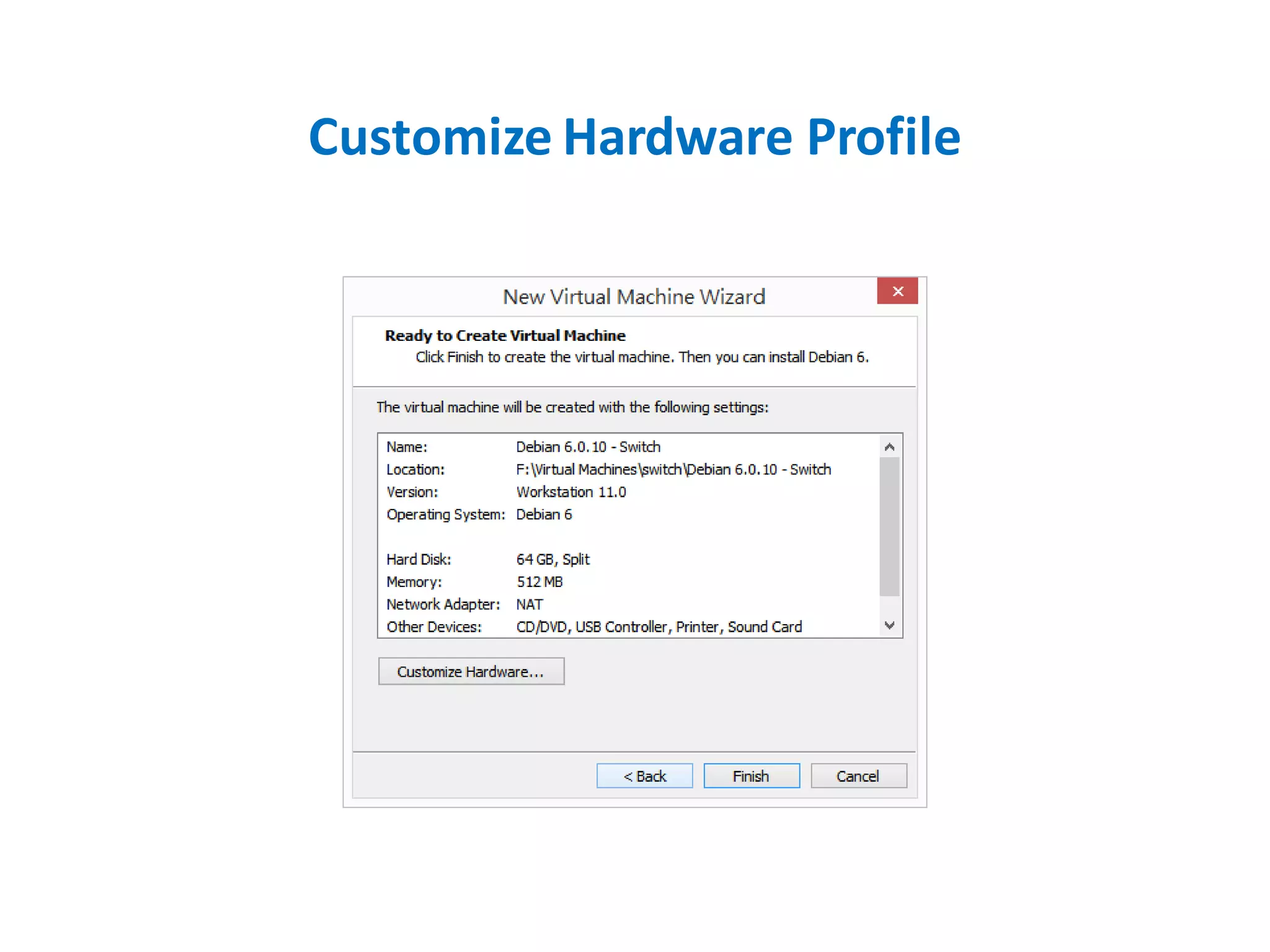

- 28.

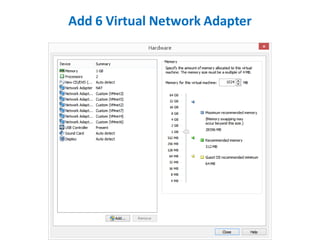

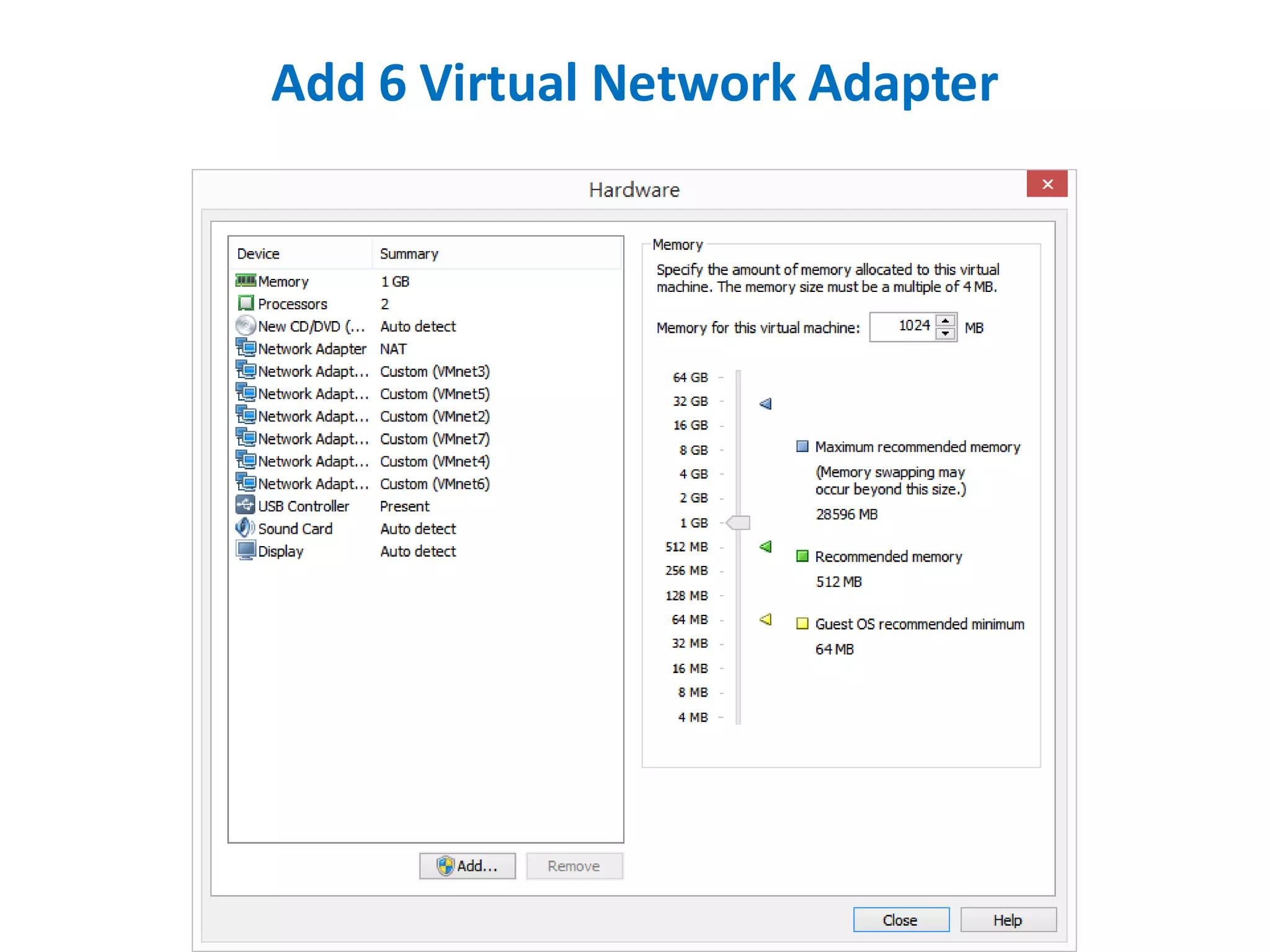

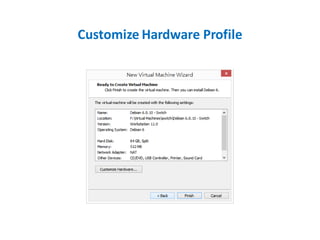

- 29. Add 6 VirtualNetwork Adapter
- 30.

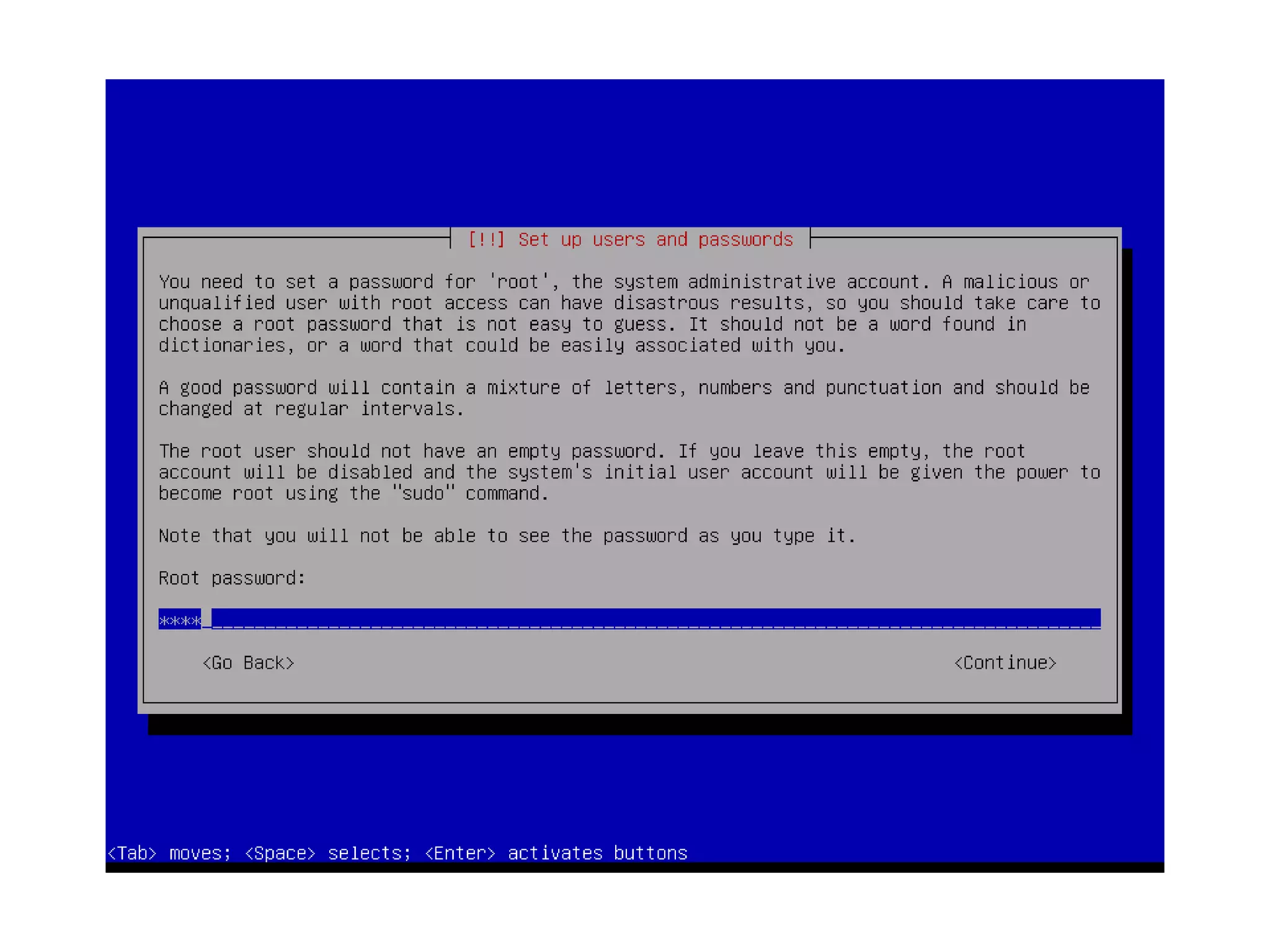

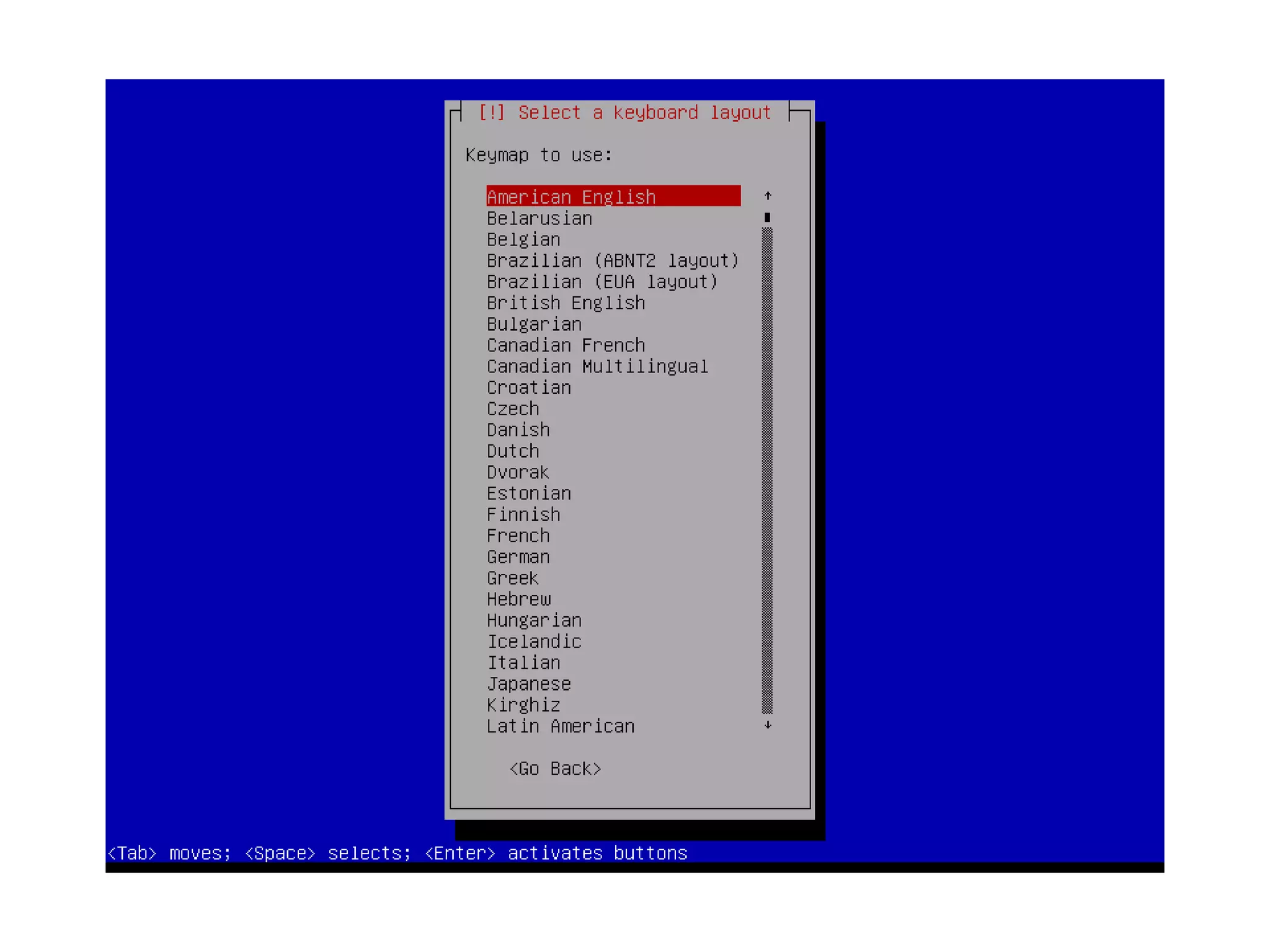

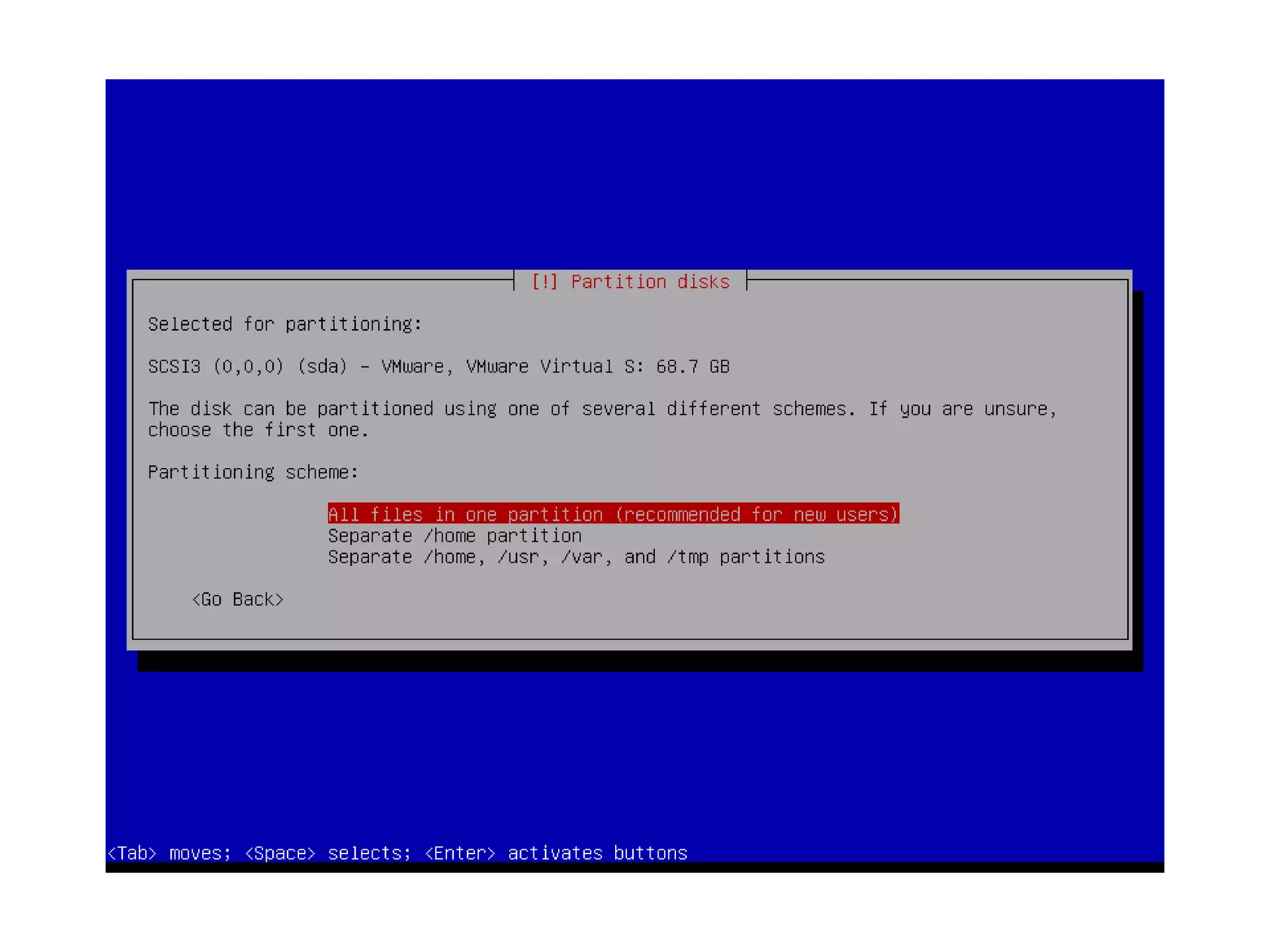

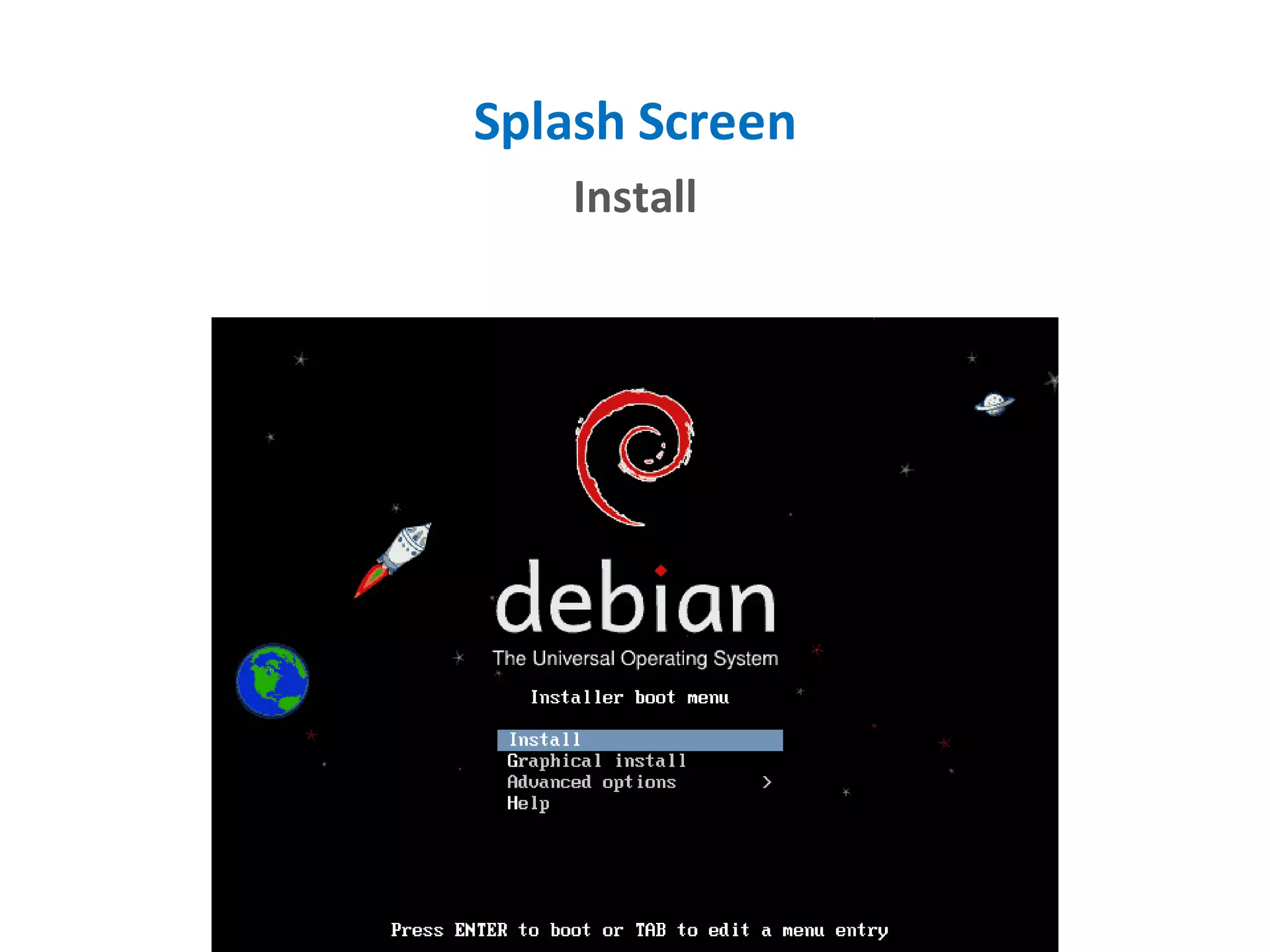

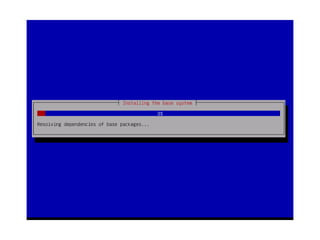

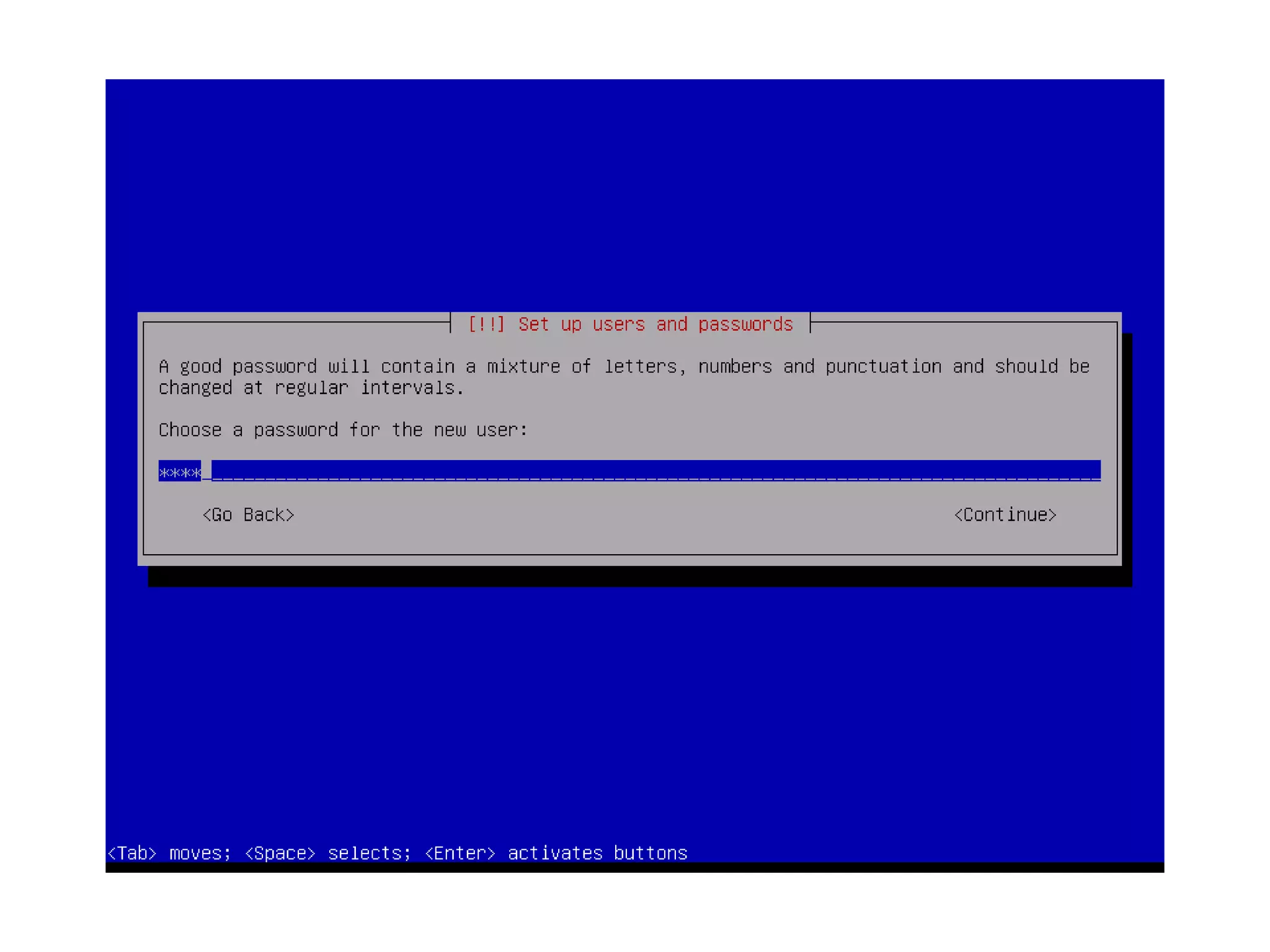

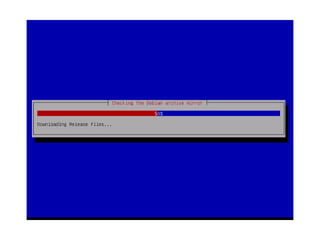

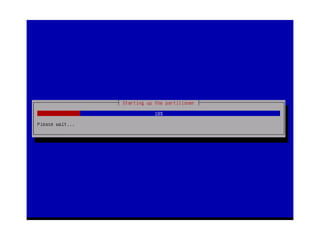

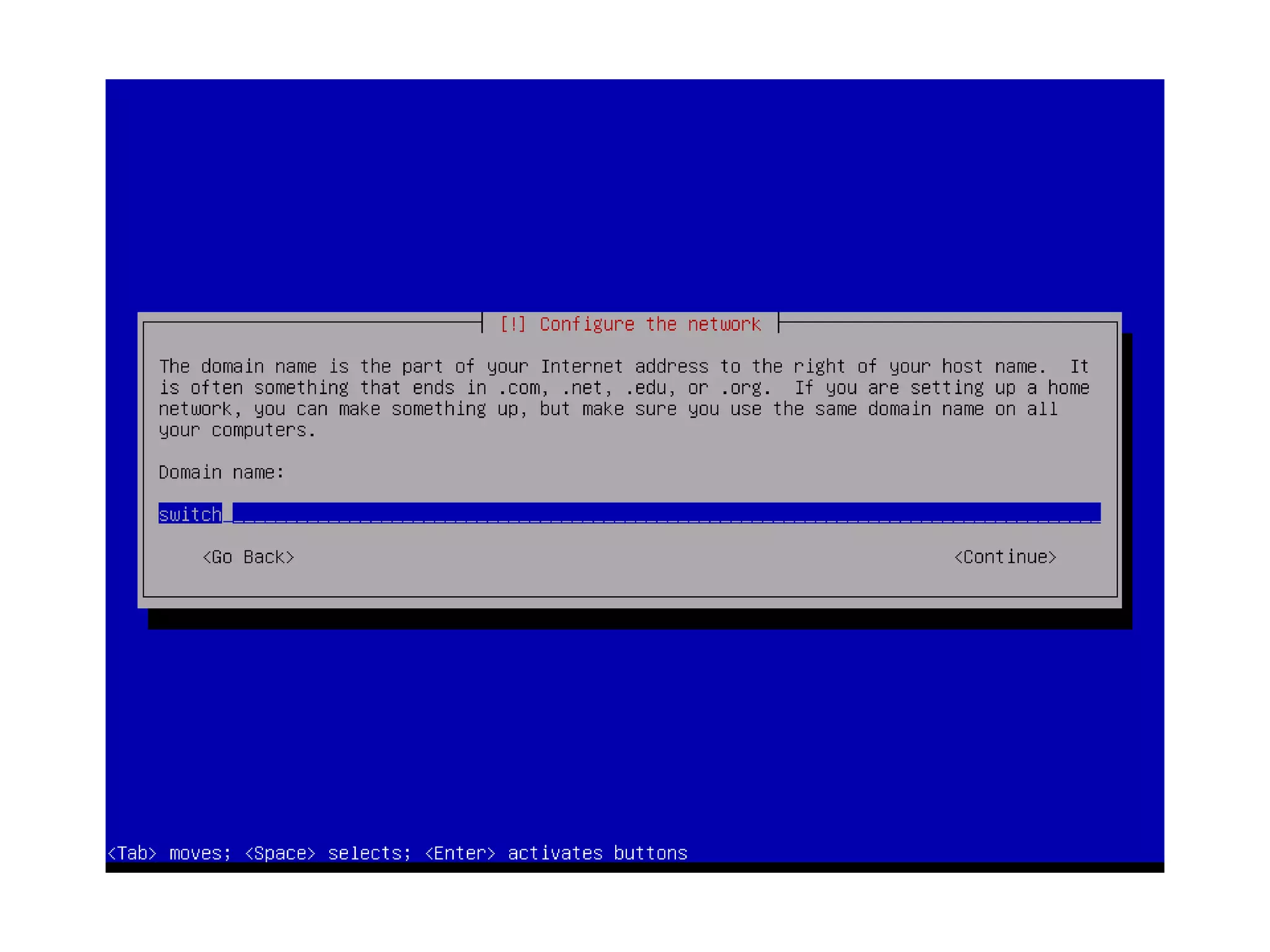

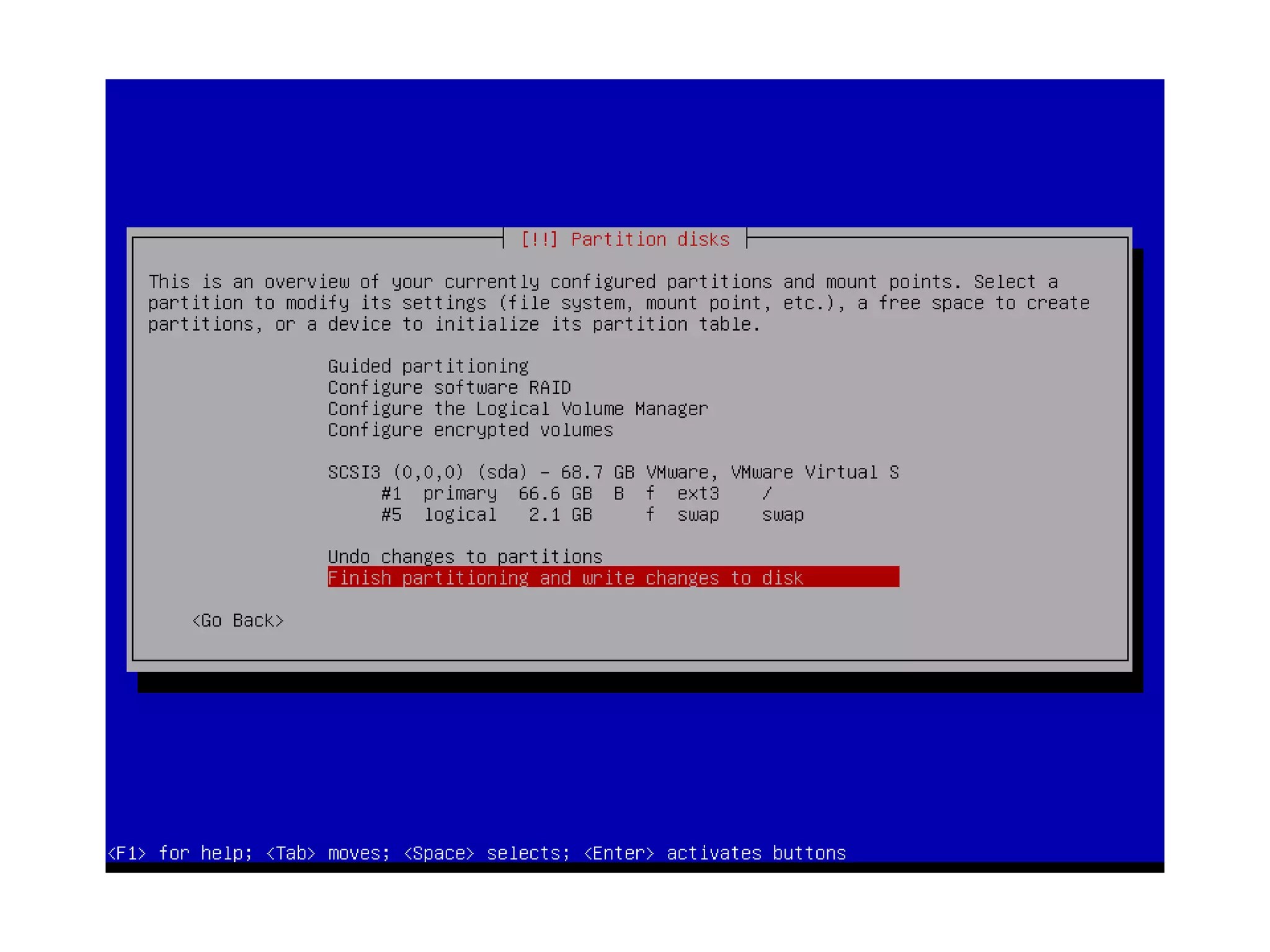

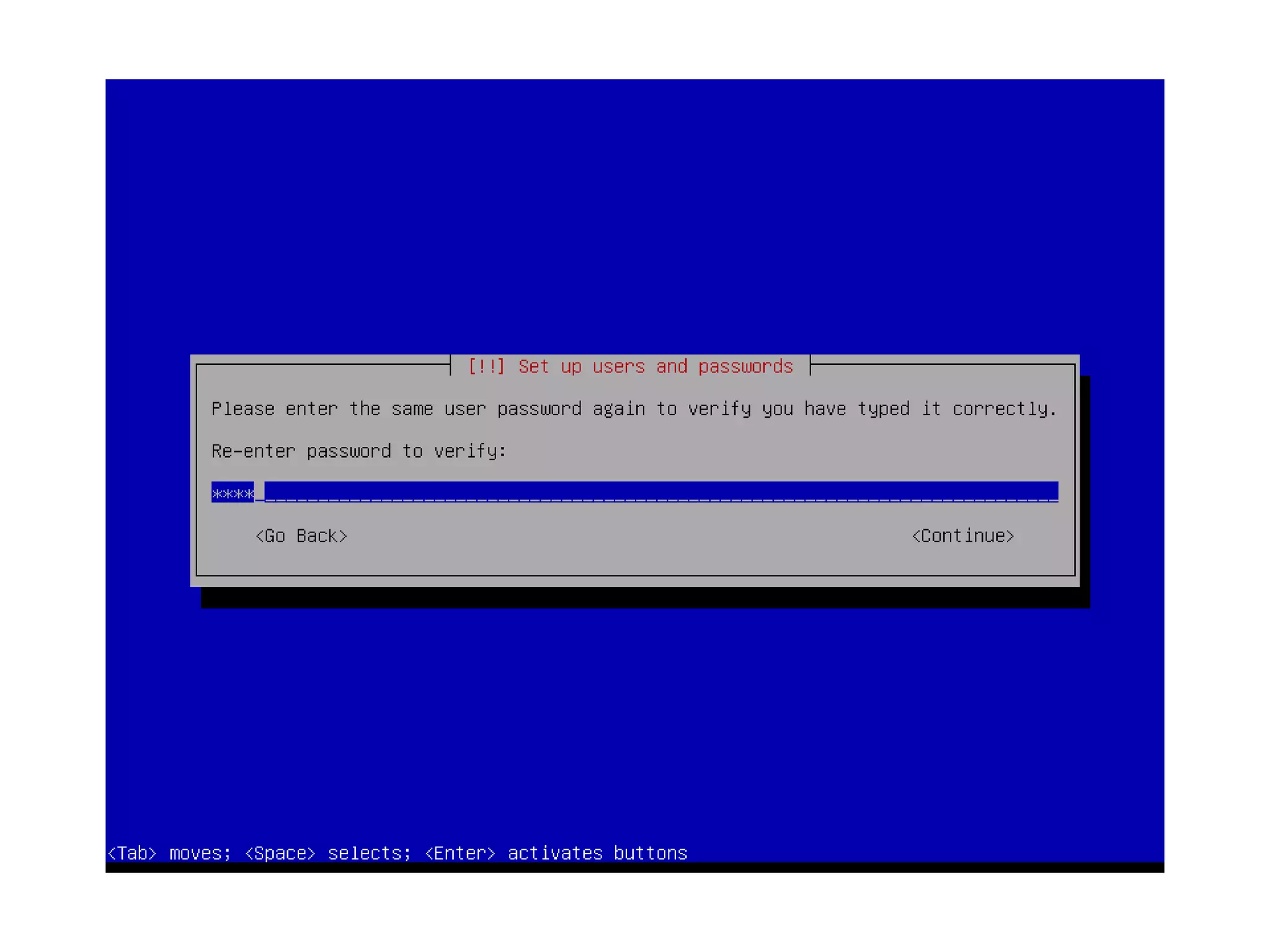

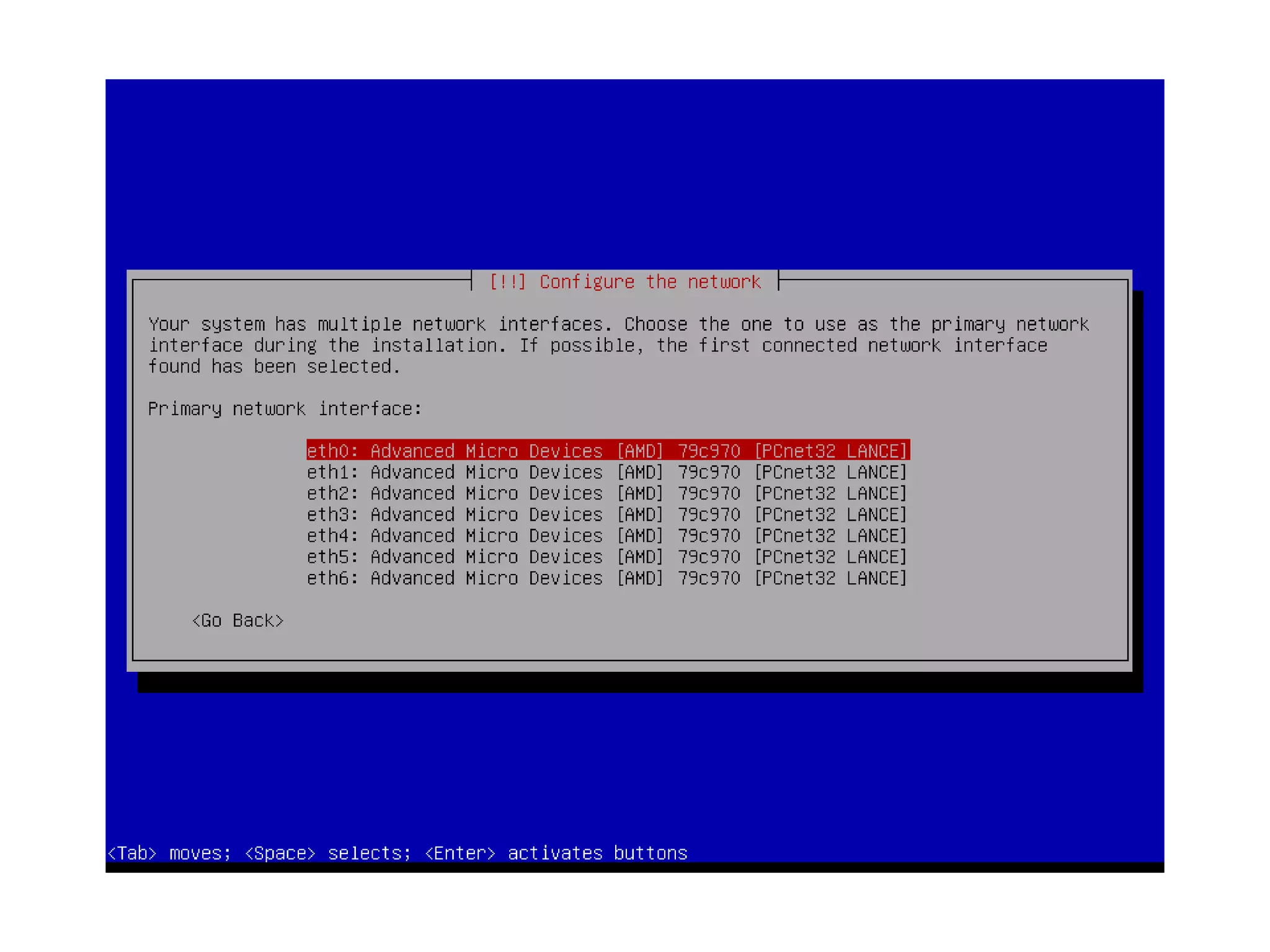

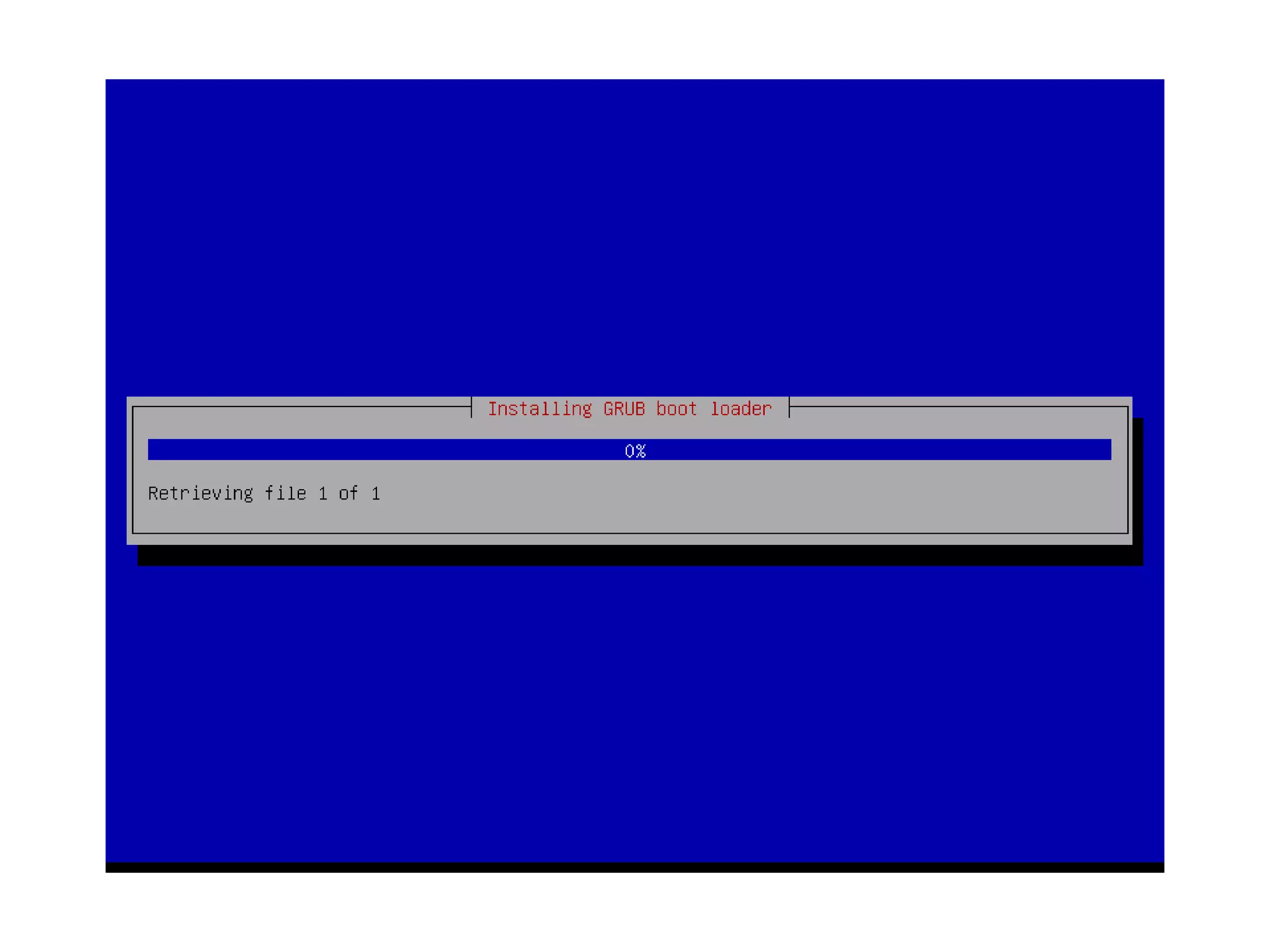

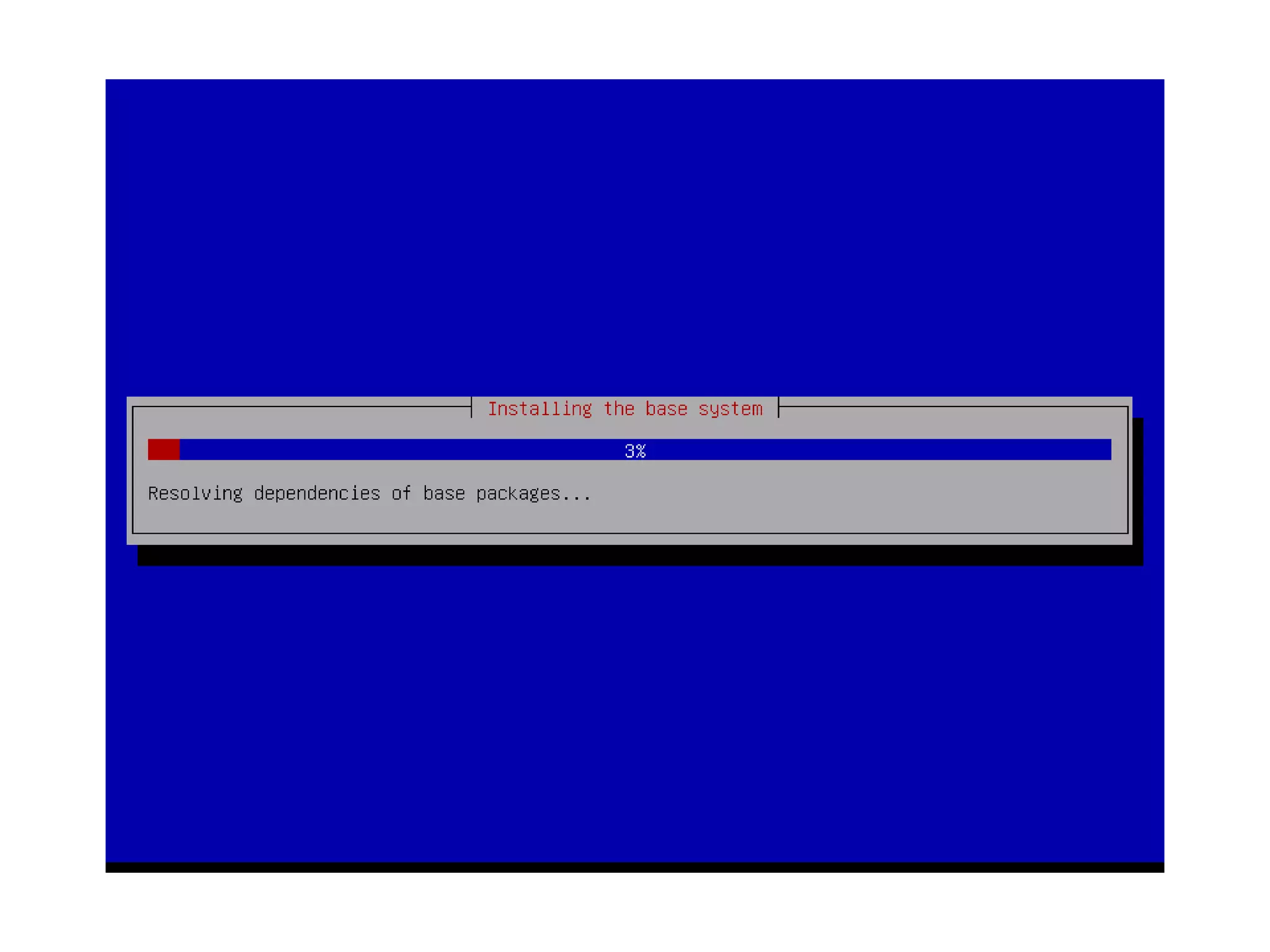

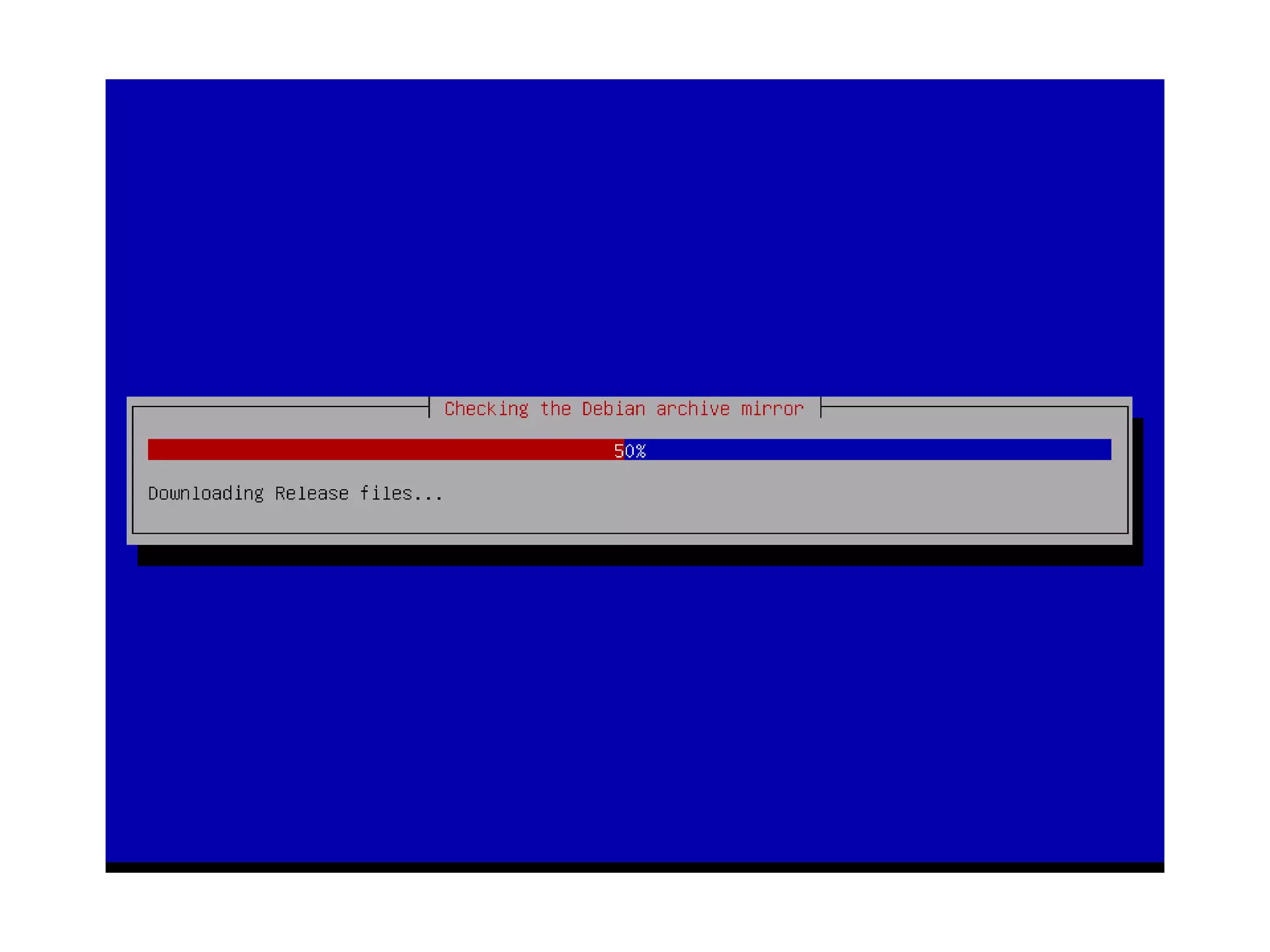

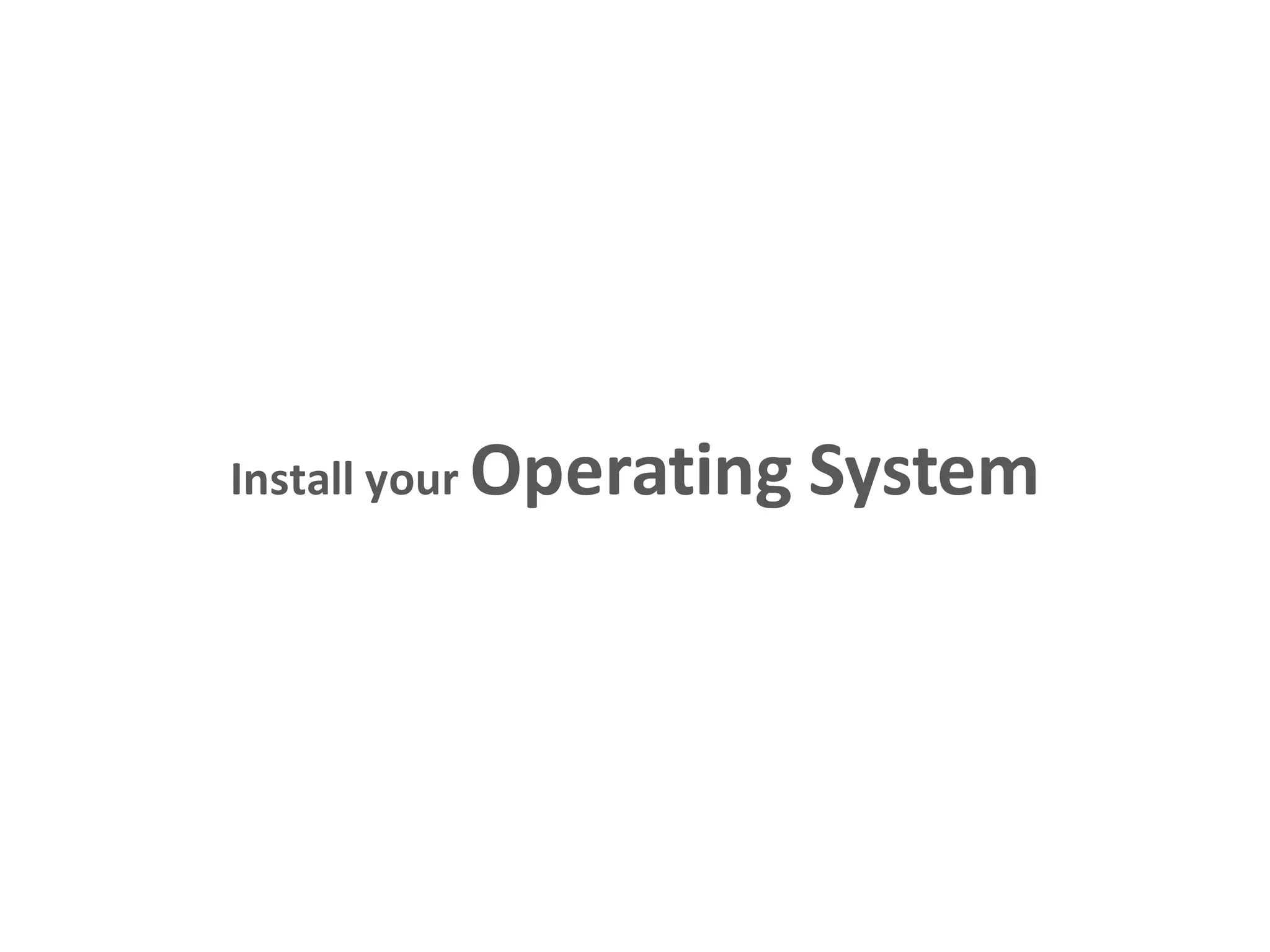

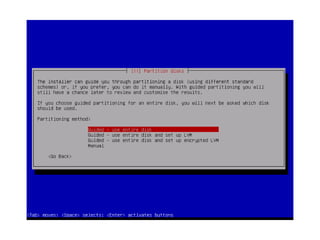

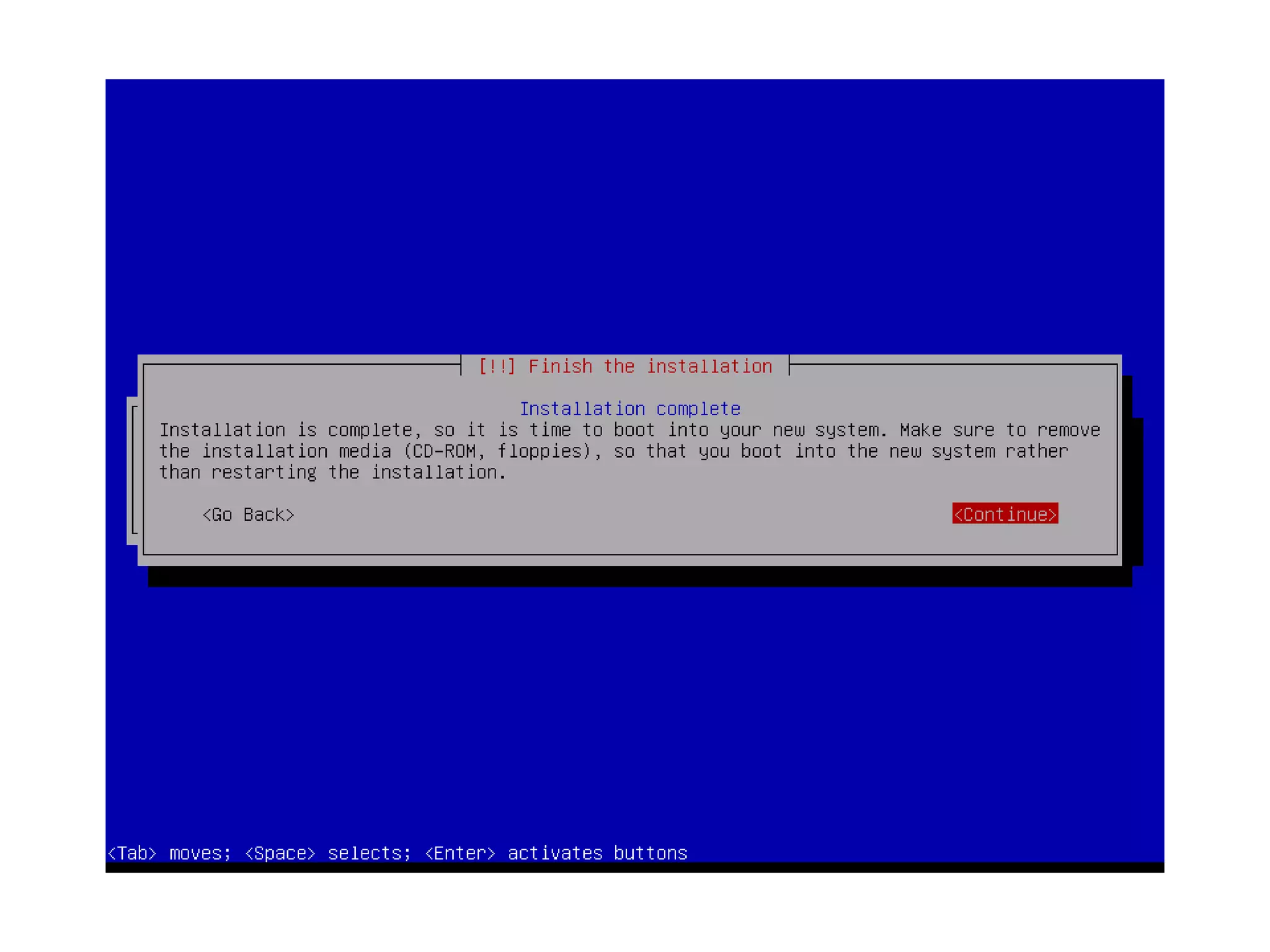

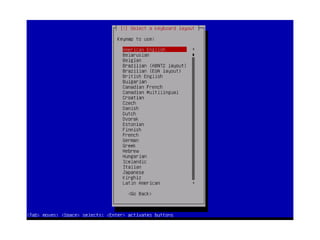

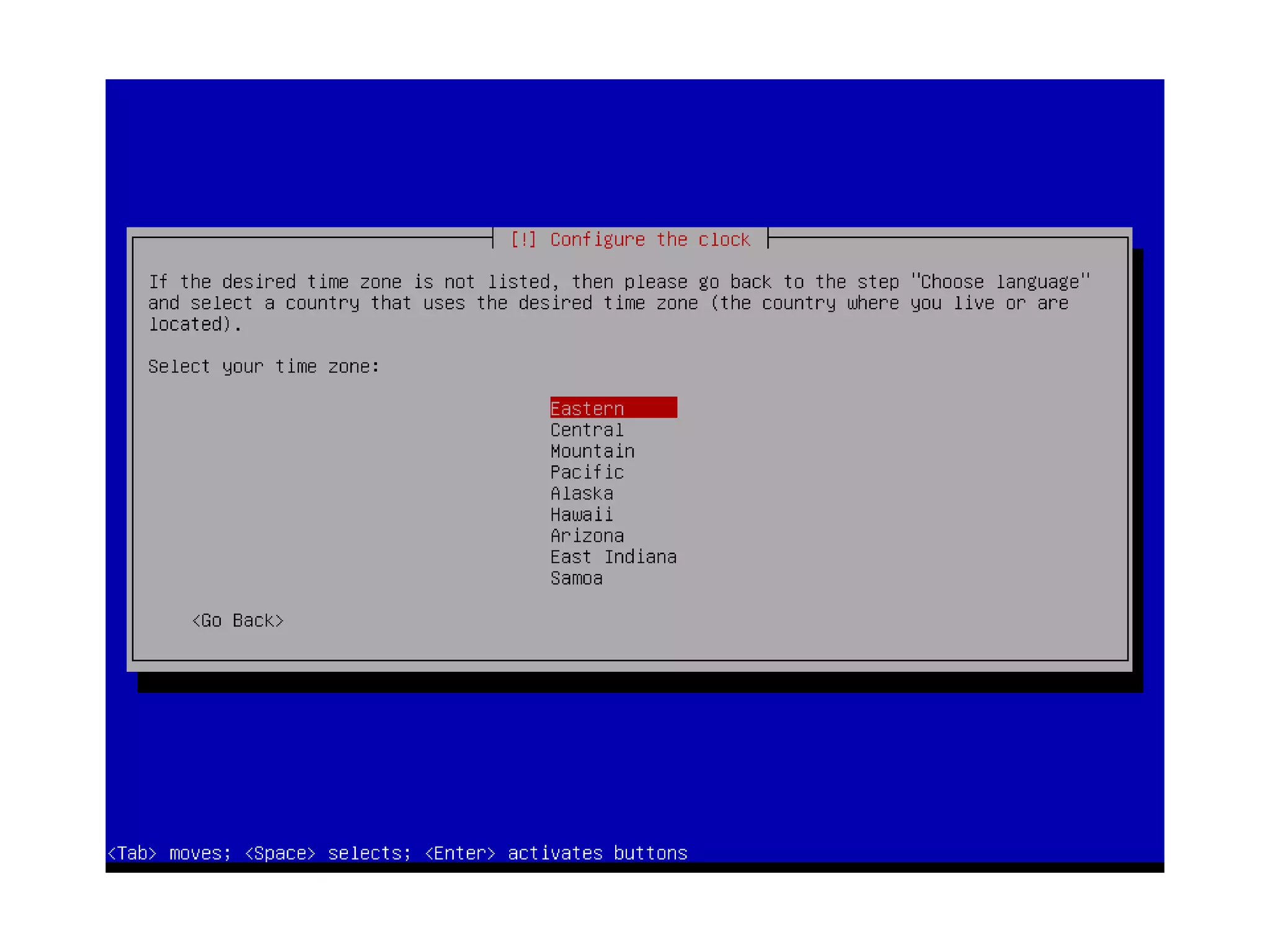

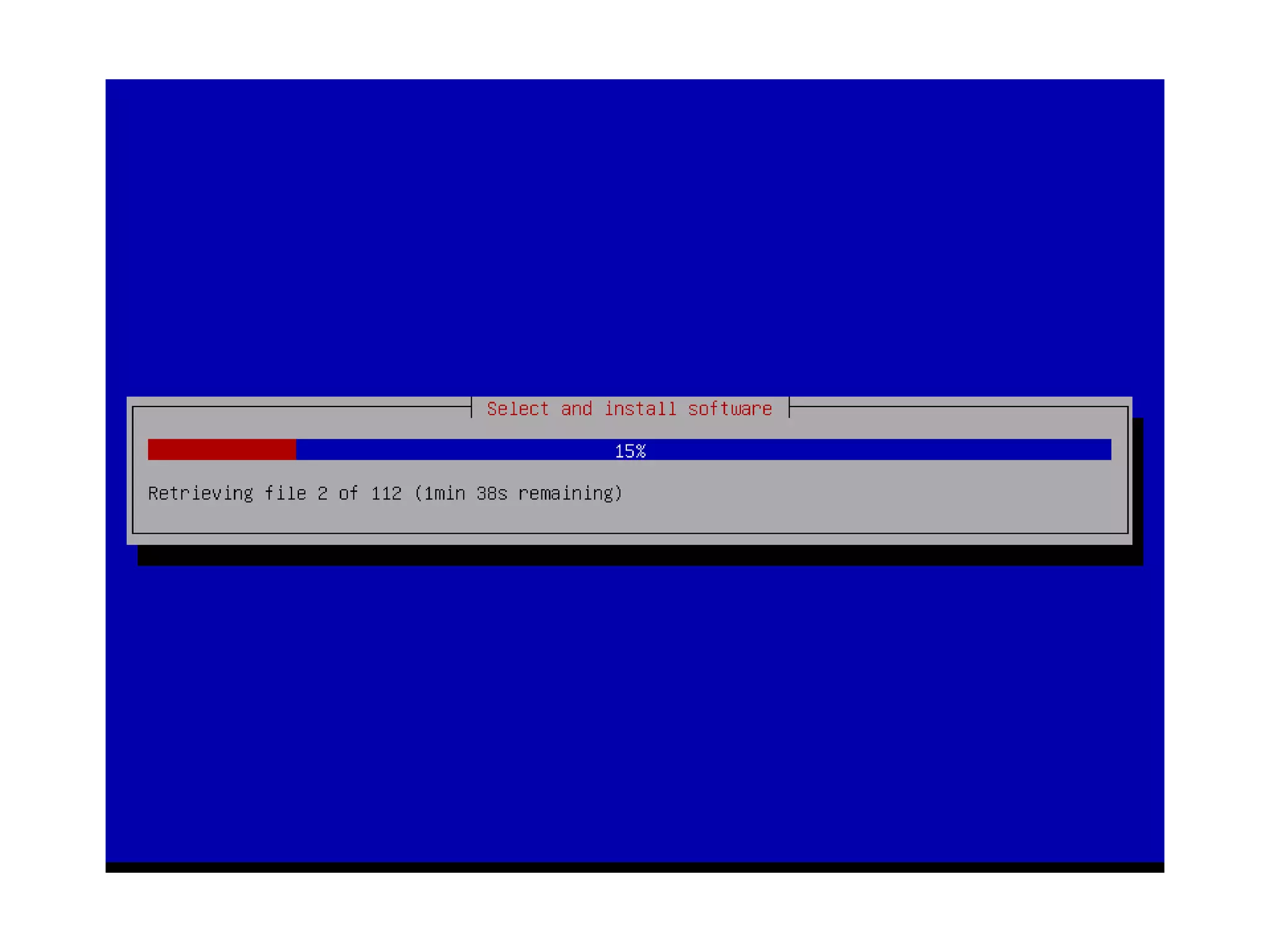

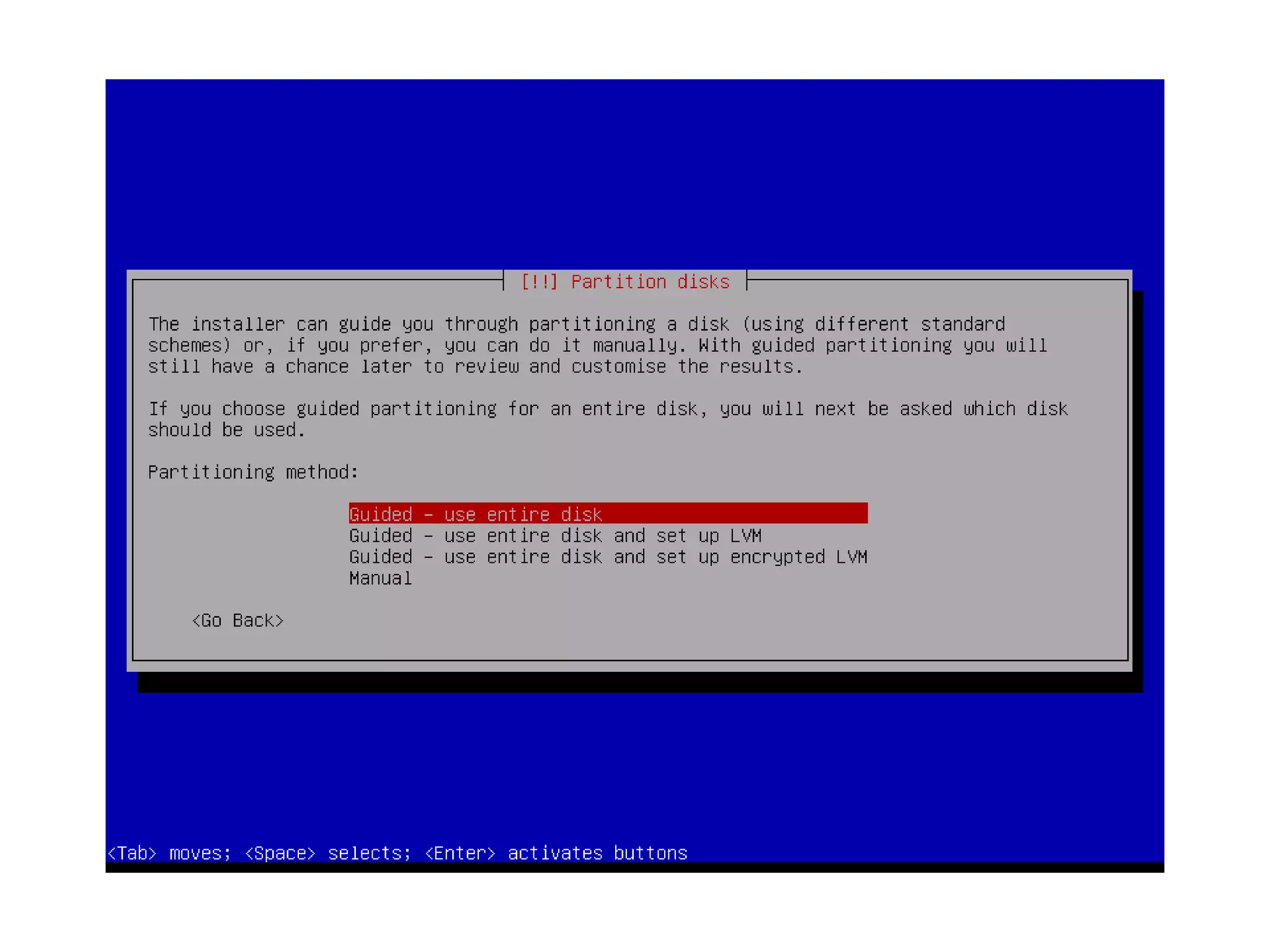

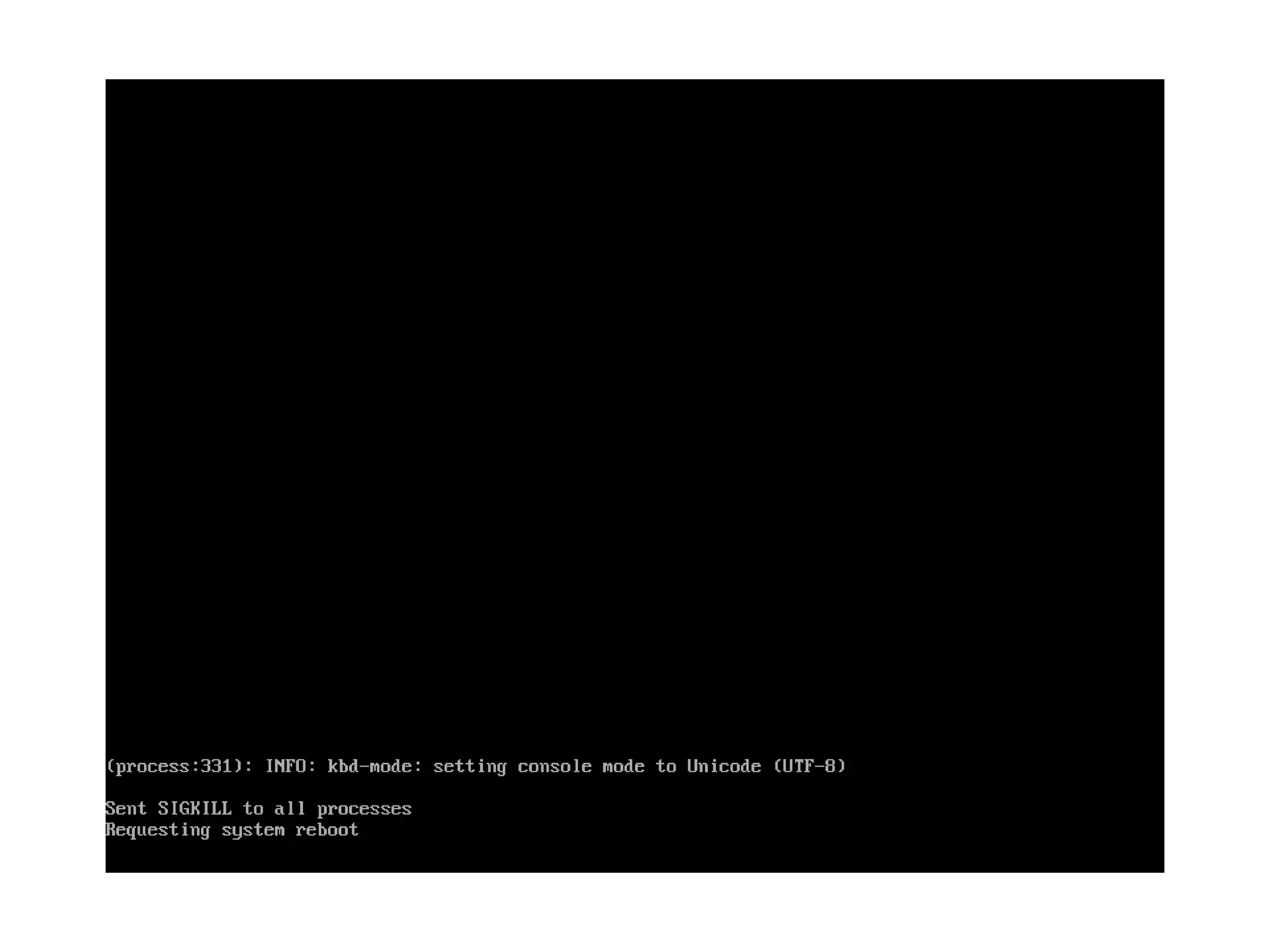

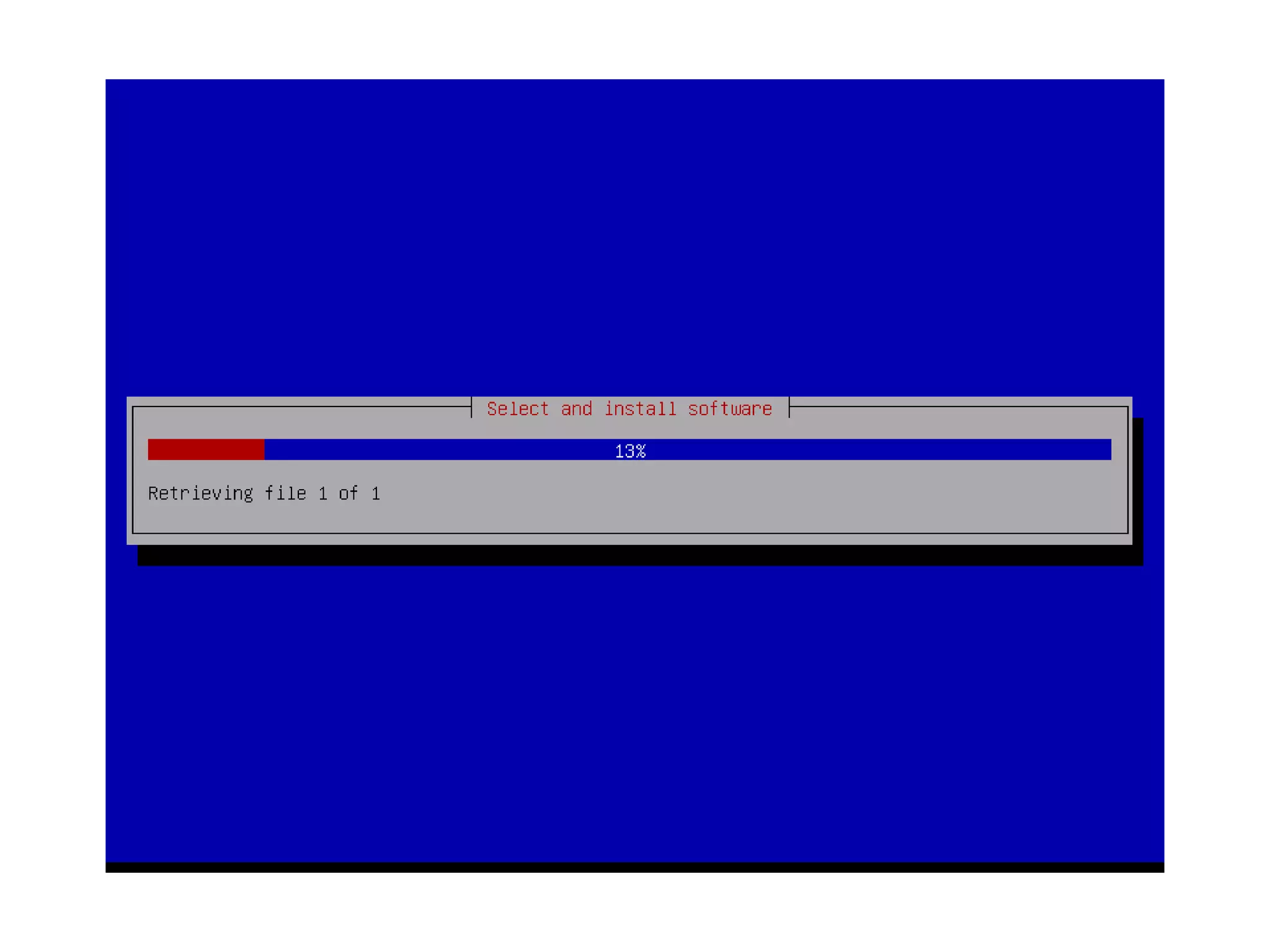

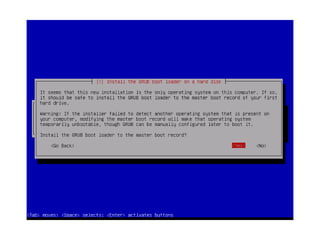

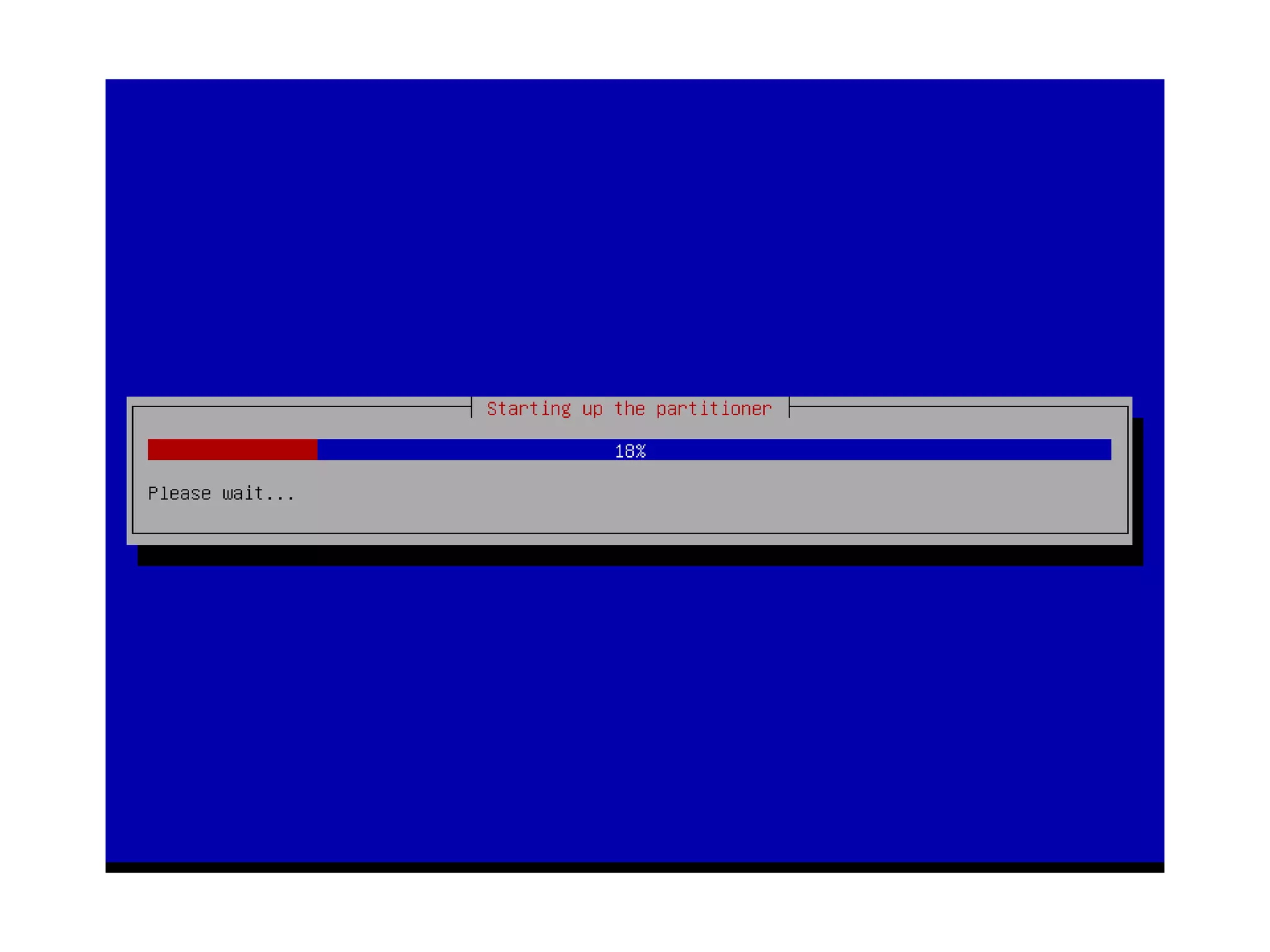

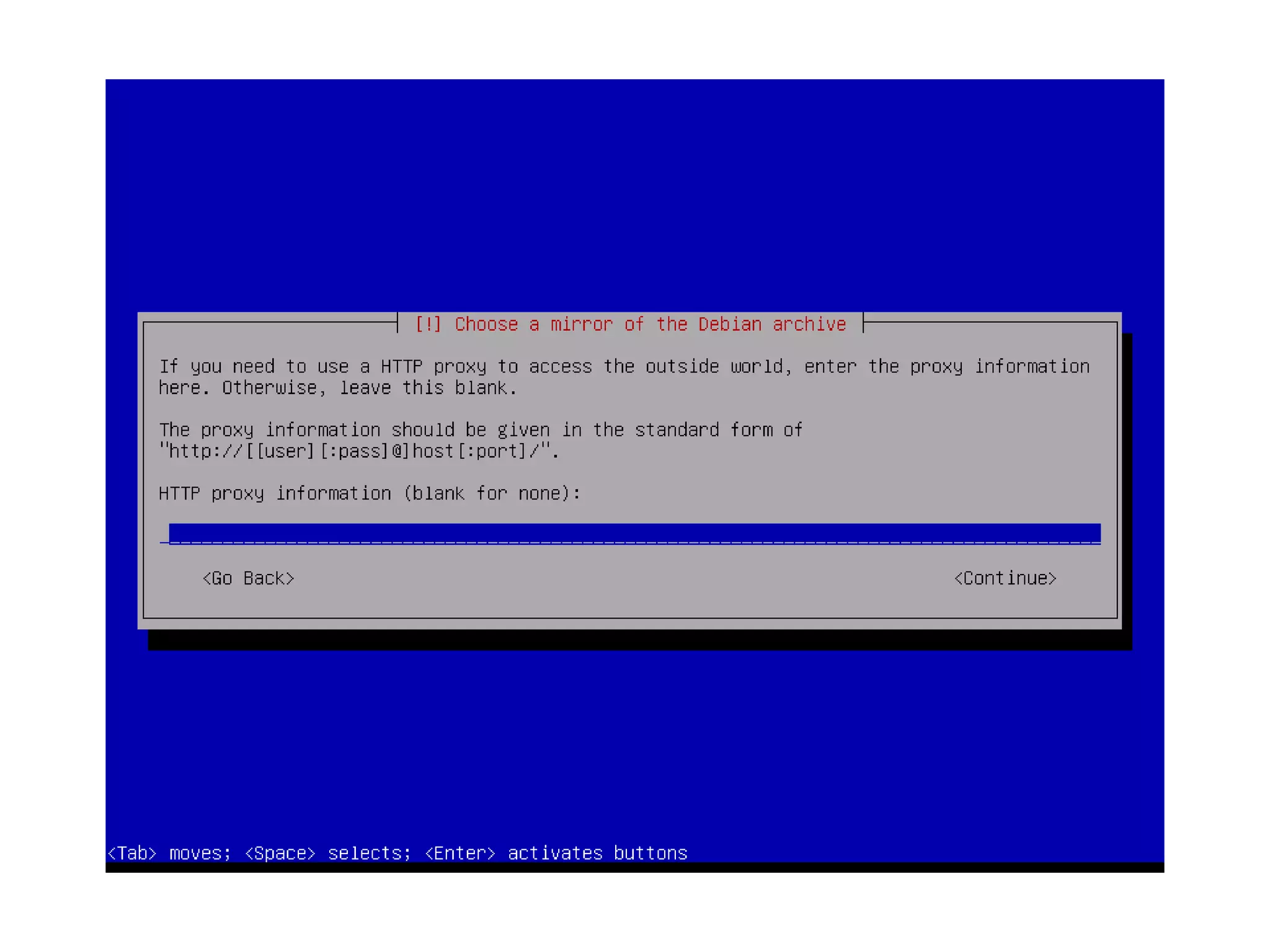

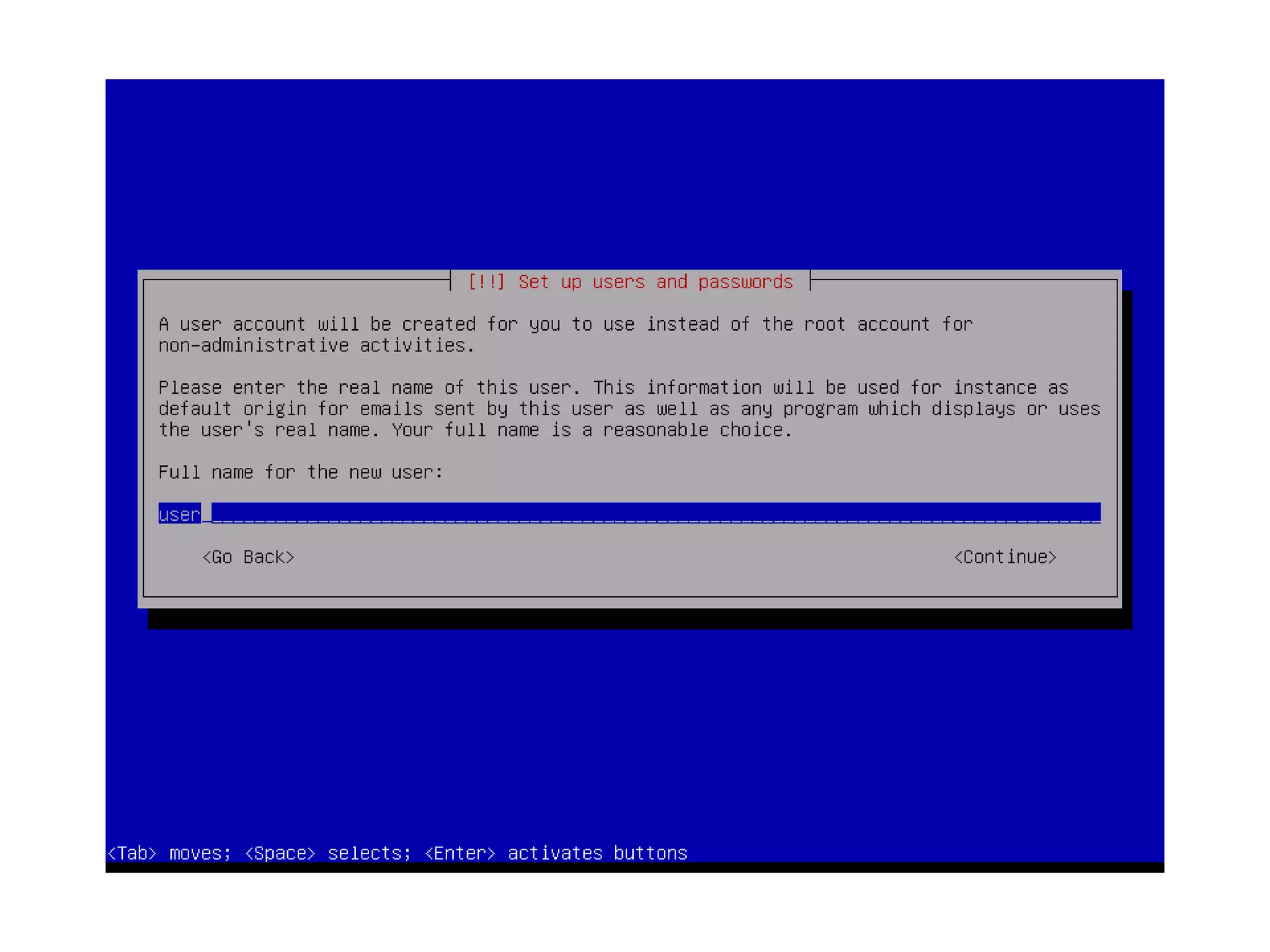

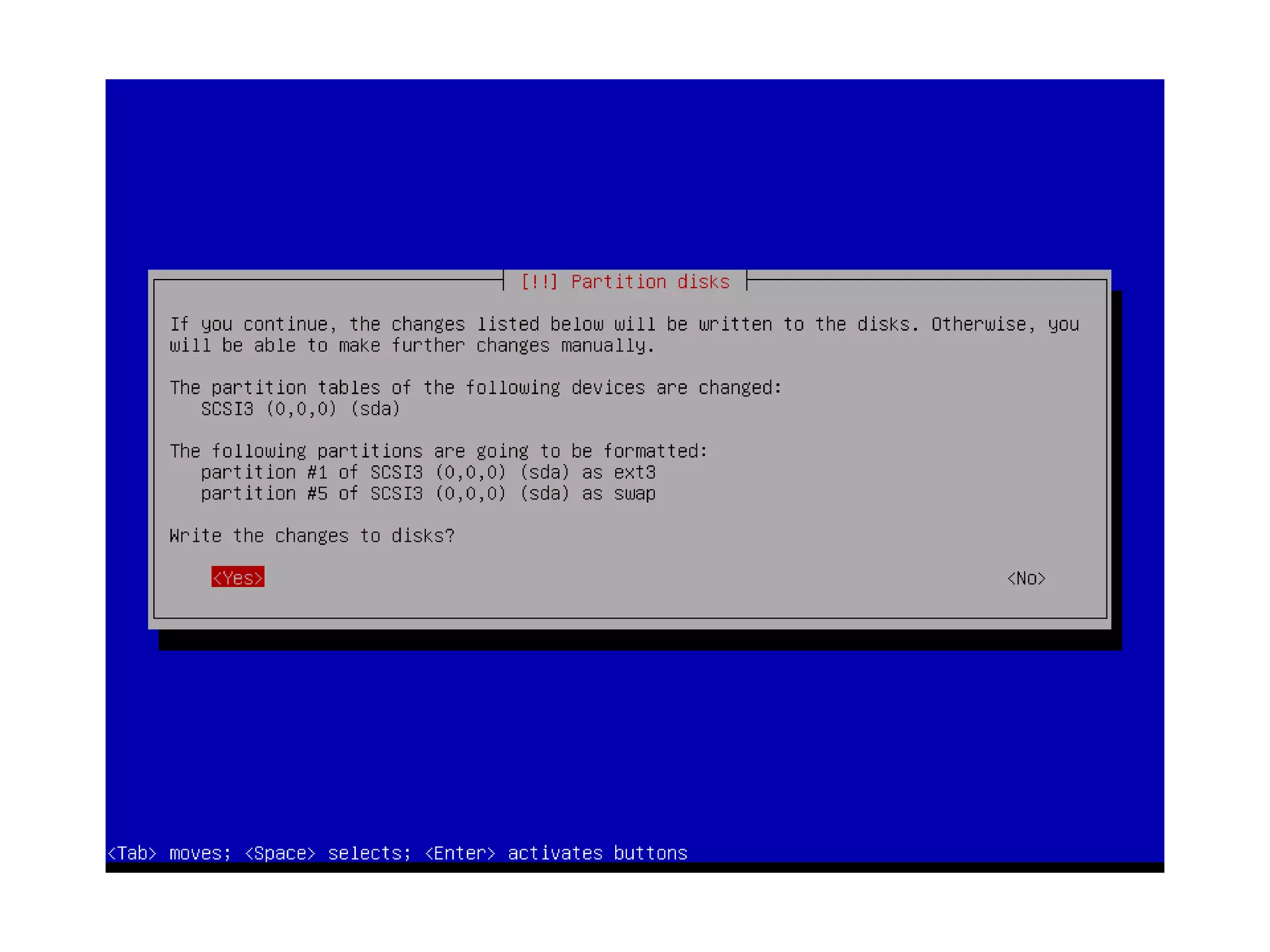

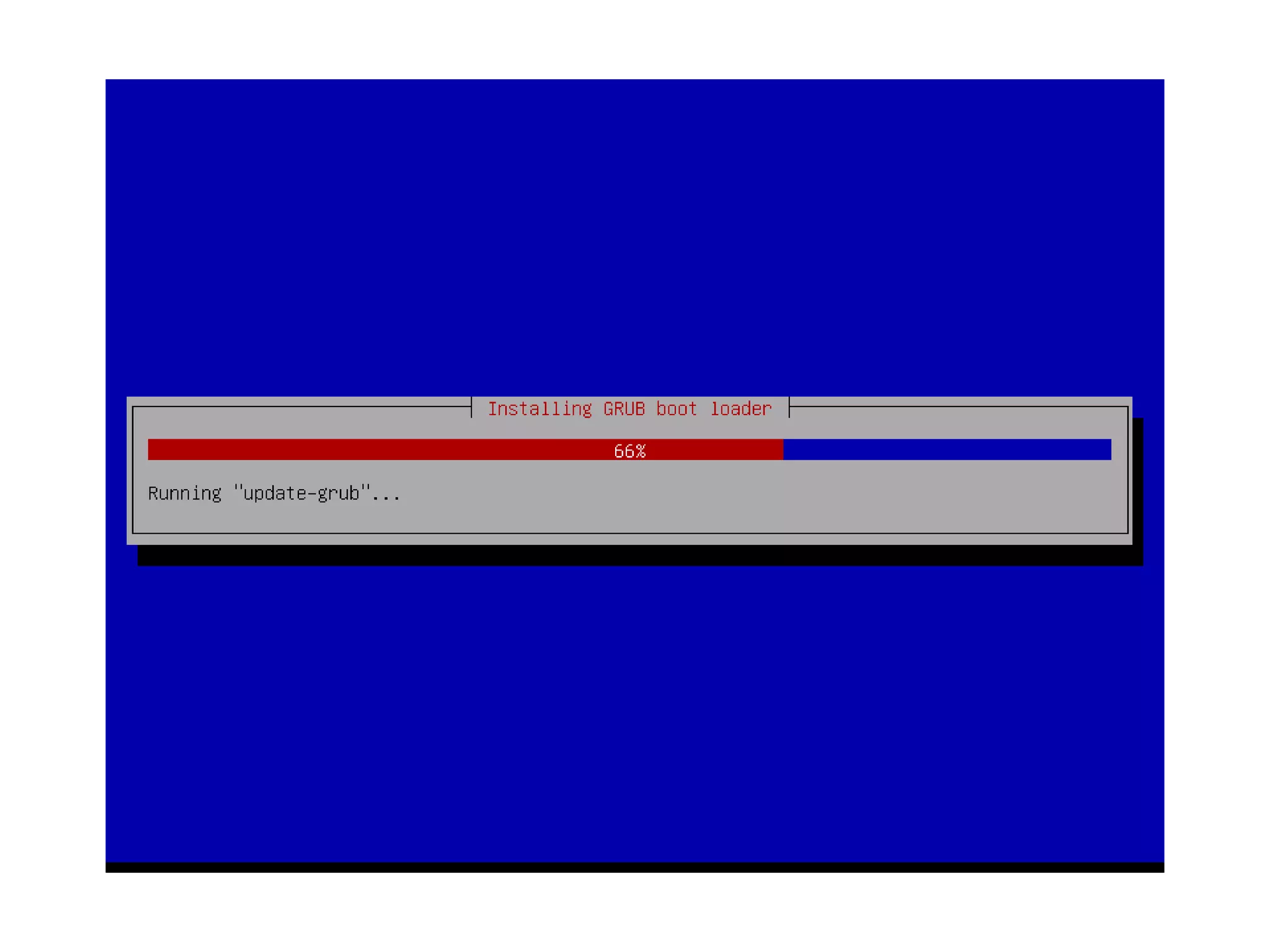

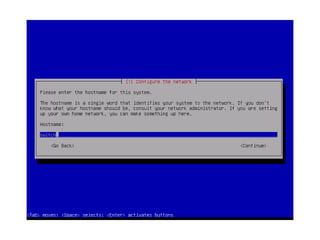

- 31. Install your OperatingSystem

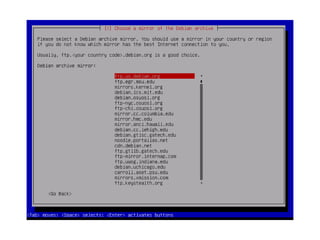

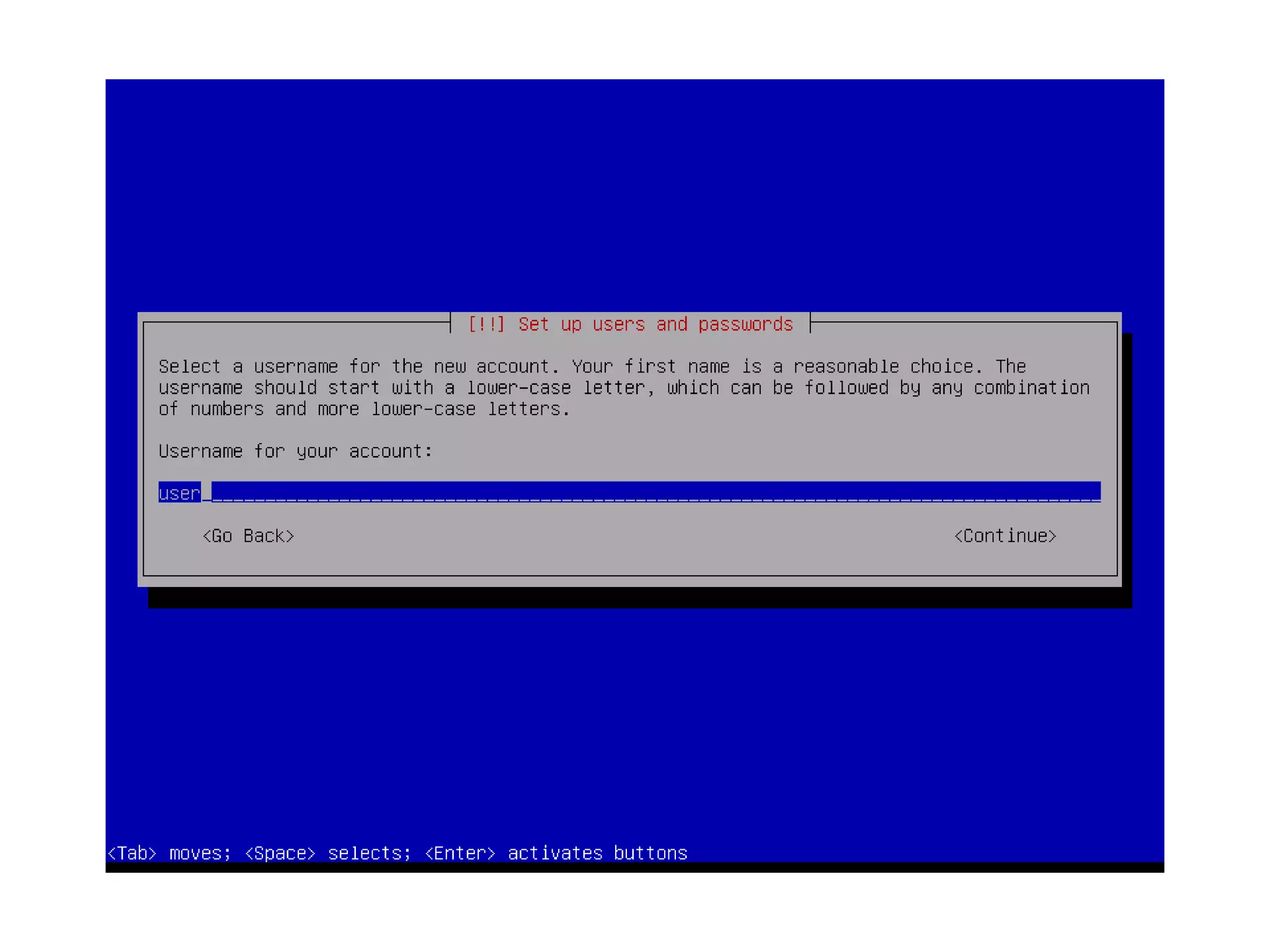

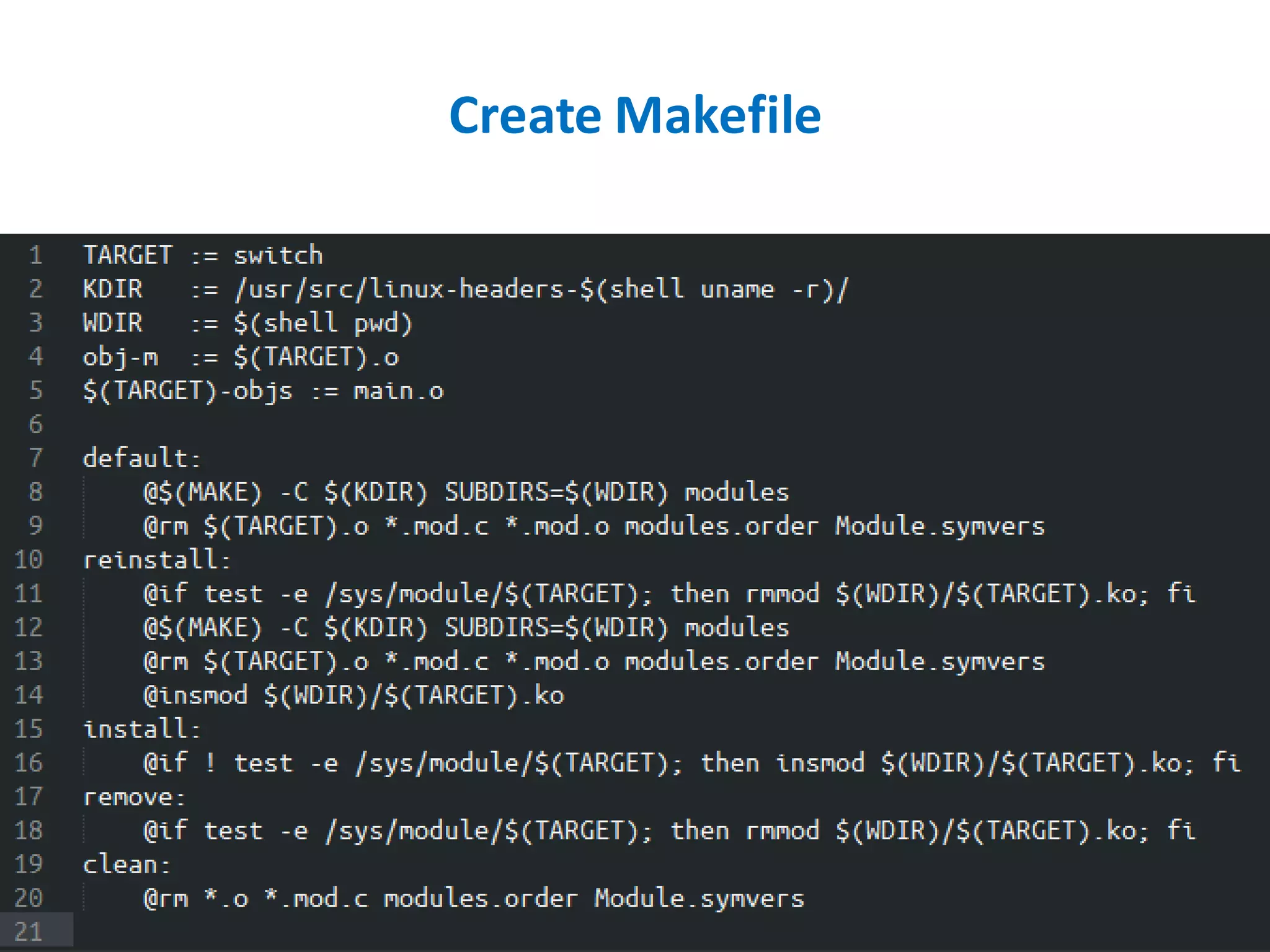

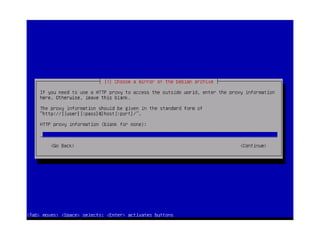

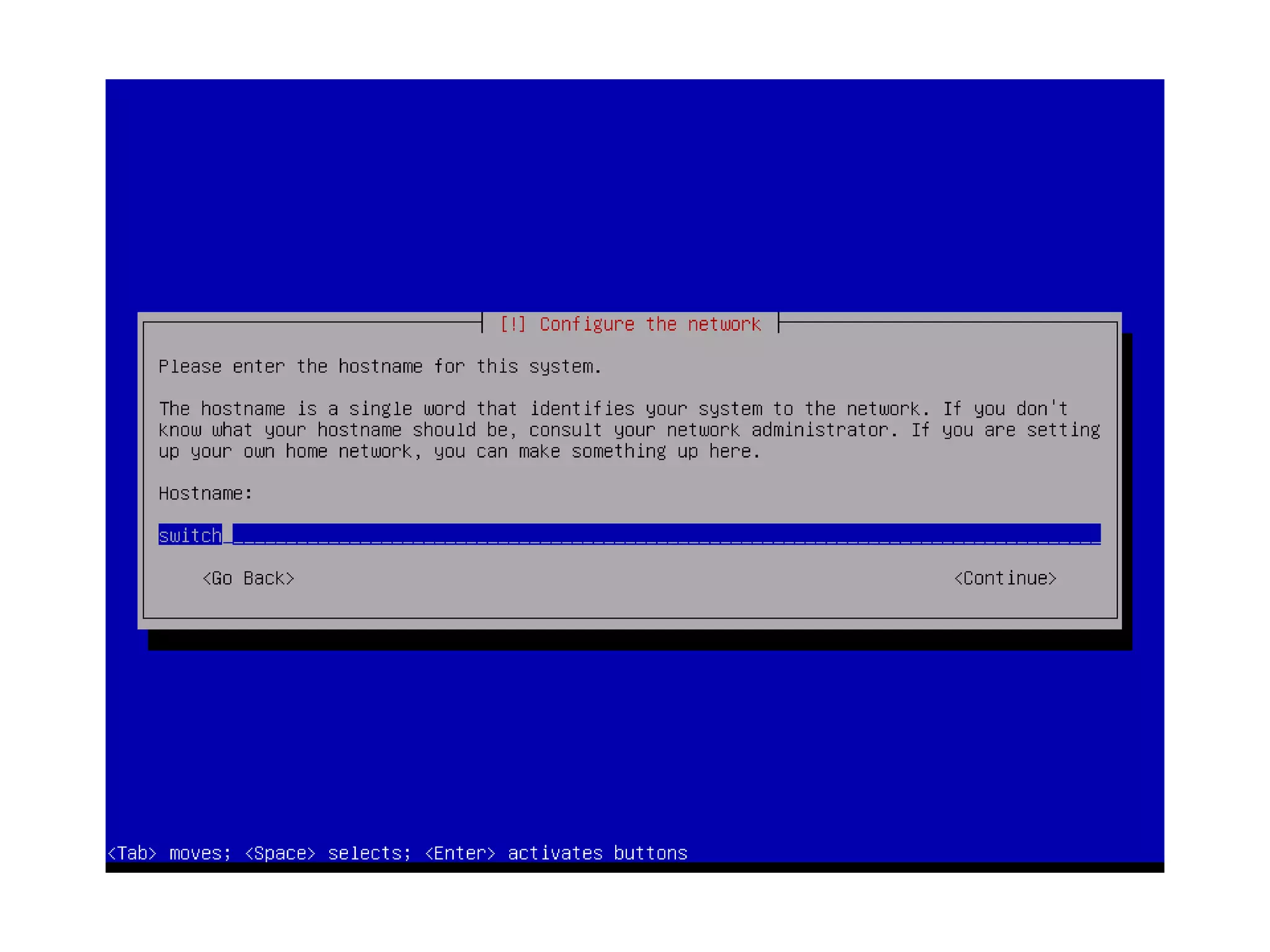

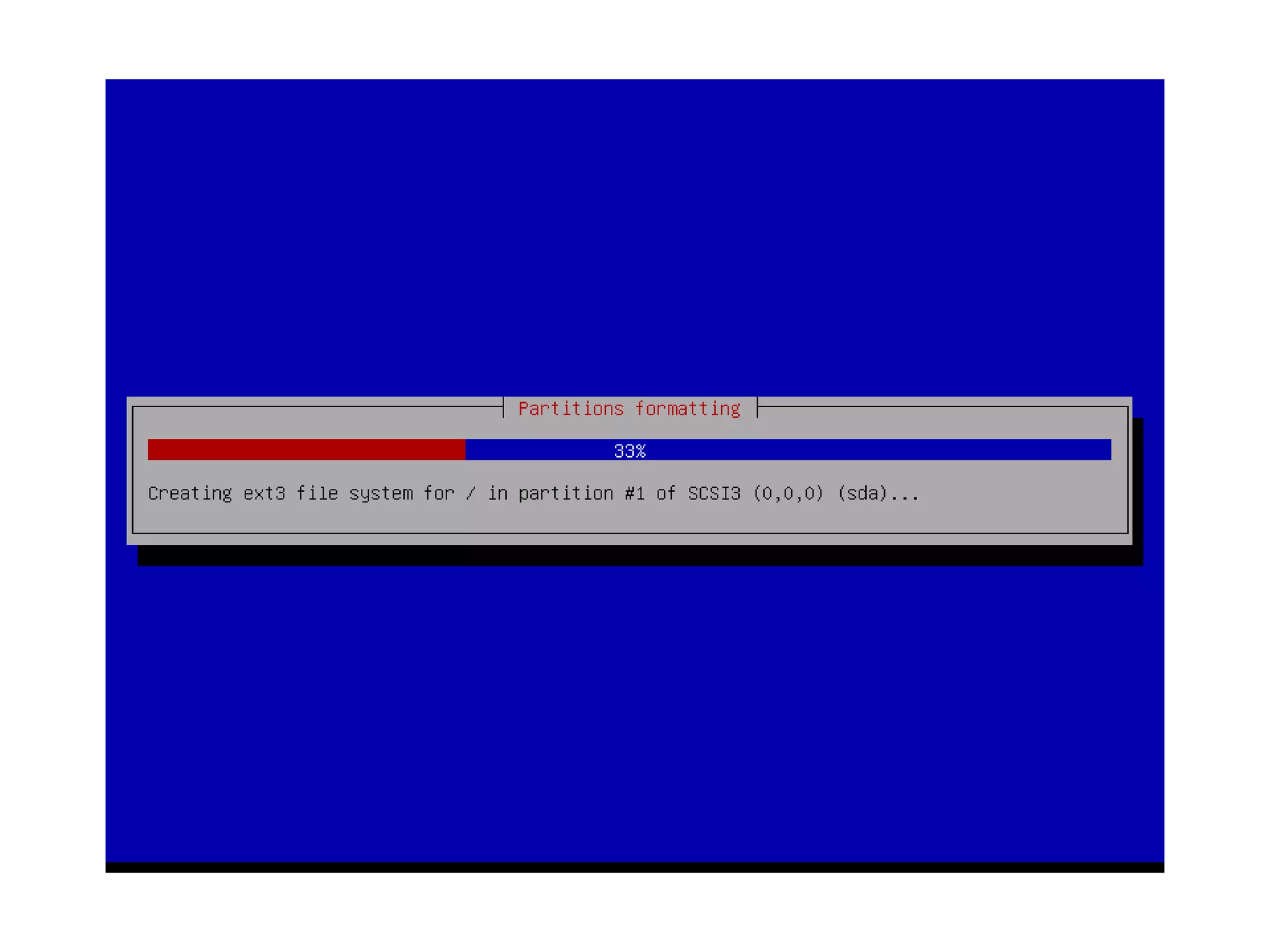

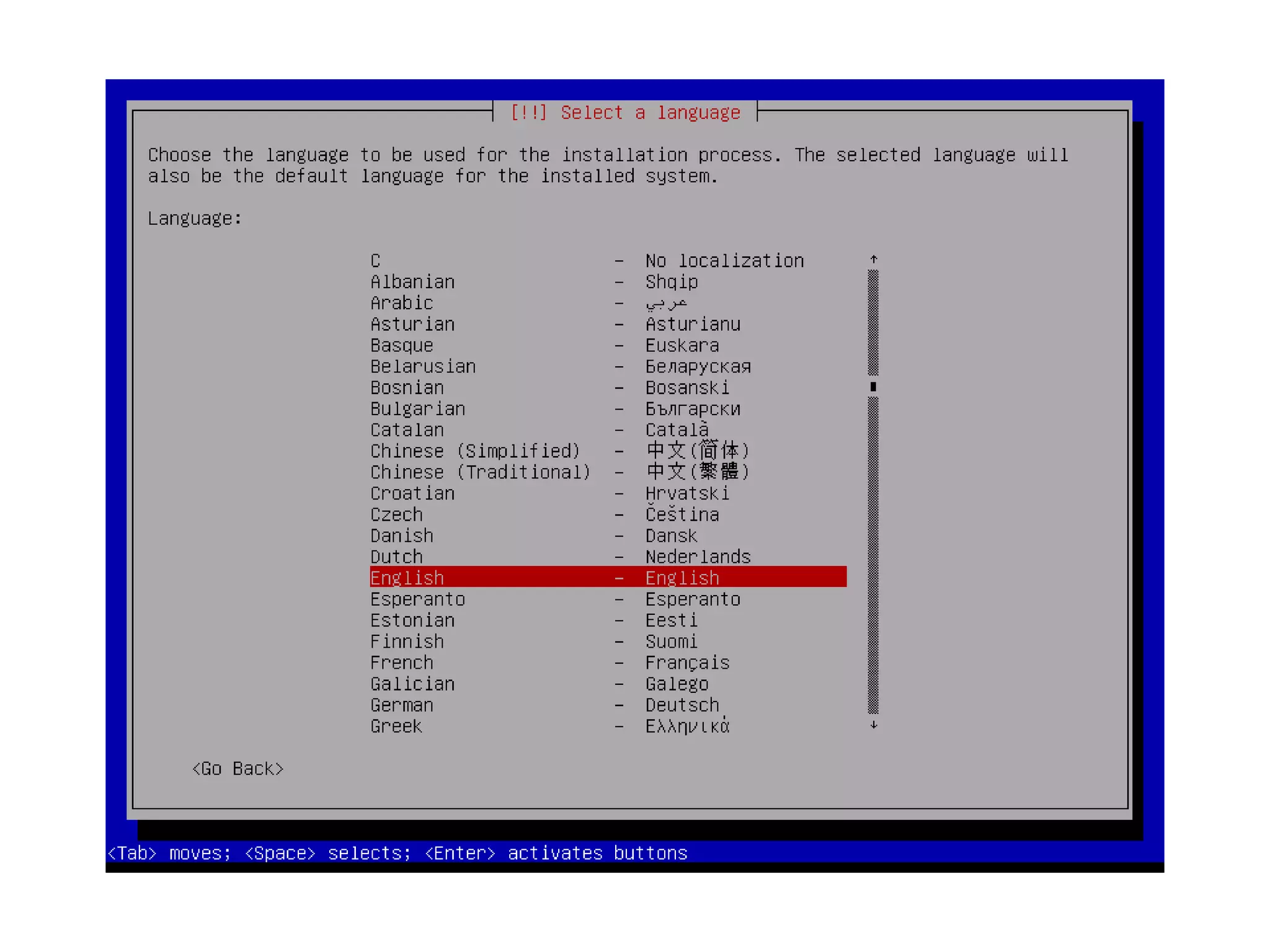

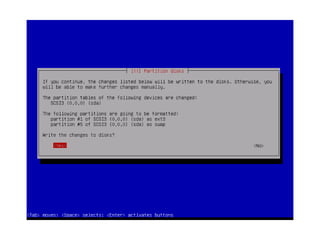

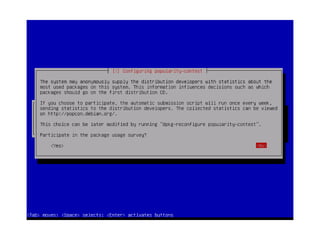

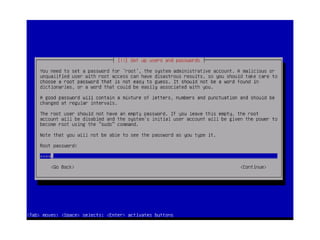

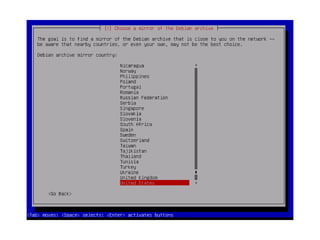

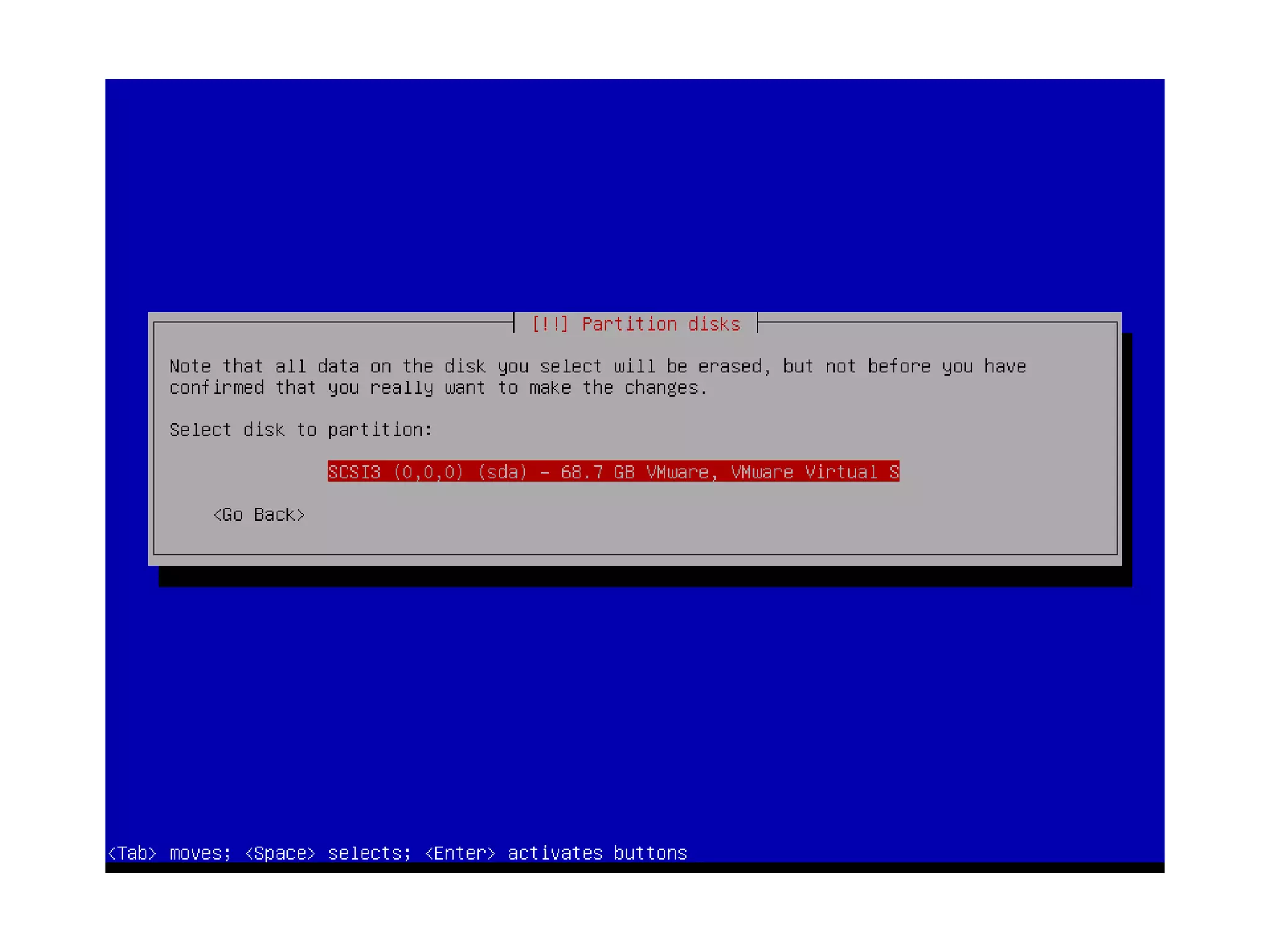

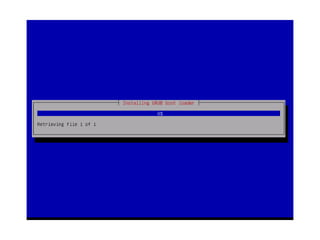

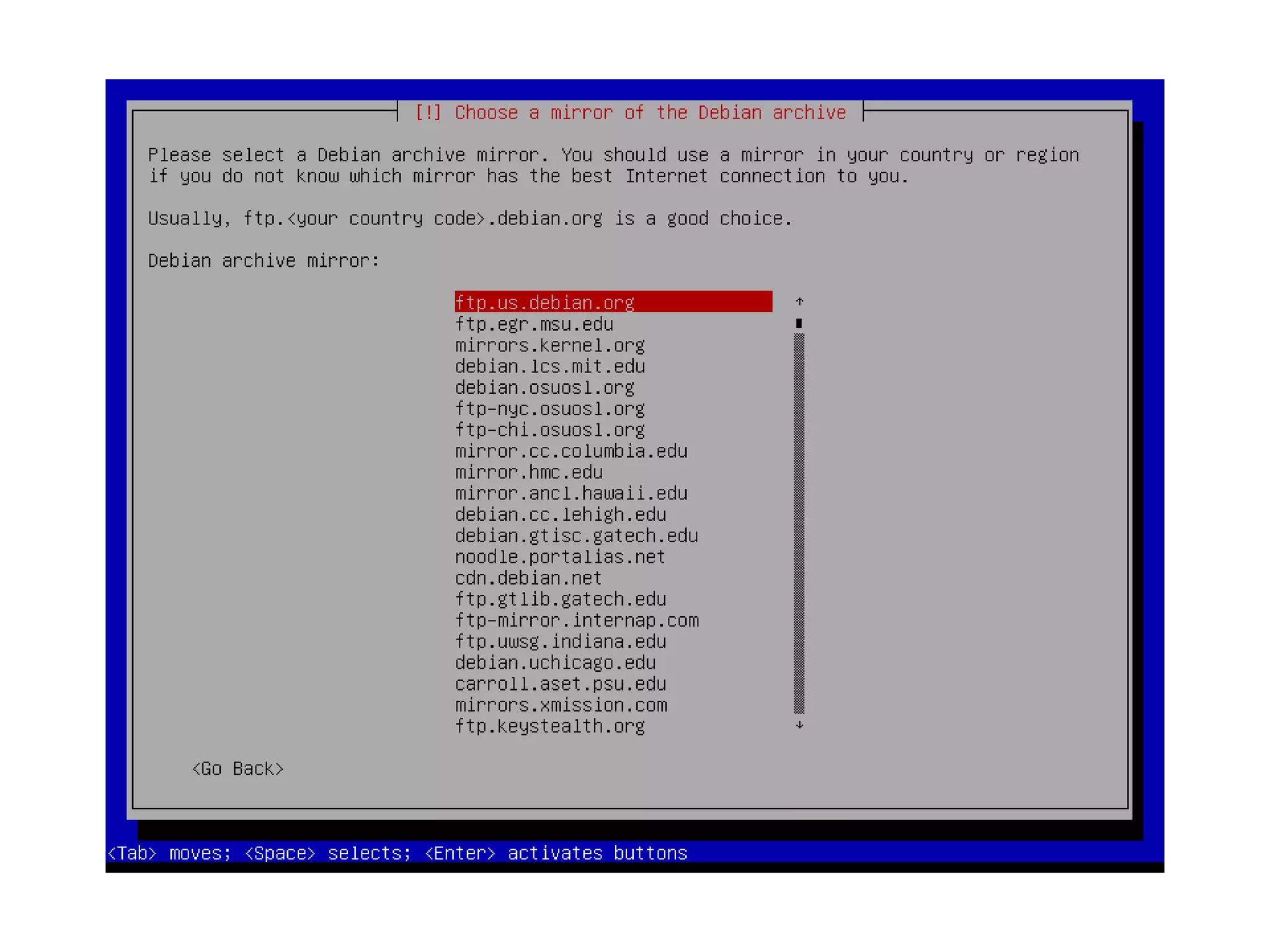

- 32.

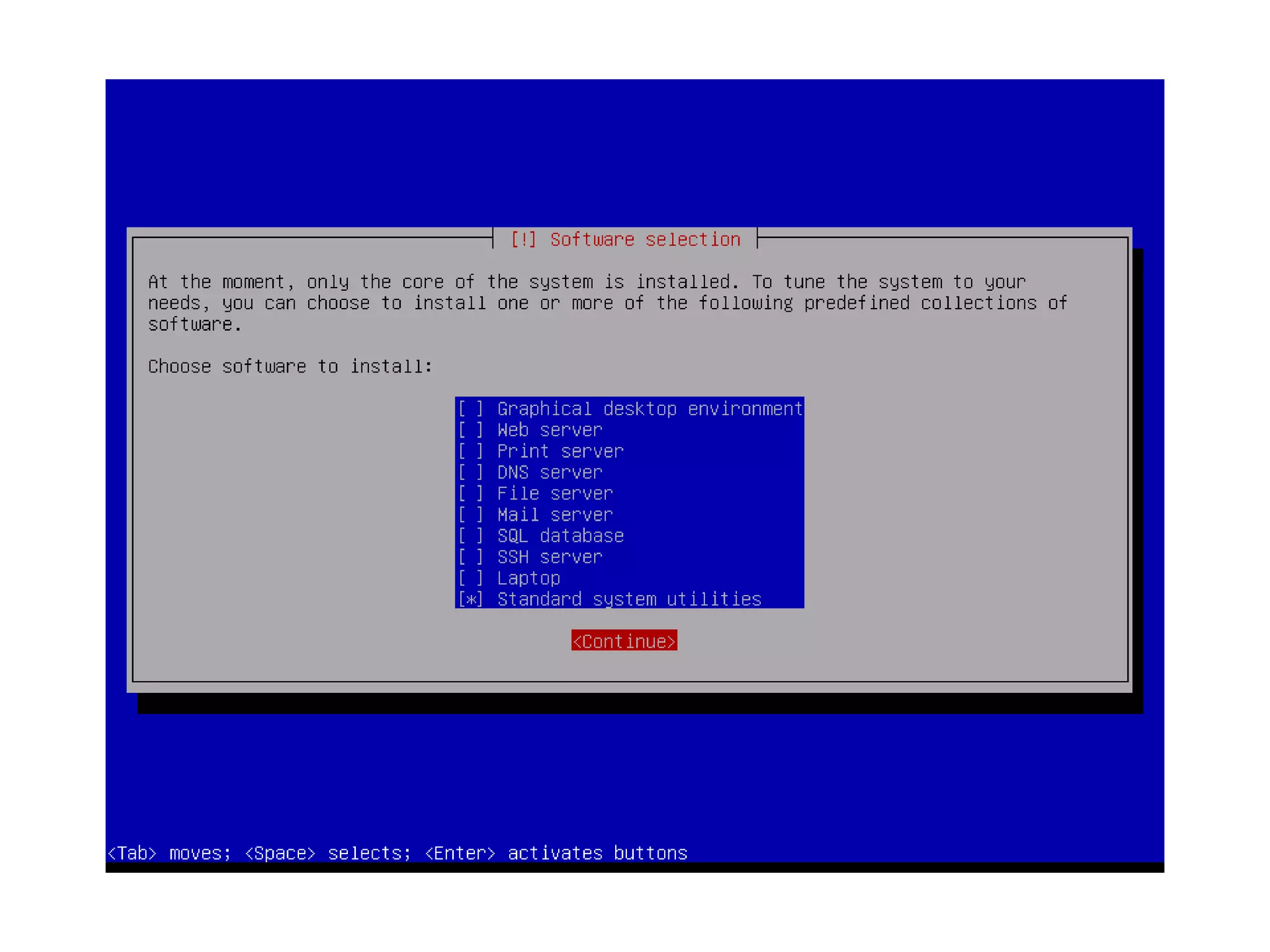

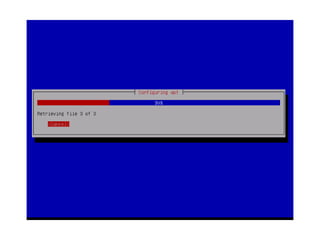

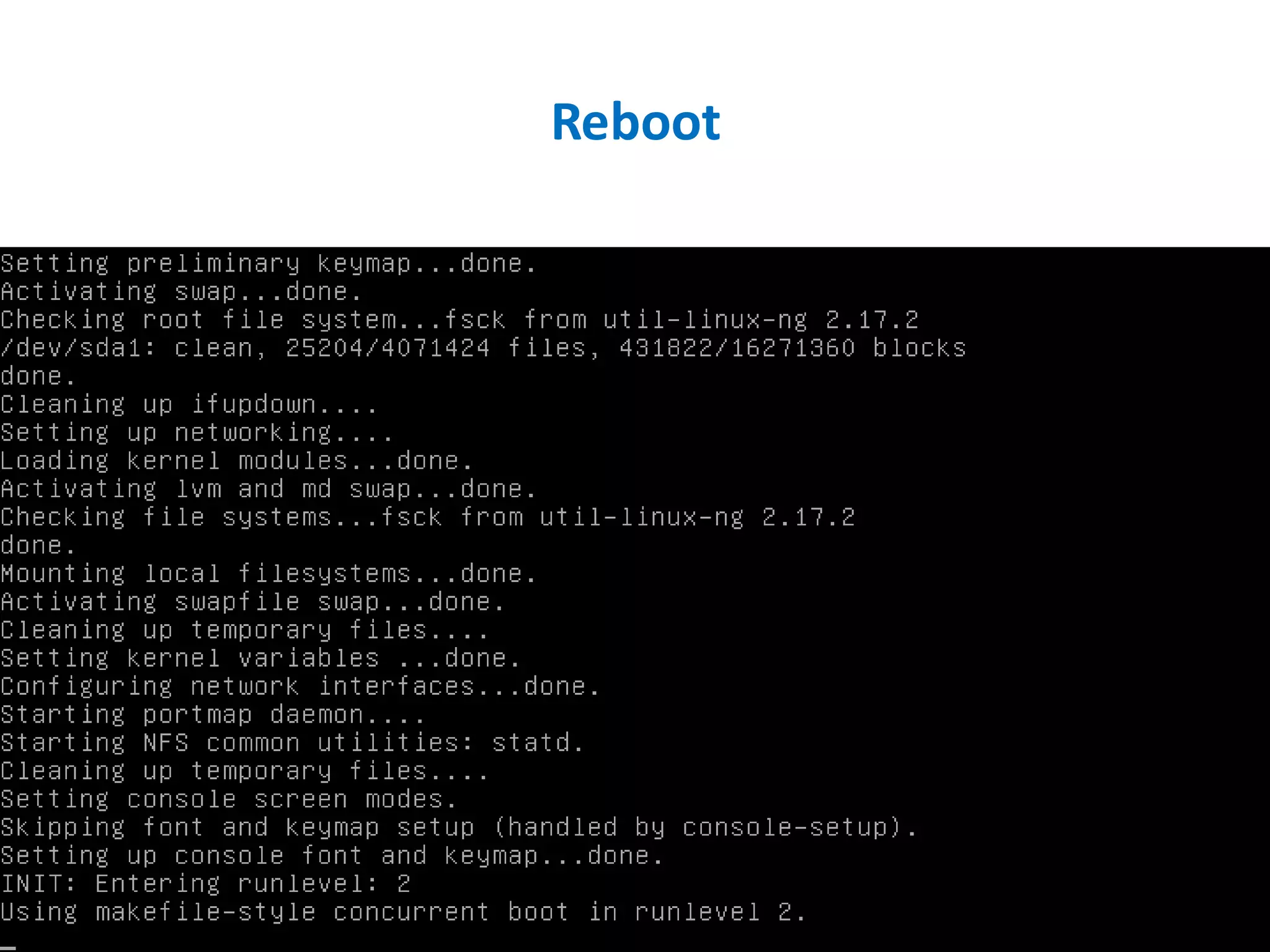

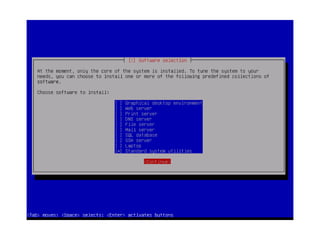

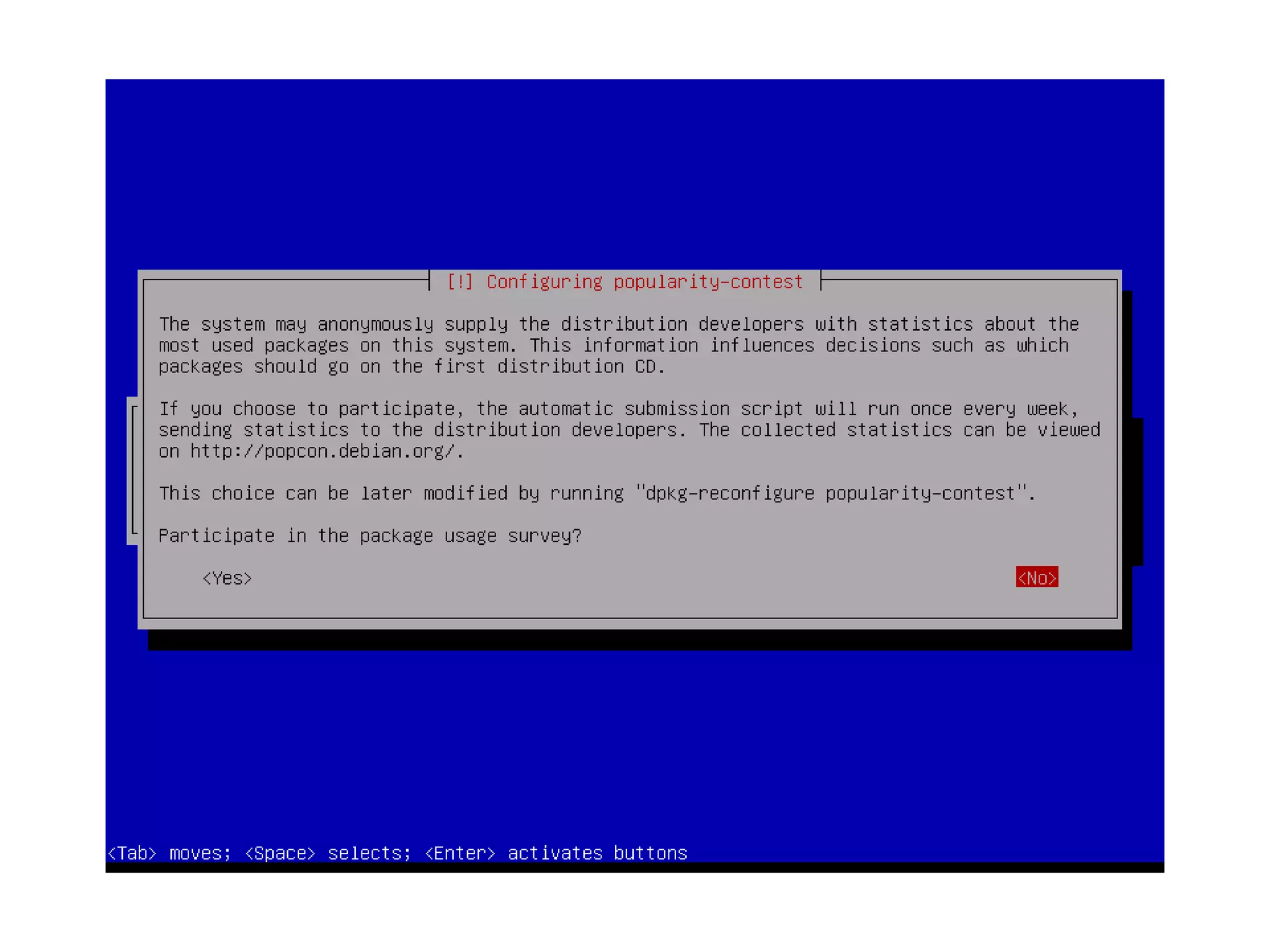

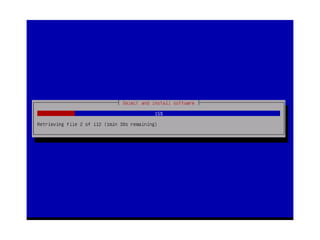

- 62. Uncheck them tokeep smallest installation

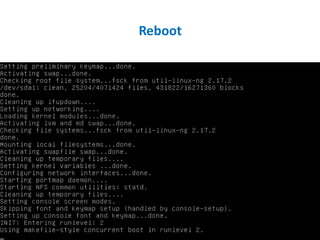

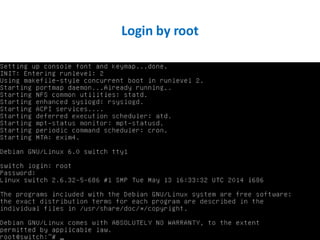

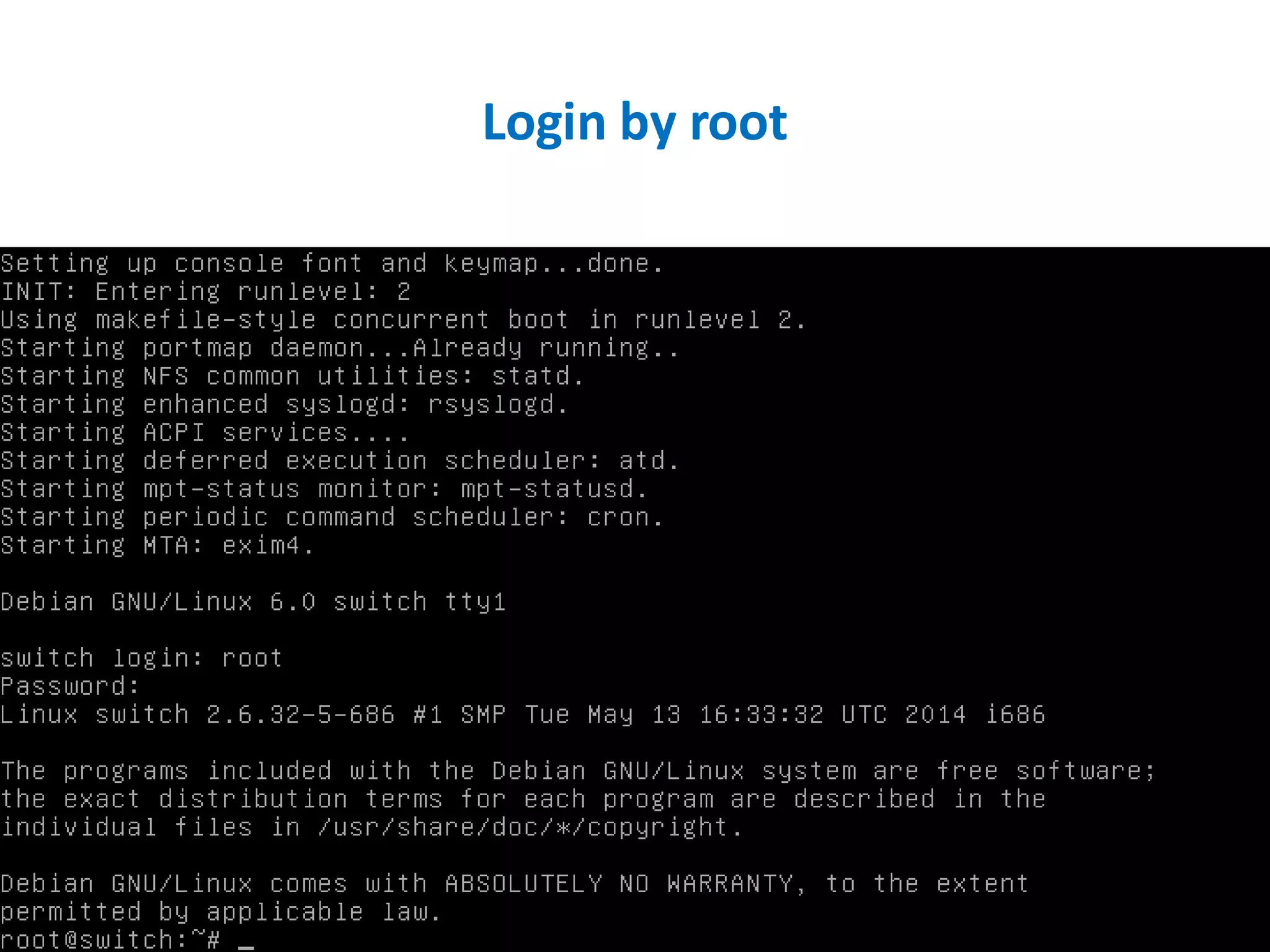

- 69. Setup your OperatingSystem
- 70.
- 71.

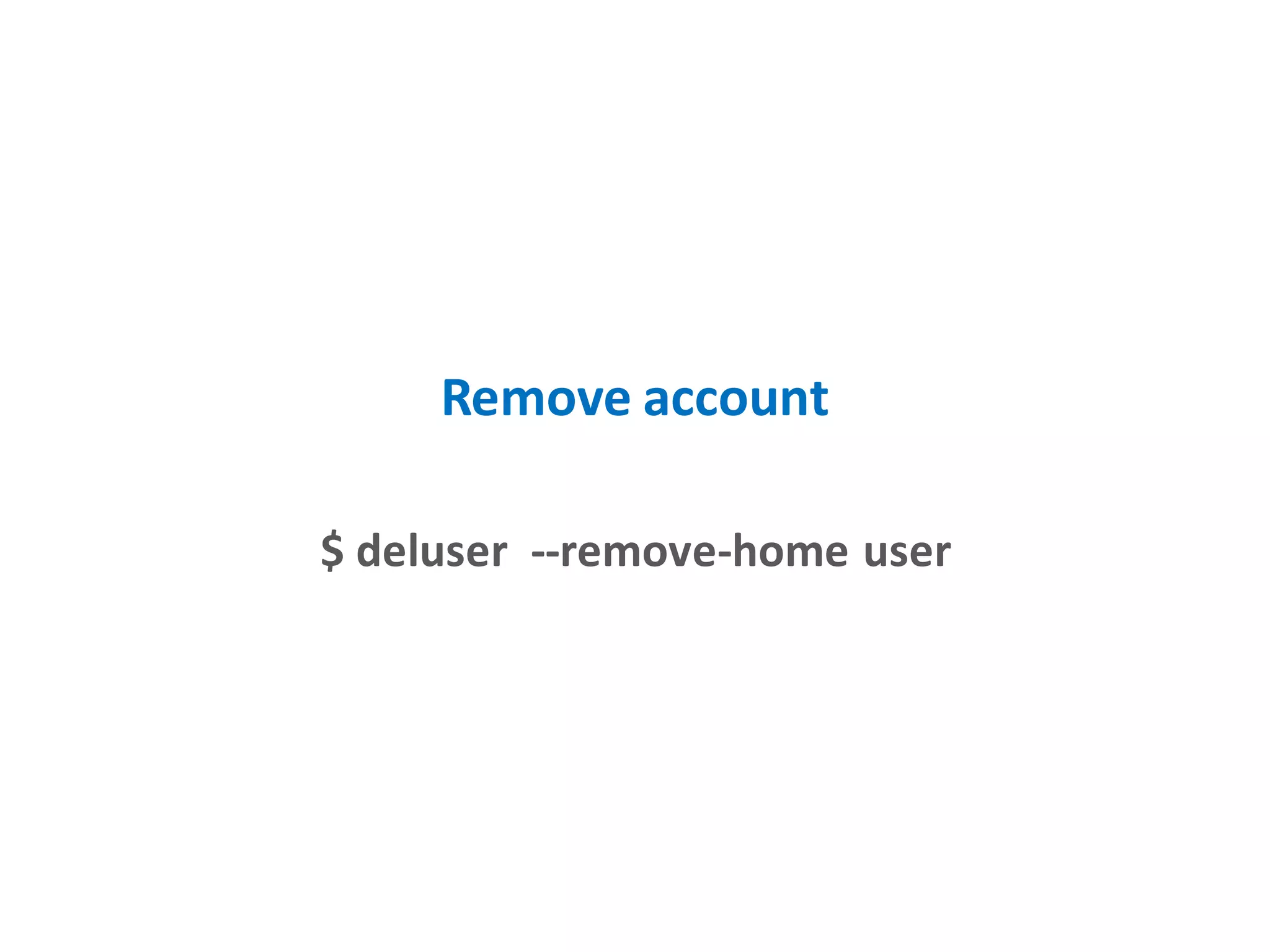

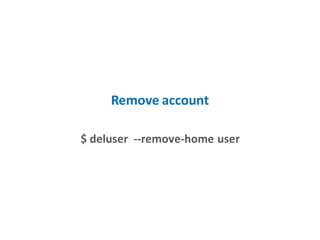

- 72. Remove account $ deluser--remove-home user

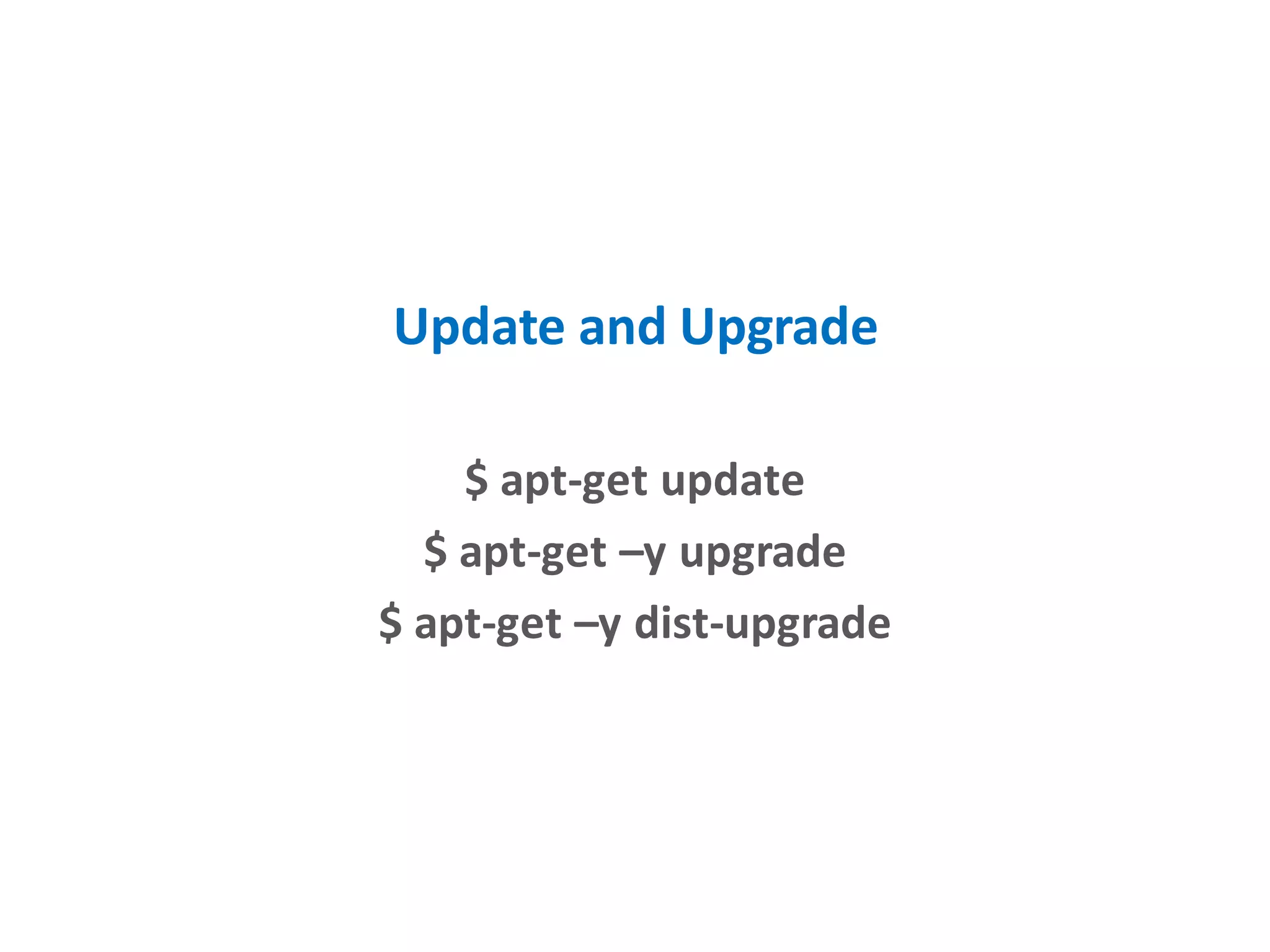

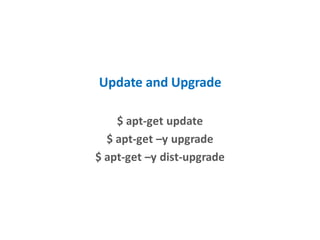

- 73. Update and Upgrade $apt-get update $ apt-get –y upgrade $ apt-get –y dist-upgrade

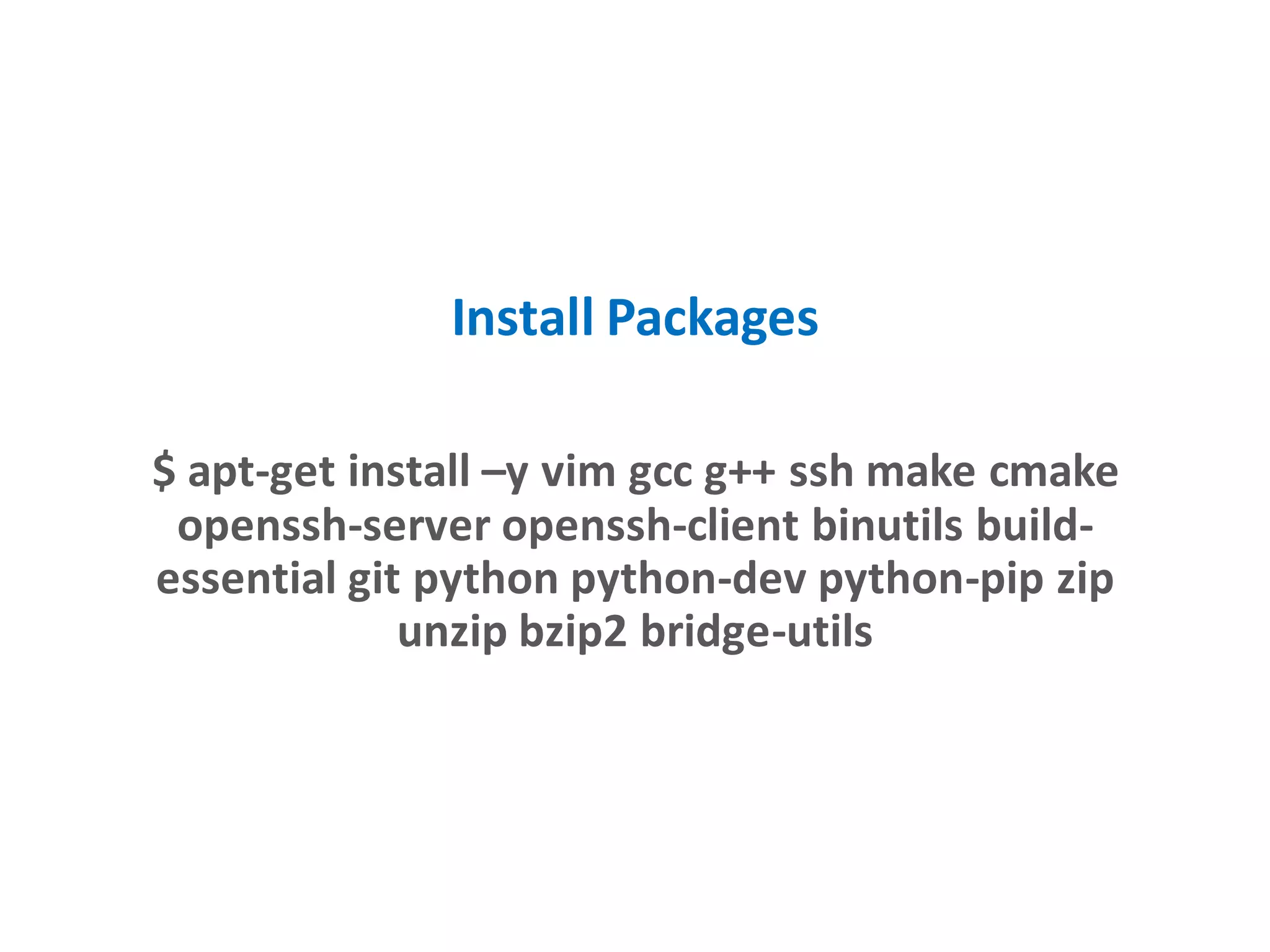

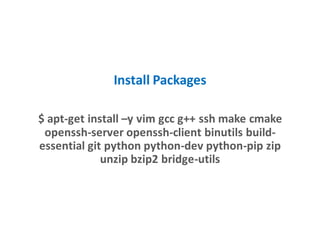

- 74. Install Packages $ apt-getinstall –y vim gcc g++ ssh make cmake openssh-server openssh-client binutils build- essential git python python-dev python-pip zip unzip bzip2 bridge-utils
- 75.

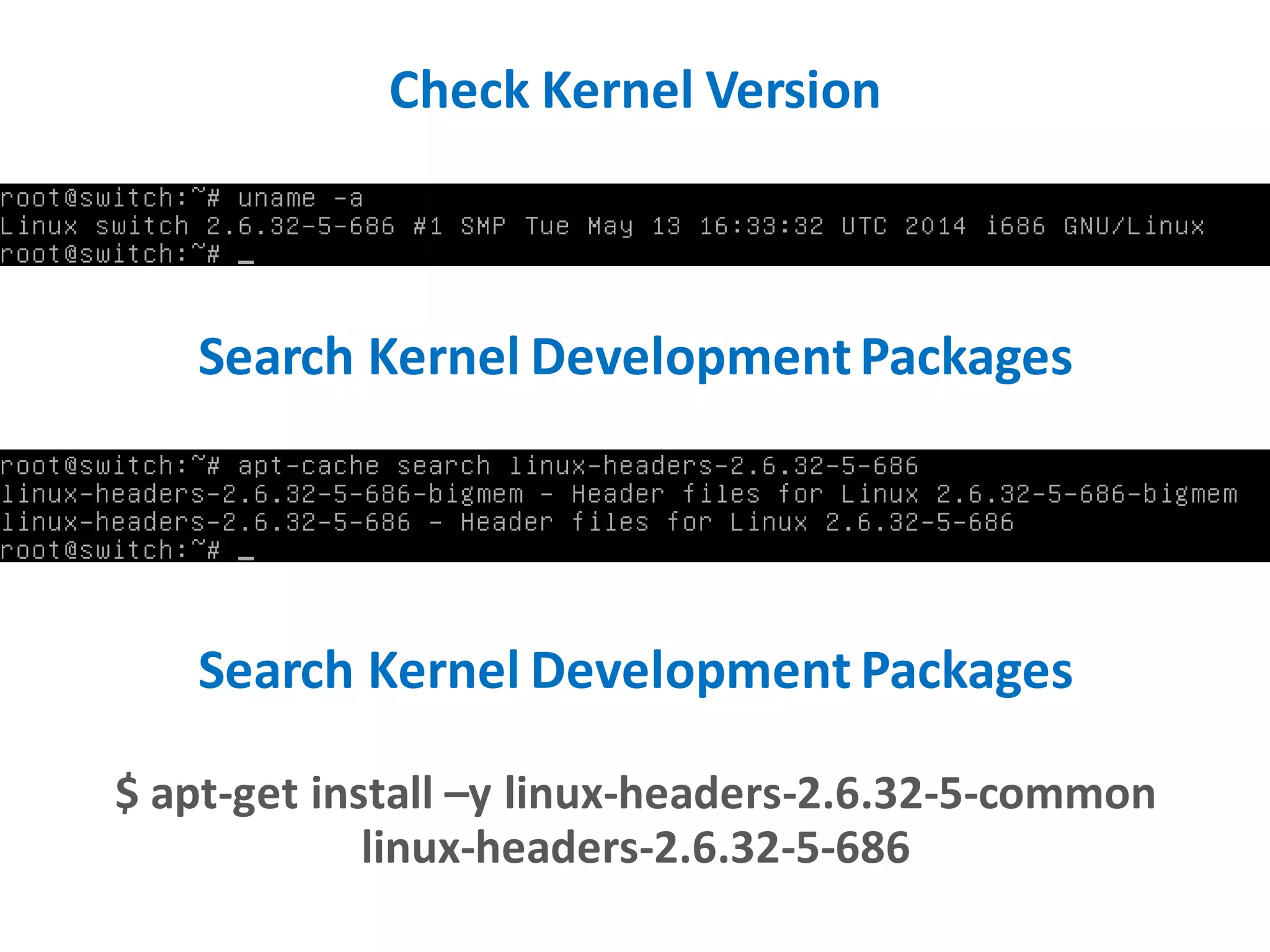

- 76. Search Kernel DevelopmentPackages Debian6.0.10 VMware use linux-headers-2.6.32-5-686 Debian 7.8.0 VMware use linux-headers-3.2.0-4-686-pae
- 77. Search Kernel DevelopmentPackages Debian6.0.10 VMware use linux-headers-2.6.32-5-686 Debian 7.9.0 VMware use linux-headers-3.2.0-4-686-pae
- 78. Install Kernel DevelopmentPackages Debian6.0.10 $ apt-get install –y linux-headers-2.6.32-5-common linux-headers-2.6.32-5-686 Debian 7.9.0 $ apt-get install –y linux-headers-3.2.0-4-common linux-headers-3.2.0-4-686-pae

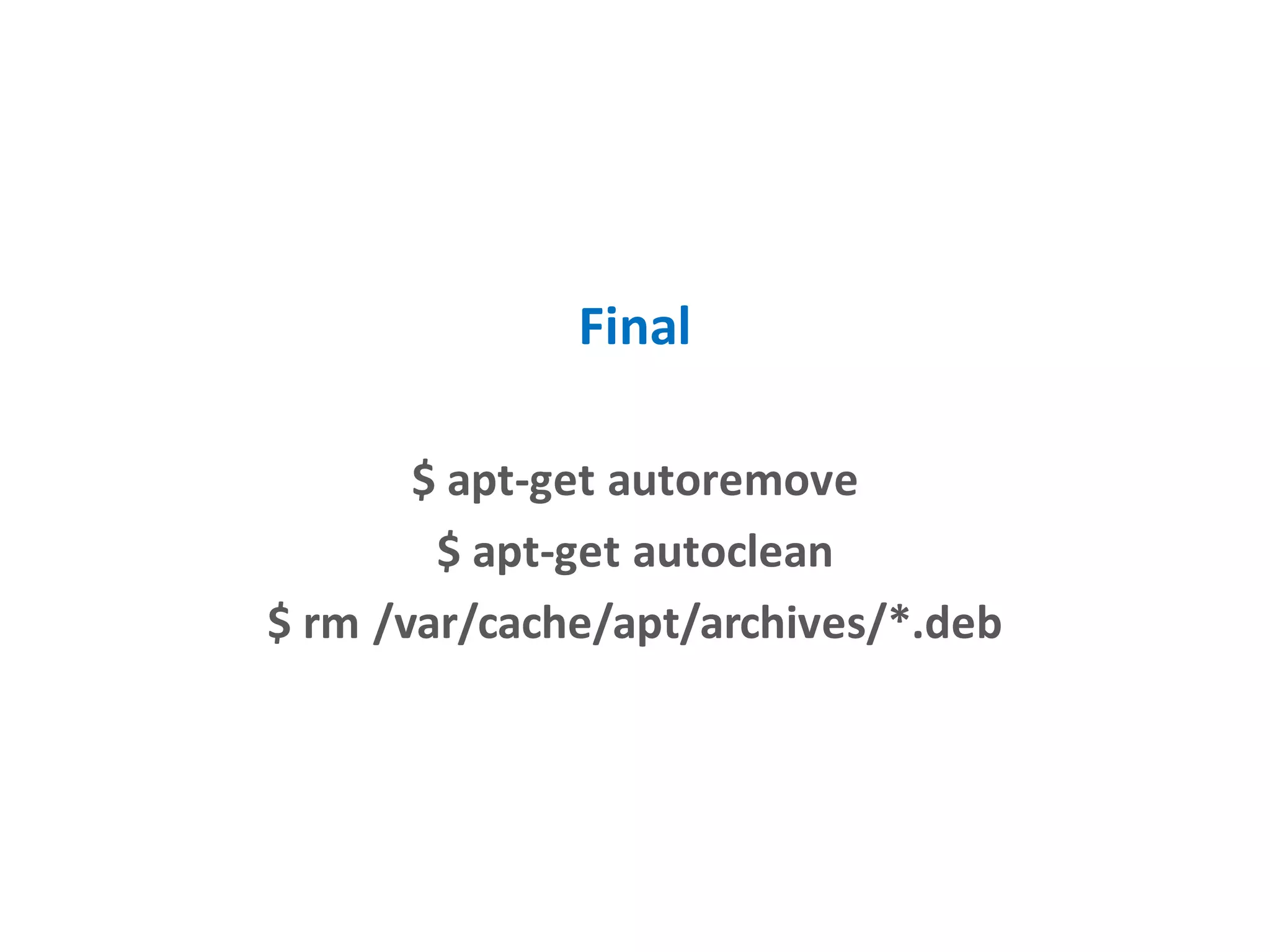

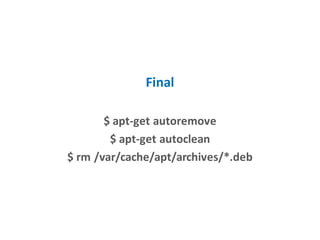

- 79. Final # release 100+MB $ apt-get autoremove $ apt-get autoclean $ rm /var/cache/apt/archives/*.deb

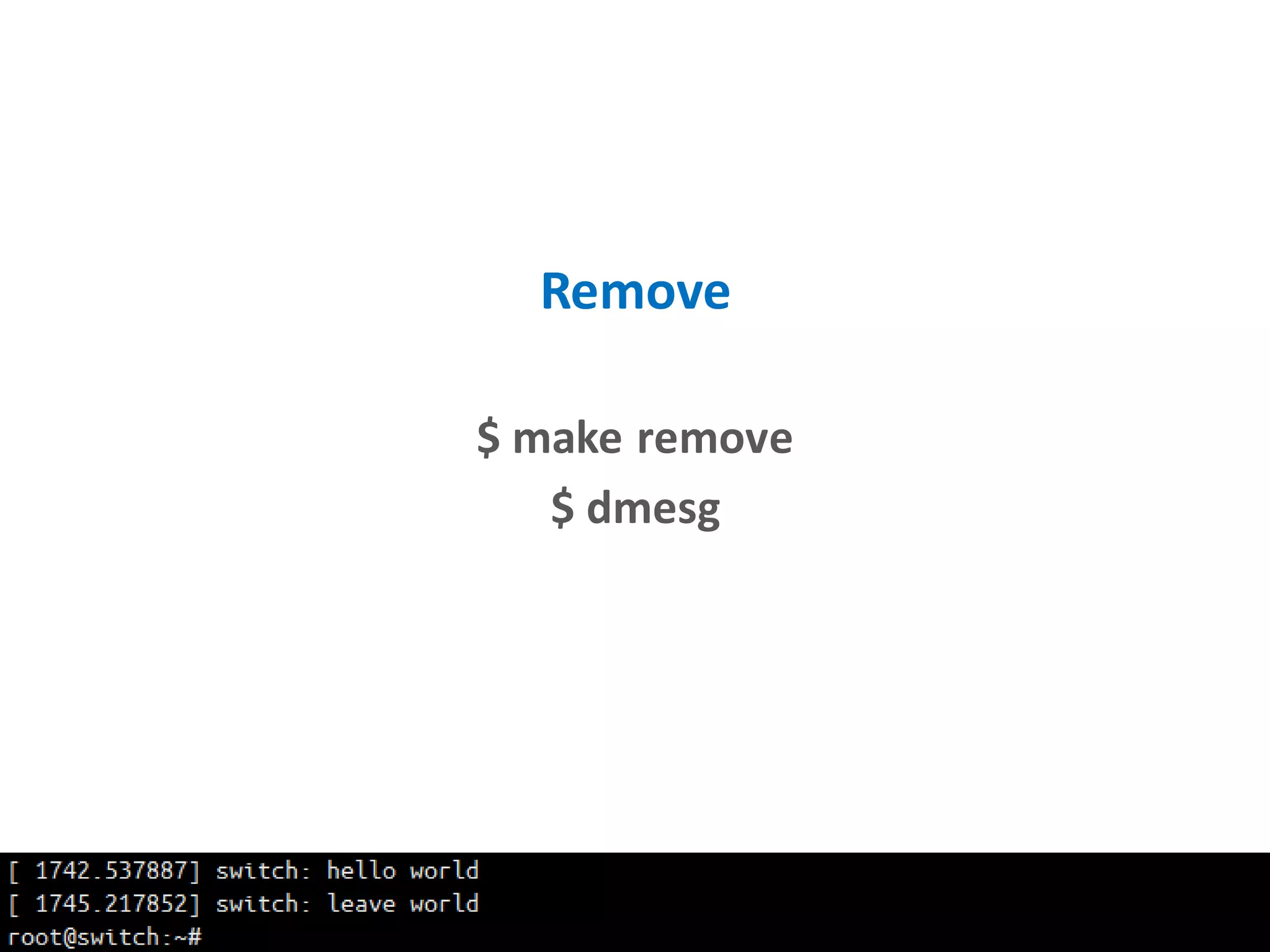

- 80.

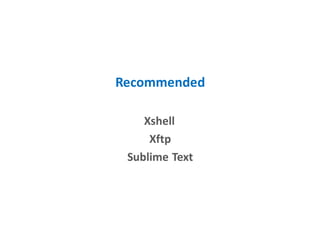

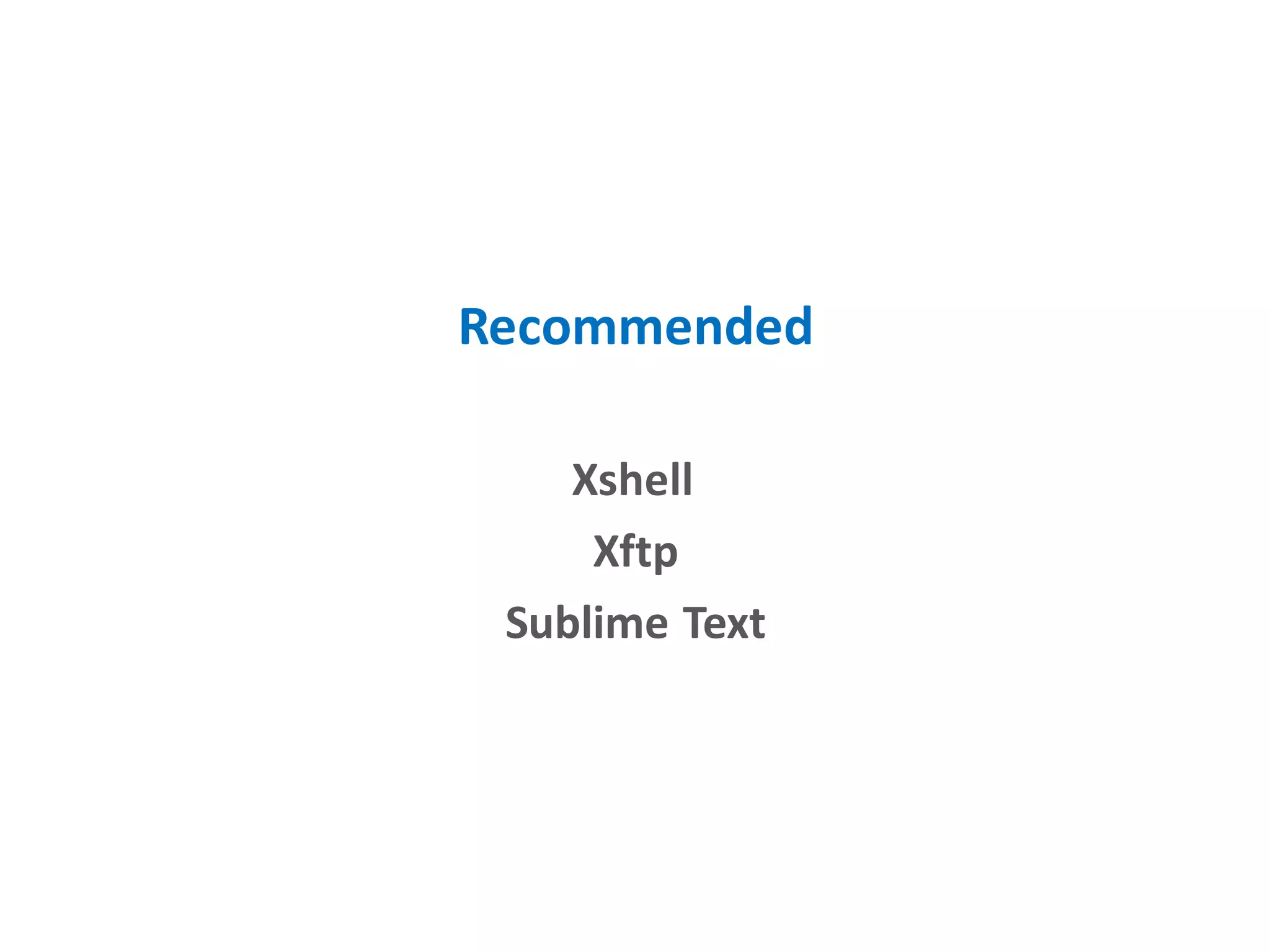

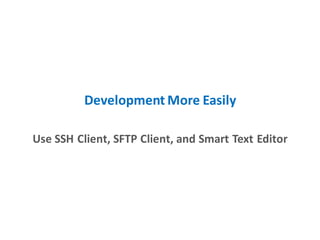

- 81. Development More Easily UseSSH Client, SFTP Client, and Smart Text Editor
- 82.
- 83.
- 84.
- 85.
- 86.

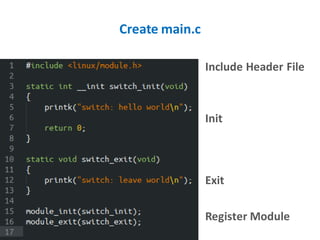

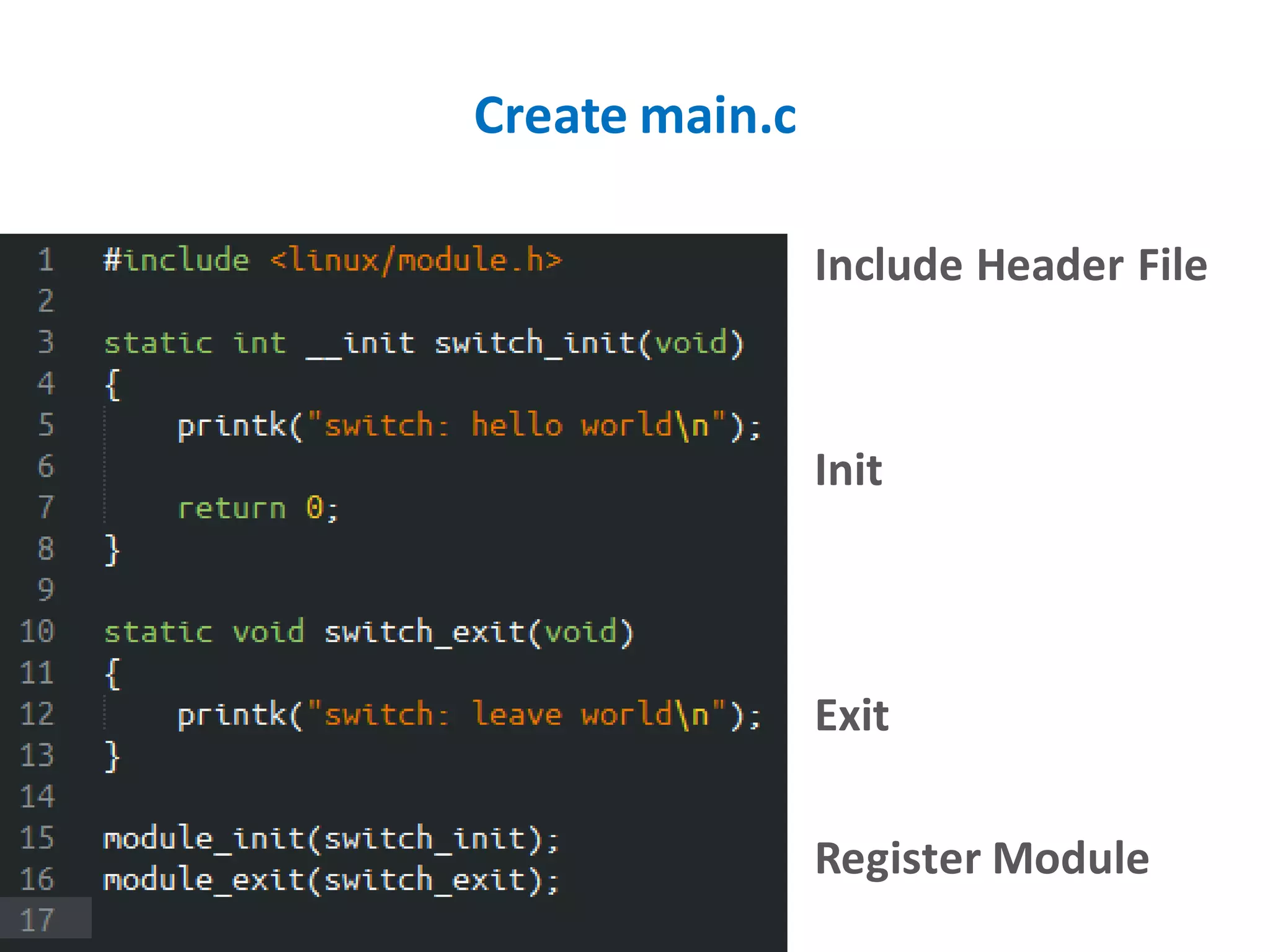

- 87. Create main.c Include HeaderFile Init $ insmod *.ko Exit $ rmmod *.ko Register Module
- 88. Clear Kernel MessageBuffer $ dmesg -c
- 89.
- 90.
- 91.
- 92.
- 93.
- 94.
- 95.
- 96.

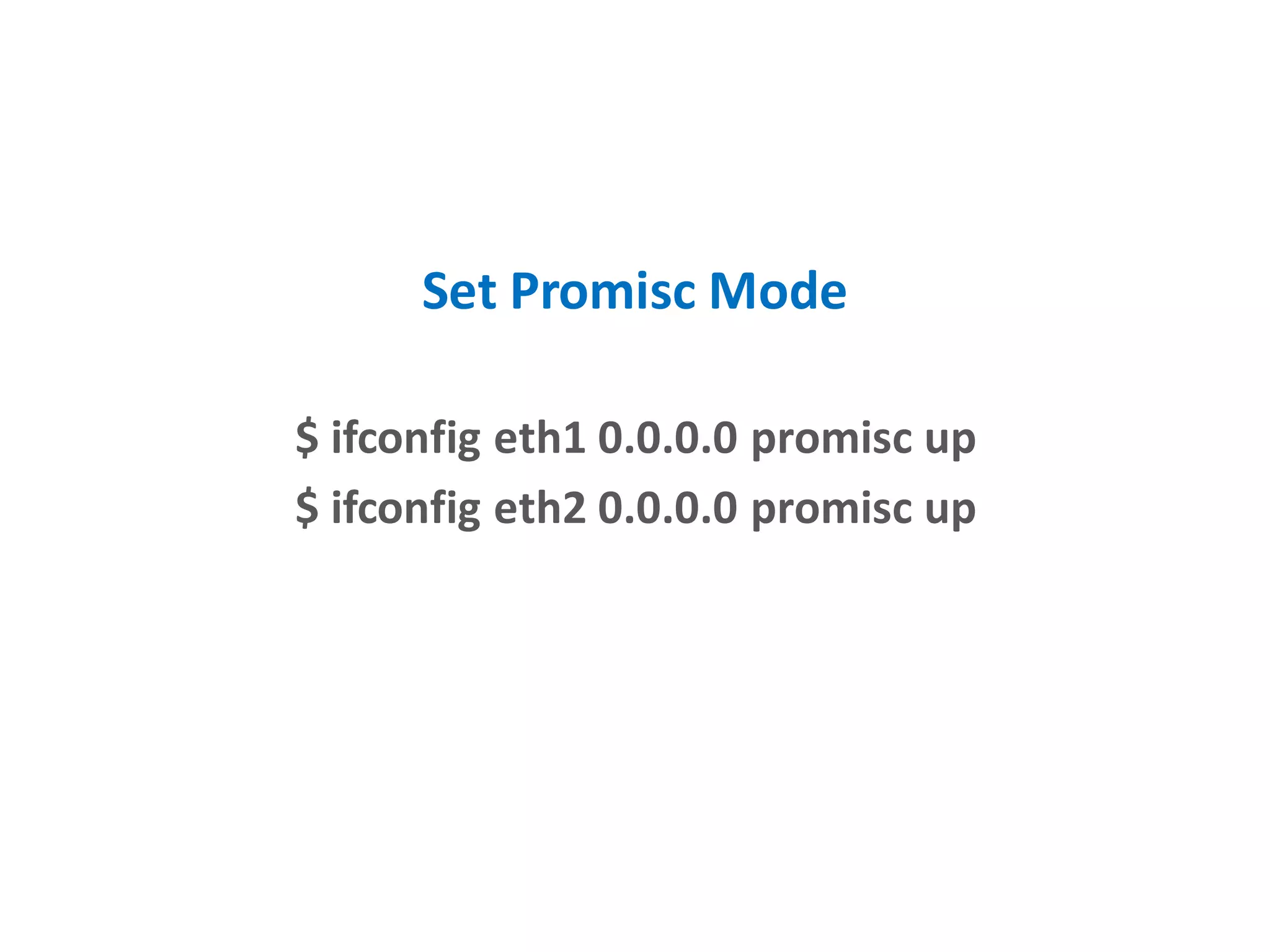

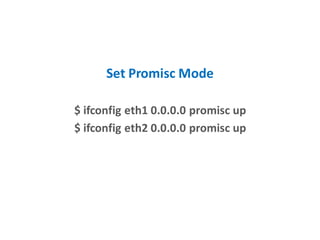

- 97. Set Promisc Mode $ifconfig eth1 0.0.0.0 promisc up $ ifconfig eth2 0.0.0.0 promisc up

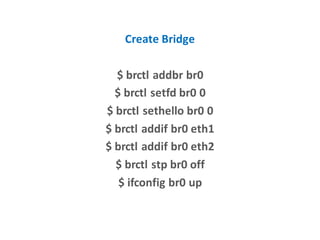

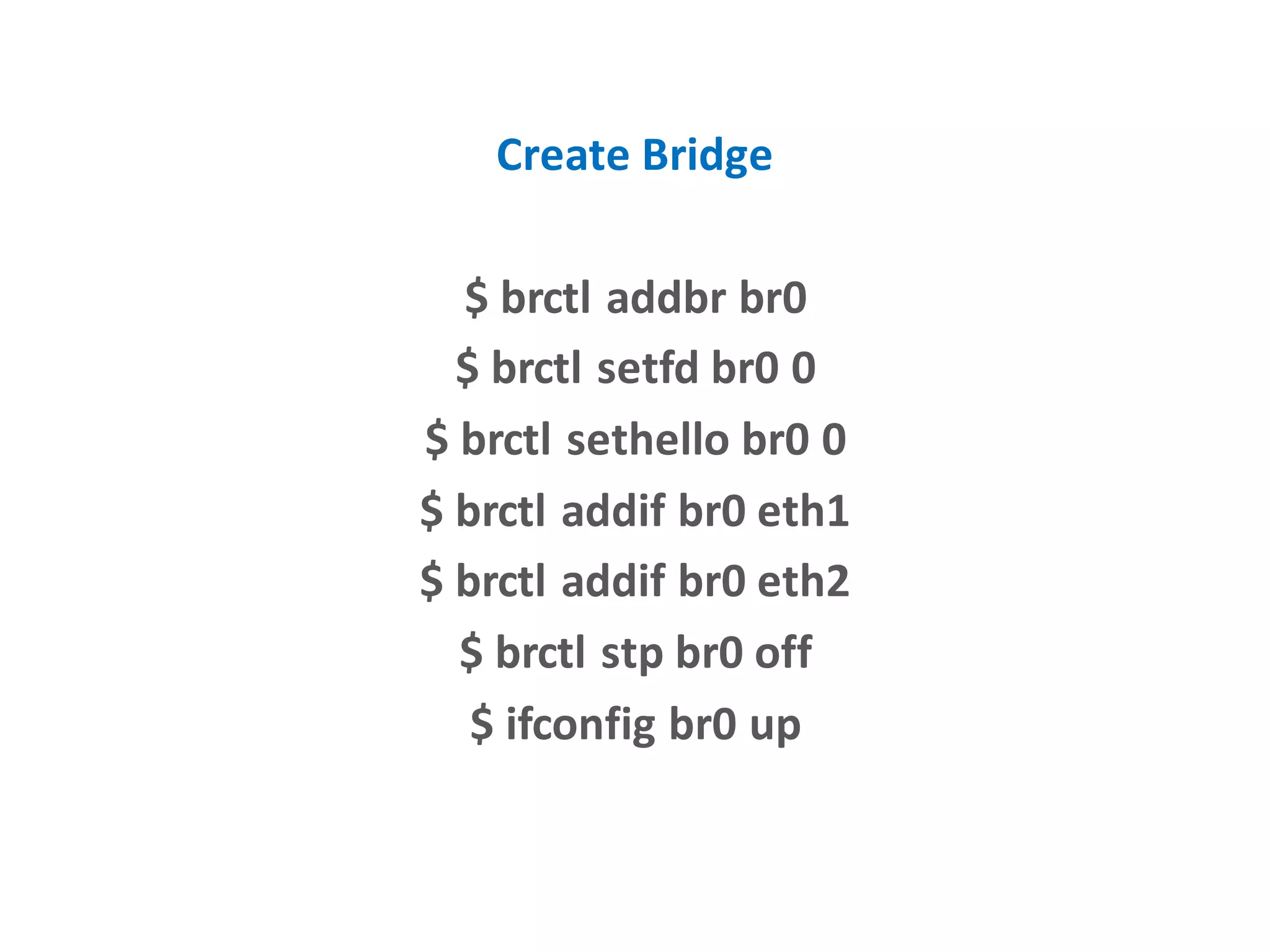

- 98. Create Bridge $ brctladdbr br0 $ brctl setfd br0 0 # Debian 6.0.10 $ brctl sethello br0 0 # Debian 7.9.0 $ brctl sethello br0 1 $ brctl addif br0 eth1 $ brctl addif br0 eth2 $ brctl stp br0 off $ ifconfig br0 up

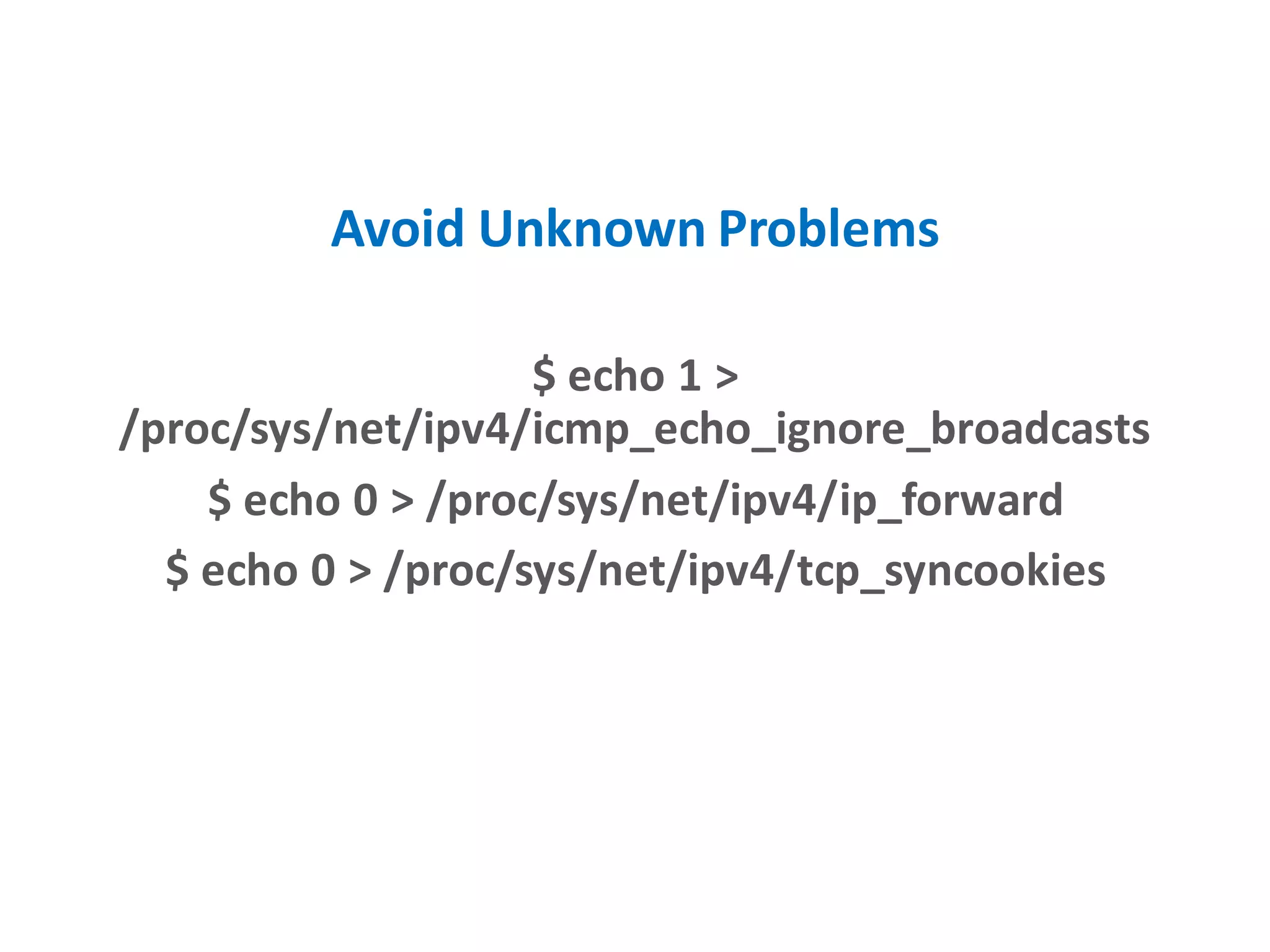

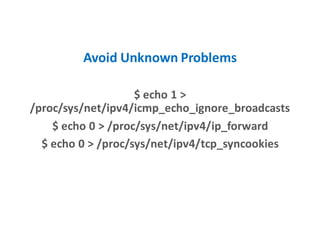

- 99. Avoid Unknown Problems $echo 1 > /proc/sys/net/ipv4/icmp_echo_ignore_broadcasts $ echo 0 > /proc/sys/net/ipv4/ip_forward $ echo 0 > /proc/sys/net/ipv4/tcp_syncookies

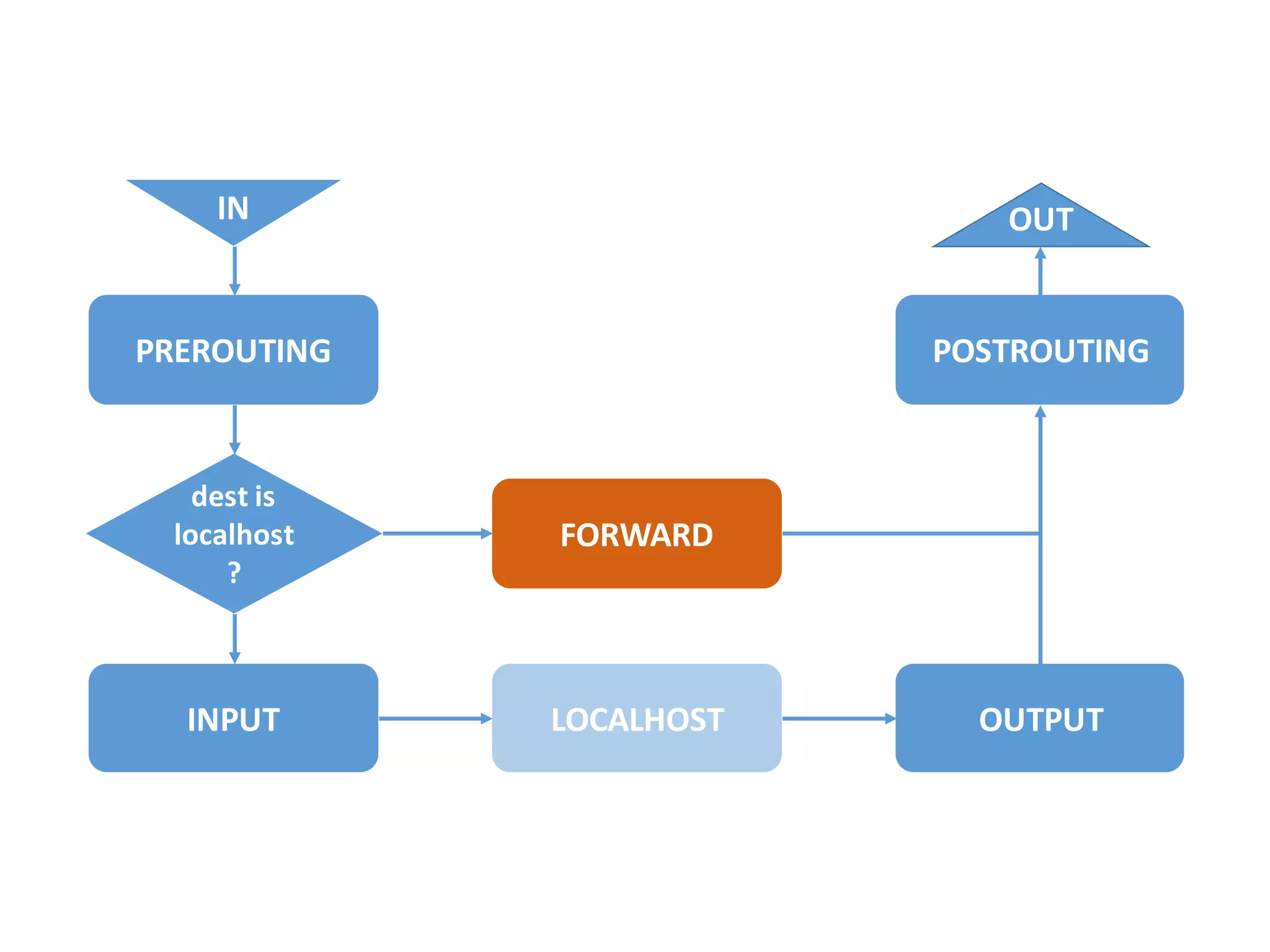

- 100. First Netfilter KernelModule

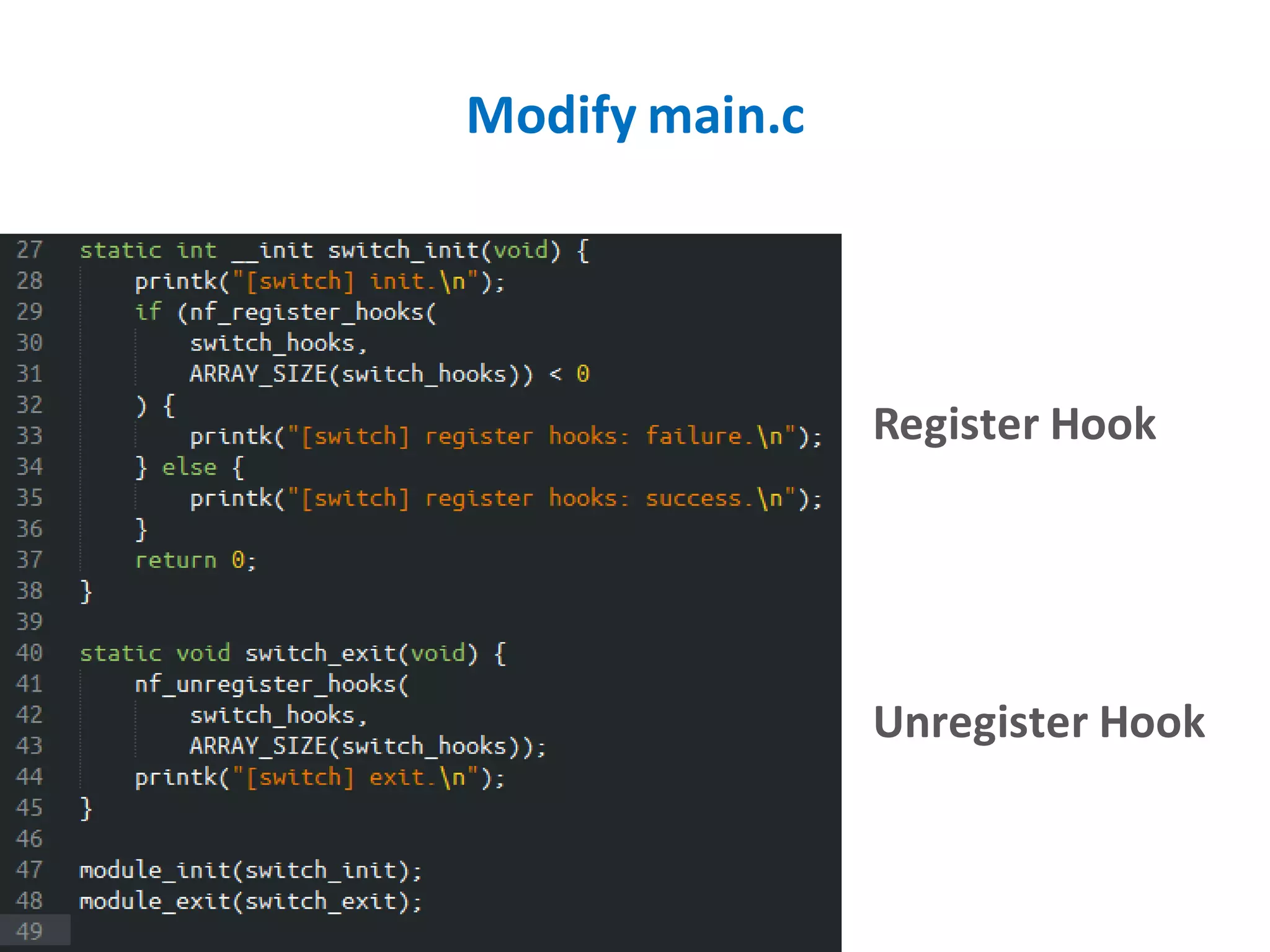

- 101. Modify main.c Include HeaderFiles Forward Hook Hook Declaration
- 102. Modify main.c Include HeaderFiles Forward Hook Hook Declaration If one header miss, compilation still success. But, operating system will crash when module inserting.

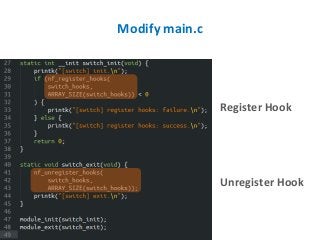

- 103.

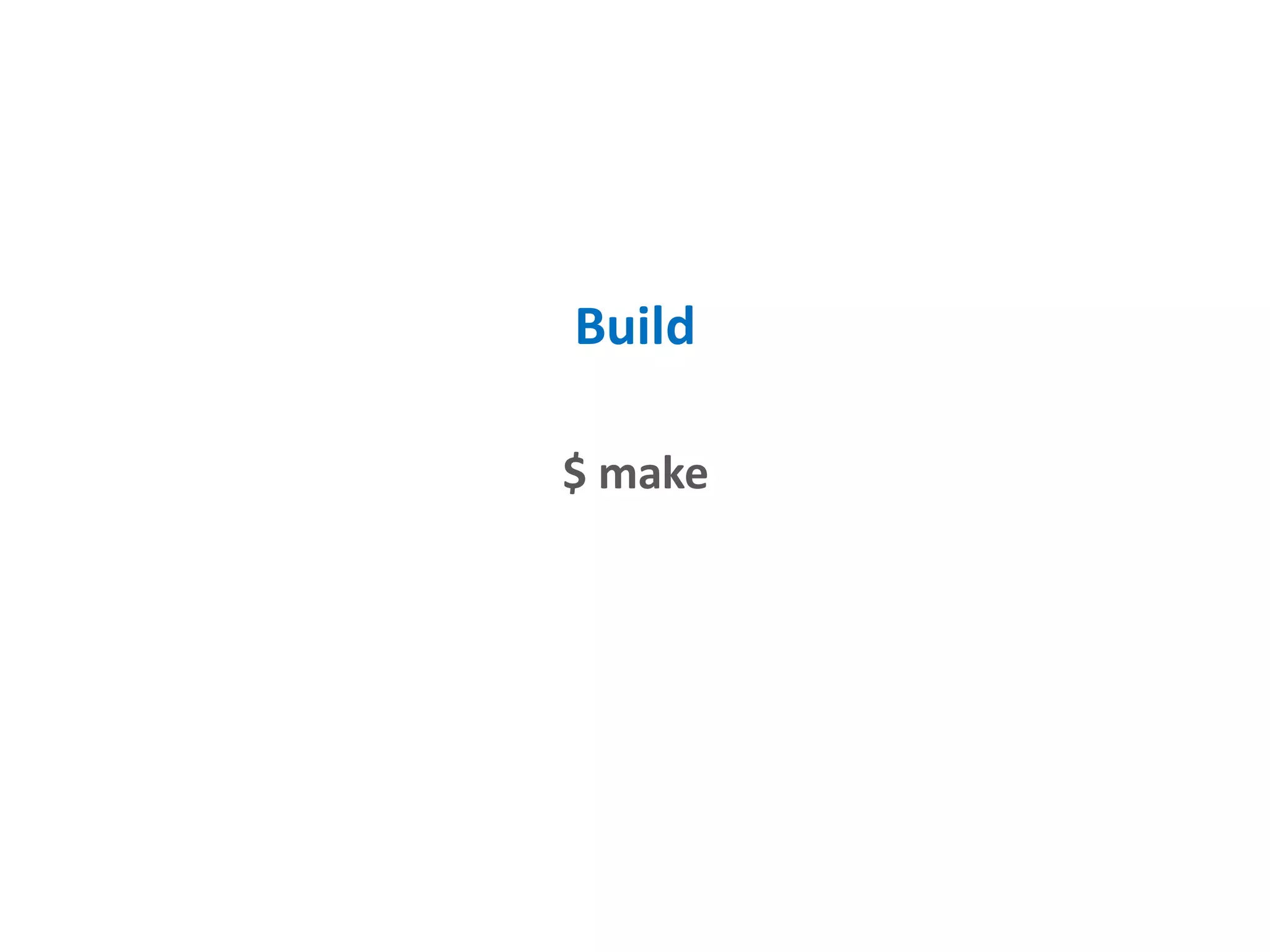

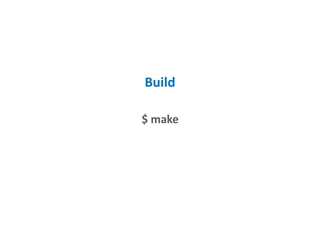

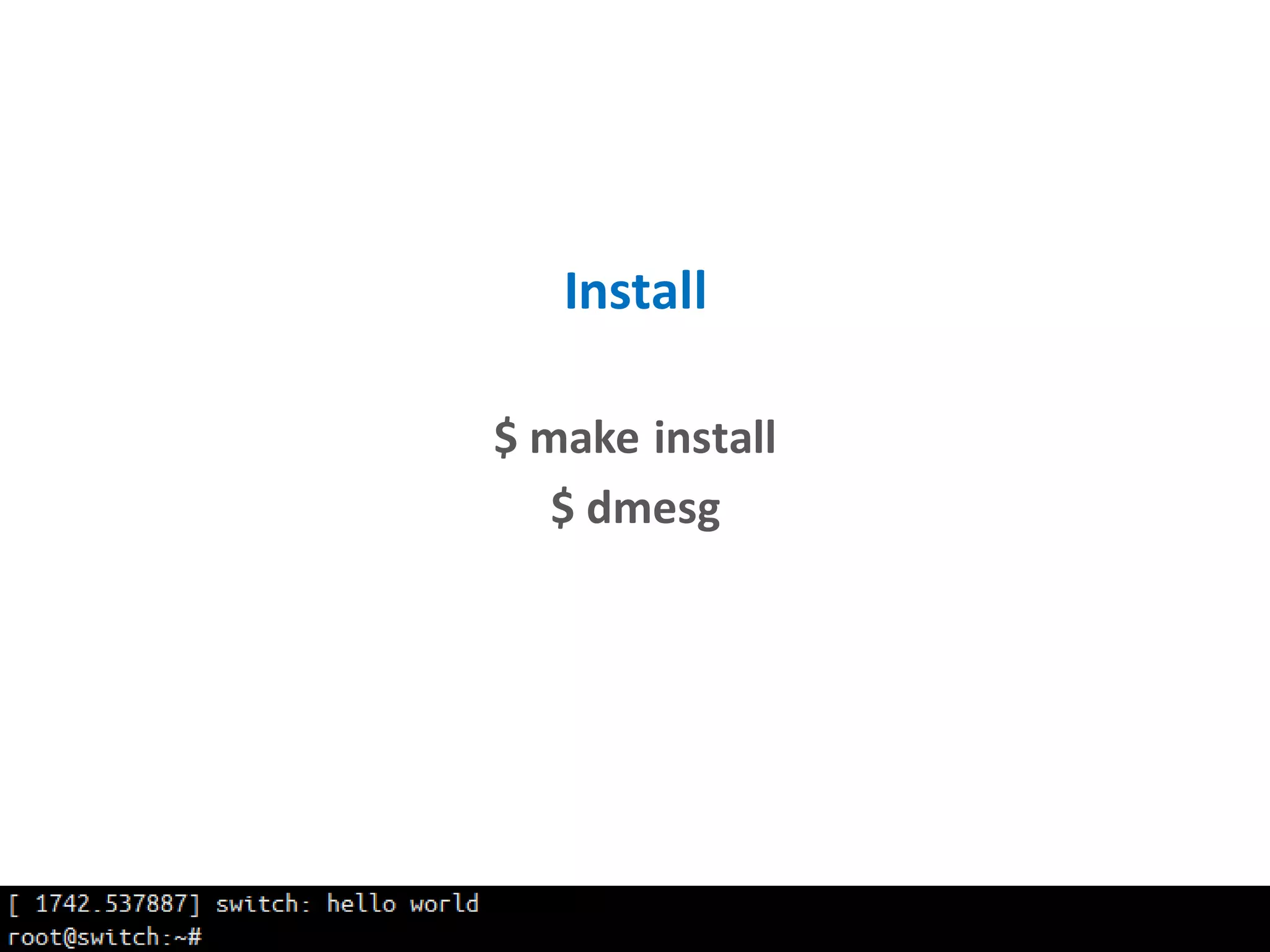

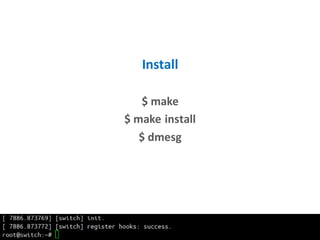

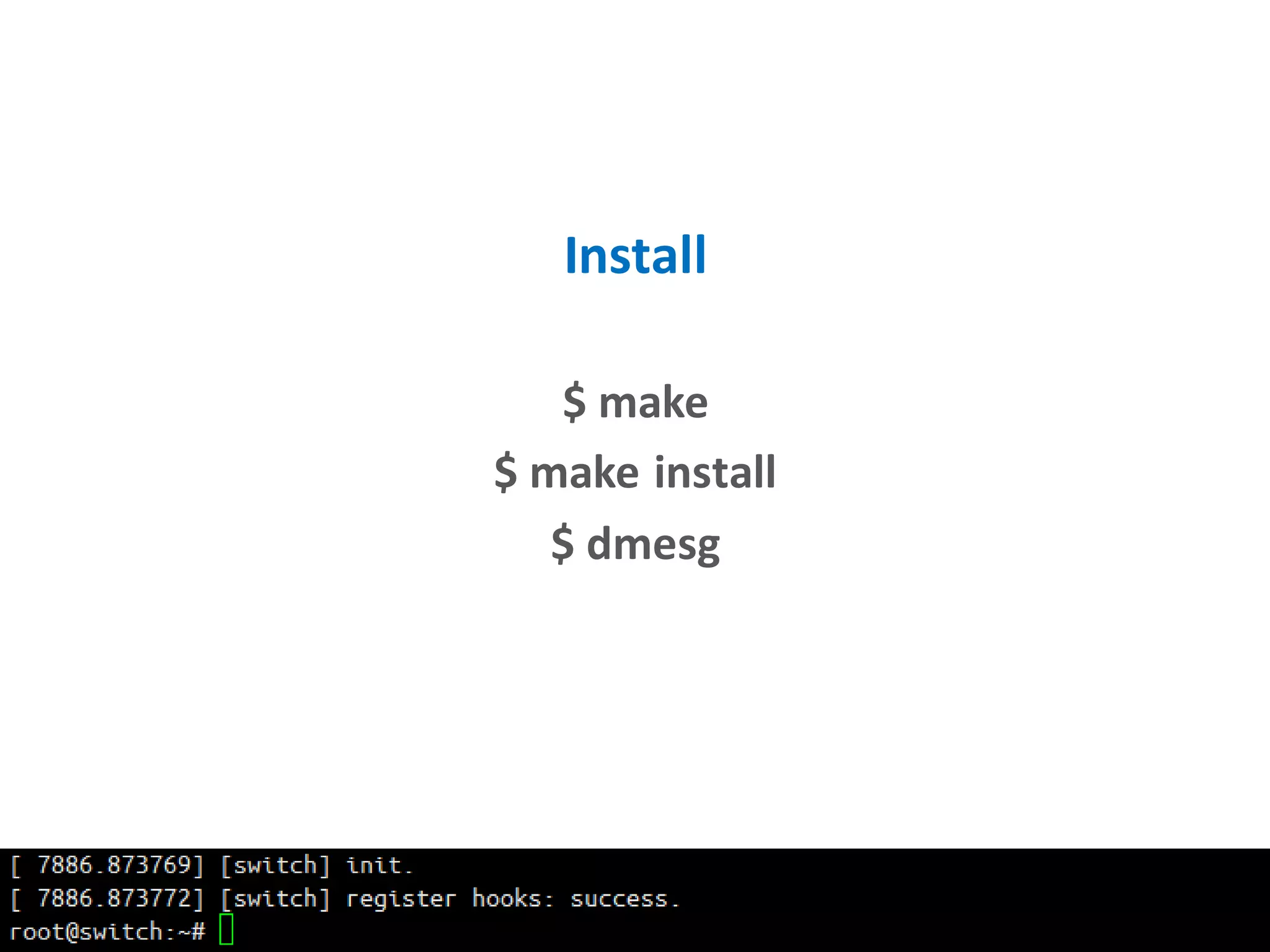

- 104. Install $ make $ makeinstall $ dmesg

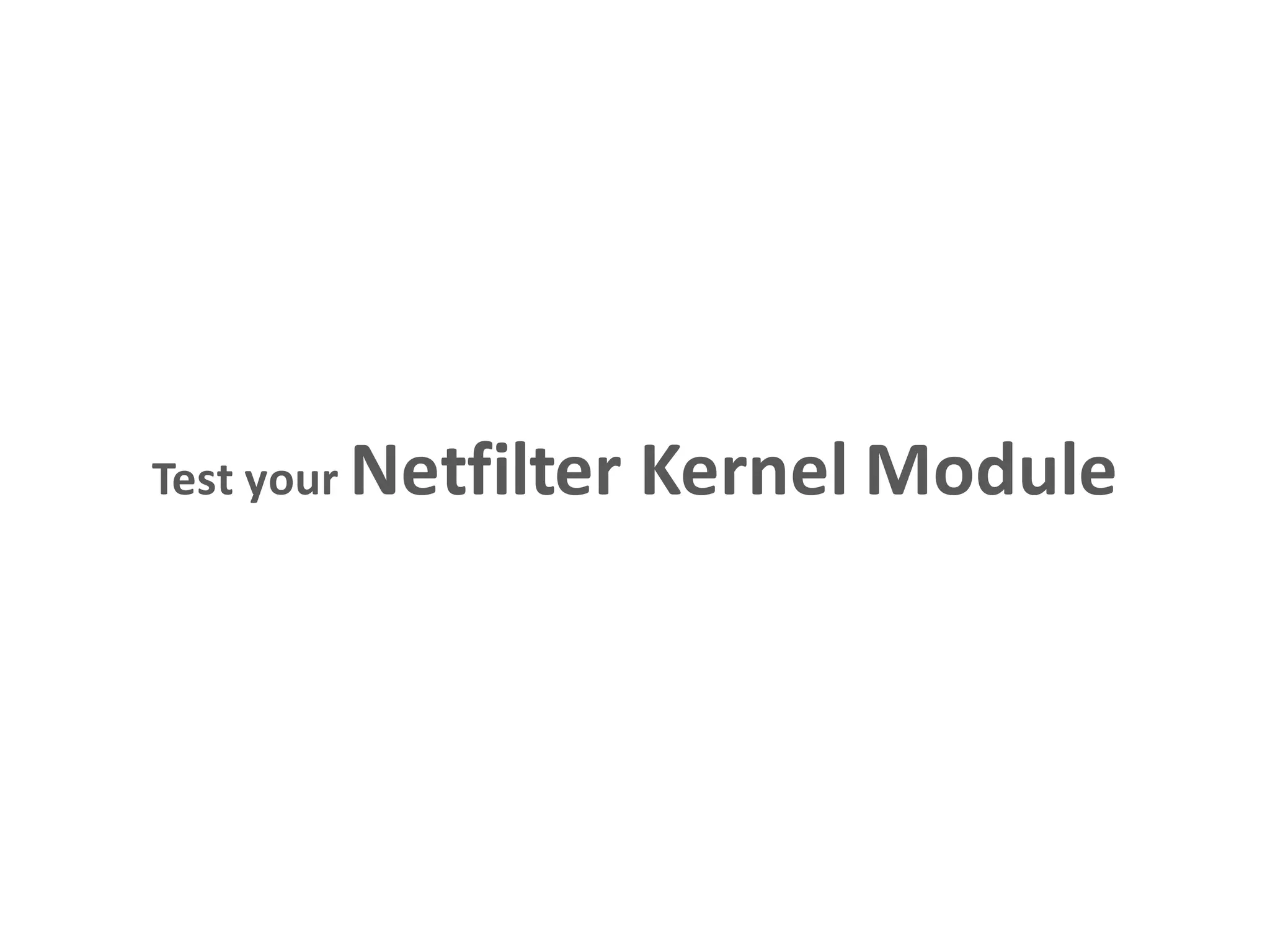

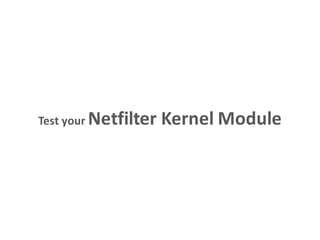

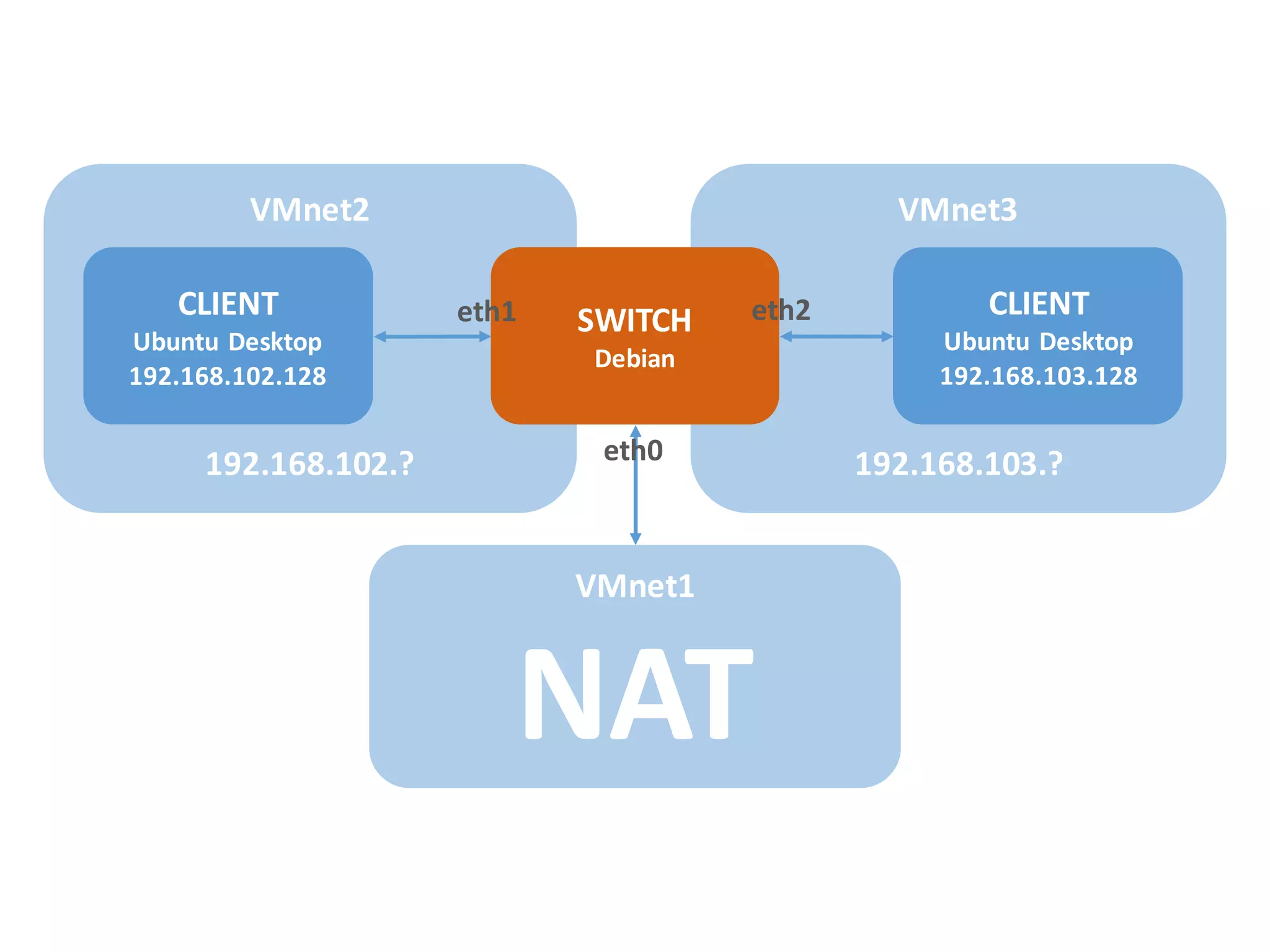

- 105. Test your NetfilterKernel Module

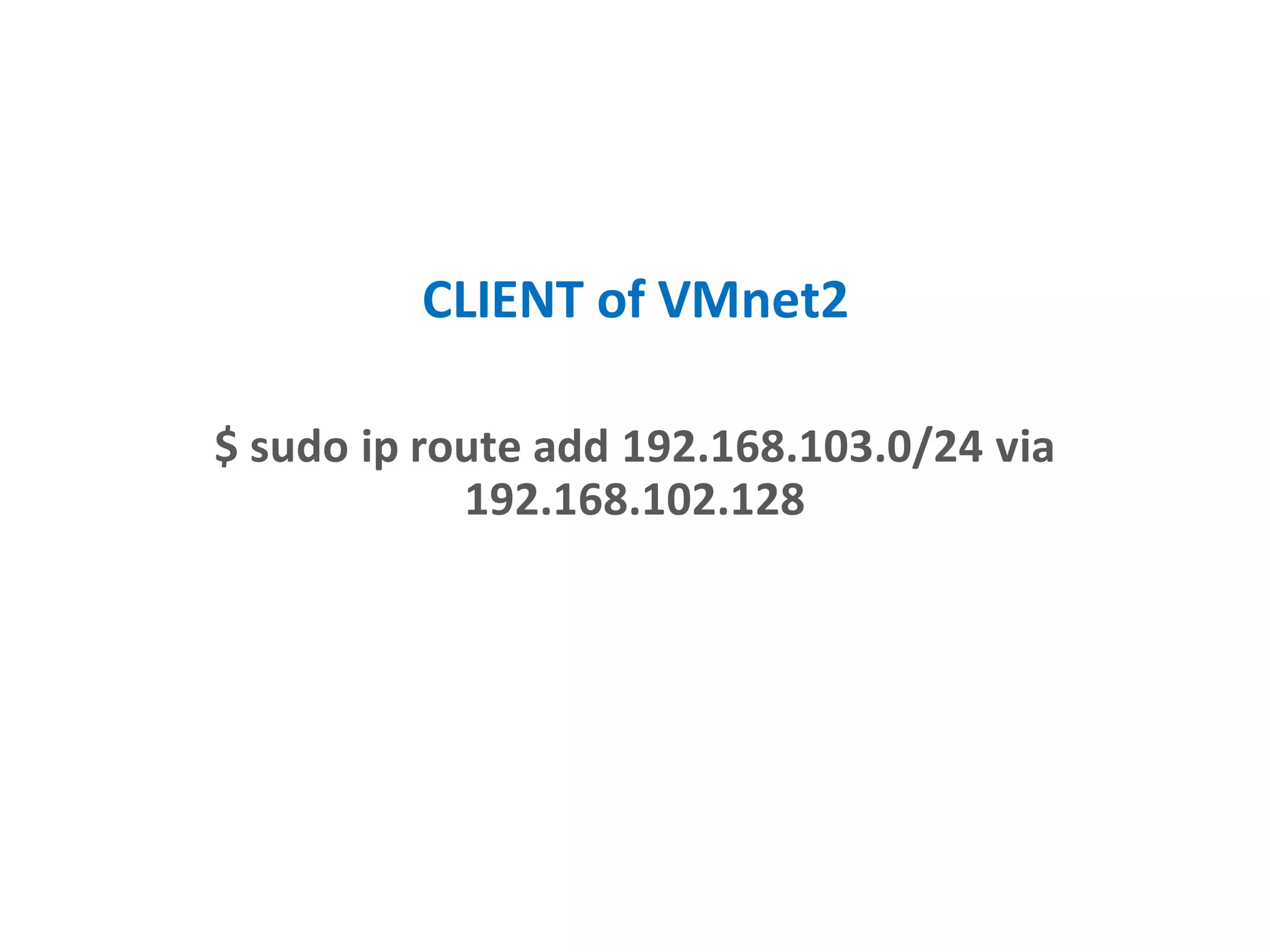

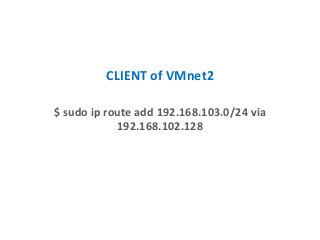

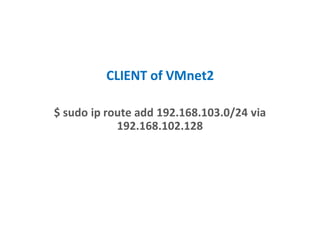

- 106. CLIENT of VMnet2 $sudo ip route add 192.168.103.0/24 via 192.168.102.128

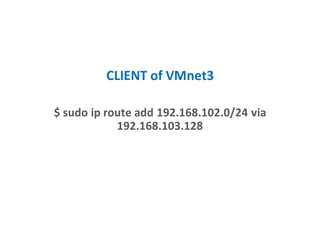

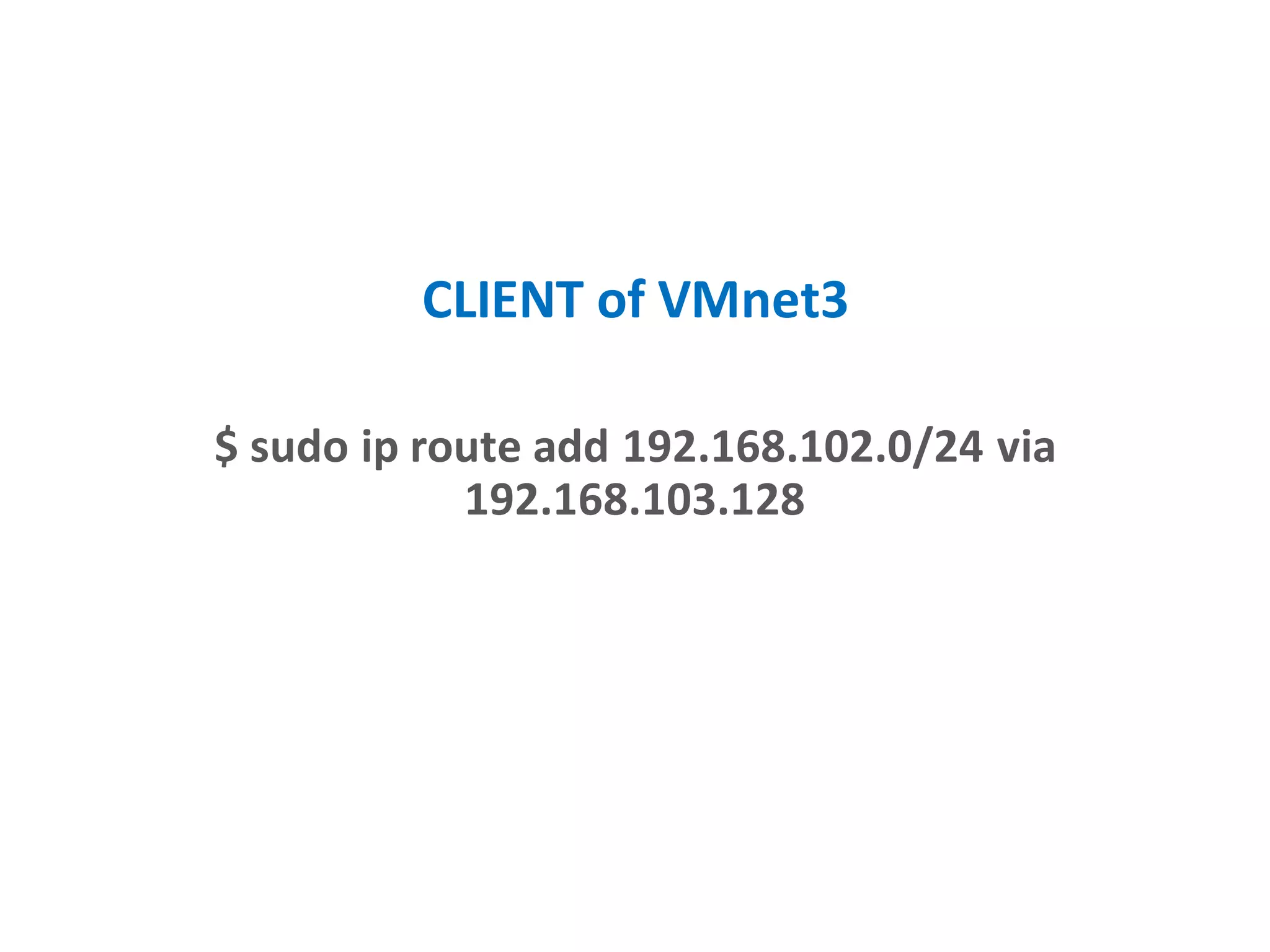

- 107. CLIENT of VMnet3 $sudo ip route add 192.168.102.0/24 via 192.168.103.128

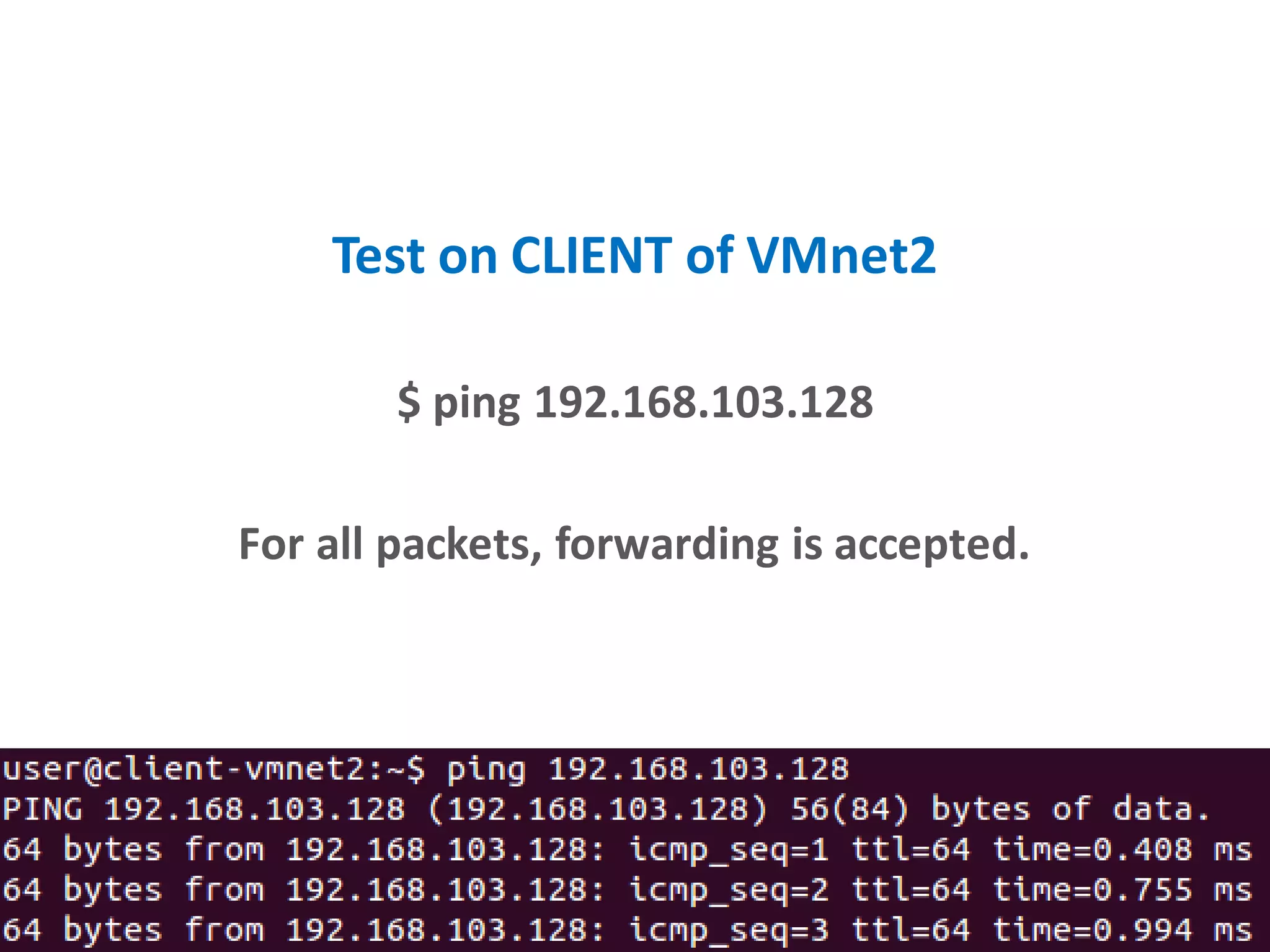

- 108. Test on CLIENTof VMnet2 $ ping 192.168.103.128 For all packets, forwarding is accepted.

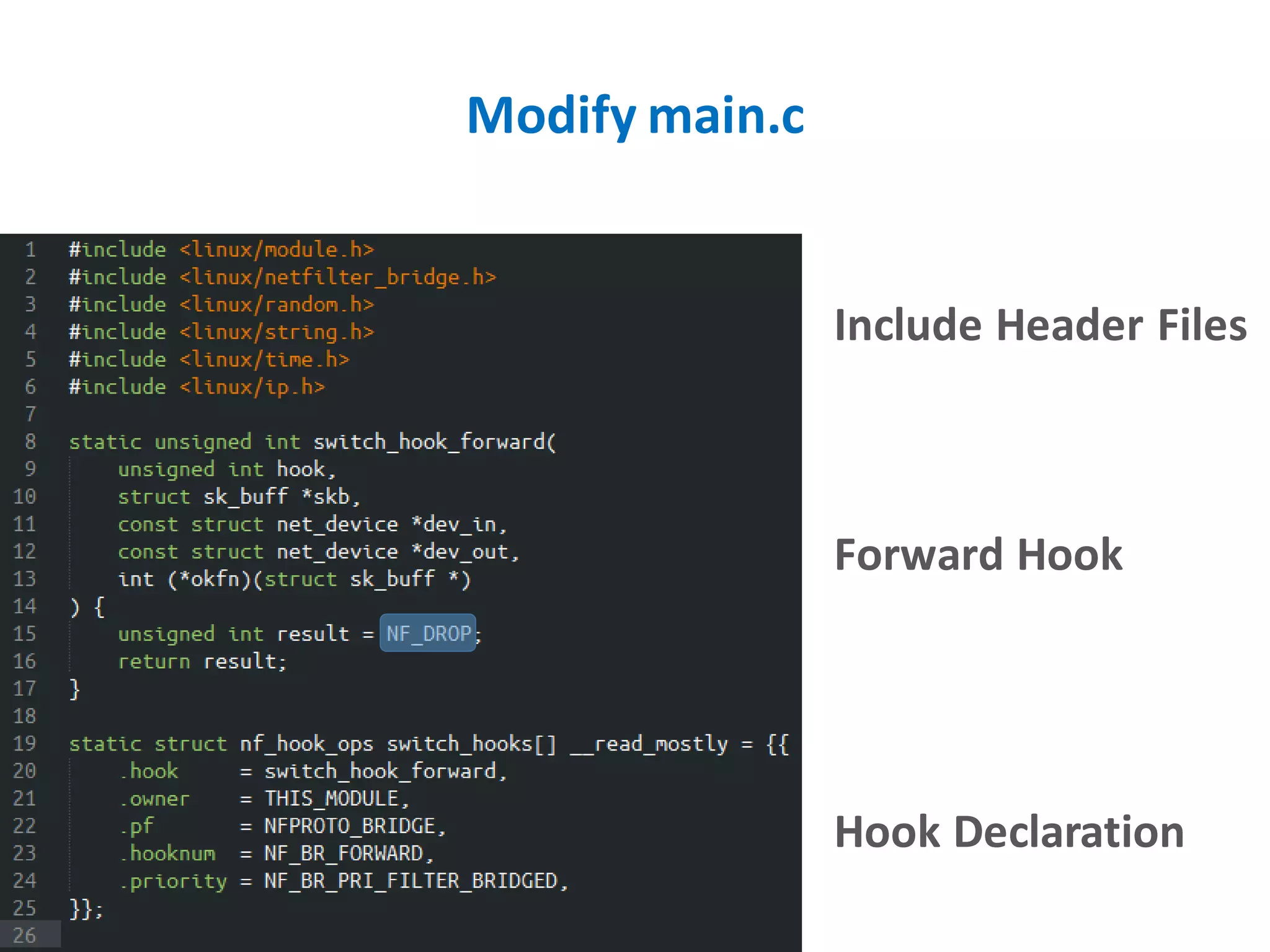

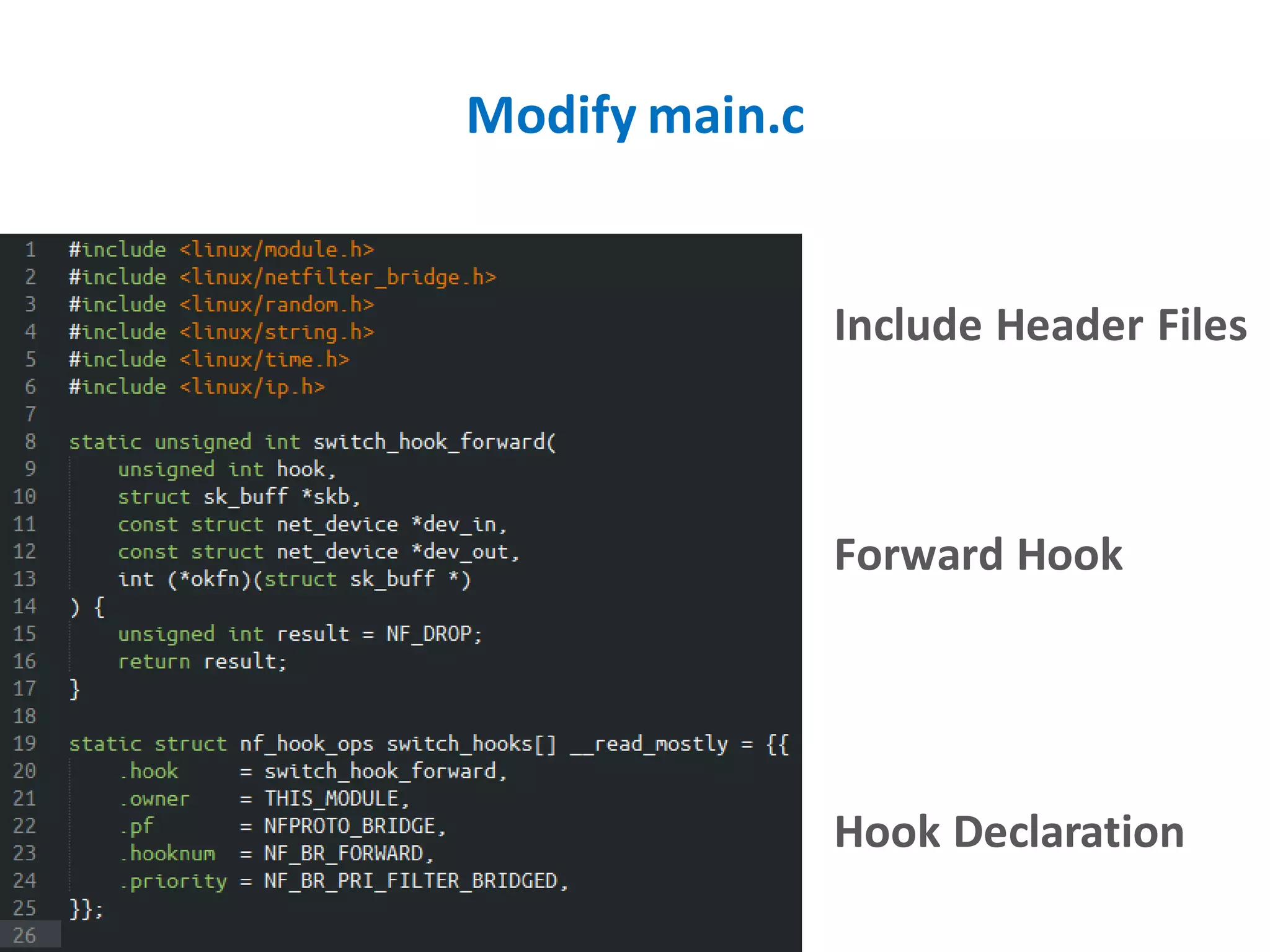

- 109. Modify main.c Include HeaderFiles Forward Hook Hook Declaration

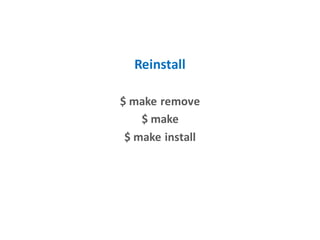

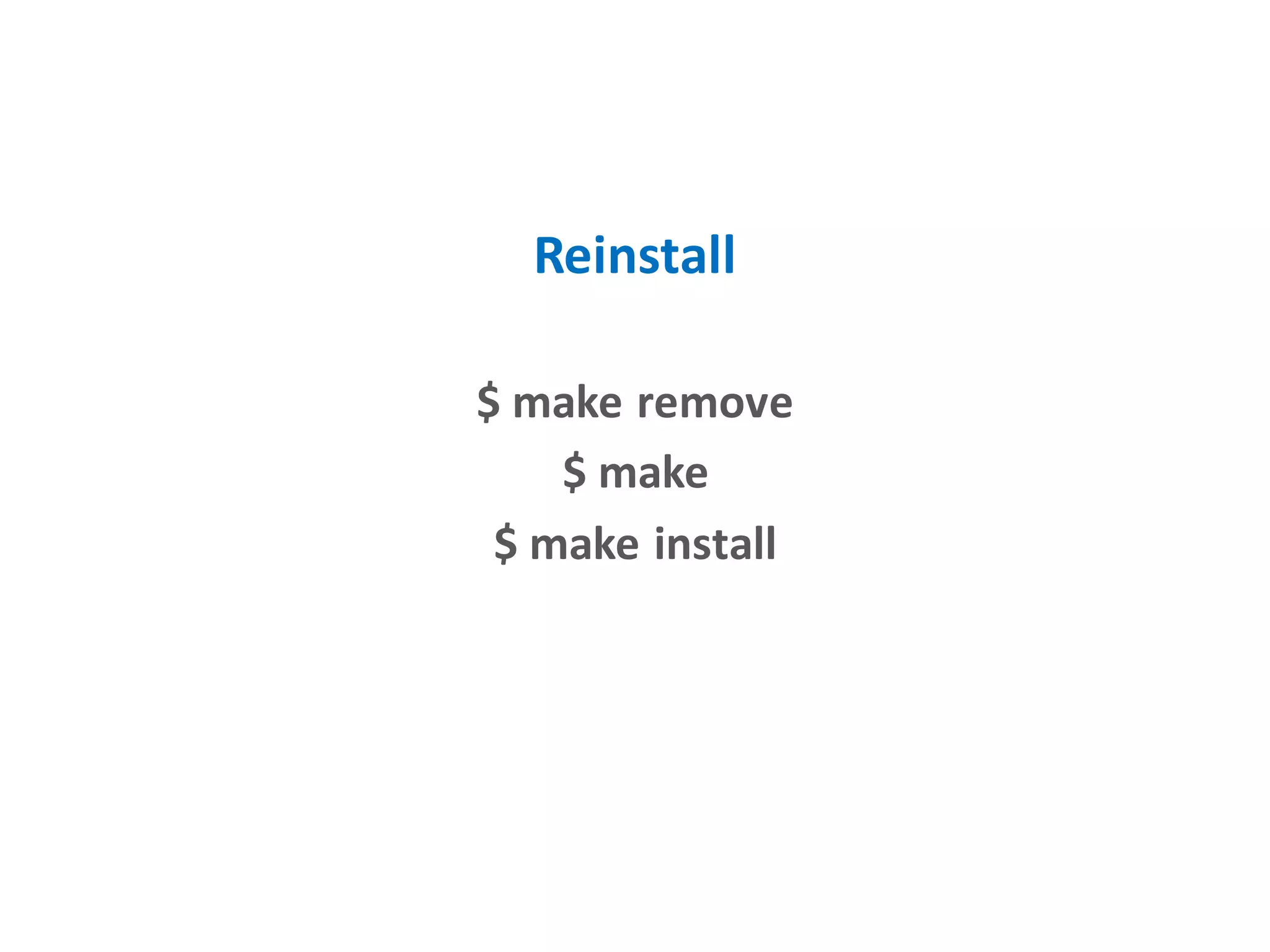

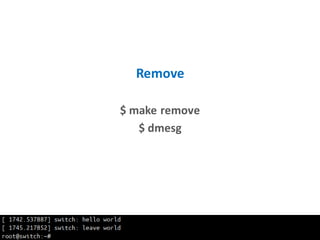

- 110. Reinstall $ make remove $make $ make install

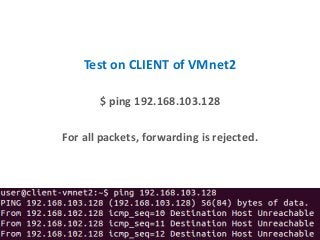

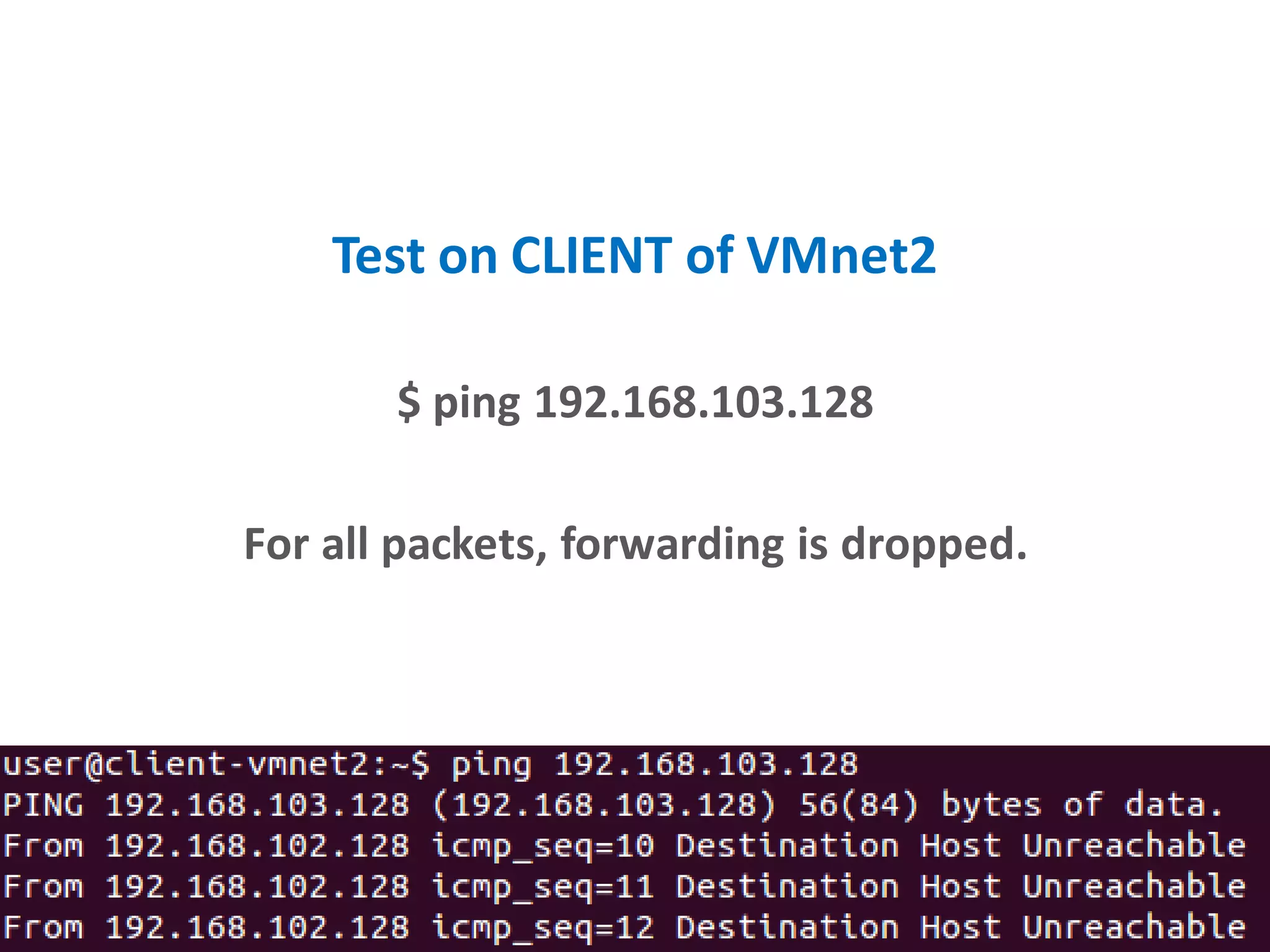

- 111. Test on CLIENTof VMnet2 $ ping 192.168.103.128 For all packets, forwarding is rejected.
