03 - Qt UI Development

Qt UI Development

Andreas Jakl
Senior Technical Consultant
Forum Nokia

23 October, 2010
v3.2.0

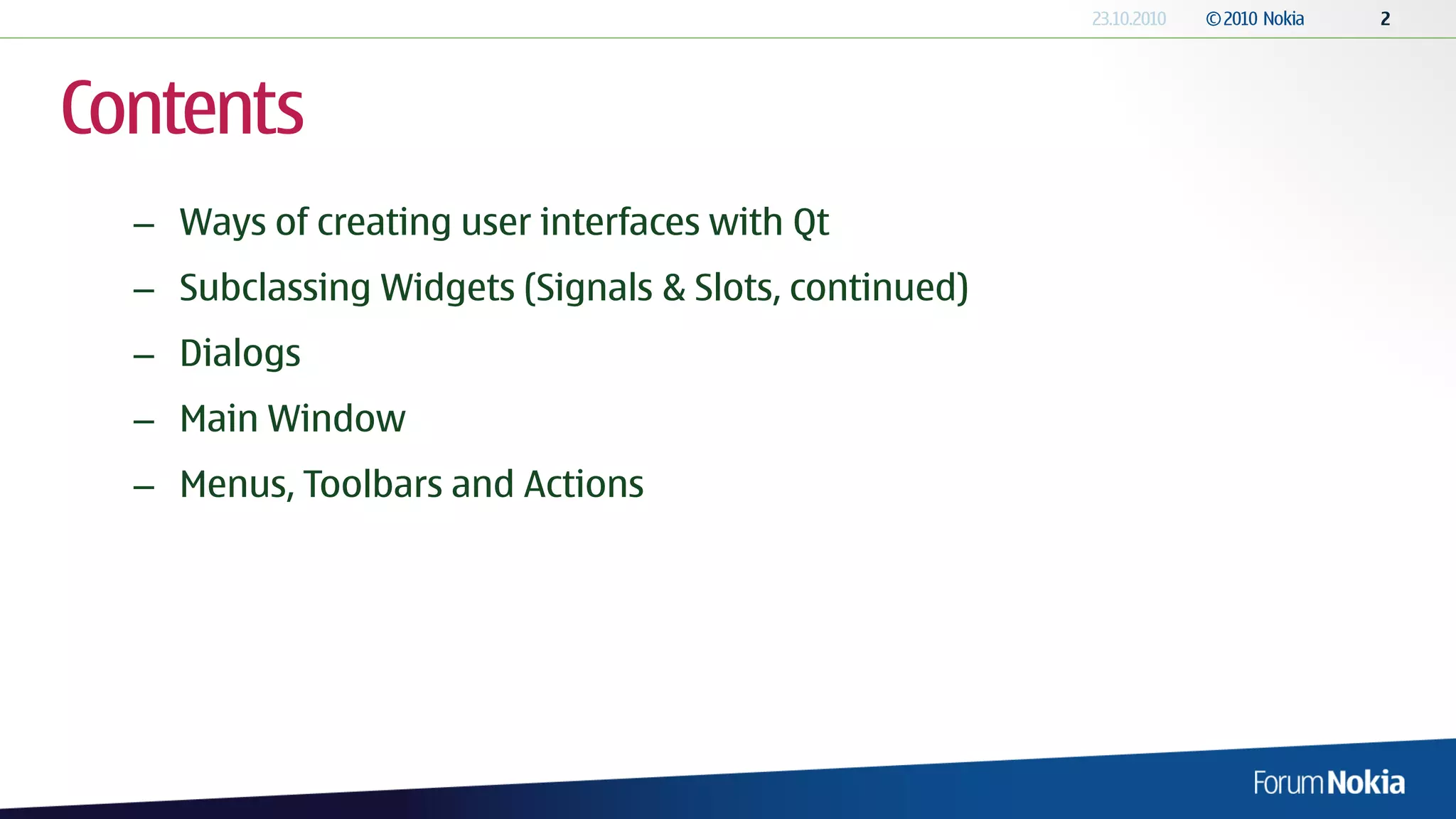

Contents
– Ways of creating user interfaces with Qt
– Subclassing Widgets (Signals & Slots, continued)
– Dialogs
– Main Window
– Menus, Toolbars and Actions

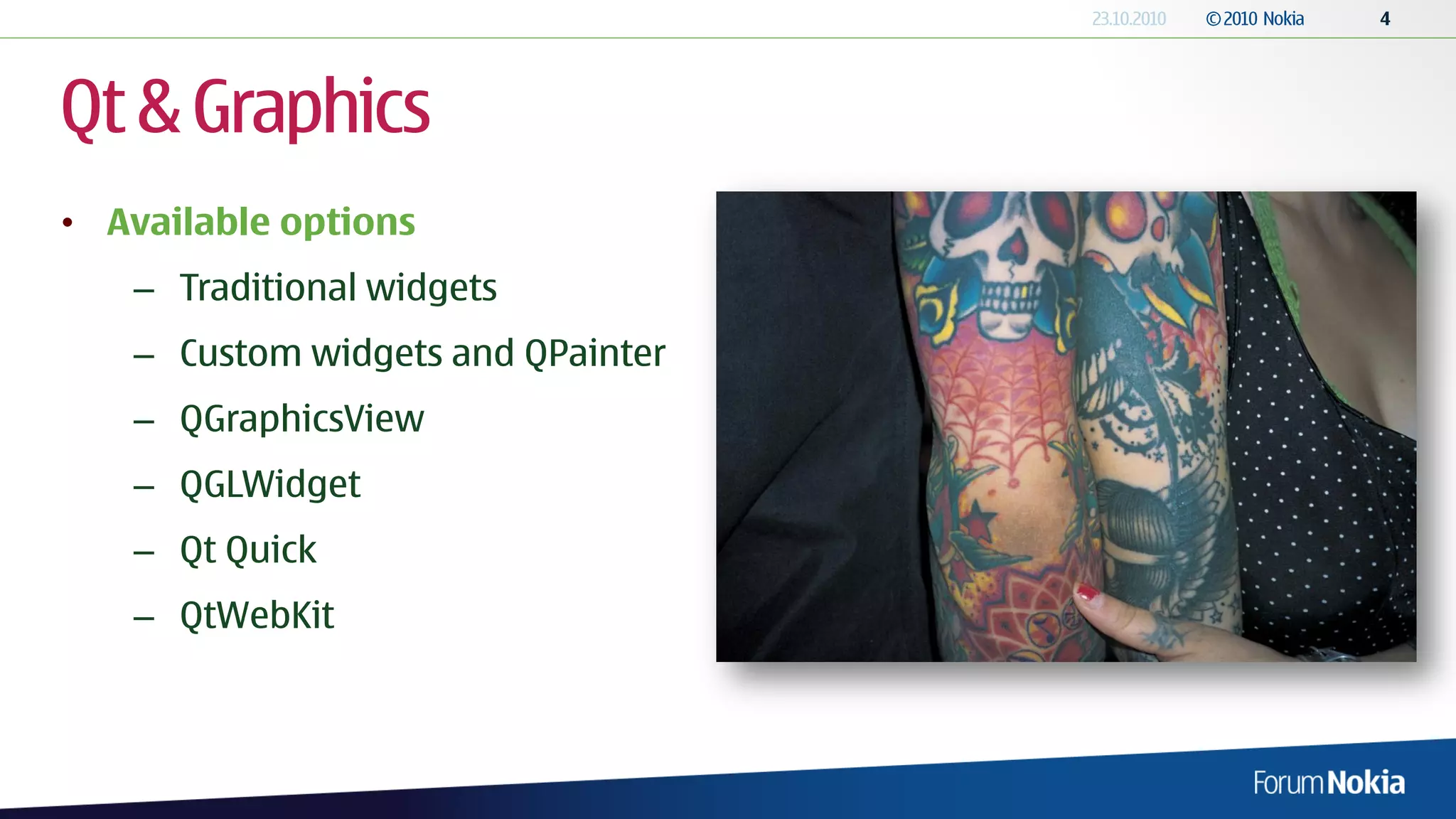

Qt & Graphics
• Available options
– Traditional widgets
– Custom widgets and QPainter
– QGraphicsView
– QGLWidget
– Qt Quick
– QtWebKit

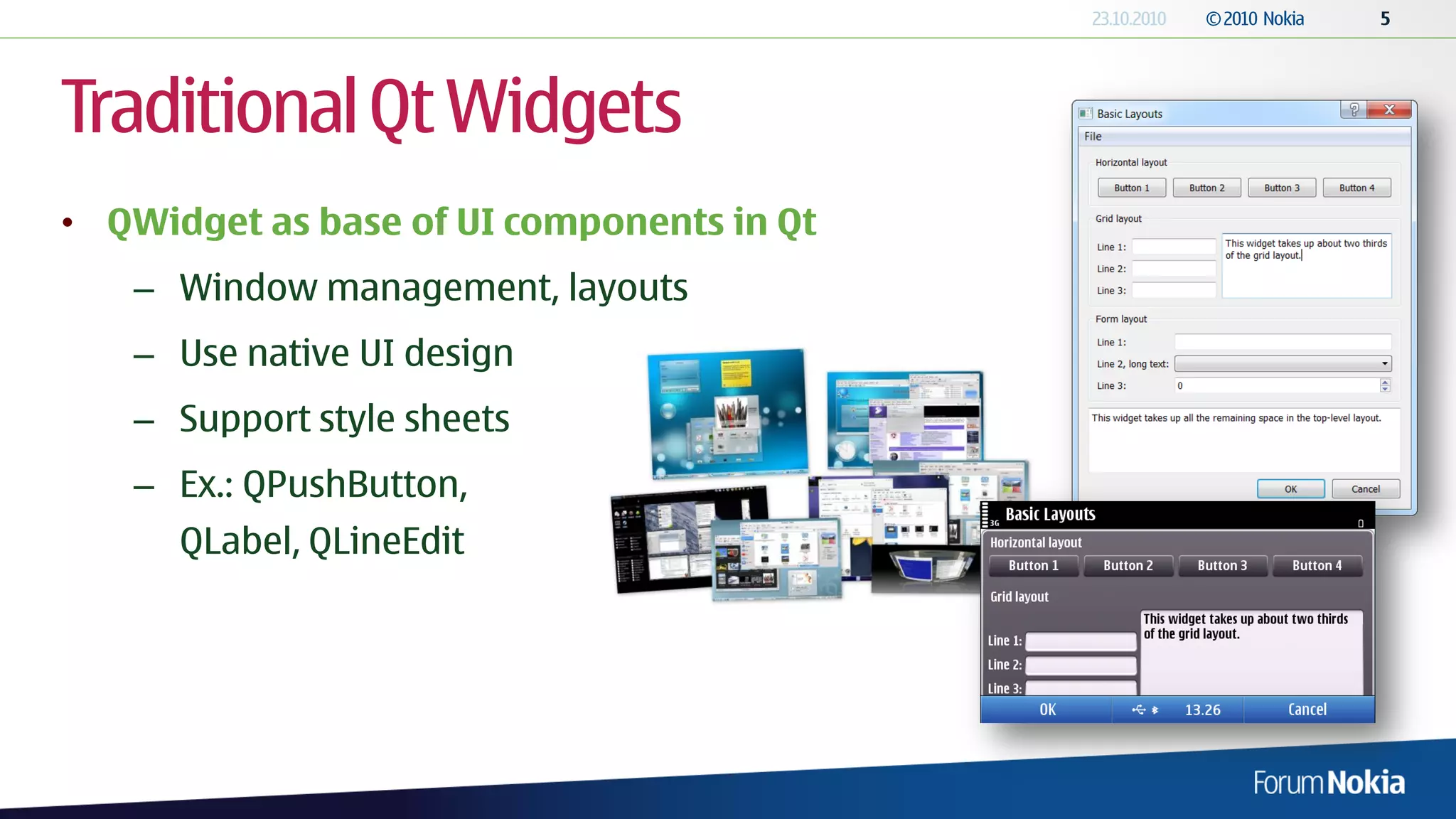

Traditional Qt Widgets
• QWidget as base of UI components in Qt
– Window management, layouts
– Use native UI design
– Support style sheets
– Ex.: QPushButton,
QLabel, QLineEdit

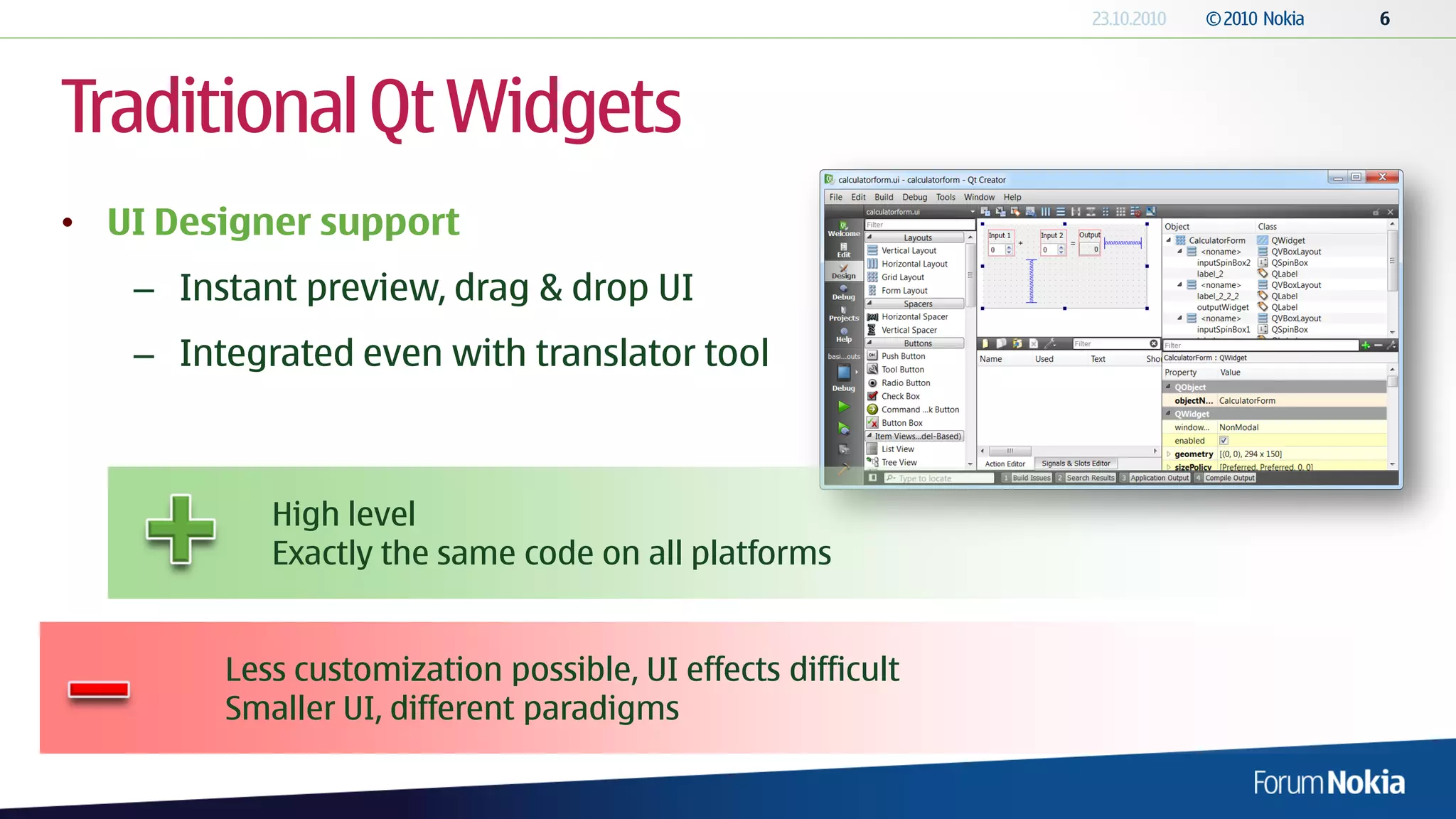

Traditional Qt Widgets
• UI Designer support
– Instant preview, drag & drop UI
– Integrated even with translator tool

High level
Exactly the same code on all platforms

Less customization possible, UI effects difficult
Smaller UI, different paradigms

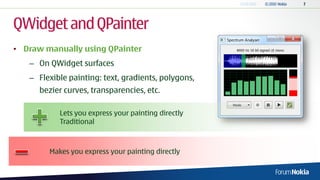

QWidget and QPainter
• Draw manually using QPainter
– On QWidget surfaces
– Flexible painting: text, gradients, polygons,
bezier curves, transparencies, etc.

Lets you express your painting directly
Traditional

Makes you express your painting directly

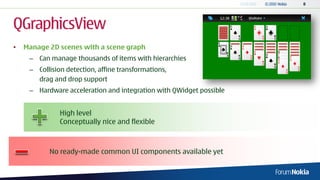

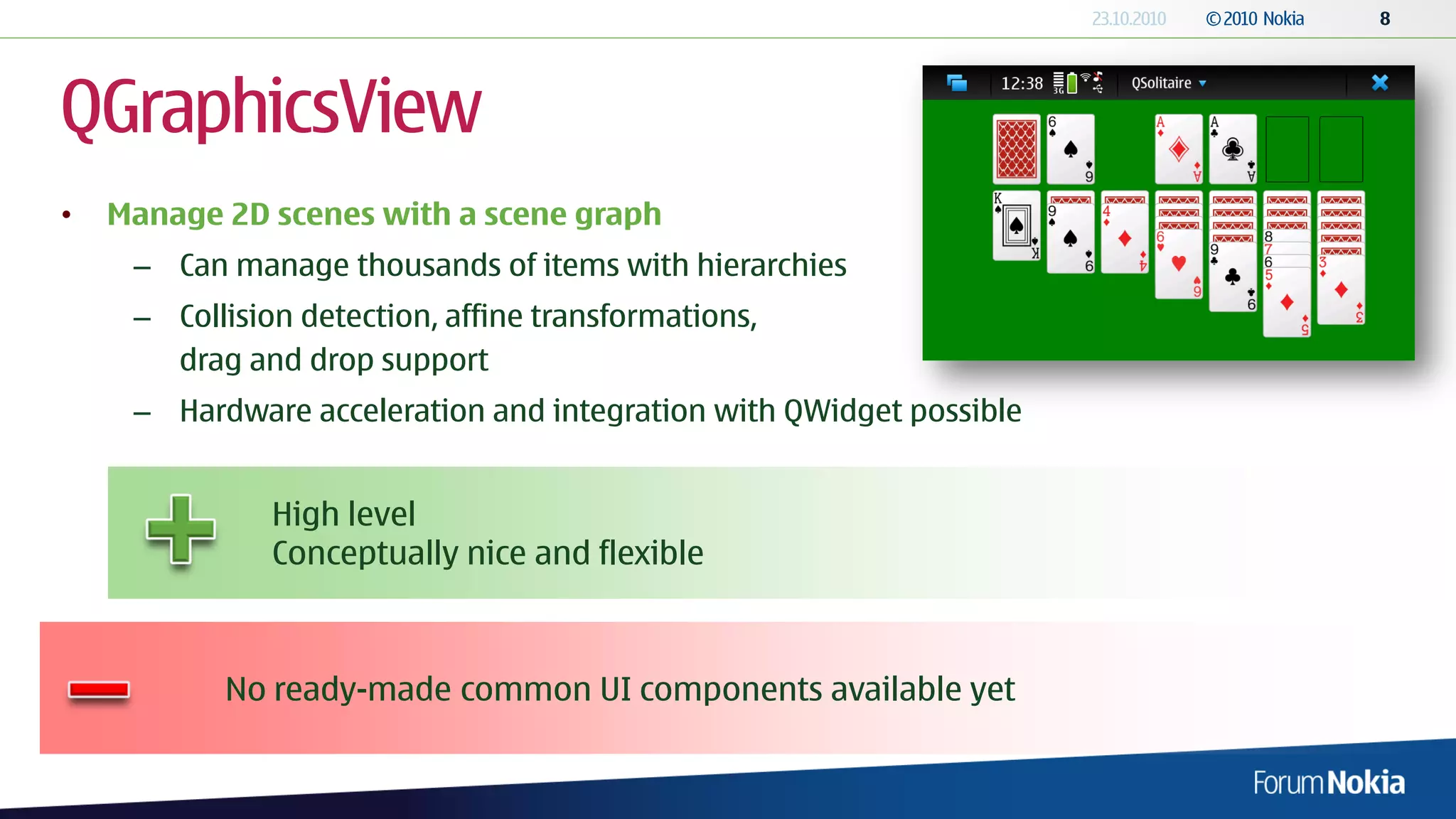

QGraphicsView
• Manage 2D scenes with a scene graph
– Can manage thousands of items with hierarchies
– Collision detection, affine transformations,
drag and drop support
– Hardware acceleration and integration with QWidget possible

High level
Conceptually nice and flexible

No ready-made common UI components available yet

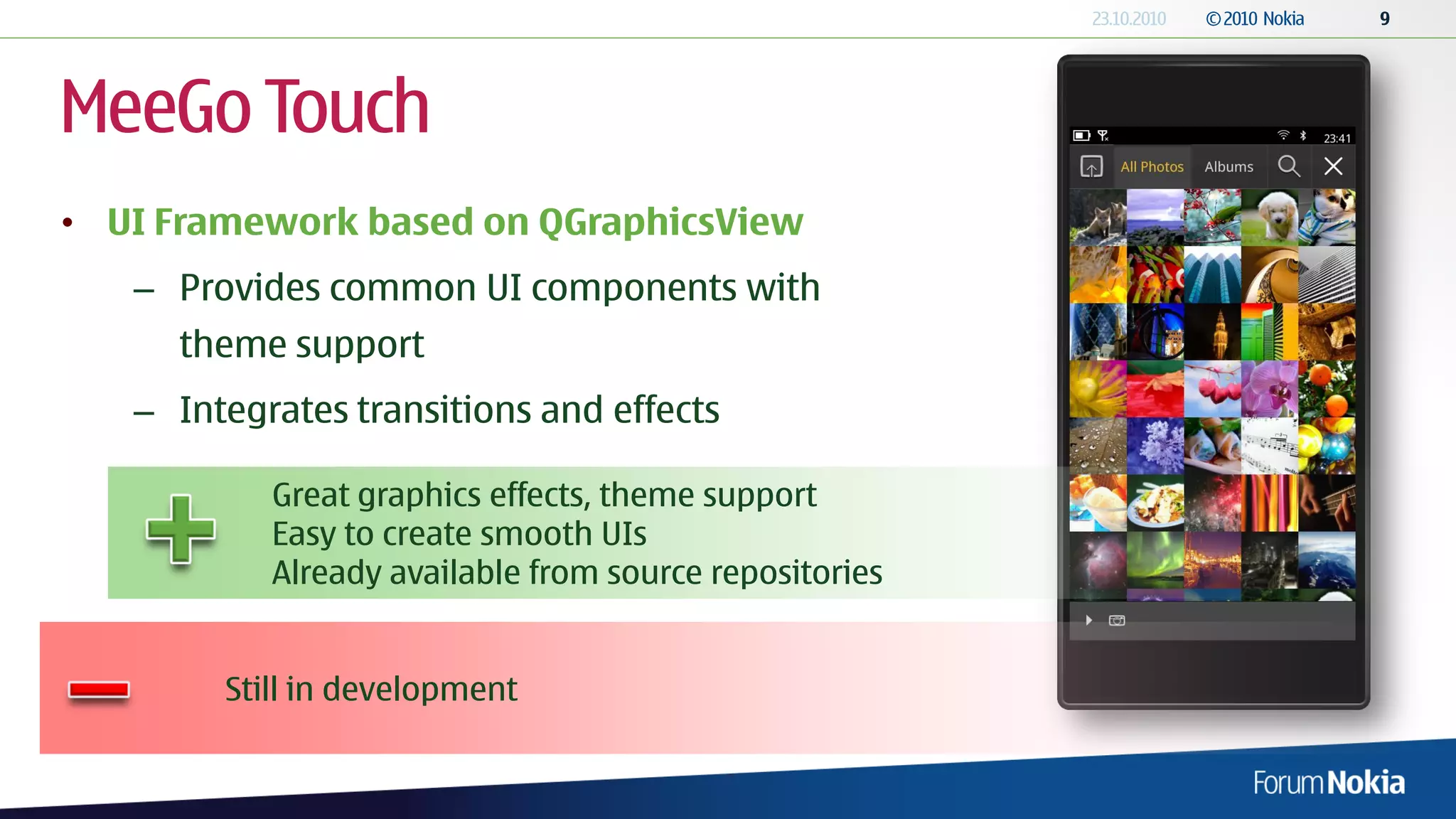

MeeGo Touch
• UI Framework based on QGraphicsView
– Provides common UI components with
theme support
– Integrates transitions and effects

Great graphics effects, theme support
Easy to create smooth UIs
Already available from source repositories

Still in development

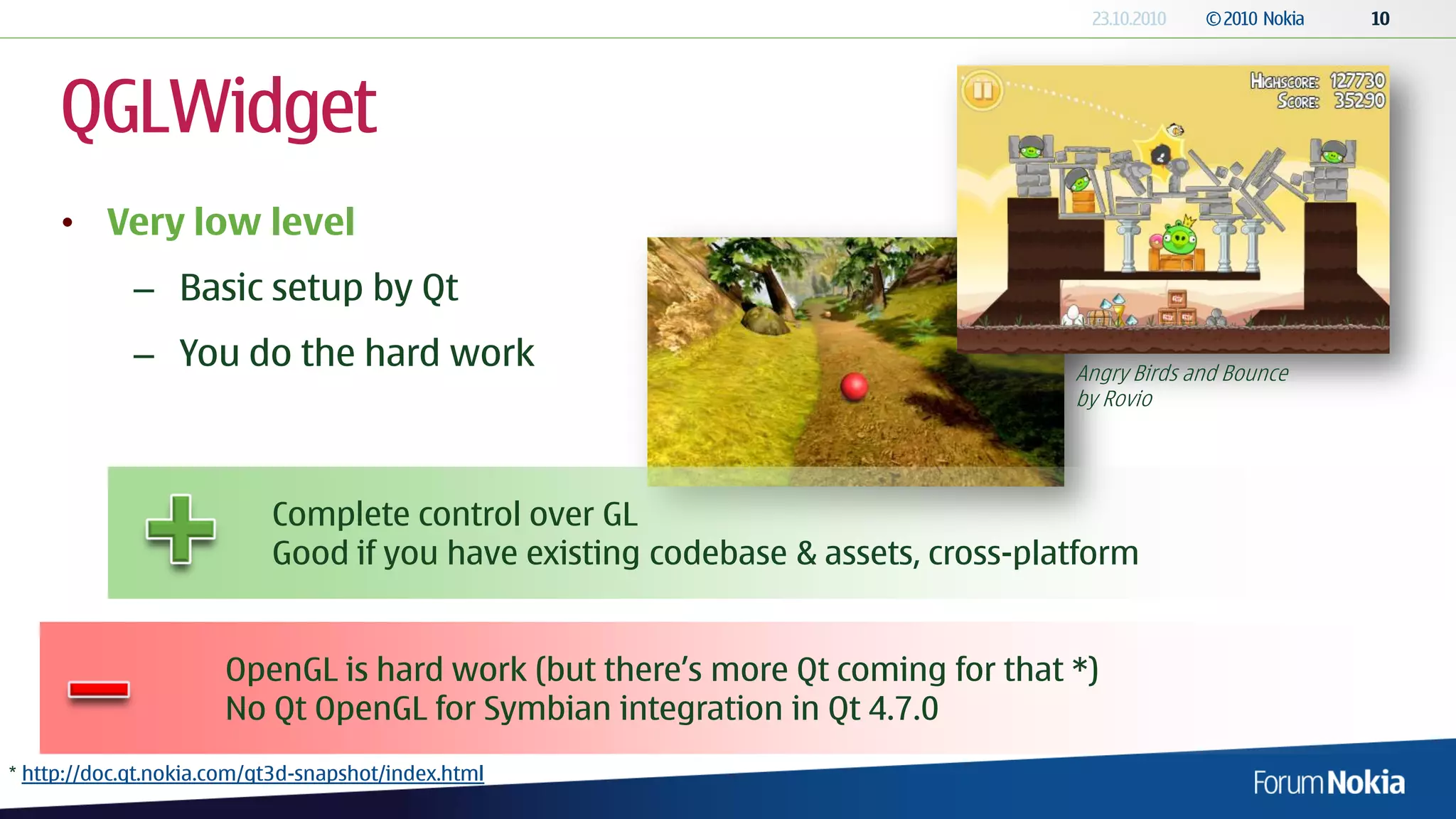

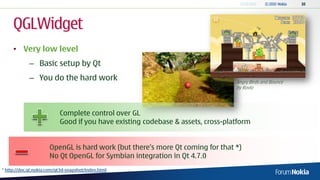

QGLWidget
• Very low level
– Basic setup by Qt
– You do the hard work Angry Birds and Bounce
by Rovio

Complete control over GL
Good if you have existing codebase & assets, cross-platform

OpenGL is hard work (but there’s more Qt coming for that *)
No Qt OpenGL for Symbian integration in Qt 4.7.0
* http://doc.qt.nokia.com/qt3d-snapshot/index.html

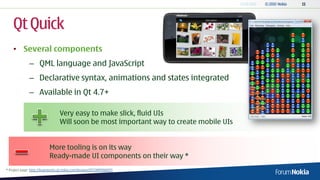

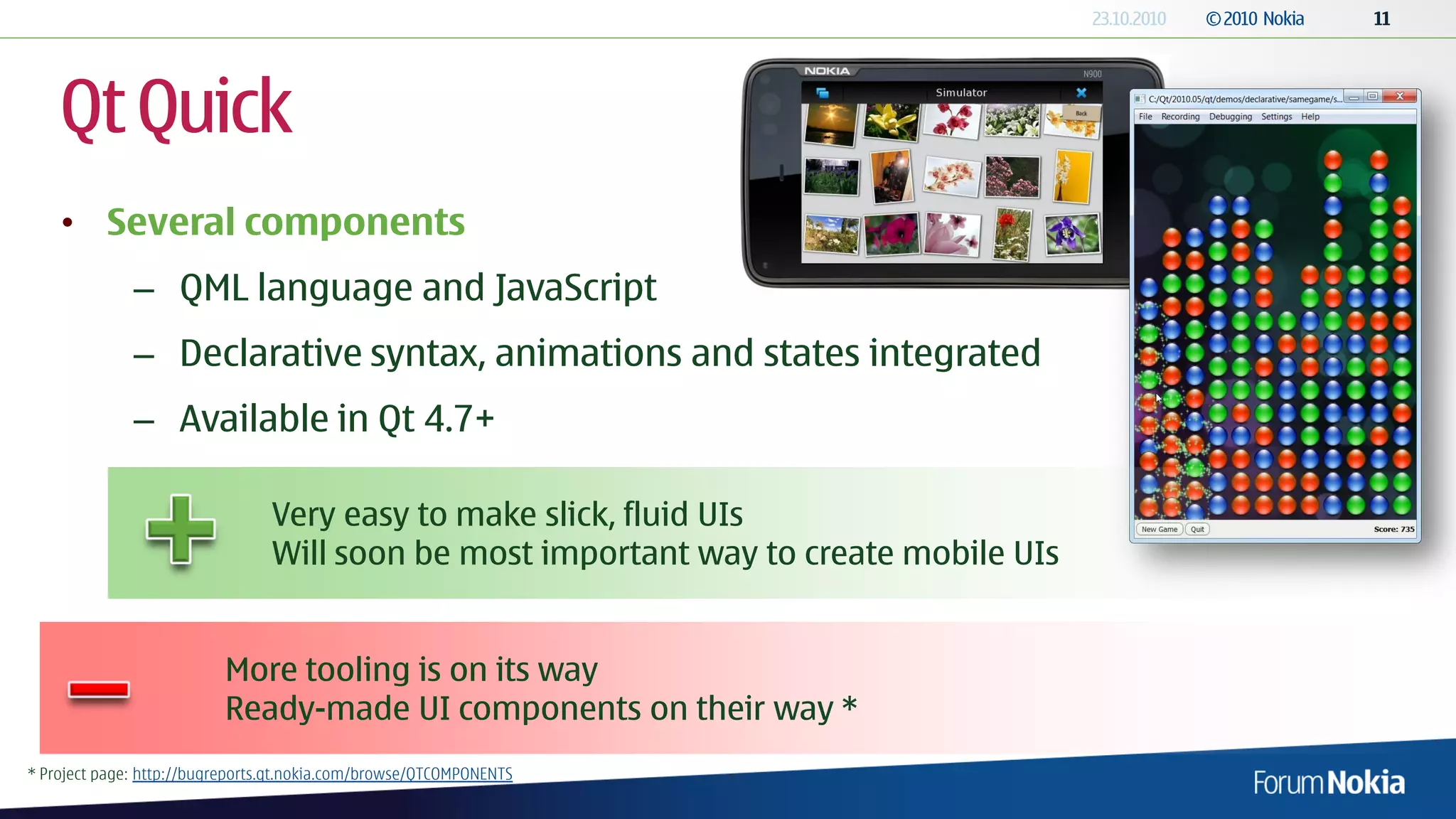

Qt Quick
• Several components
– QML language and JavaScript
– Declarative syntax, animations and states integrated
– Available in Qt 4.7+

Very easy to make slick, fluid UIs
Will soon be most important way to create mobile UIs

More tooling is on its way
Ready-made UI components on their way *
* Project page: http://bugreports.qt.nokia.com/browse/QTCOMPONENTS

Sample app to integrate web into Qt: http://wiki.forum.nokia.com/index.php/QtWebKitStub

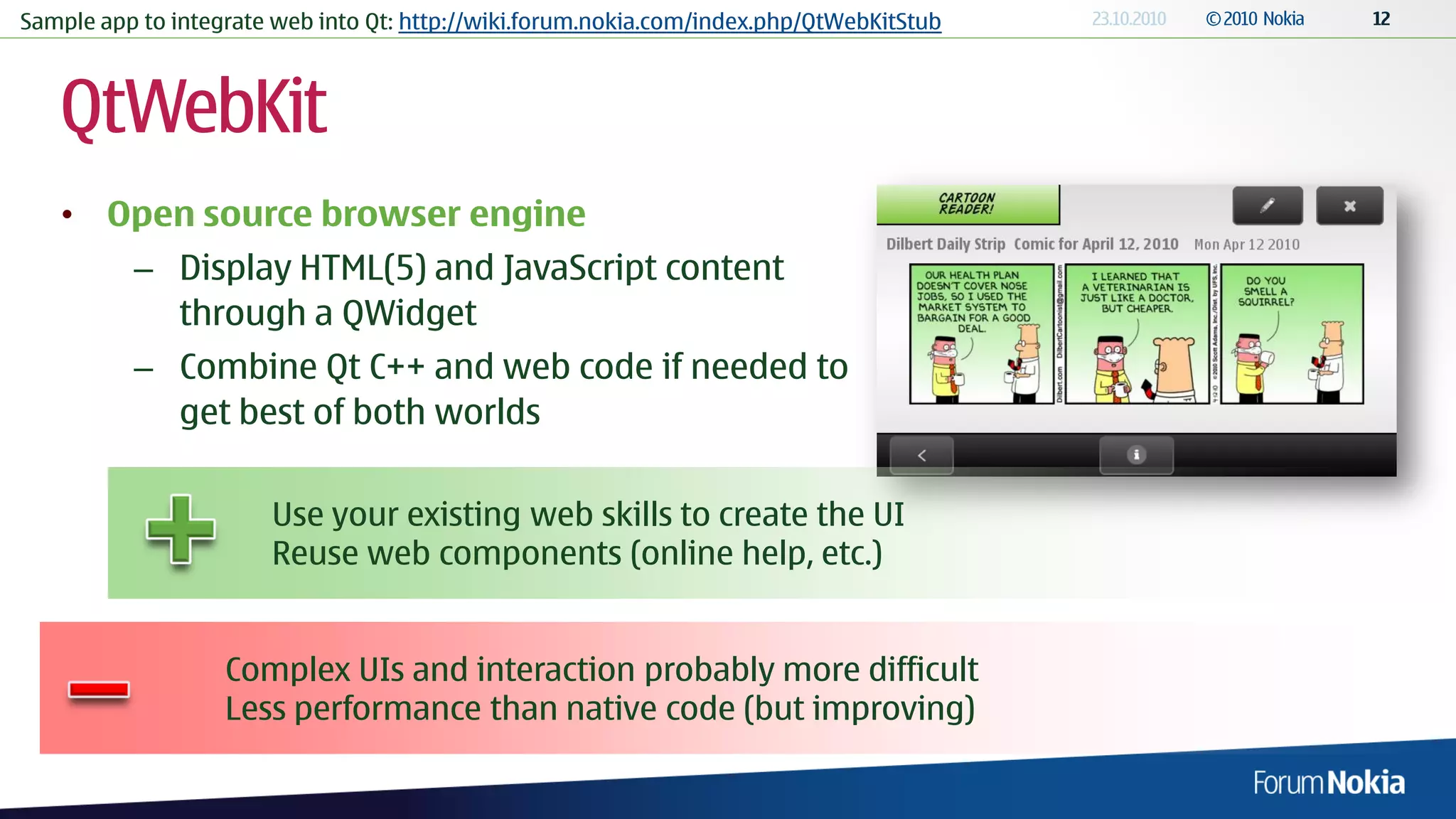

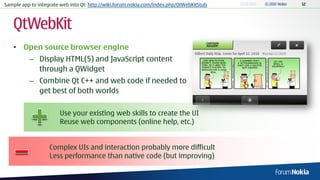

QtWebKit
• Open source browser engine
– Display HTML(5) and JavaScript content
through a QWidget
– Combine Qt C++ and web code if needed to
get best of both worlds

Use your existing web skills to create the UI
Reuse web components (online help, etc.)

Complex UIs and interaction probably more difficult
Less performance than native code (but improving)

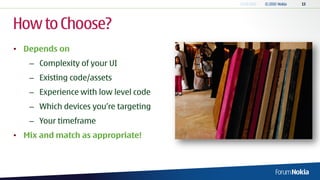

How to Choose?
• Depends on
– Complexity of your UI
– Existing code/assets
– Experience with low level code
– Which devices you’re targeting
– Your timeframe
• Mix and match as appropriate!

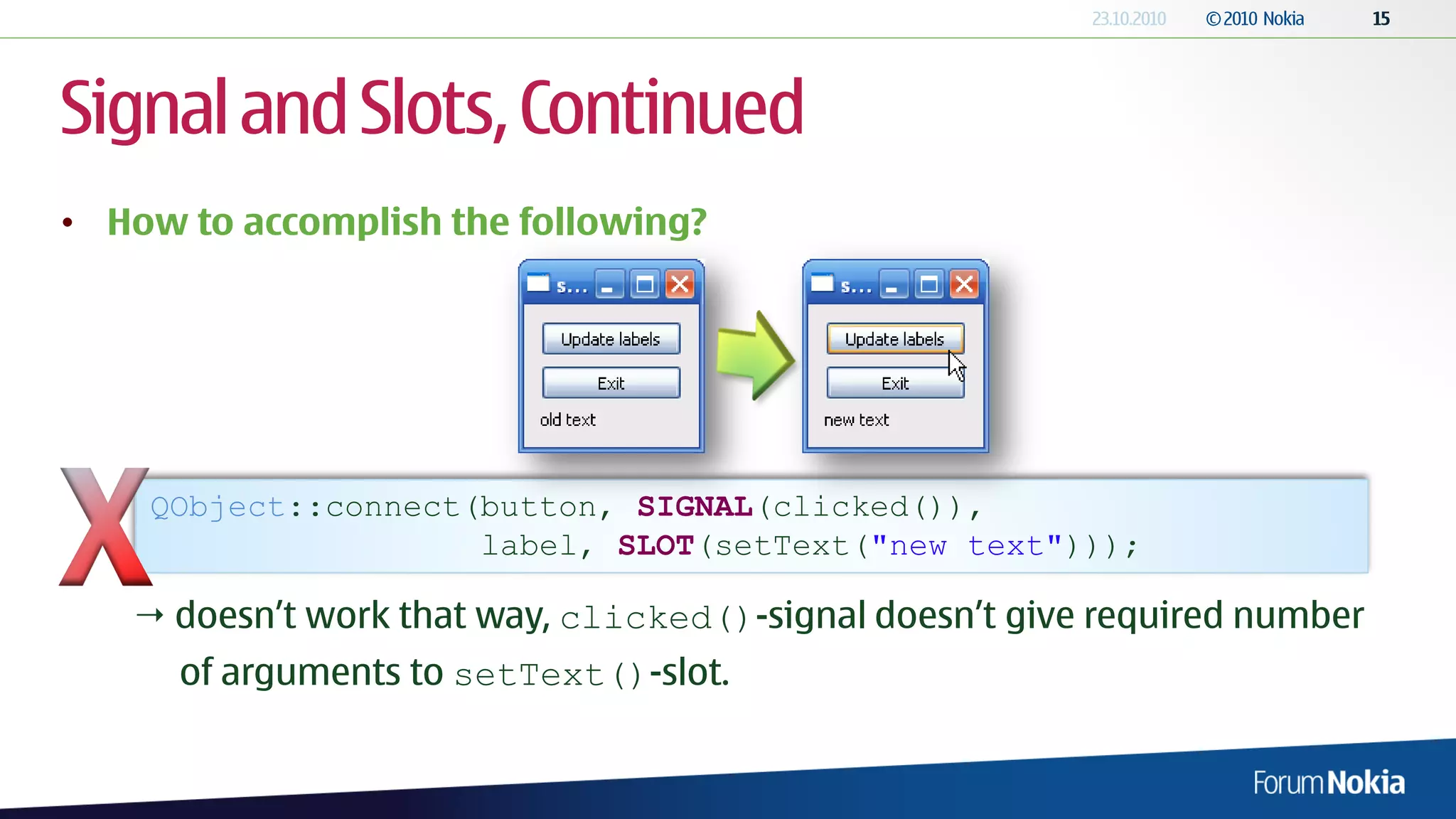

Signal and Slots, Continued
• How to accomplish the following?

QObject::connect(button, SIGNAL(clicked()),
label, SLOT(setText("new text")));

 doesn’t work that way, clicked()-signal doesn’t give required number
of arguments to setText()-slot.

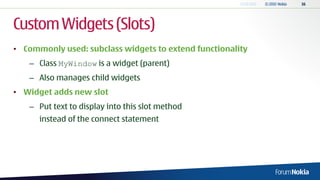

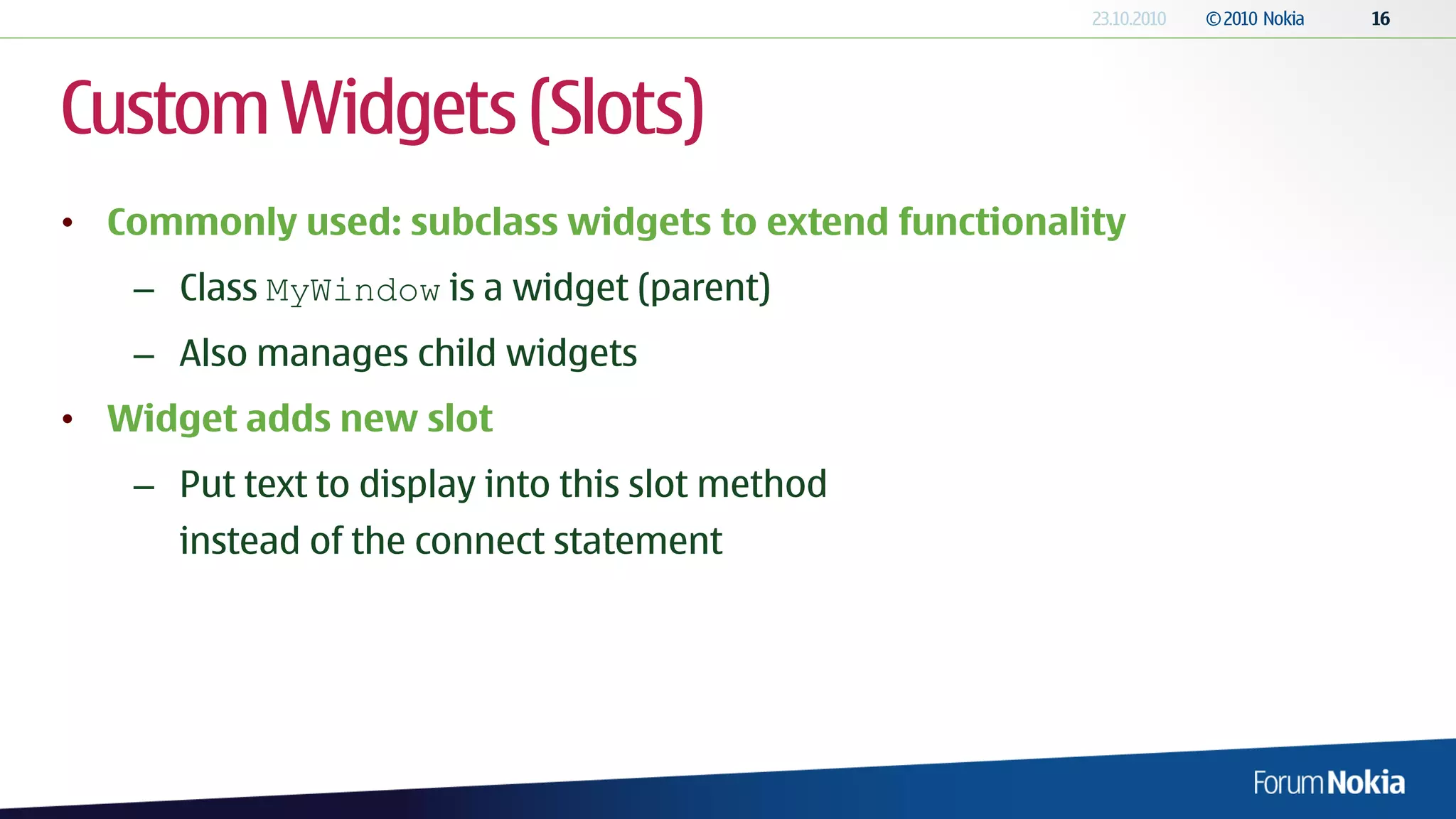

Custom Widgets (Slots)
• Commonly used: subclass widgets to extend functionality
– Class MyWindow is a widget (parent)
– Also manages child widgets
• Widget adds new slot
– Put text to display into this slot method
instead of the connect statement

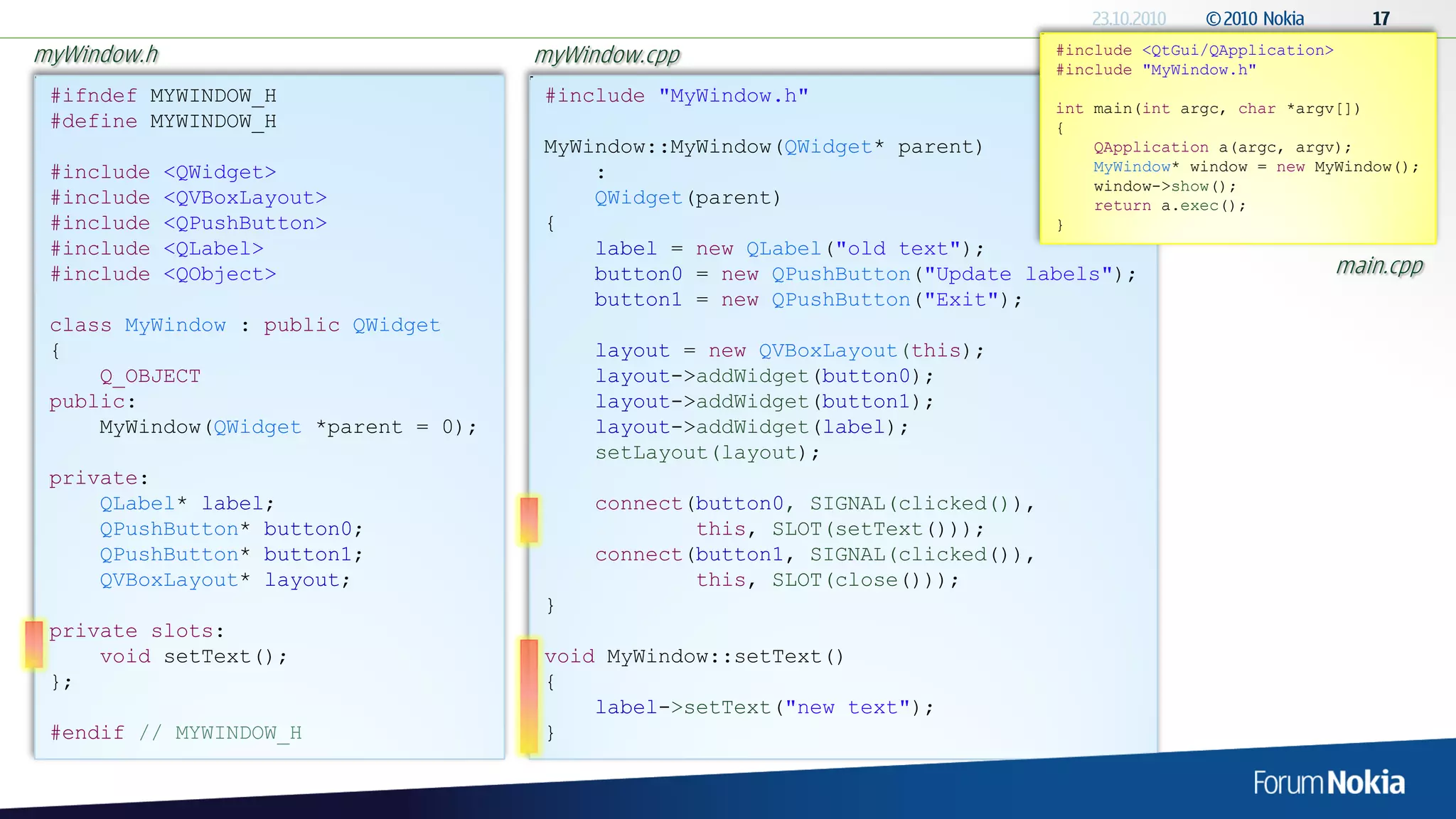

myWindow.h myWindow.cpp #include <QtGui/QApplication>
#include "MyWindow.h"
#ifndef MYWINDOW_H #include "MyWindow.h"
int main(int argc, char *argv[])
#define MYWINDOW_H {
MyWindow::MyWindow(QWidget* parent) QApplication a(argc, argv);
#include <QWidget> : MyWindow* window = new MyWindow();
window->show();
#include <QVBoxLayout> QWidget(parent) return a.exec();
#include <QPushButton> { }
#include <QLabel> label = new QLabel("old text");
#include <QObject> button0 = new QPushButton("Update labels"); main.cpp
button1 = new QPushButton("Exit");
class MyWindow : public QWidget
{ layout = new QVBoxLayout(this);
Q_OBJECT layout->addWidget(button0);
public: layout->addWidget(button1);
MyWindow(QWidget *parent = 0); layout->addWidget(label);
setLayout(layout);
private:
QLabel* label; connect(button0, SIGNAL(clicked()),
QPushButton* button0; this, SLOT(setText()));
QPushButton* button1; connect(button1, SIGNAL(clicked()),
QVBoxLayout* layout; this, SLOT(close()));
}
private slots:
void setText(); void MyWindow::setText()
}; {
label->setText("new text");
#endif // MYWINDOW_H }

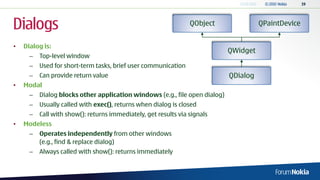

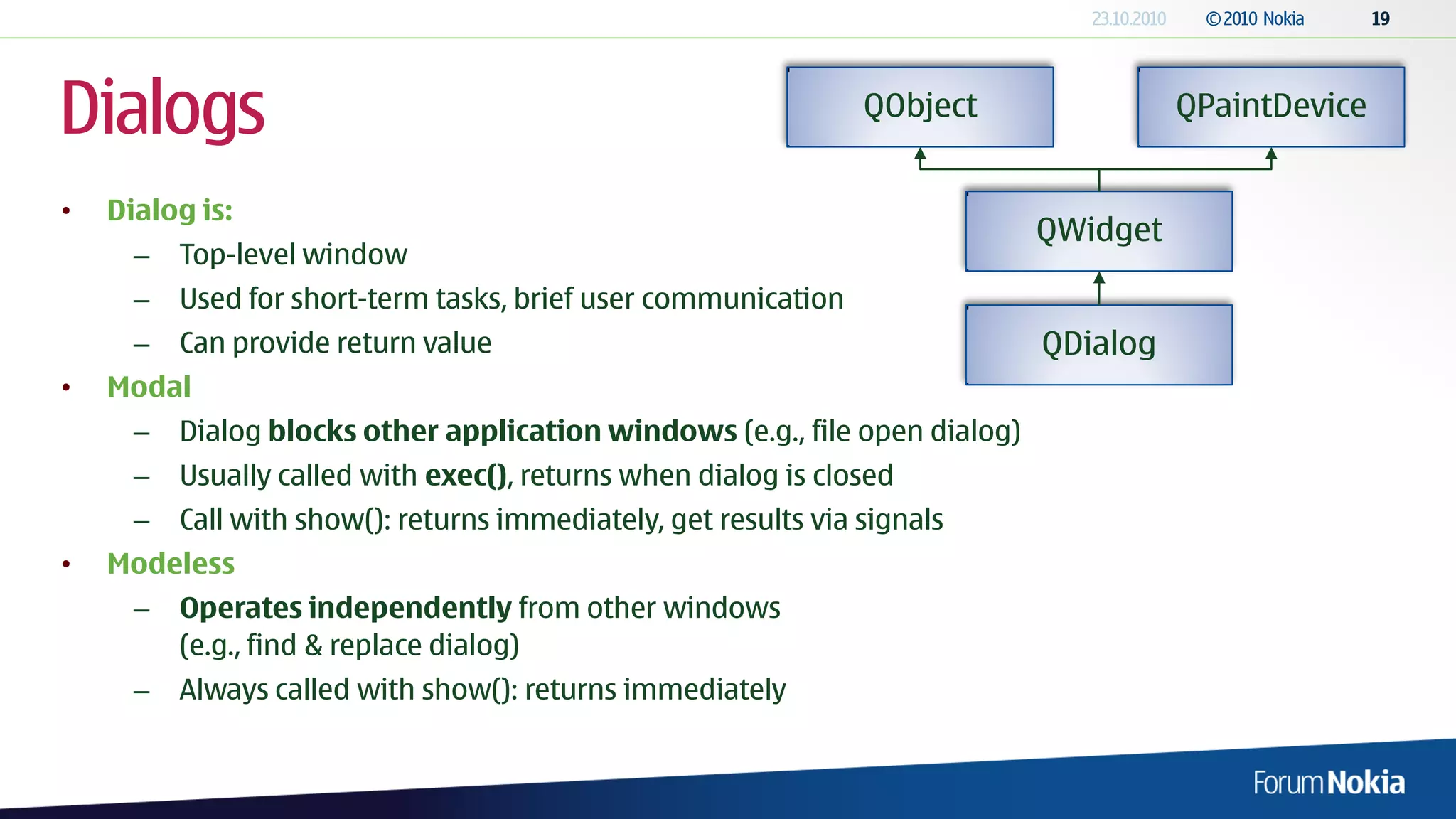

Dialogs QObject QPaintDevice

• Dialog is:
QWidget
– Top-level window
– Used for short-term tasks, brief user communication
– Can provide return value QDialog
• Modal
– Dialog blocks other application windows (e.g., file open dialog)
– Usually called with exec(), returns when dialog is closed
– Call with show(): returns immediately, get results via signals
• Modeless
– Operates independently from other windows
(e.g., find & replace dialog)
– Always called with show(): returns immediately

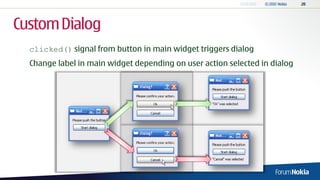

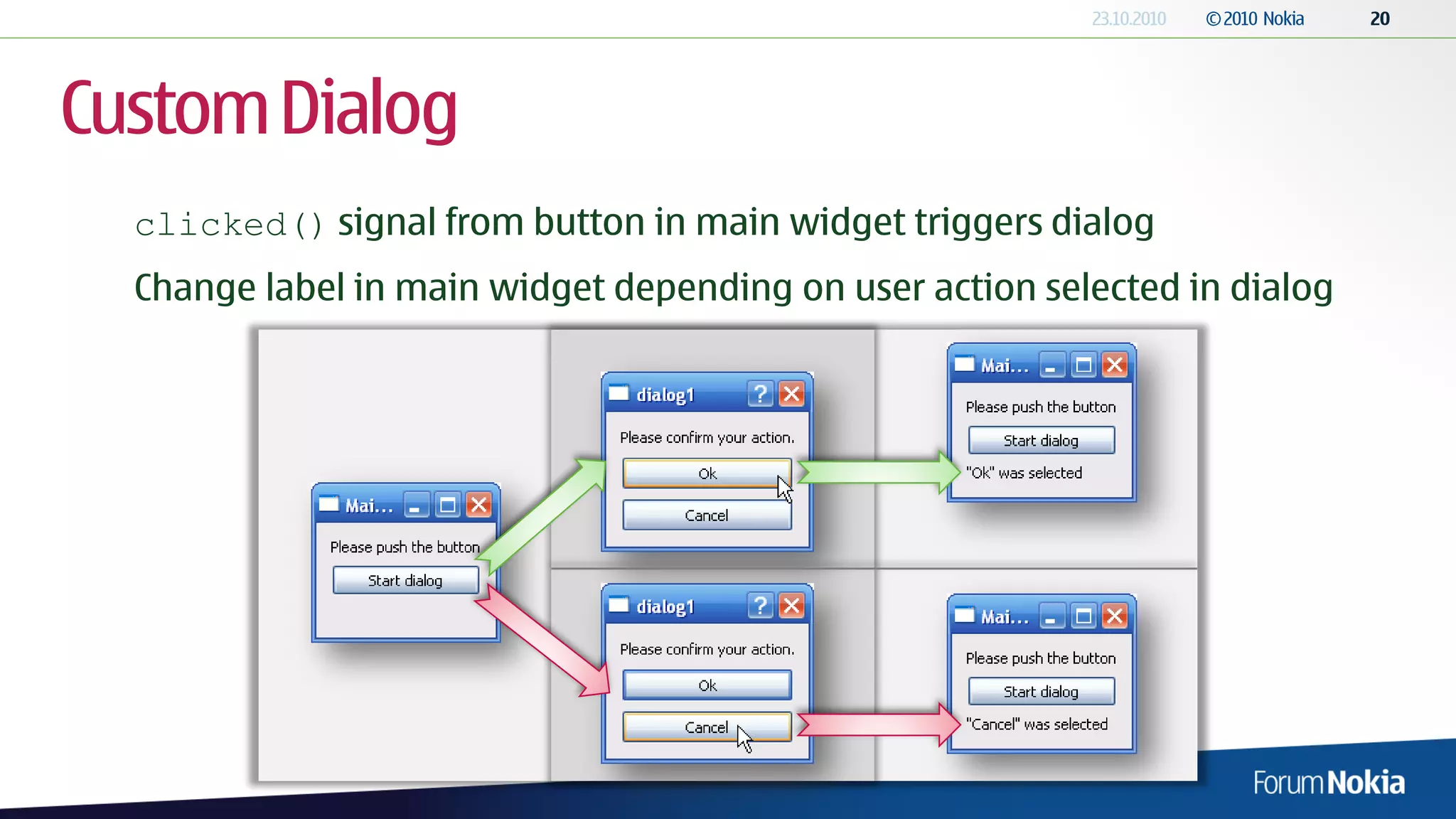

Custom Dialog
clicked() signal from button in main widget triggers dialog
Change label in main widget depending on user action selected in dialog

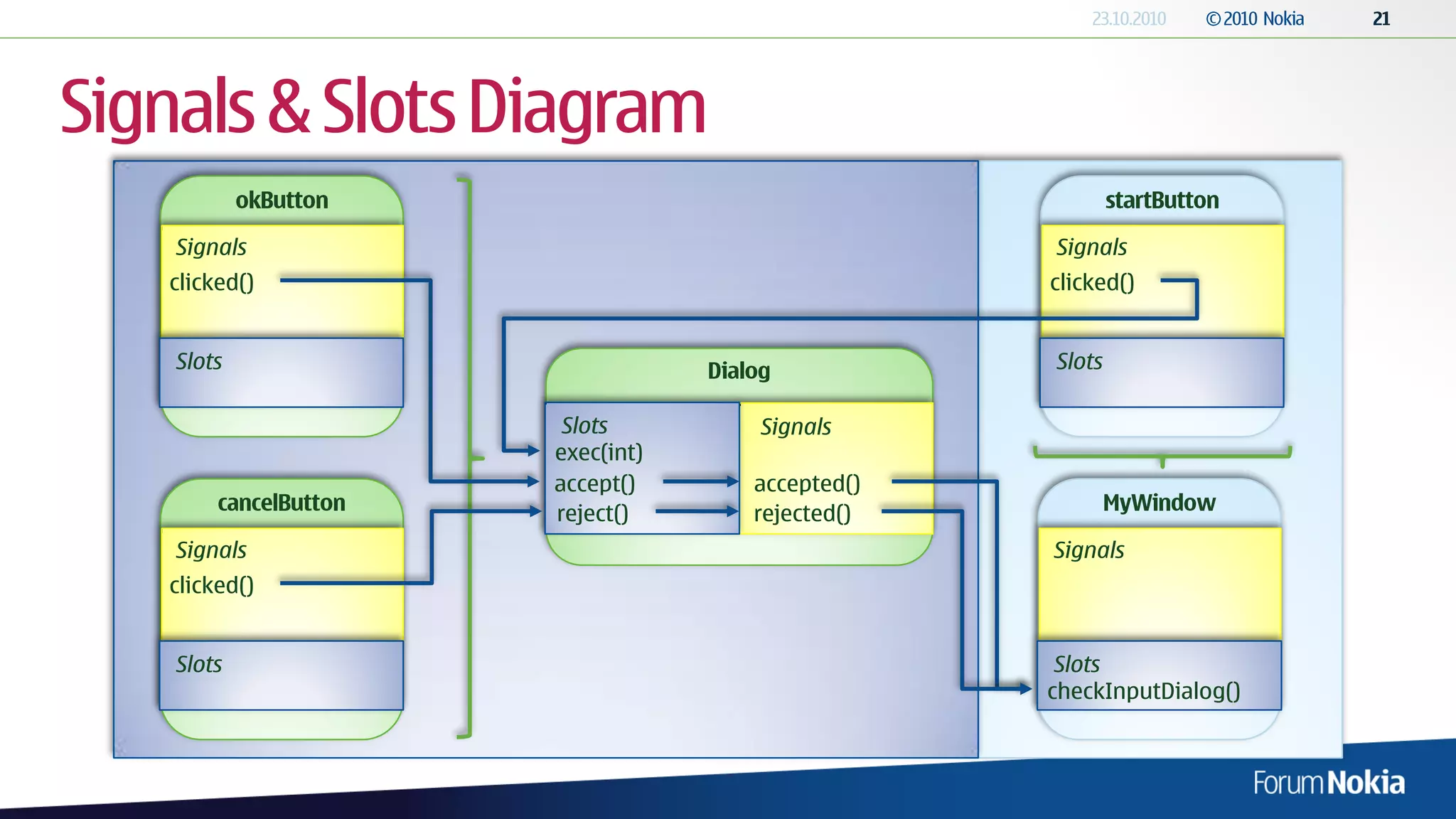

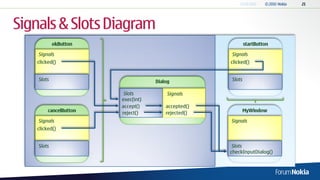

Signals & Slots Diagram
Signals Signals
clicked() clicked()

Slots Slots

Slots Signals
exec(int)
accept() accepted()
reject() rejected()
Signals Signals
clicked()

Slots Slots
checkInputDialog()

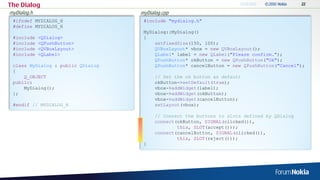

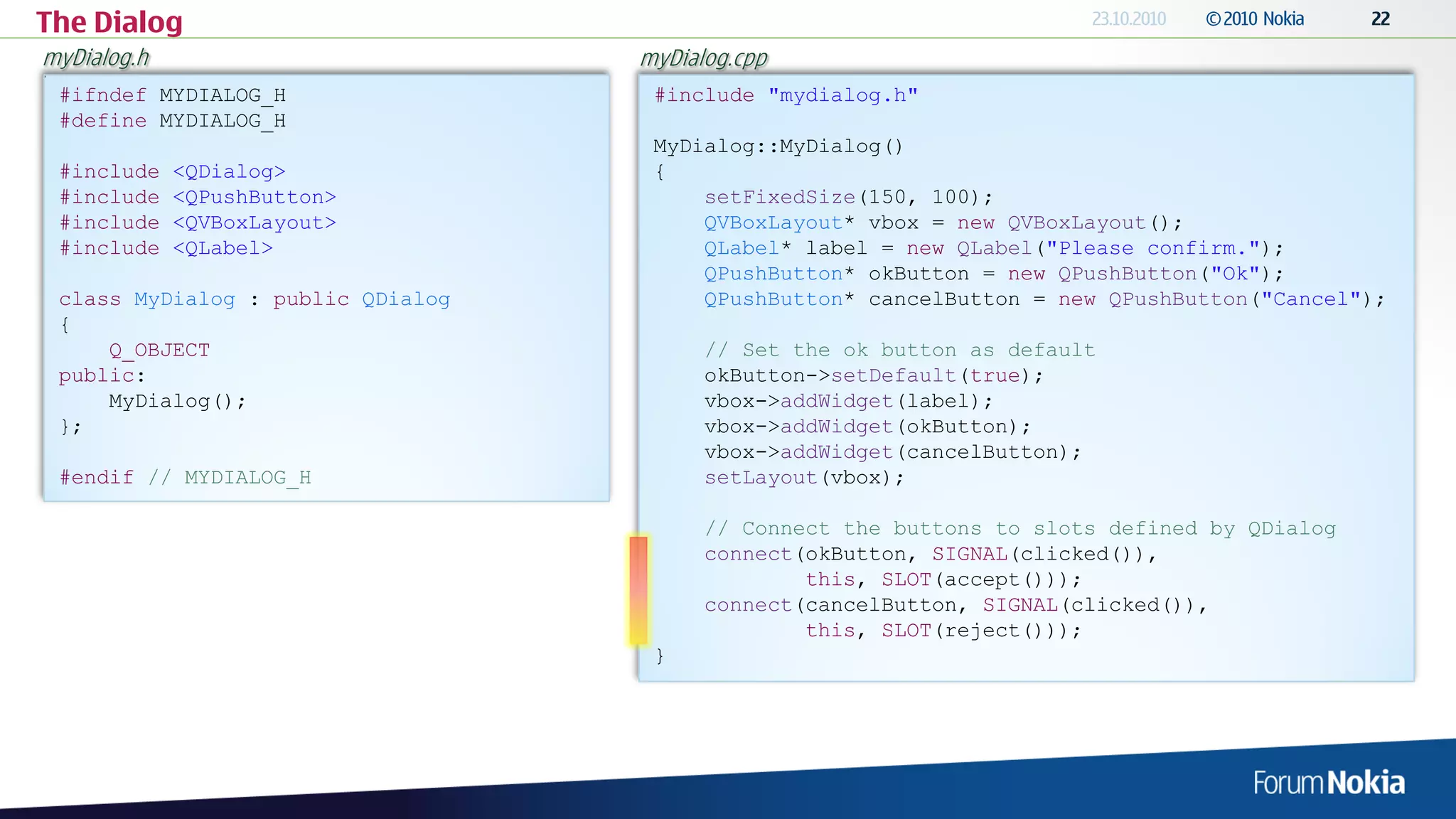

The Dialog
myDialog.h myDialog.cpp
#ifndef MYDIALOG_H #include "mydialog.h"
#define MYDIALOG_H
MyDialog::MyDialog()
#include <QDialog> {
#include <QPushButton> setFixedSize(150, 100);
#include <QVBoxLayout> QVBoxLayout* vbox = new QVBoxLayout();
#include <QLabel> QLabel* label = new QLabel("Please confirm.");
QPushButton* okButton = new QPushButton("Ok");
class MyDialog : public QDialog QPushButton* cancelButton = new QPushButton("Cancel");
{
Q_OBJECT // Set the ok button as default
public: okButton->setDefault(true);
MyDialog(); vbox->addWidget(label);
}; vbox->addWidget(okButton);
vbox->addWidget(cancelButton);
#endif // MYDIALOG_H setLayout(vbox);

// Connect the buttons to slots defined by QDialog
connect(okButton, SIGNAL(clicked()),
this, SLOT(accept()));
connect(cancelButton, SIGNAL(clicked()),
this, SLOT(reject()));
}

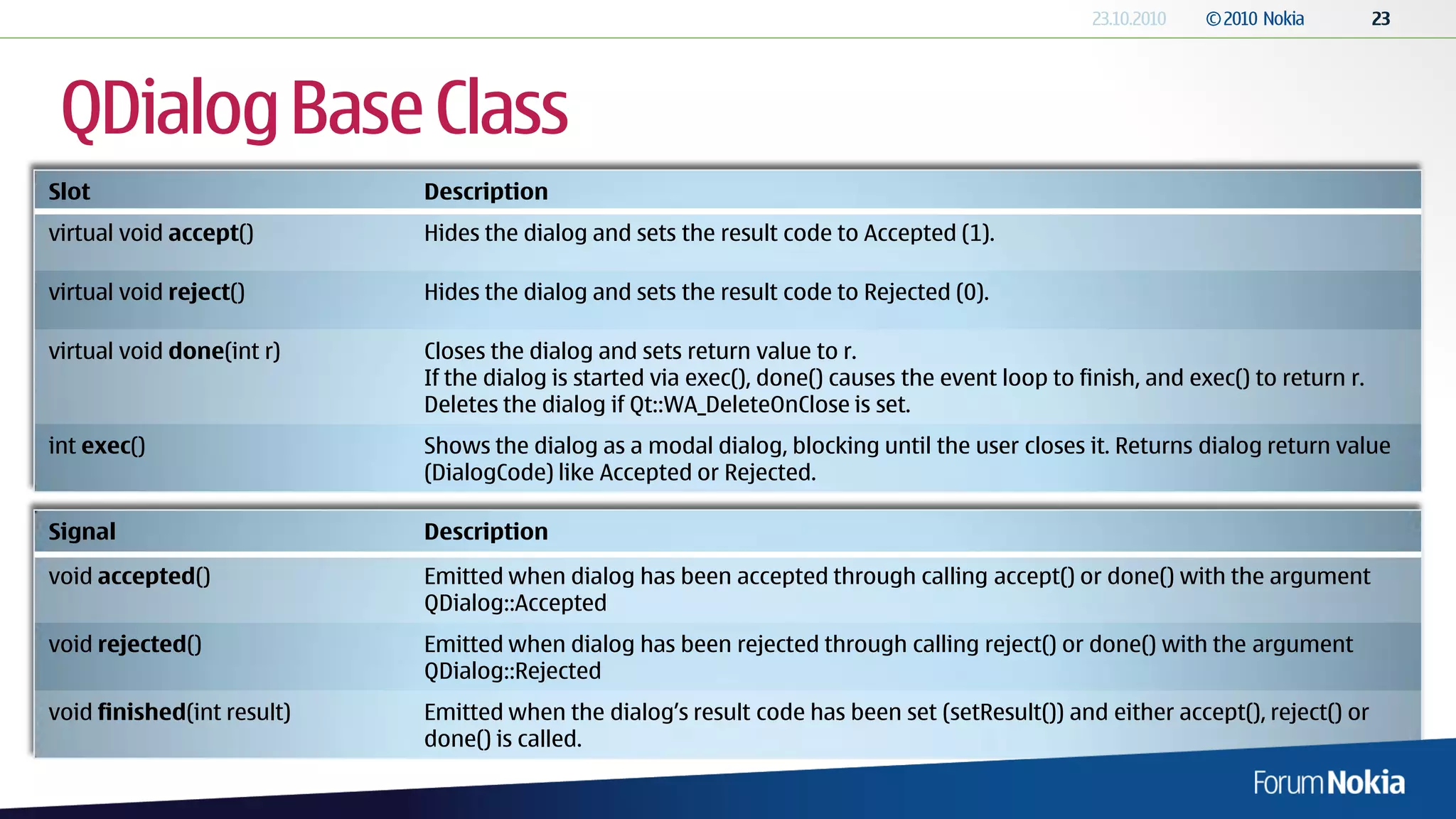

QDialog Base Class
Slot Description
virtual void accept() Hides the dialog and sets the result code to Accepted (1).

virtual void reject() Hides the dialog and sets the result code to Rejected (0).

virtual void done(int r) Closes the dialog and sets return value to r.
If the dialog is started via exec(), done() causes the event loop to finish, and exec() to return r.
Deletes the dialog if Qt::WA_DeleteOnClose is set.
int exec() Shows the dialog as a modal dialog, blocking until the user closes it. Returns dialog return value
(DialogCode) like Accepted or Rejected.

Signal Description
void accepted() Emitted when dialog has been accepted through calling accept() or done() with the argument
QDialog::Accepted
void rejected() Emitted when dialog has been rejected through calling reject() or done() with the argument
QDialog::Rejected
void finished(int result) Emitted when the dialog’s result code has been set (setResult()) and either accept(), reject() or
done() is called.

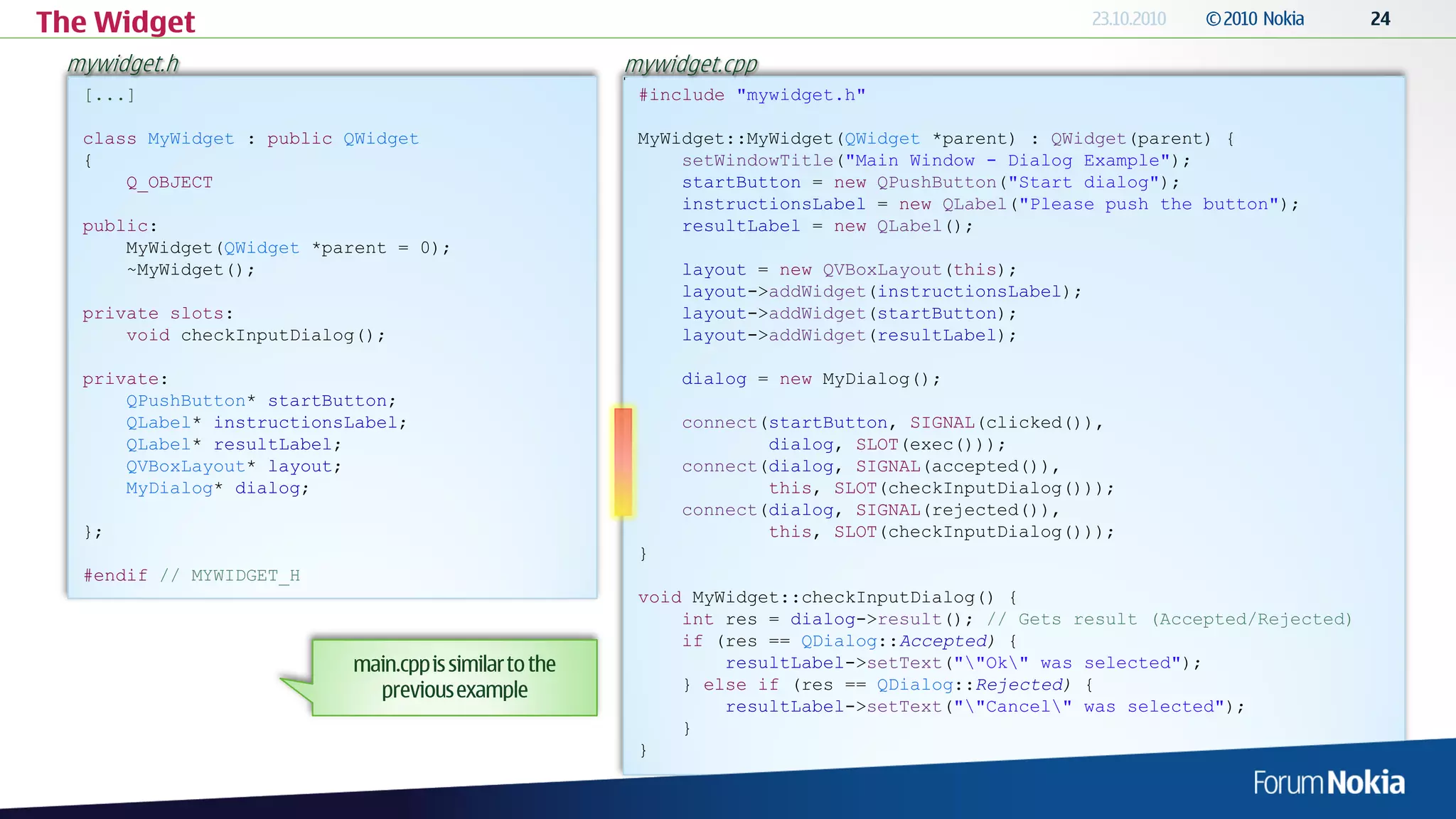

The Widget
mywidget.h mywidget.cpp
[...] #include "mywidget.h"

class MyWidget : public QWidget MyWidget::MyWidget(QWidget *parent) : QWidget(parent) {
{ setWindowTitle("Main Window - Dialog Example");
Q_OBJECT startButton = new QPushButton("Start dialog");
instructionsLabel = new QLabel("Please push the button");
public: resultLabel = new QLabel();
MyWidget(QWidget *parent = 0);
~MyWidget(); layout = new QVBoxLayout(this);
layout->addWidget(instructionsLabel);
private slots: layout->addWidget(startButton);
void checkInputDialog(); layout->addWidget(resultLabel);

private: dialog = new MyDialog();
QPushButton* startButton;
QLabel* instructionsLabel; connect(startButton, SIGNAL(clicked()),
QLabel* resultLabel; dialog, SLOT(exec()));
QVBoxLayout* layout; connect(dialog, SIGNAL(accepted()),
MyDialog* dialog; this, SLOT(checkInputDialog()));
connect(dialog, SIGNAL(rejected()),
}; this, SLOT(checkInputDialog()));
}
#endif // MYWIDGET_H
void MyWidget::checkInputDialog() {
int res = dialog->result(); // Gets result (Accepted/Rejected)
if (res == QDialog::Accepted) {
resultLabel->setText(""Ok" was selected");
} else if (res == QDialog::Rejected) {
resultLabel->setText(""Cancel" was selected");
}
}

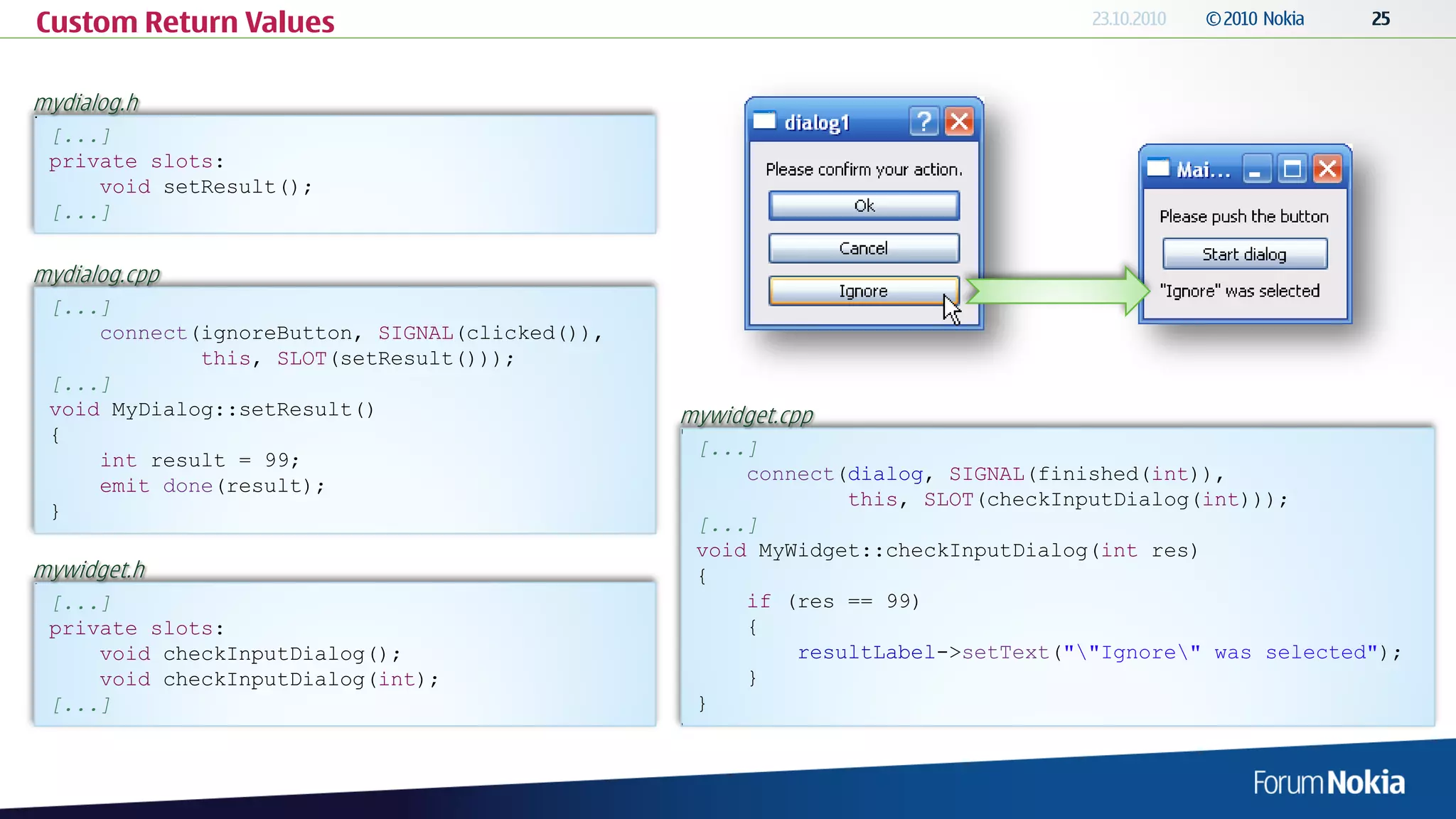

Custom Return Values

mydialog.h
[...]
private slots:
void setResult();
[...]

mydialog.cpp
[...]
connect(ignoreButton, SIGNAL(clicked()),
this, SLOT(setResult()));
[...]
void MyDialog::setResult() mywidget.cpp
{
[...]
int result = 99;
connect(dialog, SIGNAL(finished(int)),
emit done(result);
this, SLOT(checkInputDialog(int)));
}
[...]
void MyWidget::checkInputDialog(int res)
mywidget.h {
[...] if (res == 99)
private slots: {
void checkInputDialog(); resultLabel->setText(""Ignore" was selected");
void checkInputDialog(int); }
[...] }

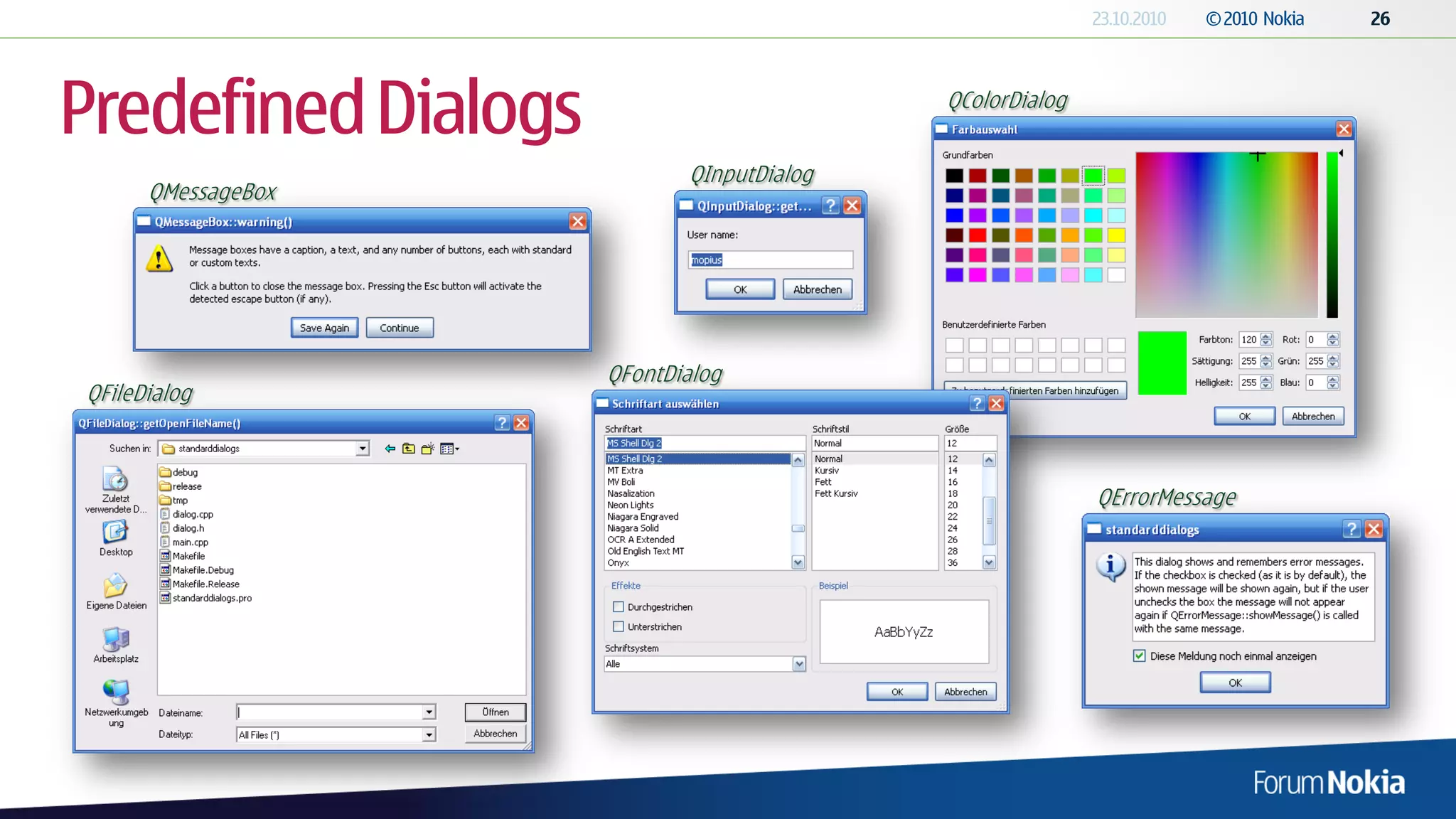

Predefined Dialogs QColorDialog

QInputDialog
QMessageBox

QFontDialog
QFileDialog

QErrorMessage

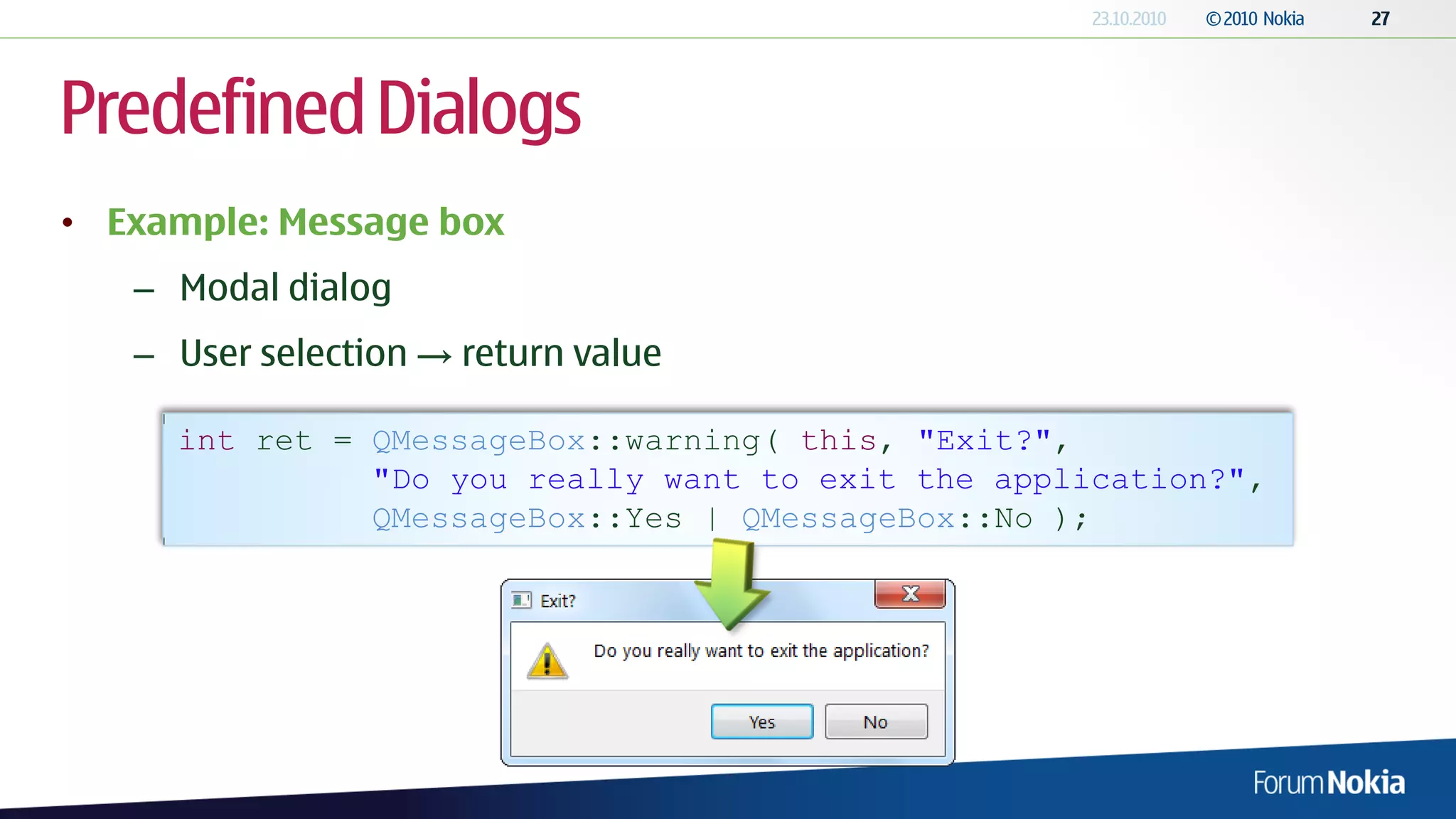

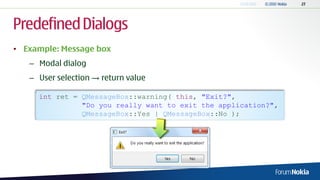

Predefined Dialogs
• Example: Message box
– Modal dialog
– User selection → return value

int ret = QMessageBox::warning( this, "Exit?",
"Do you really want to exit the application?",
QMessageBox::Yes | QMessageBox::No );

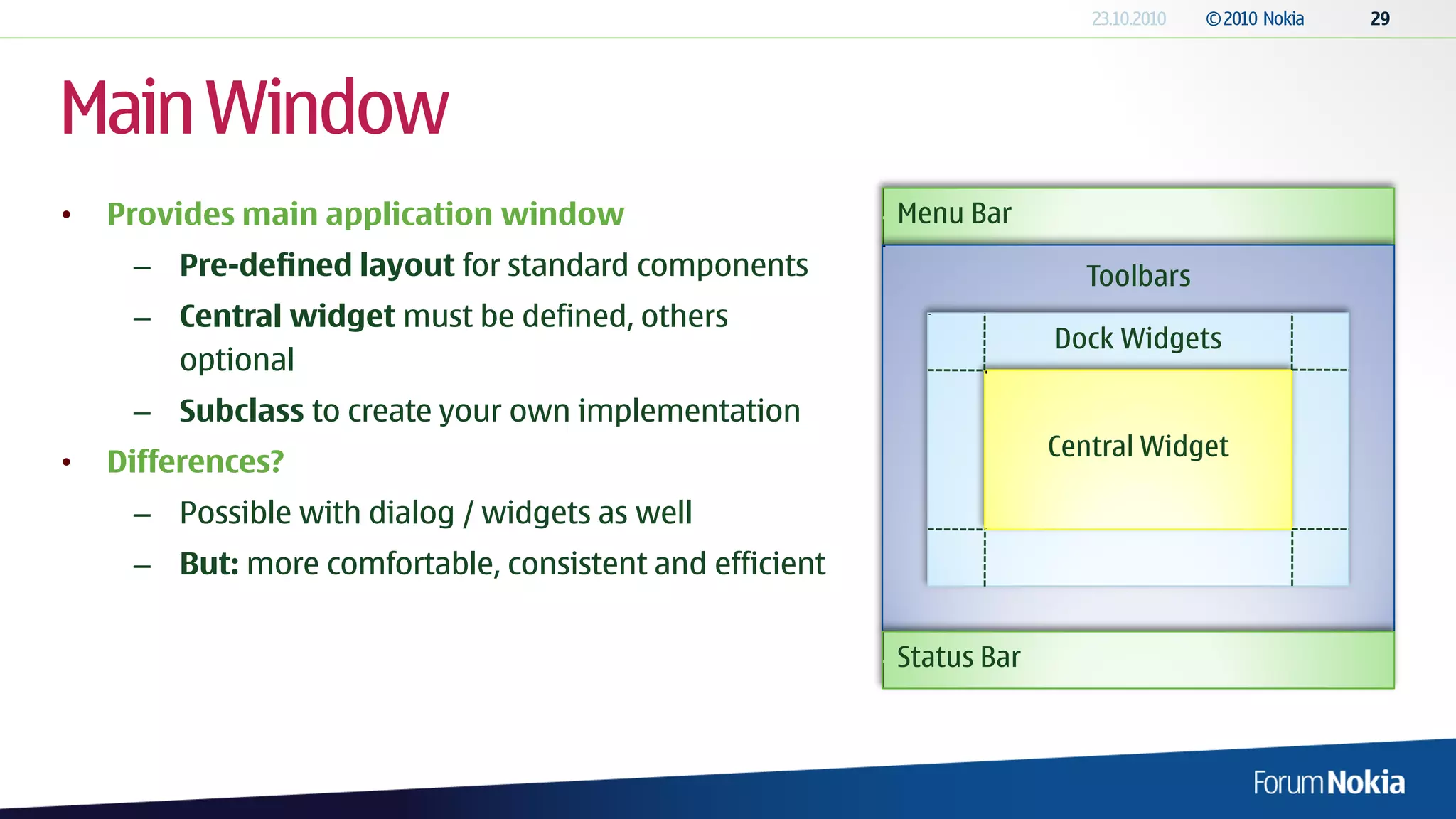

Main Window
• Provides main application window Menu Bar
– Pre-defined layout for standard components Toolbars
– Central widget must be defined, others
Dock Widgets
optional
– Subclass to create your own implementation
Central Widget
• Differences?
– Possible with dialog / widgets as well
– But: more comfortable, consistent and efficient

Status Bar

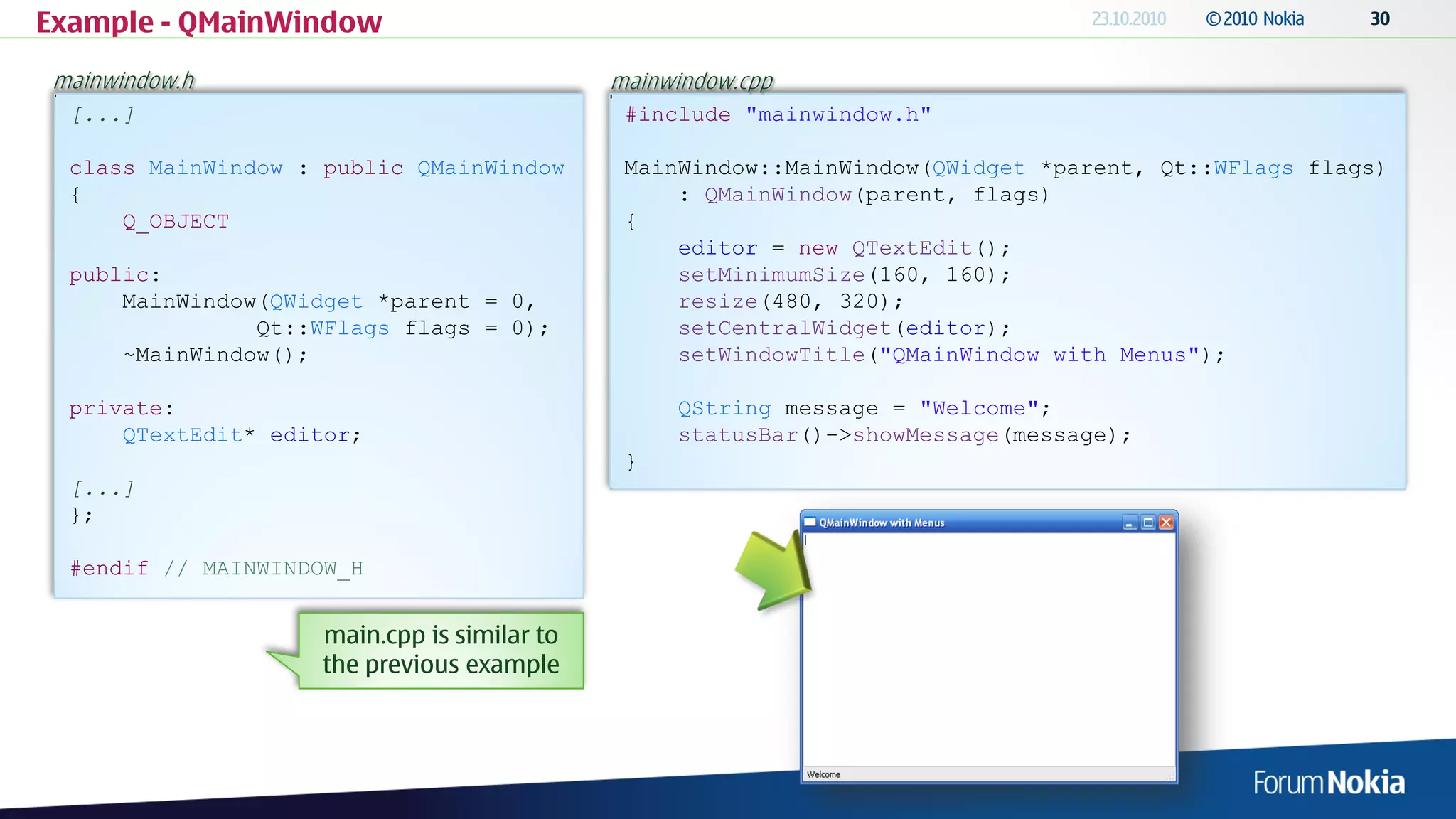

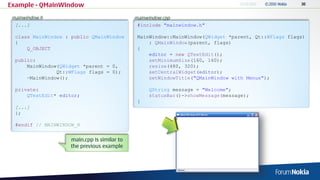

Example - QMainWindow
mainwindow.h mainwindow.cpp
[...] #include "mainwindow.h"

class MainWindow : public QMainWindow MainWindow::MainWindow(QWidget *parent, Qt::WFlags flags)
{ : QMainWindow(parent, flags)
Q_OBJECT {
editor = new QTextEdit();
public: setMinimumSize(160, 160);
MainWindow(QWidget *parent = 0, resize(480, 320);
Qt::WFlags flags = 0); setCentralWidget(editor);
~MainWindow(); setWindowTitle("QMainWindow with Menus");

private: QString message = "Welcome";
QTextEdit* editor; statusBar()->showMessage(message);
}
[...]
};

#endif // MAINWINDOW_H

main.cpp is similar to
the previous example

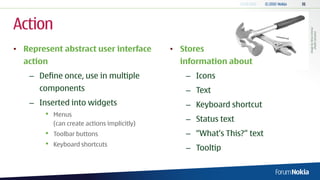

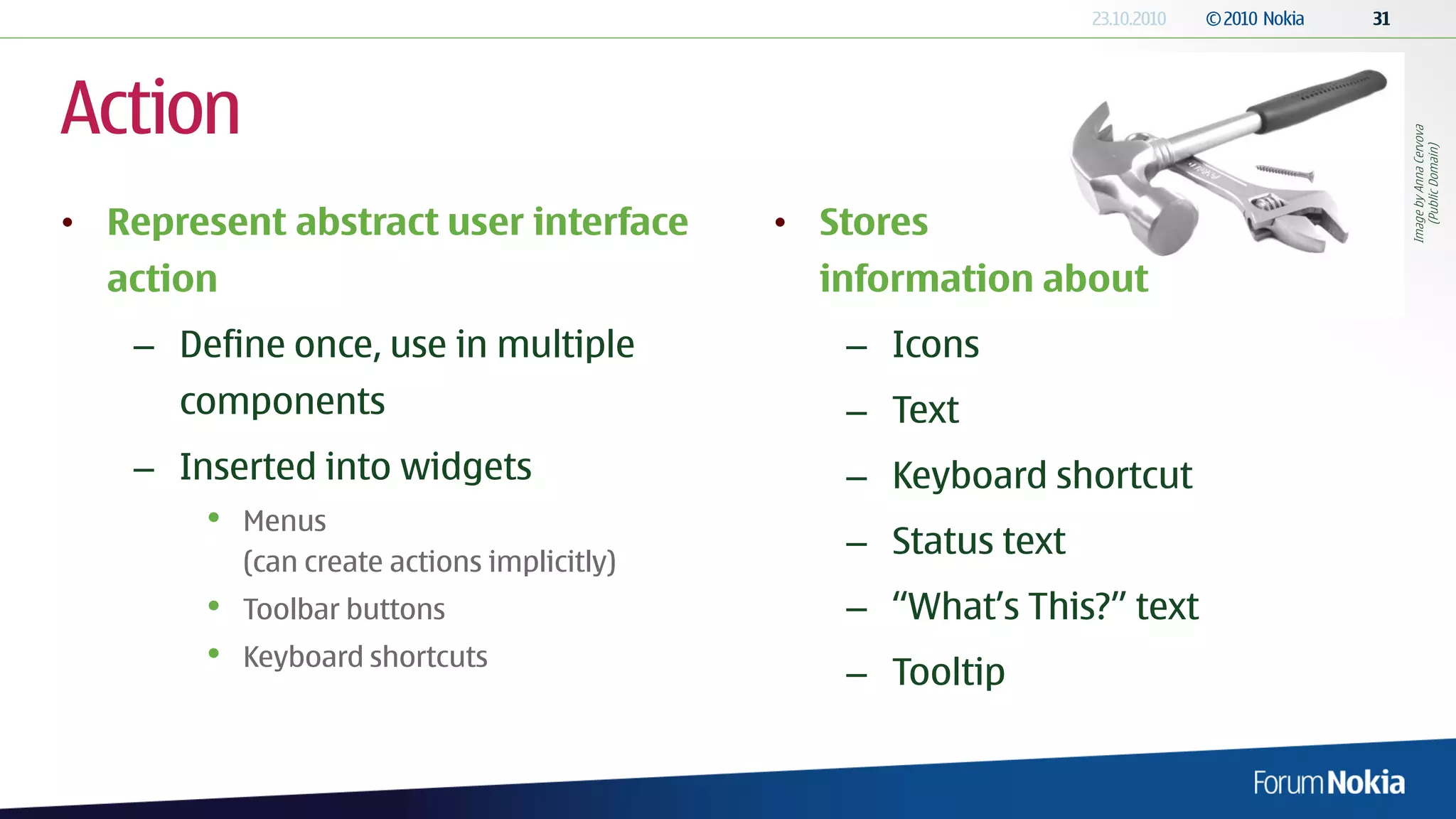

Action

Image by Anna Cervova
(Public Domain)
• Represent abstract user interface • Stores
action information about
– Define once, use in multiple – Icons
components – Text
– Inserted into widgets – Keyboard shortcut
• Menus
(can create actions implicitly)
– Status text
• Toolbar buttons – “What’s This?” text
• Keyboard shortcuts
– Tooltip

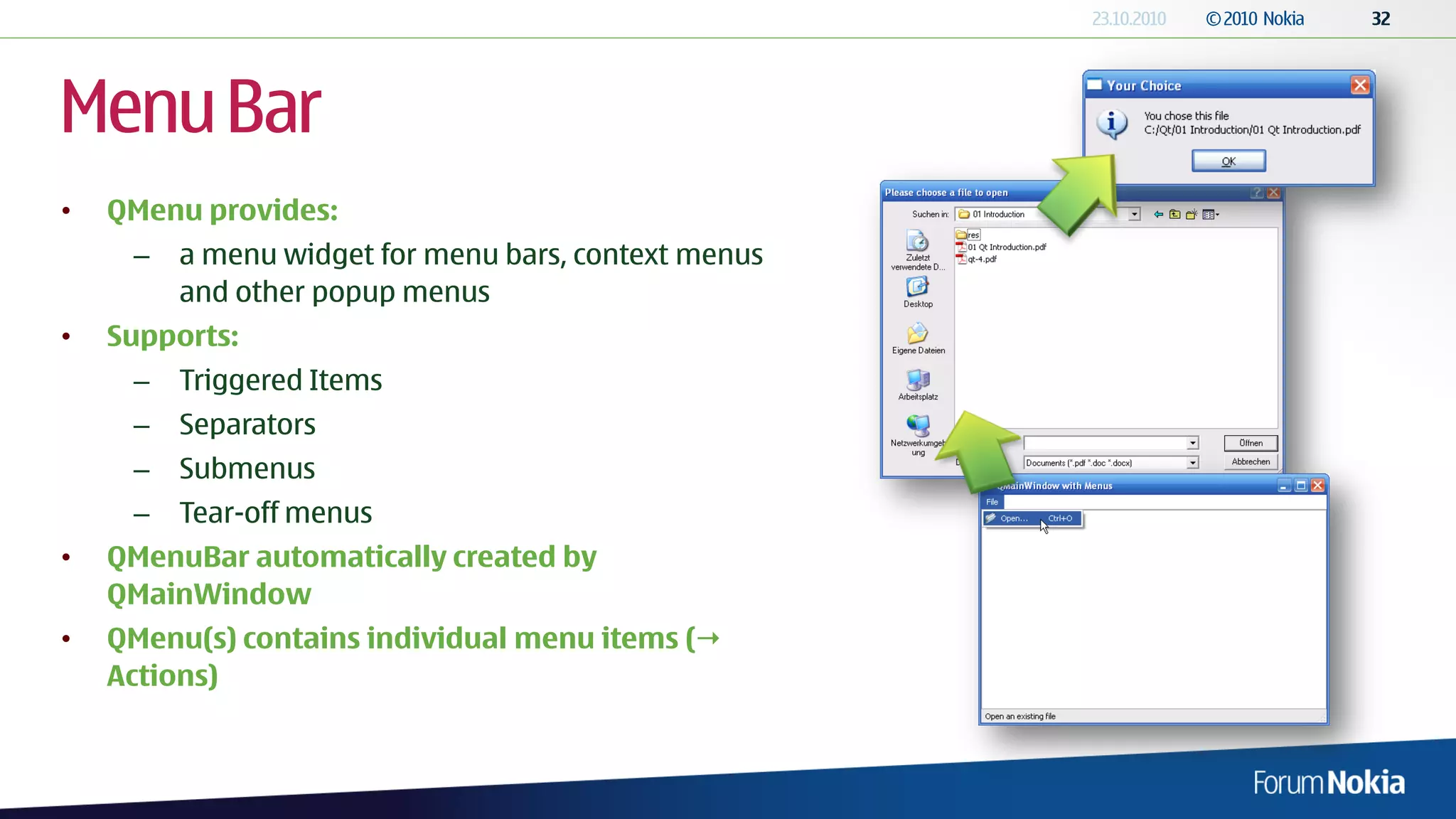

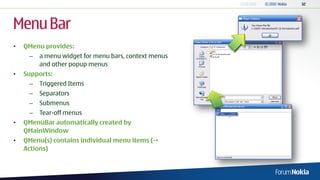

Menu Bar
• QMenu provides:
– a menu widget for menu bars, context menus
and other popup menus
• Supports:
– Triggered Items
– Separators
– Submenus
– Tear-off menus
• QMenuBar automatically created by
QMainWindow
• QMenu(s) contains individual menu items (
Actions)

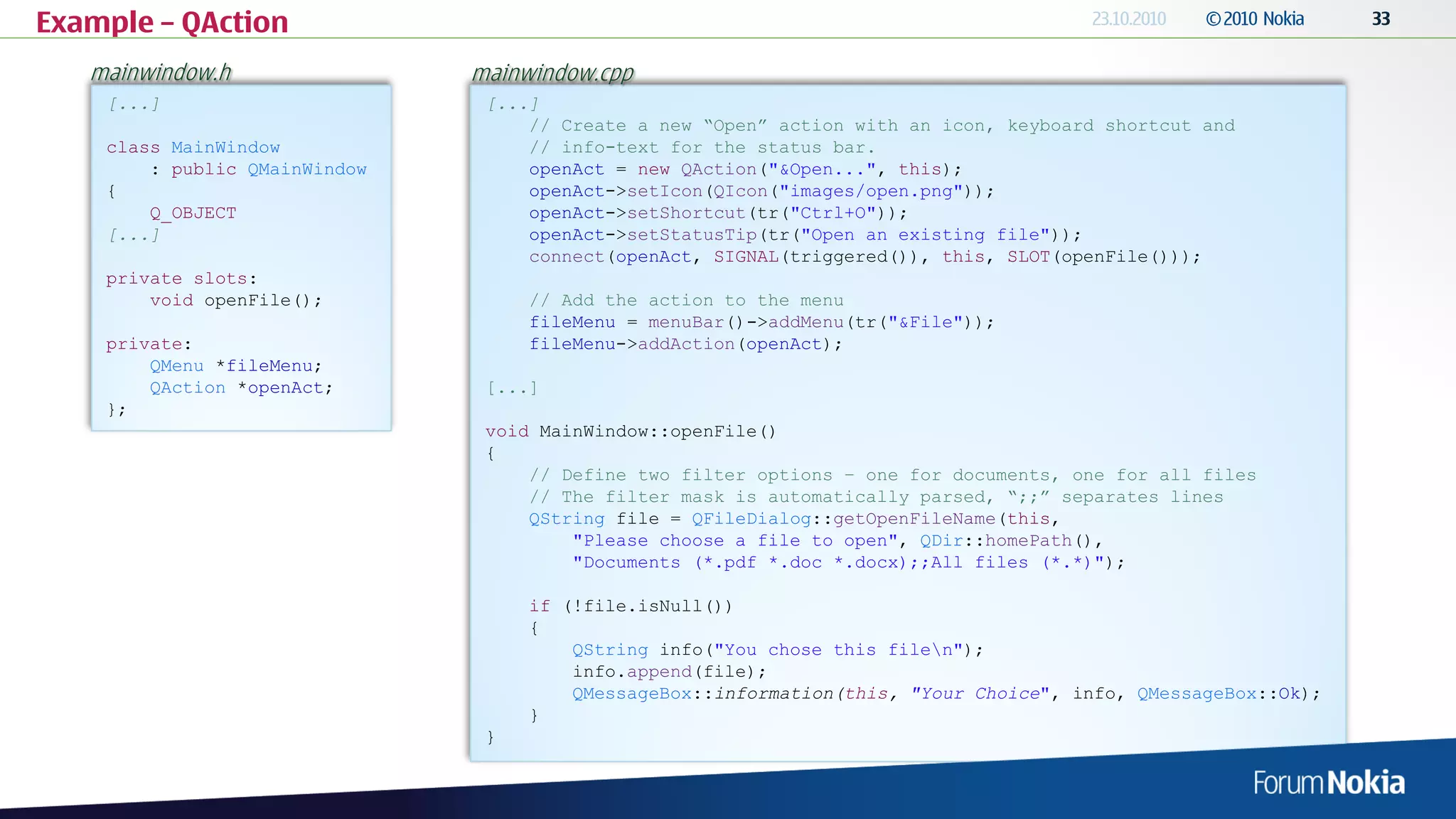

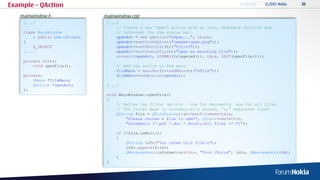

Example – QAction
[...] [...]
// Create a new “Open” action with an icon, keyboard shortcut and
class MainWindow // info-text for the status bar.
: public QMainWindow openAct = new QAction("&Open...", this);
{ openAct->setIcon(QIcon("images/open.png"));
Q_OBJECT openAct->setShortcut(tr("Ctrl+O"));
[...] openAct->setStatusTip(tr("Open an existing file"));
connect(openAct, SIGNAL(triggered()), this, SLOT(openFile()));
private slots:
void openFile(); // Add the action to the menu
fileMenu = menuBar()->addMenu(tr("&File"));
private: fileMenu->addAction(openAct);
QMenu *fileMenu;
QAction *openAct; [...]
};
void MainWindow::openFile()
{
// Define two filter options – one for documents, one for all files
// The filter mask is automatically parsed, “;;” separates lines
QString file = QFileDialog::getOpenFileName(this,
"Please choose a file to open", QDir::homePath(),
"Documents (*.pdf *.doc *.docx);;All files (*.*)");

if (!file.isNull())
{
QString info("You chose this filen");
info.append(file);
QMessageBox::information(this, "Your Choice", info, QMessageBox::Ok);
}
}

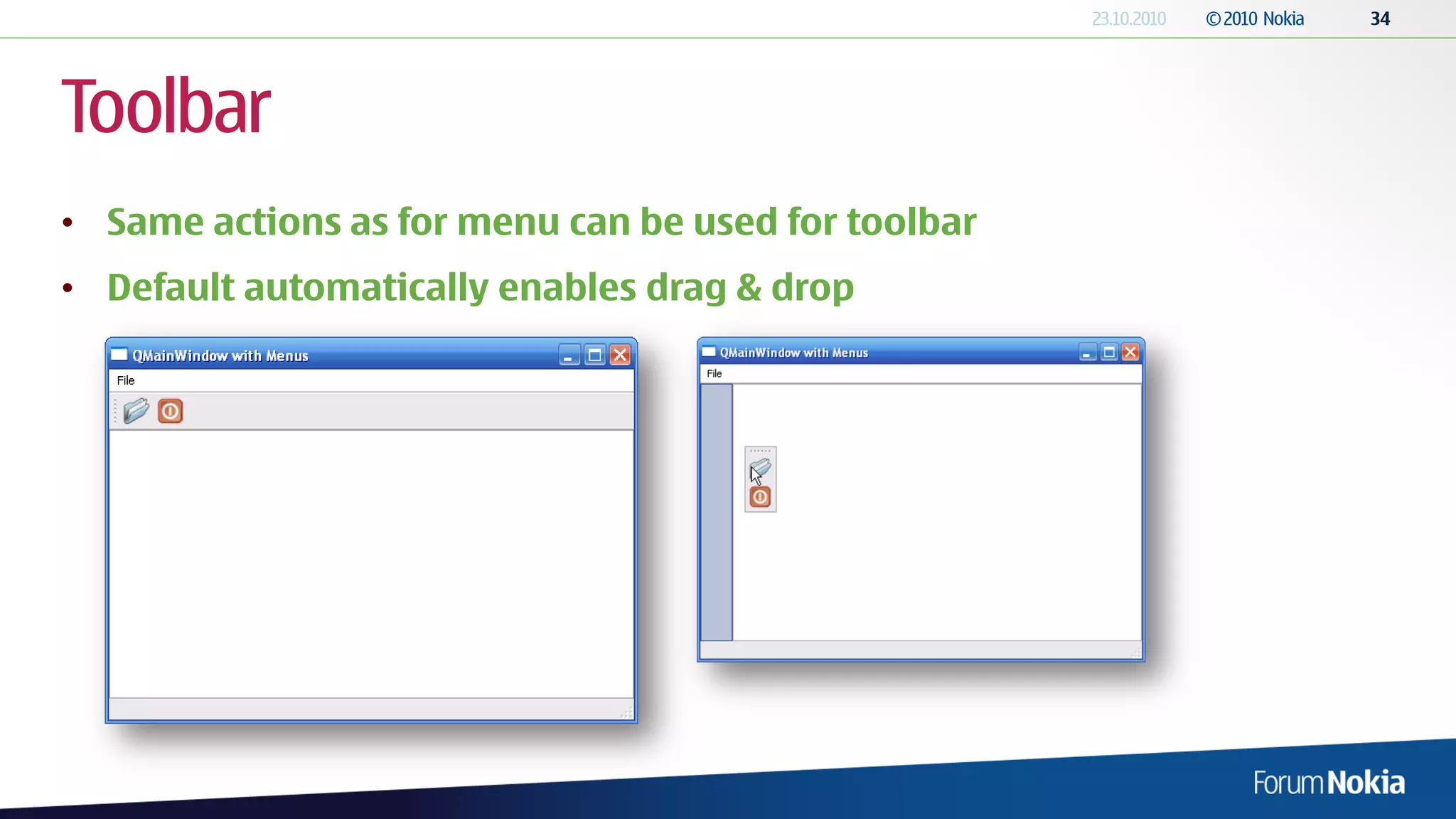

Toolbar
• Same actions as for menu can be used for toolbar
• Default automatically enables drag & drop

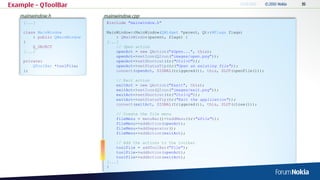

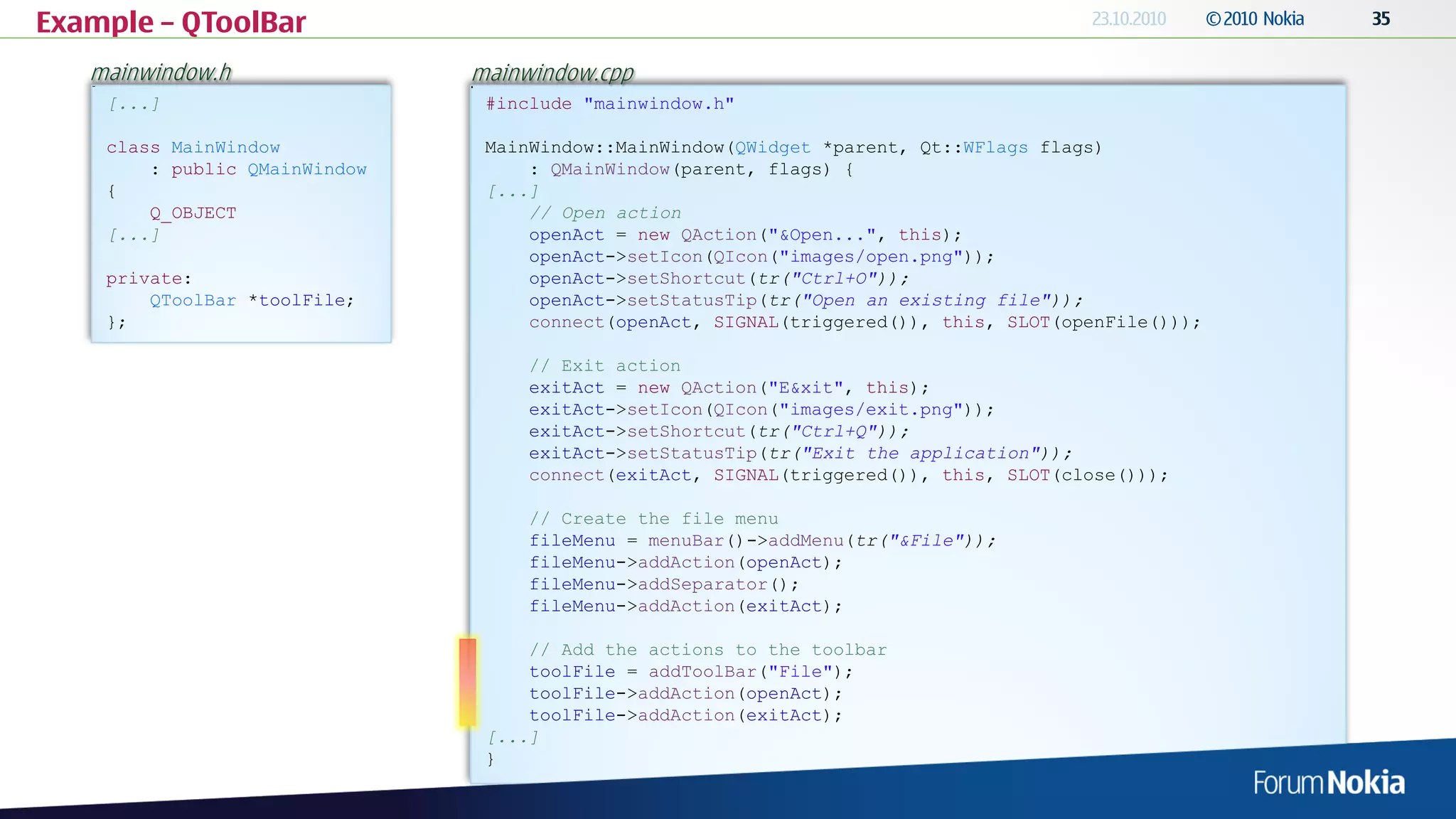

Example – QToolBar
[...] #include "mainwindow.h"

class MainWindow MainWindow::MainWindow(QWidget *parent, Qt::WFlags flags)
: public QMainWindow : QMainWindow(parent, flags) {
{ [...]
Q_OBJECT // Open action
[...] openAct = new QAction("&Open...", this);
openAct->setIcon(QIcon("images/open.png"));
private: openAct->setShortcut(tr("Ctrl+O"));
QToolBar *toolFile; openAct->setStatusTip(tr("Open an existing file"));
}; connect(openAct, SIGNAL(triggered()), this, SLOT(openFile()));

// Exit action
exitAct = new QAction("E&xit", this);
exitAct->setIcon(QIcon("images/exit.png"));
exitAct->setShortcut(tr("Ctrl+Q"));
exitAct->setStatusTip(tr("Exit the application"));
connect(exitAct, SIGNAL(triggered()), this, SLOT(close()));

// Create the file menu
fileMenu = menuBar()->addMenu(tr("&File"));
fileMenu->addAction(openAct);
fileMenu->addSeparator();
fileMenu->addAction(exitAct);

// Add the actions to the toolbar
toolFile = addToolBar("File");
toolFile->addAction(openAct);
toolFile->addAction(exitAct);
[...]
}

03 - Qt UI Development

More Related Content

What's hot

Viewers also liked

Similar to 03 - Qt UI Development

More from Andreas Jakl

Recently uploaded

03 - Qt UI Development
