![Quick Sort Algorithm
1. Choose the pivot element pivot = a[low]
2. Put all elements less than pivot on the left ; put all elements
Larger than pivot on the right; put pivot at the middle
(partition).
3. Quicksort the array on the left of pivot recursively.
4. Quicksort the array on the right of pivot recursively.](https://image.slidesharecdn.com/quicksort-160502092555/85/Quick-sort-4-320.jpg)
![Quick Sort Algorithm
1. Choose the pivot element pivot = a[low]
2. Put all elements less than pivot on the left ; put all elements
Larger than pivot on the right; put pivot at the middle
(partition).
3. Quicksort the array on the left of pivot recursively.
4. Quicksort the array on the right of pivot recursively.](https://image.slidesharecdn.com/quicksort-160502092555/75/Quick-sort-4-2048.jpg)
More Related Content
Quick sort
- 1. Quick Sort By AmarKakde

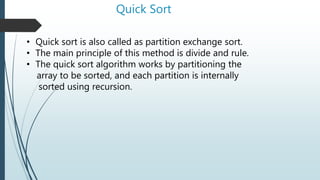

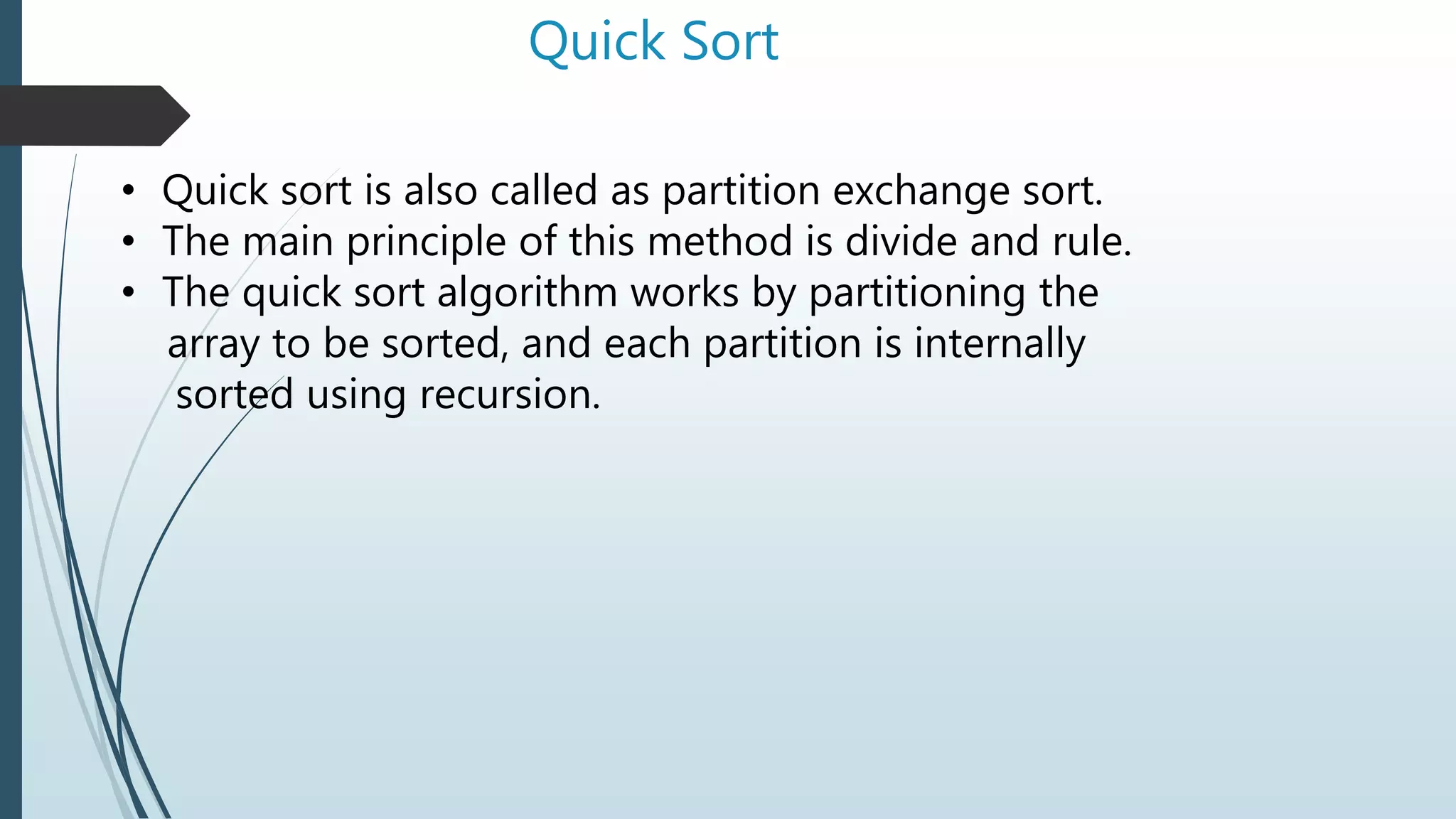

- 2. Quick Sort • Quicksort is also called as partition exchange sort. • The main principle of this method is divide and rule. • The quick sort algorithm works by partitioning the array to be sorted, and each partition is internally sorted using recursion.

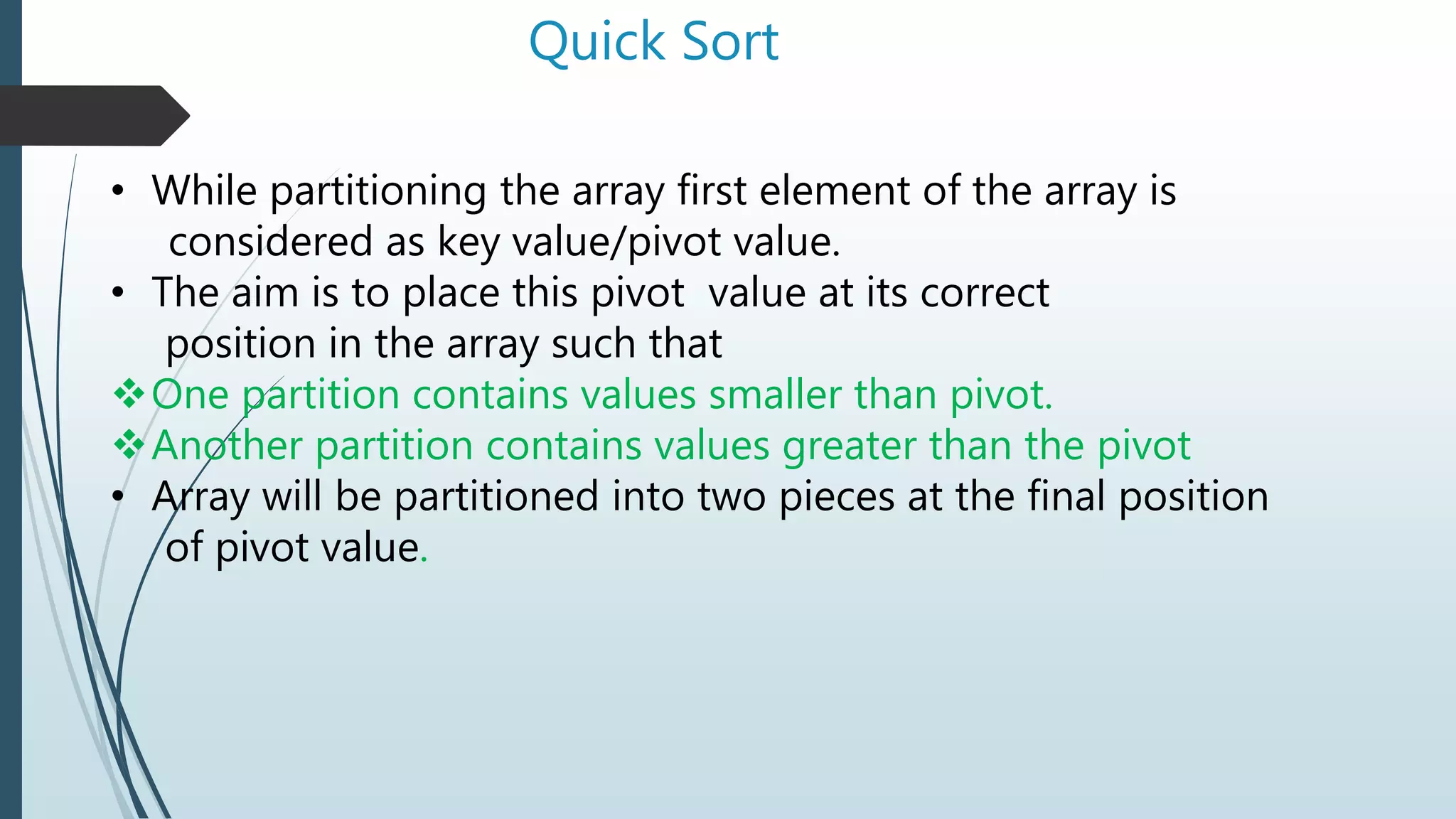

- 3. Quick Sort • Whilepartitioning the array first element of the array is considered as key value/pivot value. • The aim is to place this pivot value at its correct position in the array such that One partition contains values smaller than pivot. Another partition contains values greater than the pivot • Array will be partitioned into two pieces at the final position of pivot value.

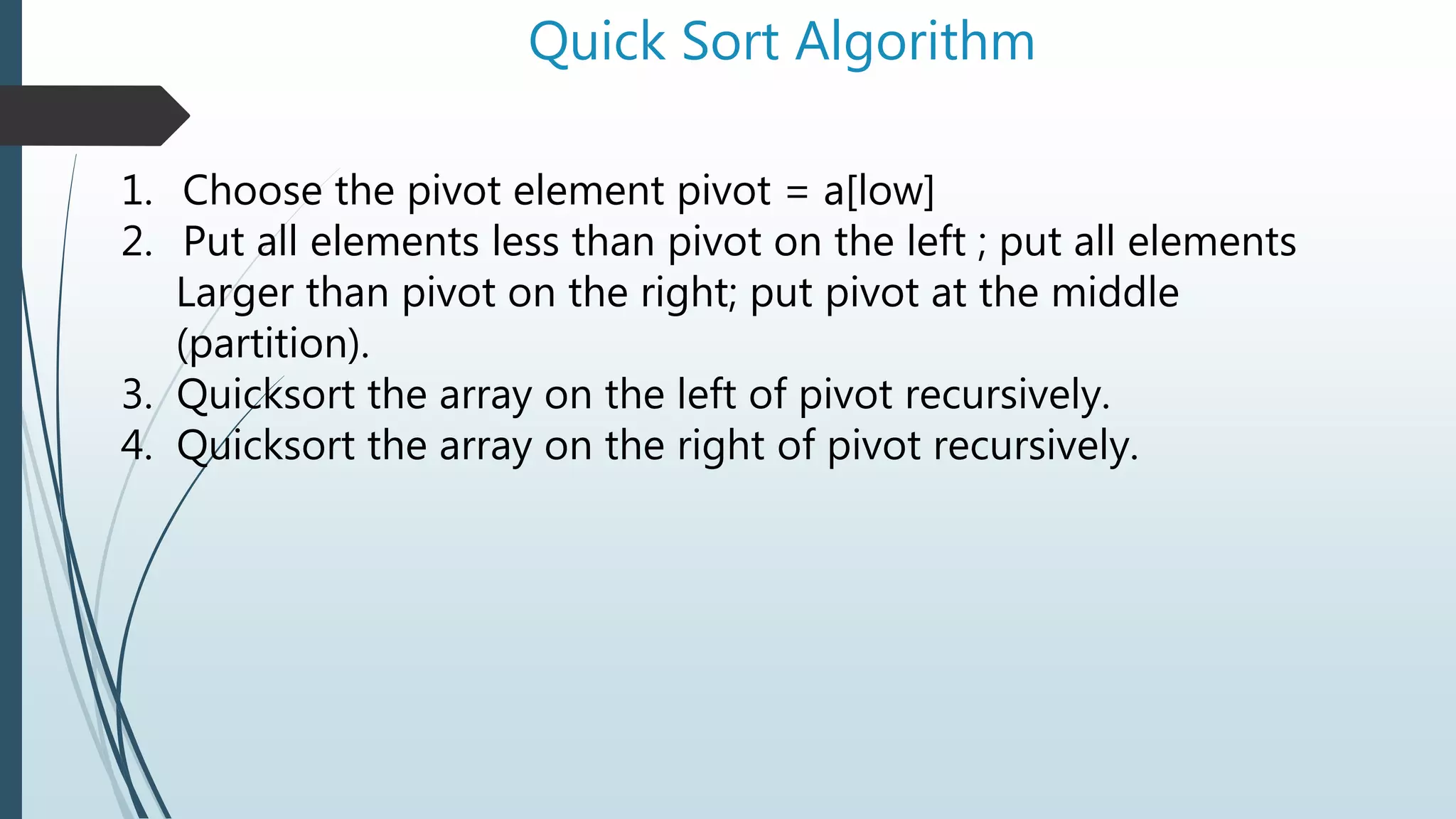

- 4. Quick Sort Algorithm 1.Choose the pivot element pivot = a[low] 2. Put all elements less than pivot on the left ; put all elements Larger than pivot on the right; put pivot at the middle (partition). 3. Quicksort the array on the left of pivot recursively. 4. Quicksort the array on the right of pivot recursively.

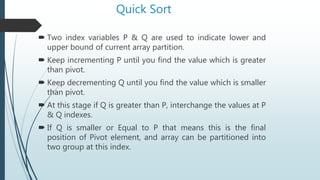

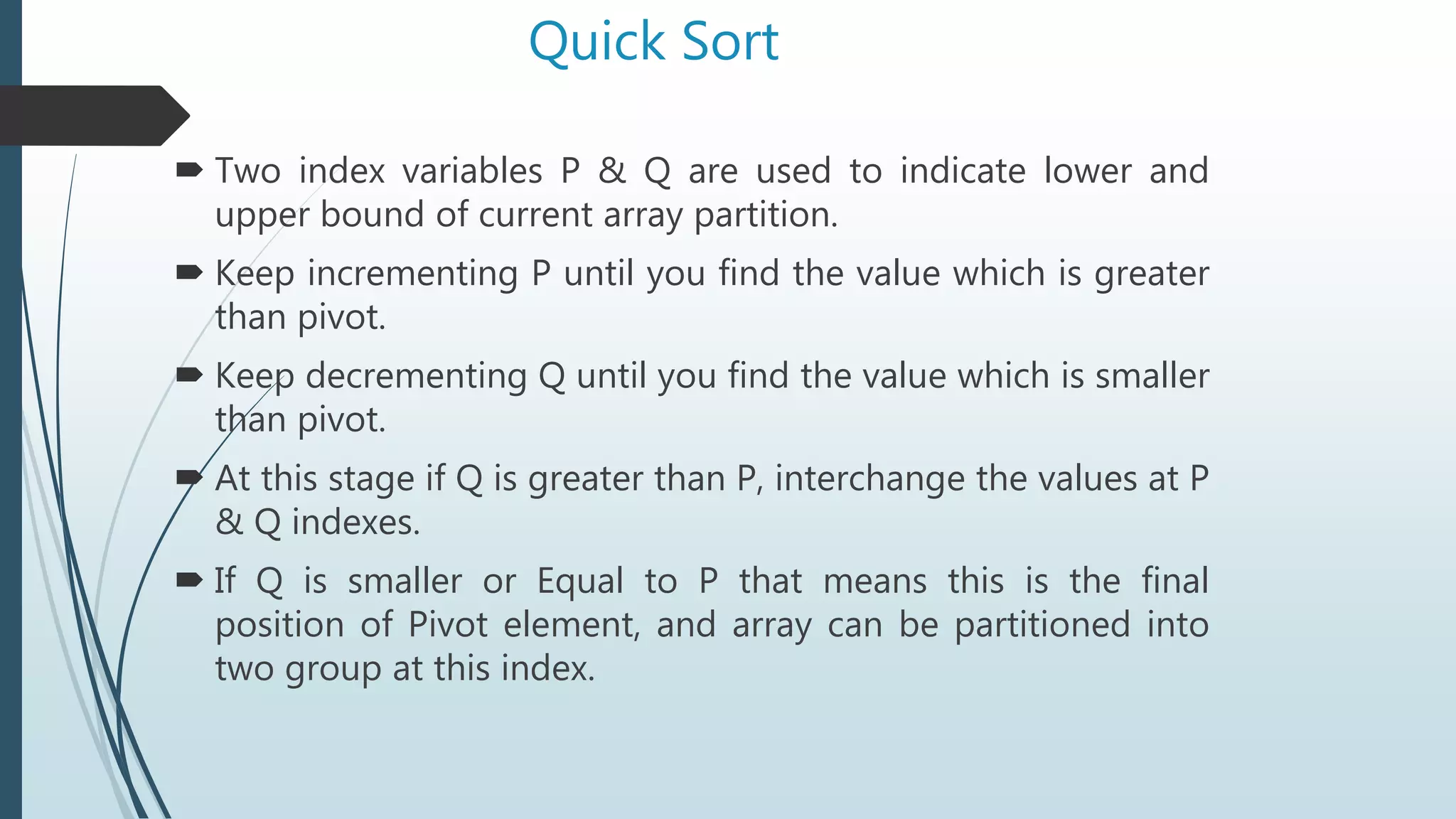

- 5. Quick Sort Twoindex variables P & Q are used to indicate lower and upper bound of current array partition. Keep incrementing P until you find the value which is greater than pivot. Keep decrementing Q until you find the value which is smaller than pivot. At this stage if Q is greater than P, interchange the values at P & Q indexes. If Q is smaller or Equal to P that means this is the final position of Pivot element, and array can be partitioned into two group at this index.

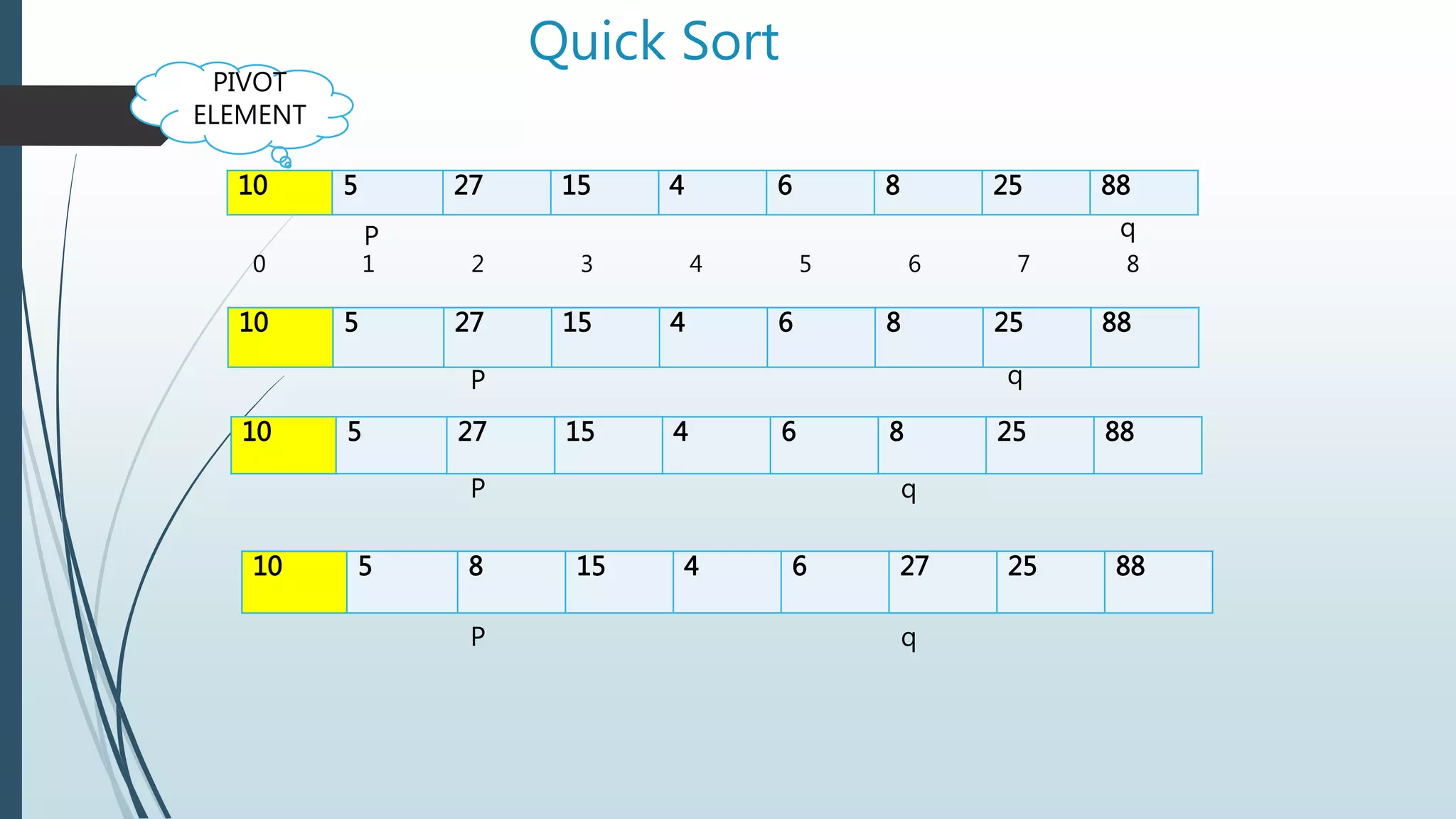

- 6. Quick Sort 10 527 15 4 6 8 25 88 PIVOT ELEMENT 0 1 2 3 4 5 6 7 8 P q 10 5 27 15 4 6 8 25 88 P q 10 5 27 15 4 6 8 25 88 P q 10 5 8 15 4 6 27 25 88 qP

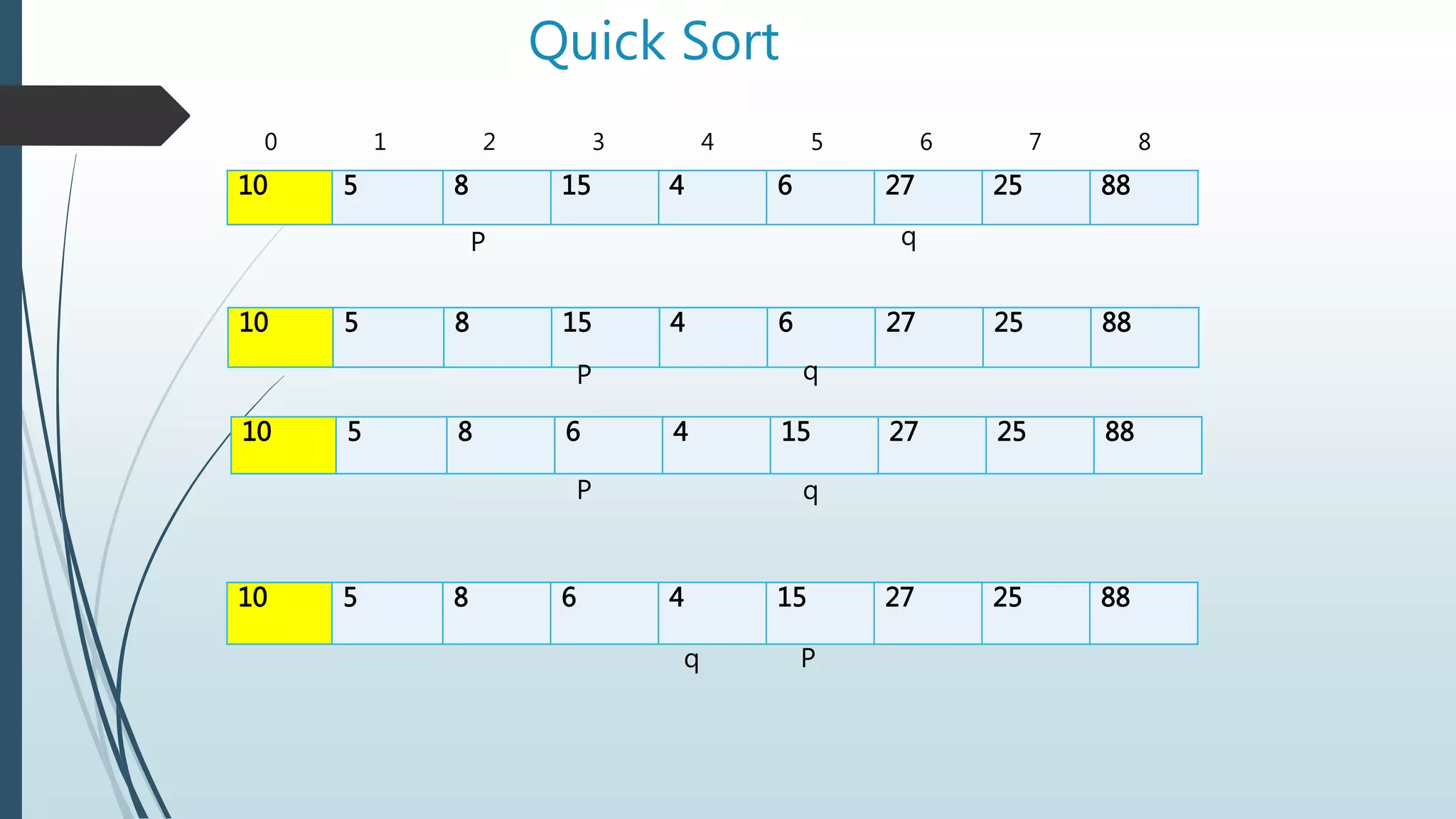

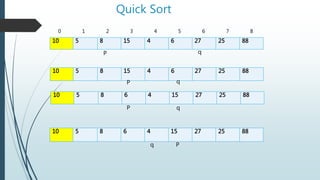

- 7. Quick Sort 10 58 15 4 6 27 25 88 0 1 2 3 4 5 6 7 8 P q 10 5 8 15 4 6 27 25 88 P q 10 5 8 6 4 15 27 25 88 P q 10 5 8 6 4 15 27 25 88 q P

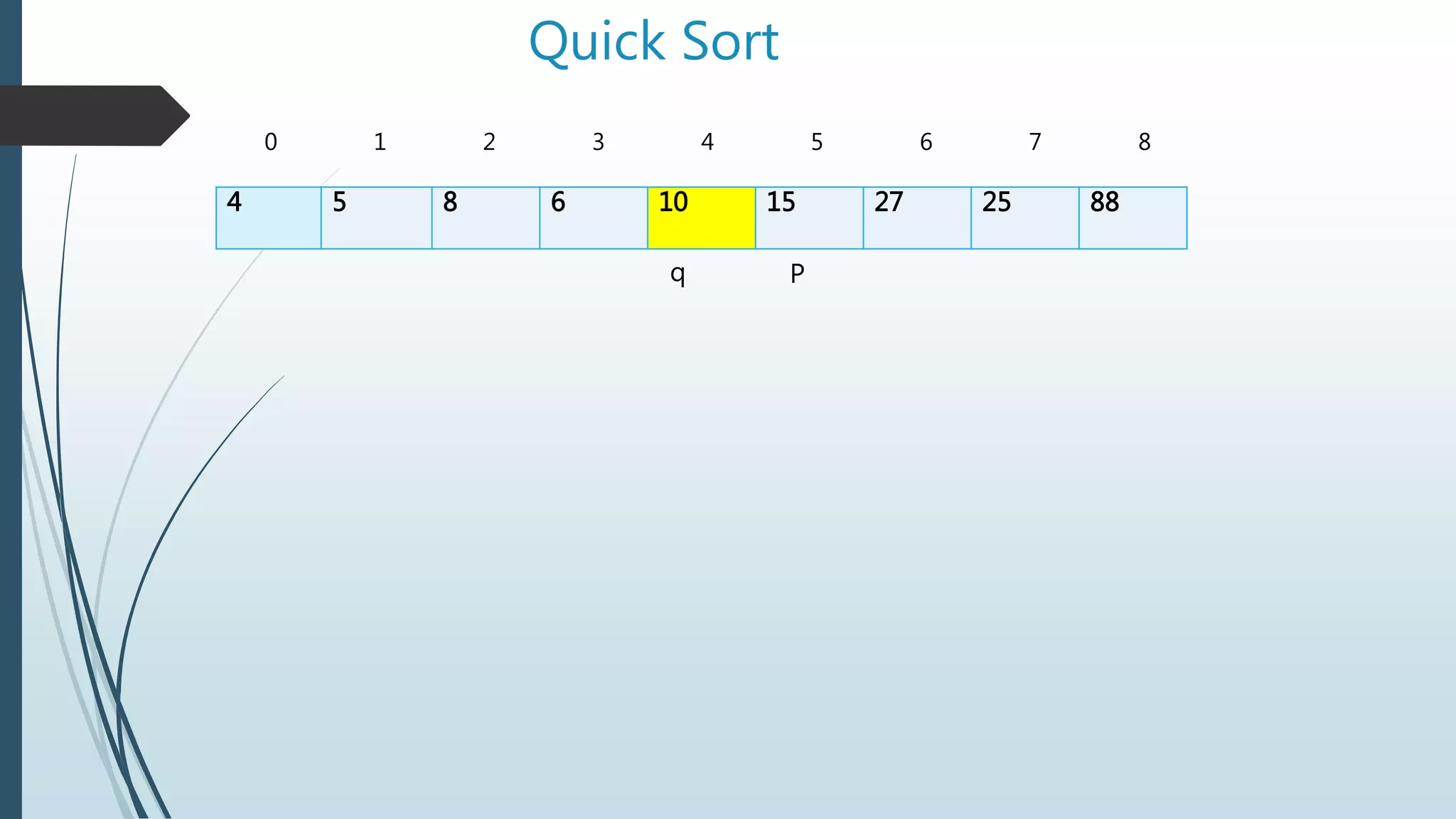

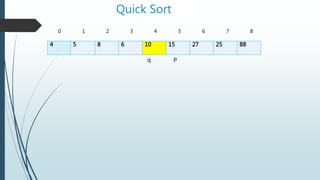

- 8. Quick Sort 0 12 3 4 5 6 7 8 4 5 8 6 10 15 27 25 88 q P

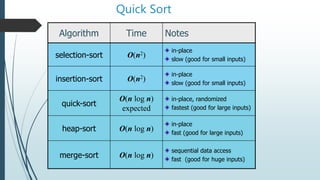

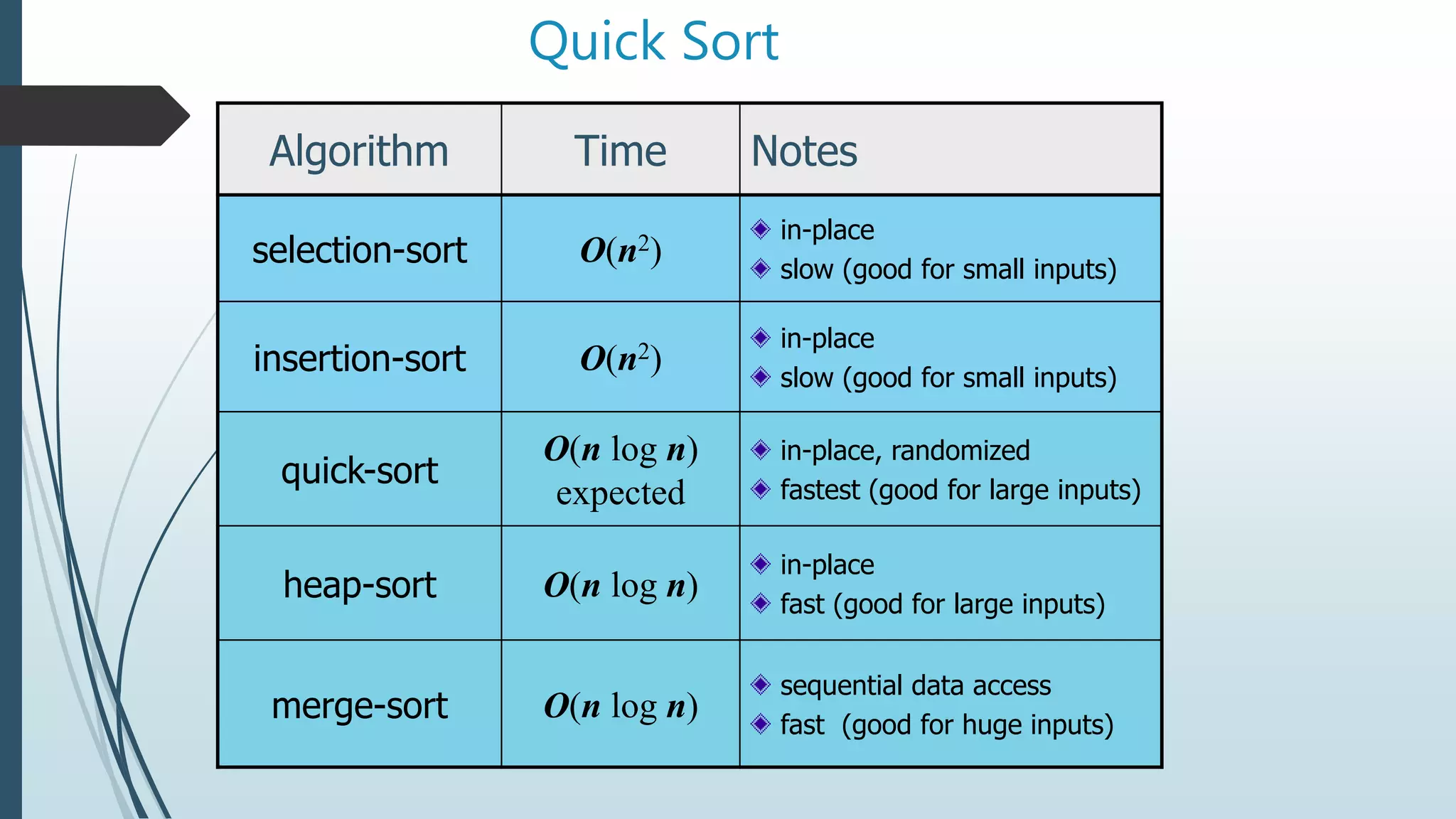

- 9. Quick Sort Algorithm TimeNotes selection-sort O(n2) in-place slow (good for small inputs) insertion-sort O(n2) in-place slow (good for small inputs) quick-sort O(n log n) expected in-place, randomized fastest (good for large inputs) heap-sort O(n log n) in-place fast (good for large inputs) merge-sort O(n log n) sequential data access fast (good for huge inputs)
